Toyota Lexus Lbx
2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe
Supported model
Data version 2023-11
Speaker

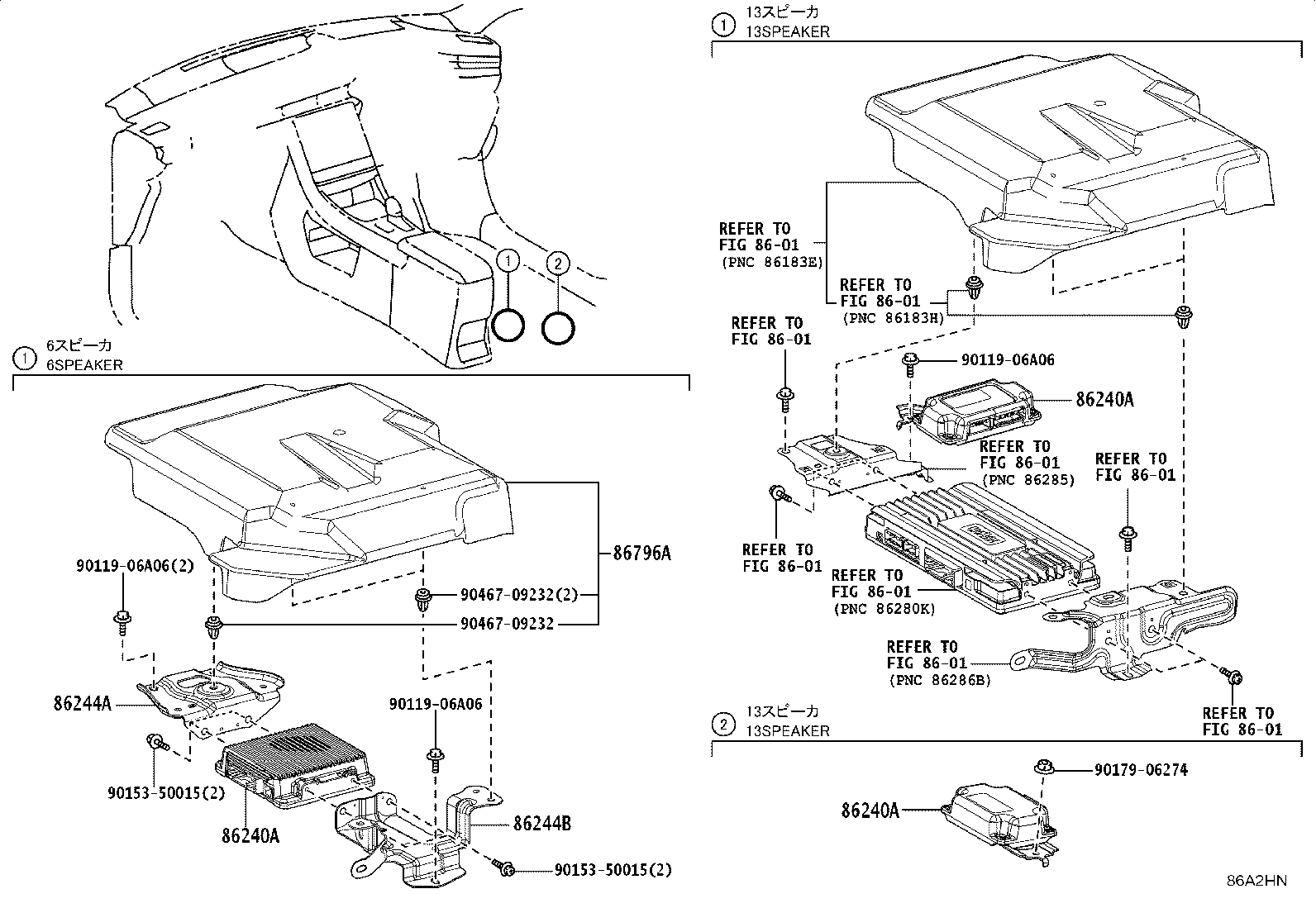

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 86150 | Speaker Assy, W/Box, NO.1 |
| 86150H | Speaker Assy, W/Bracket |
| 86160 | Speaker Assy, Front NO.1 |
| 86160B | Speaker Assy, Rear |
| 86160P | Speaker Assy, Front NO.2 |
| 86240A | Equalizer Assy,Stereo Component |
| 86734D | Microphone, Active Noise Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
