Toyota Lexus Lbx

2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Navigation & Front Monitor Display

7 part groups · 2 illustrations

Illustrations

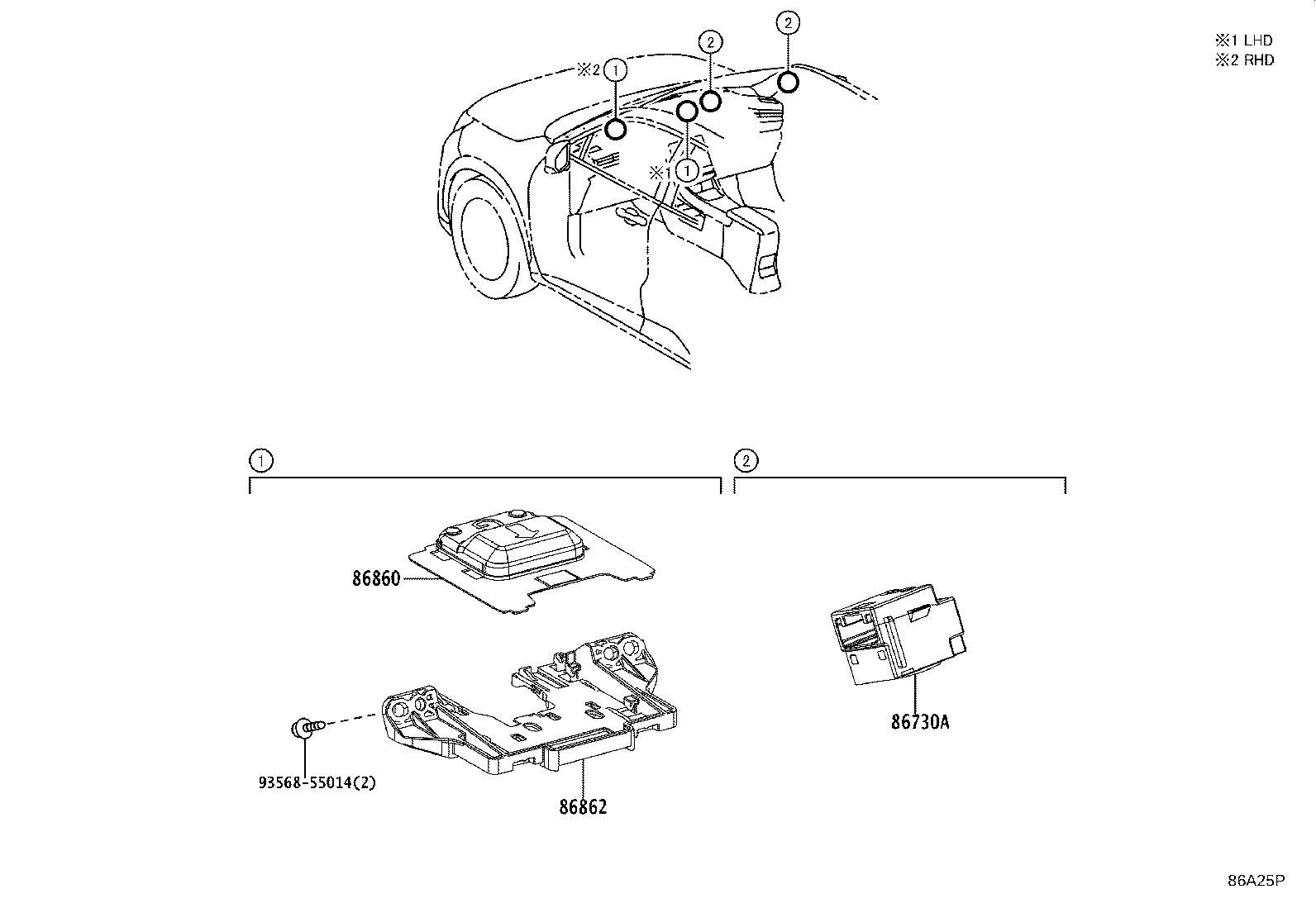

Figure 86A26H 86A26H 2023-12 → — Figure 86A25P 86A25P 2023-12 → —

Part groups

PNCDescription
86140A Receiver Assy, Radio & Display
86140B Knob, Radio & Display Receiver Switch
86211J Bracket, Radio Receiver, NO.1
86212C Bracket, Radio Receiver, NO.2
86730A Microphone Assy, Telephone
86860 Antenna Assy, Navigation
86862 Bracket, Navigation Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
