Toyota Lexus Lbx

2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe

Supported model Data version 2023-11

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

8 part groups · 2 illustrations

Illustrations

Figure 86A25R

86A25R 2023-12 → —

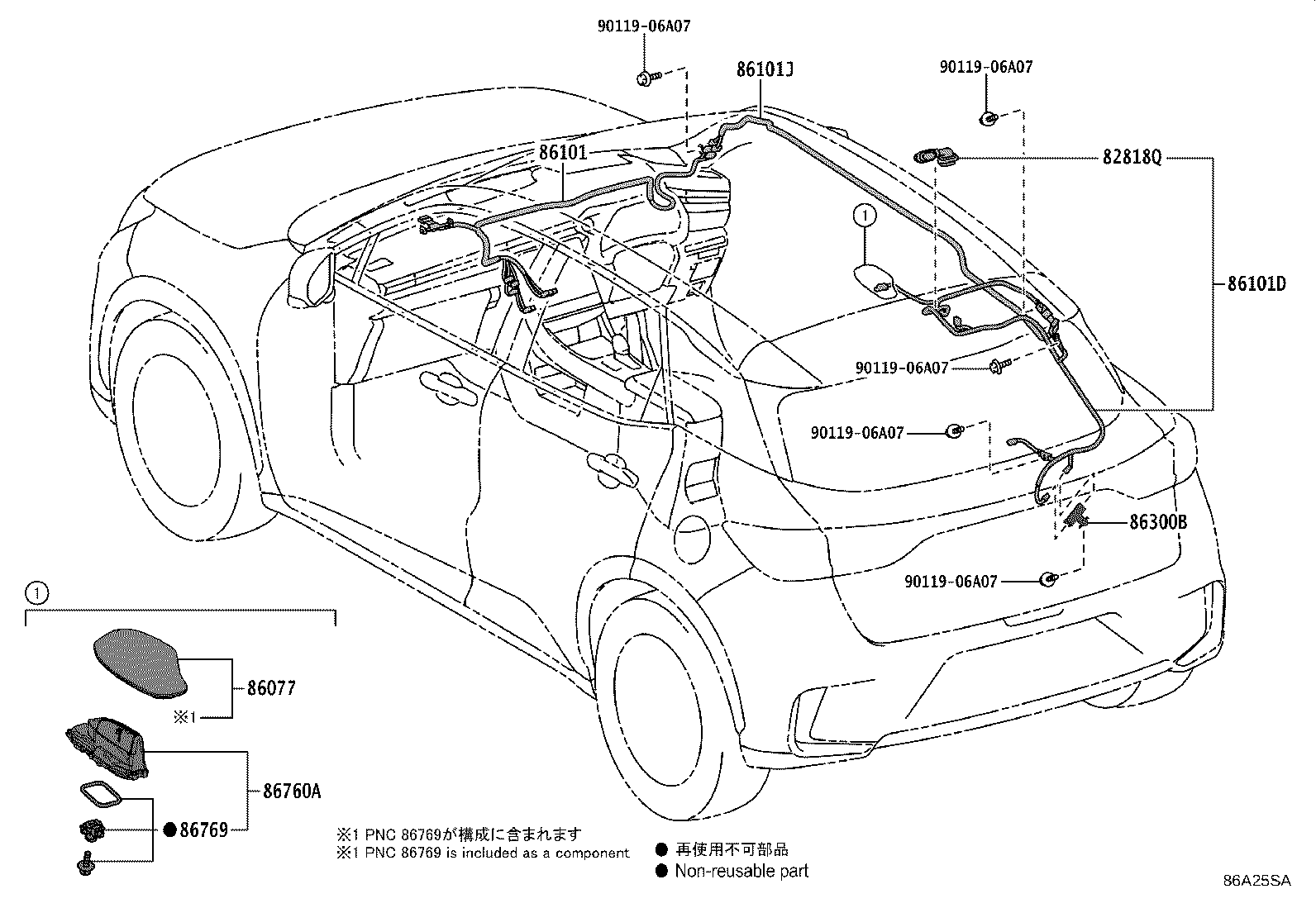

Figure 86A25SA

86A25SA 2023-12 → —

Part groups

PNC	Description
82818Q	Protector, Wiring Harness, NO.1
86077	Cover Kit, Antenna
86101	Cord Sub-assy, Antenna
86101D	Cord Sub-assy, Antenna, NO.3
86101J	Cord Sub-assy, Antenna, NO.2
86300B	Antenna Assy, Amplifier, NO.1
86760A	Antenna Assy, Telephone
86769	Housing, Roof Antenna

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
