Toyota Lexus Lbx
2023-11 → present · chassis MAYH1# · catalogue 543210 · Europe
Supported model
Data version 2023-11

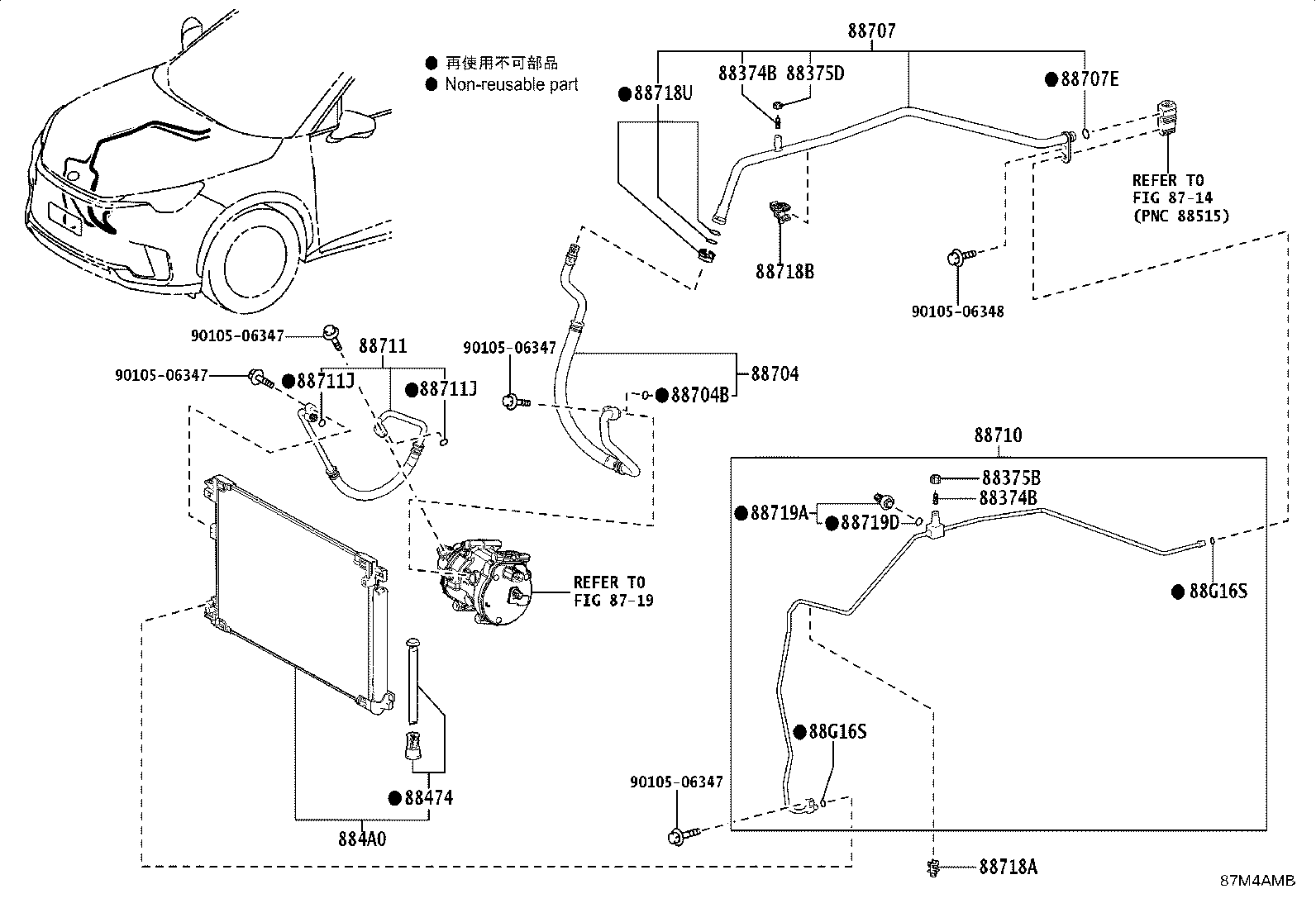

Heating & Air Conditioning - Cooler Piping
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 88374B | Valve, Service, NO.1 |
| 88375B | Cap, Service Valve, NO.1 |
| 88375D | Cap, Service Valve, NO.2 |
| 88474 | Dryer, Cooler |
| 884A0 | Condenser Assy, Cooler |
| 88704 | Hose Sub-assy, Suction |
| 88704B | Ring, O(FOR SUCTION HOSE) |
| 88707 | Pipe Sub-assy, Suction |
| 88707E | Ring, O, NO.2(FOR SUCTION TUBE) |
| 88710 | Tube Assy, Air Conditioner |
| 88711 | Hose, Cooler Refrigerant Discharge, NO.1 |
| 88711J | Ring, O, NO.1(FOR DISCHARGE HOSE) |
| 88718A | Clamp, NO.1(FOR COOLER REFRIGERANT PIPE) |
| 88718B | Clamp, NO.2(FOR COOLER REFRIGERANT PIPE) |
| 88718U | Clamp, NO.6(FOR COOLER REFRIGERANT PIPE) |
| 88719A | Sensor, Air Conditioner Pressure |
| 88719D | Ring, O(FOR AIR CONDITIONER PRESSURE SENSOR) |
| 88G16S | Ring, O, NO.3(FOR LIQUID TUBE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
