Toyota Corolla (JPP)
2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe
Supported model
Data version 2023-03

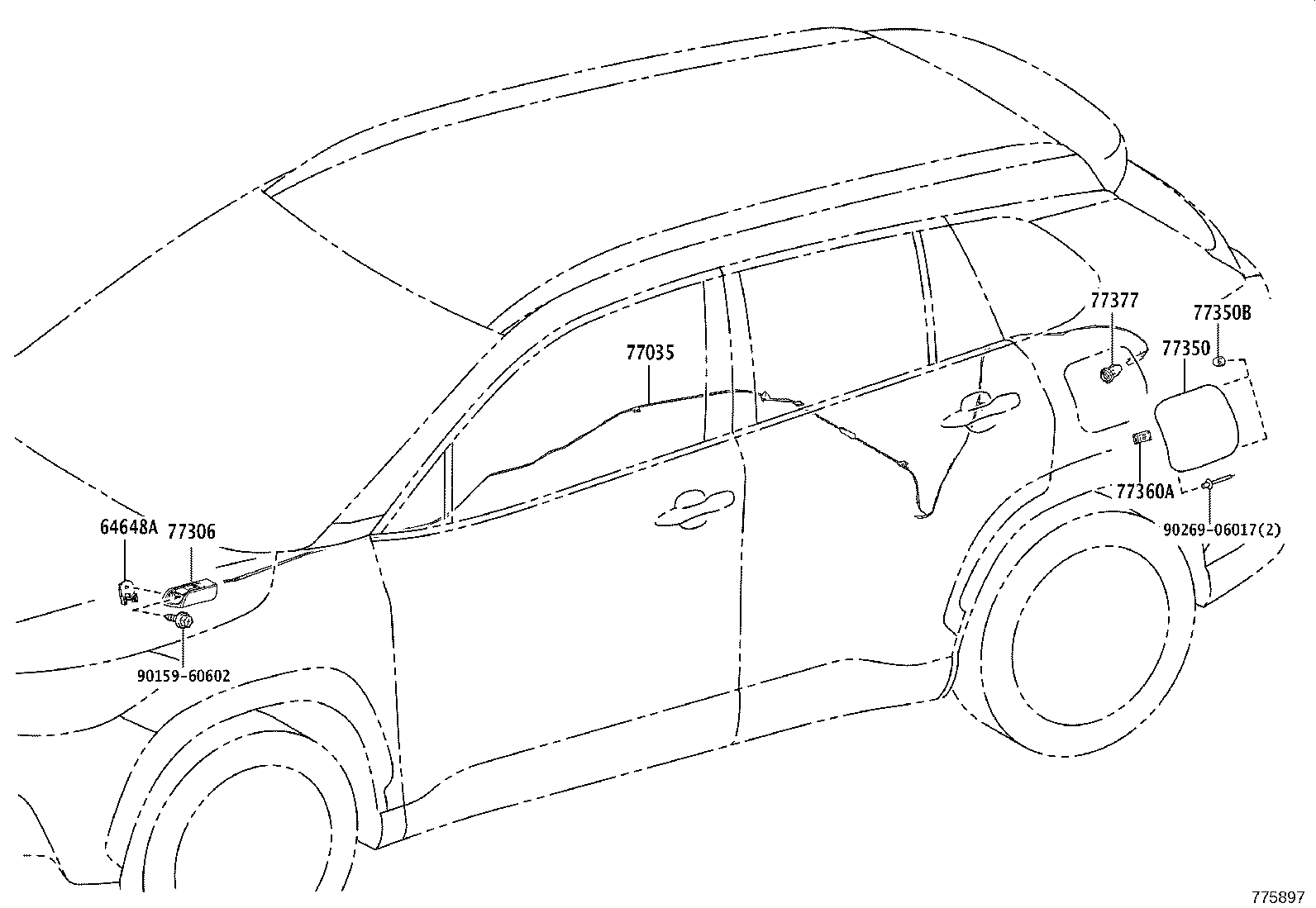

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 64648A — Grommet, Luggage Door Lock Opener | ||||
| 64648-12020 |
Grommet, Luggage Door Lock Opener
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 77035 — Cable Sub-assy, Fuel Lid Lock Control | ||||
| 77035-16250 |
Cable Sub-assy, Fuel Lid Lock Control
2022-07 → —
|
MXGA10,MXGH10,12,ZVG13 RHD | — | |
| 77035-16270 |
Cable Sub-assy, Fuel Lid Lock Control
2022-07 → —
|
MXGH15 RHD | — | |
| 77035-16290 |
Cable Sub-assy, Fuel Lid Lock Control
2022-07 → —
|
MXGH12,15,ZVG1# LHD | — | |
| 77306 — Lever Sub-assy, Fuel Lid Lock Open | ||||
| 77306-12010 |
Lever Sub-assy, Fuel Lid Lock Open
2022-07 → —
|
MXGA10,MXGH1#,ZVG13 RHD | — | |
| 77306-12020 |
Lever Sub-assy, Fuel Lid Lock Open
2022-07 → —
|
MXGH12,15,ZVG1# LHD | — | |
| 77350 — Lid Assy, Fuel Filler Opening | ||||
| 77350-16270 |
Lid Assy, Fuel Filler Opening
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 77350B — Cushion(FOR FUEL FILLER OPENING LID) | ||||
| 90541-06069 |
Cushion(FOR FUEL FILLER OPENING LID)
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 77360A — Spring Assy, Fuel Filler Opening Lid | ||||
| 77360-30080 |
Spring Assy, Fuel Filler Opening Lid
2022-07 → 2023-09
ended
|
MXGA10,MXGH1#,ZVG1# | — | |
| 77360-35040 |
Spring Assy, Fuel Filler Opening Lid
2023-10 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
| 77377 — Retainer, Fuel Filler Opening Lid Lock | ||||
| 77377-12100 |
Retainer, Fuel Filler Opening Lid Lock
2022-07 → —
|
MXGA10,MXGH1#,ZVG1# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
