Toyota Corolla (JPP)
2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe
Supported model
Data version 2023-03

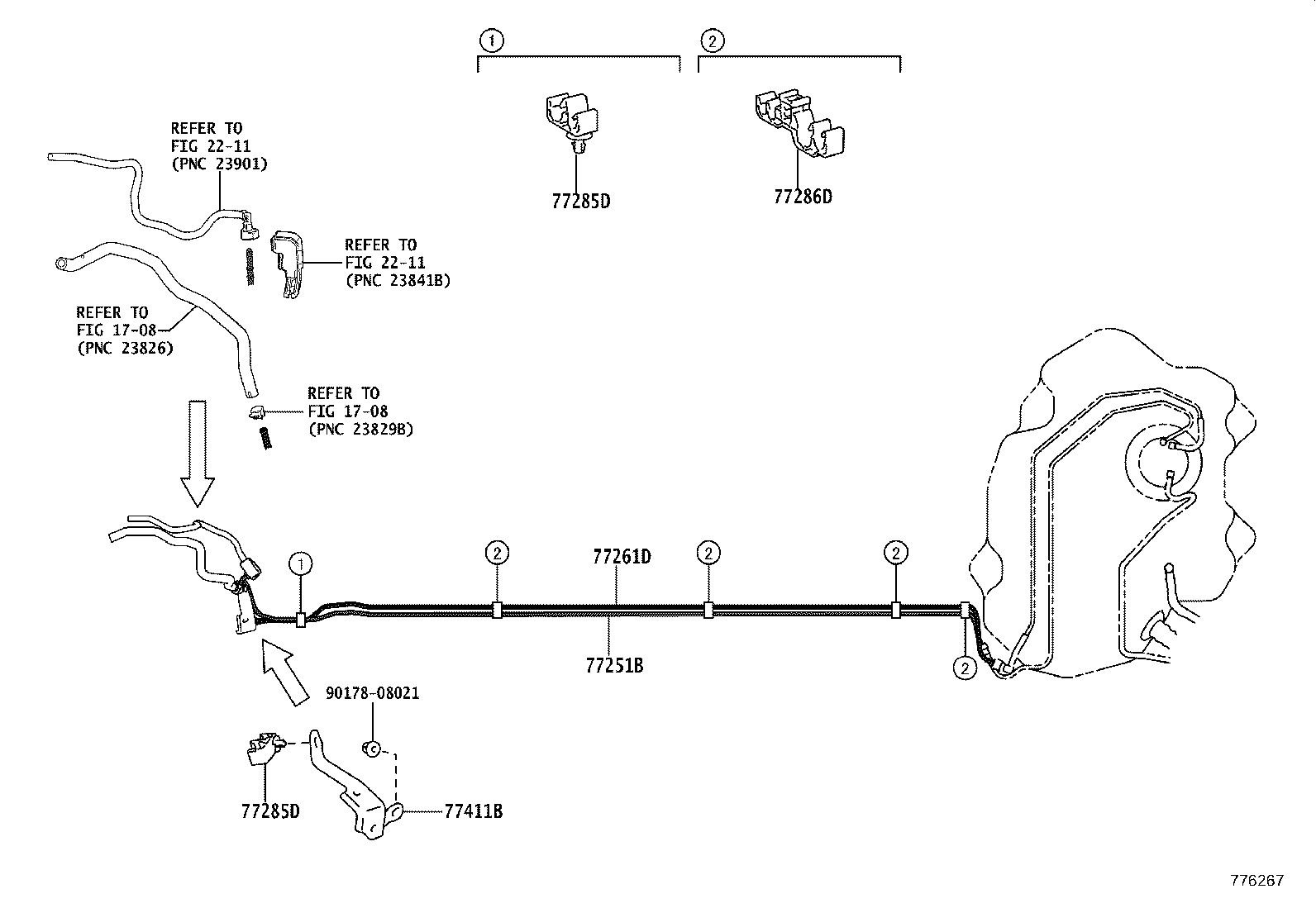

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 77251B — Tube, Fuel Main | ||||
| 77251-16290 |
Tube, Fuel Main
2022-07 → —
|
MXGA10 | — | |
| 77251-16300 |
Tube, Fuel Main
2022-07 → —
|
MXGH10,ZVG13 | — | |
| 77251-16310 |
Tube, Fuel Main
2022-07 → —
|
MXGH12,15,ZVG12 | — | |
| 77261D — Tube, Fuel Tank TO Canister | ||||
| 77261-16230 |
Tube, Fuel Tank TO Canister
2022-07 → —
|
MXGH10,ZVG13 | — | |
| 77261-16240 |
Tube, Fuel Tank TO Canister
2022-07 → —
|
MXGH12,15,ZVG12 | — | |
| 77261-16250 |
Tube, Fuel Tank TO Canister
2022-07 → —
|
MXGA10 | — | |
| 77285D — Clamp, Fuel Tube, NO.1 | ||||
| 77286-78040 |
Clamp, Fuel Tube, NO.1
2022-07 → —
|
MXGH1#,ZVG1# | — | |
| 77286D — Clamp, Fuel Tube, NO.2 | ||||
| 77298-10050 |
Clamp, Fuel Tube, NO.2
2022-07 → —
|
MXGH1#,ZVG1# | — | |
| 77411B — Support, Fuel Tube Grommet, NO.1 | ||||
| 77411-10020 |
Support, Fuel Tube Grommet, NO.1
2022-07 → —
|
MXGA10 | — | |
| 77411-47040 |
Support, Fuel Tube Grommet, NO.1
2022-07 → —
|
MXGH12,15,ZVG1# LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
