Toyota Corolla (JPP)

2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 6 illustrations

Illustrations

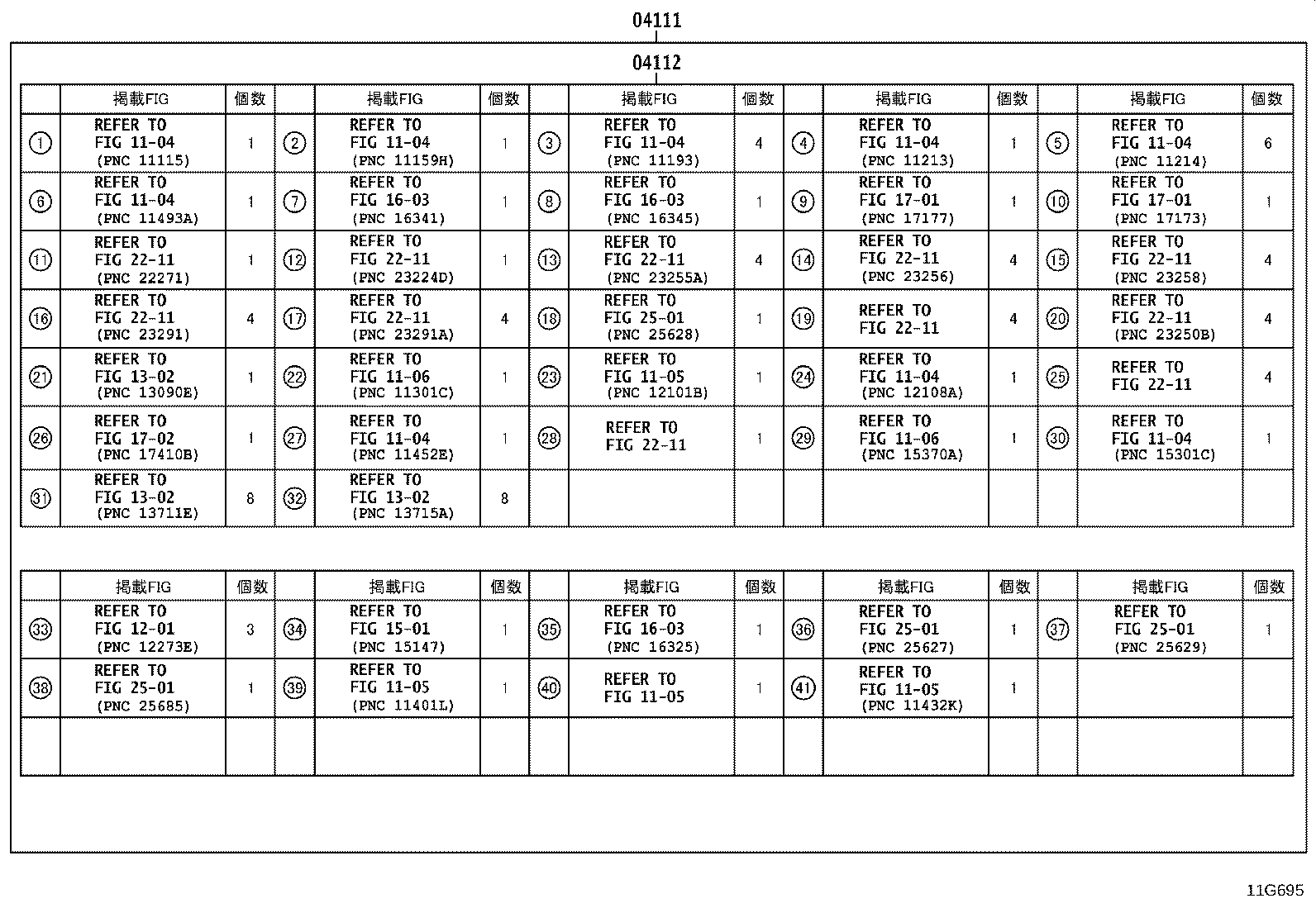

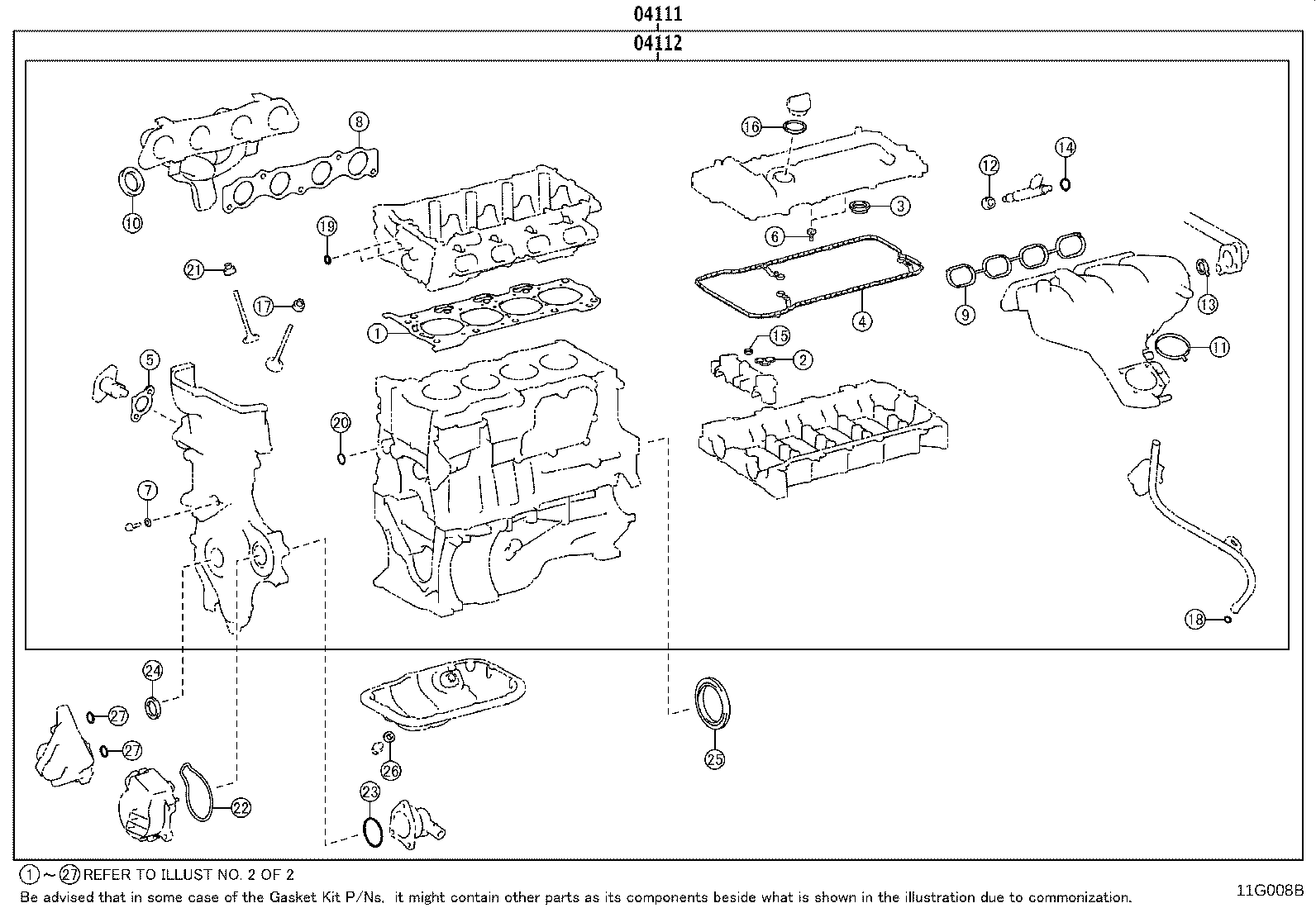

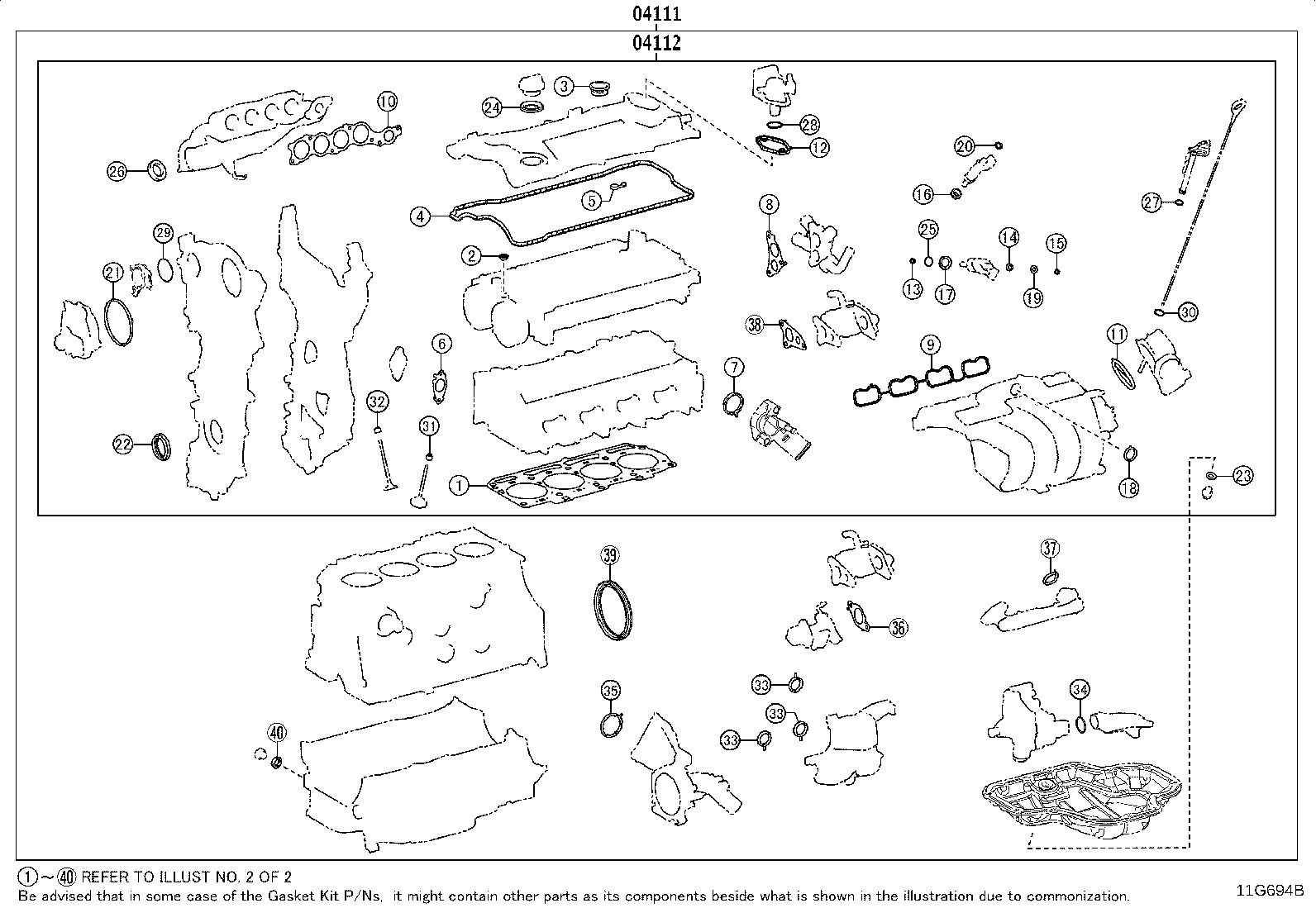

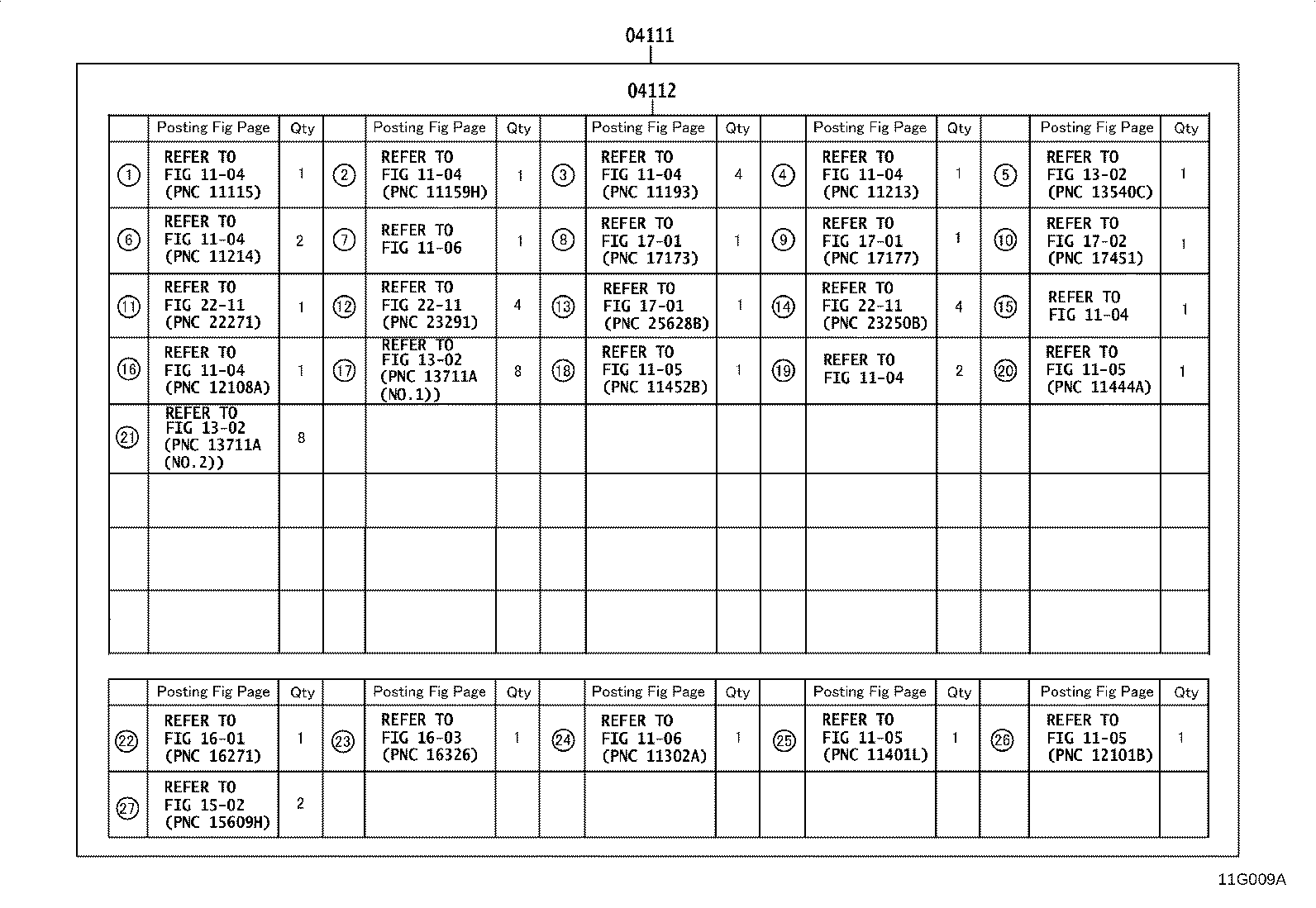

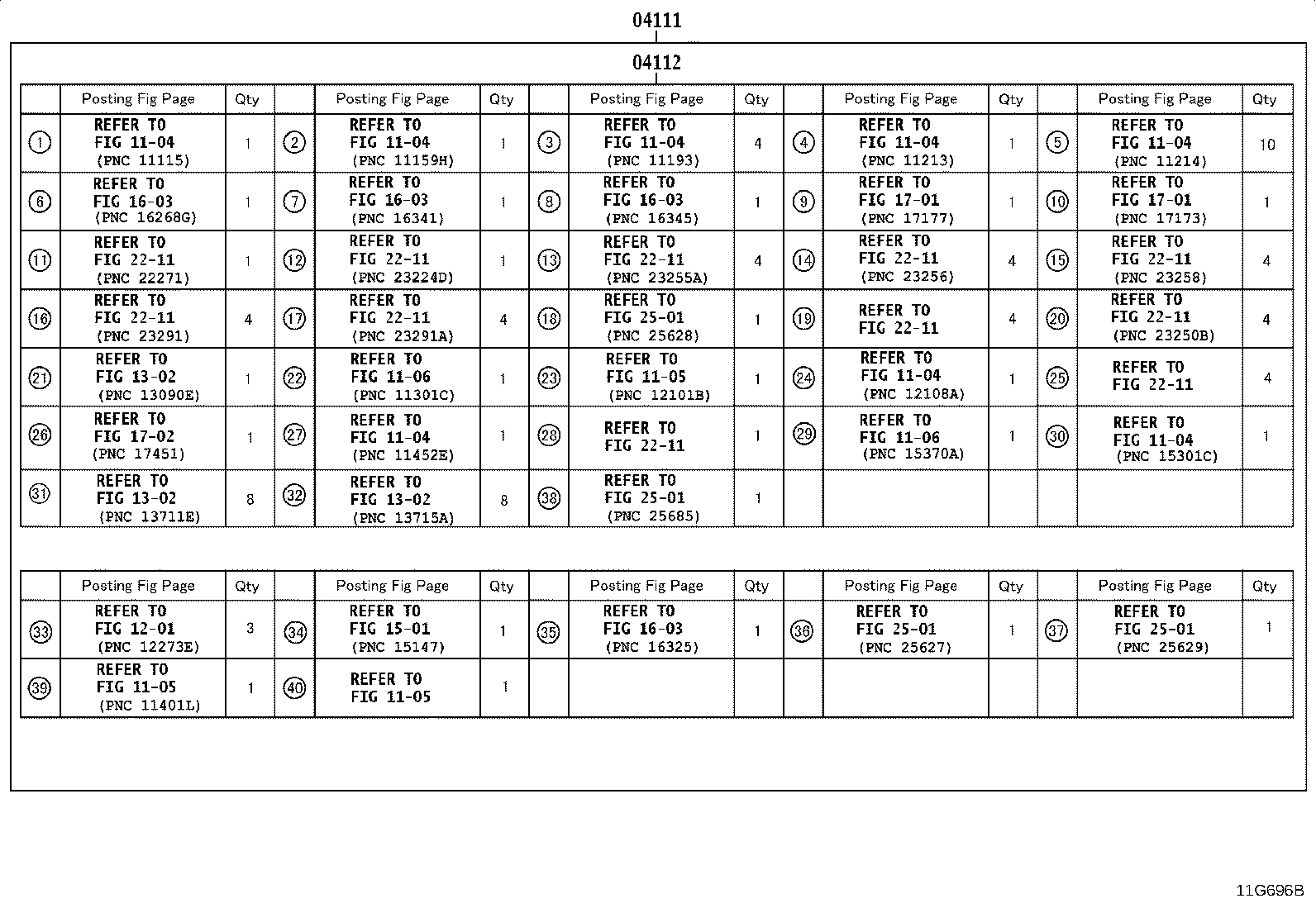

Figure 11G693 11G693 2022-07 → — Figure 11G695 11G695 2022-07 → — Figure 11G694B 11G694B 2022-07 → — Figure 11G696B 11G696B 2022-07 → — Figure 11G008B 11G008B 2022-07 → — Figure 11G009A 11G009A 2022-07 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
