Toyota Corolla (JPP)

2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

14 part groups · 2 illustrations

Illustrations

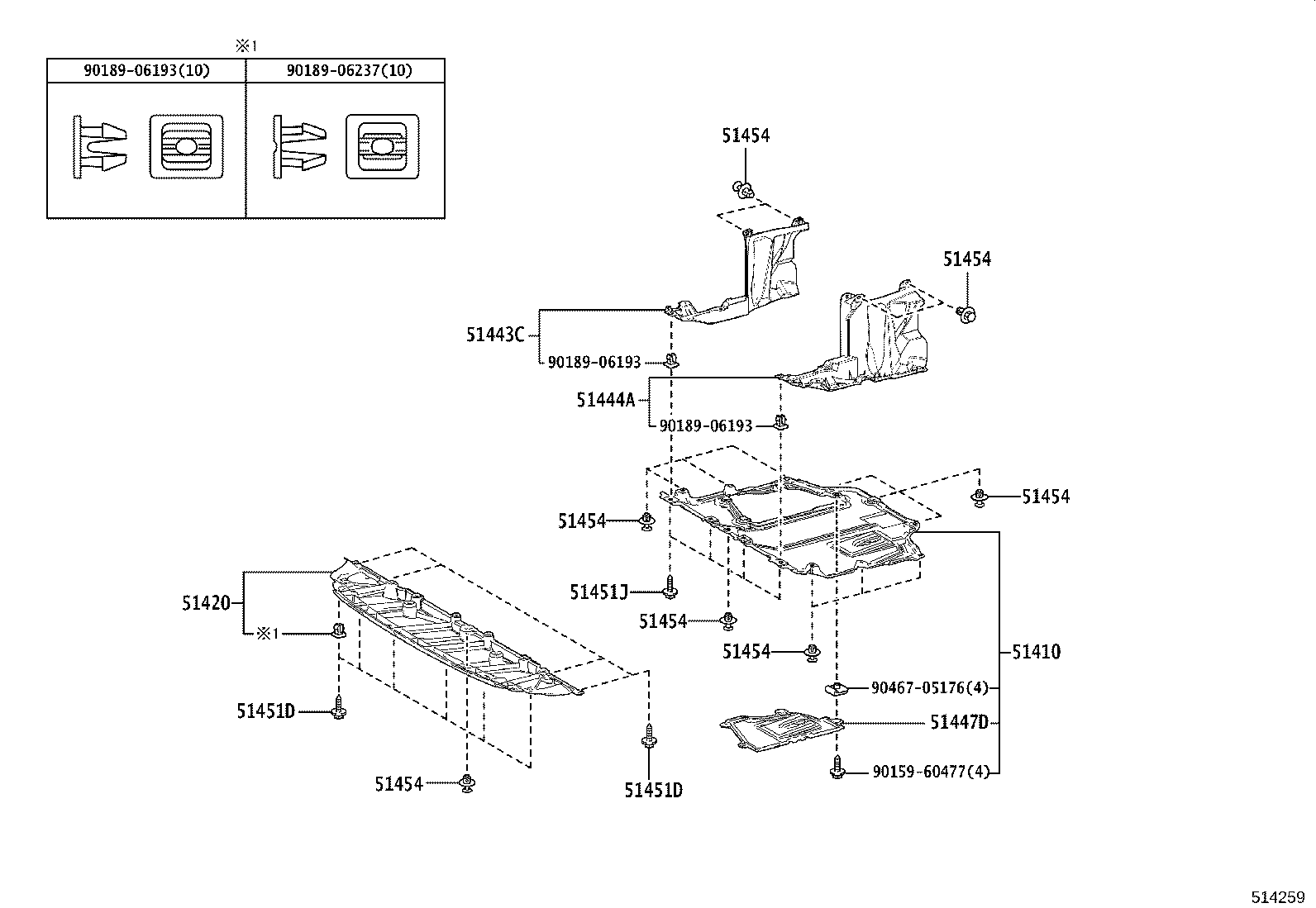

Figure 514258 514258 2022-07 → — Figure 514259 514259 2022-07 → —

Part groups

PNCDescription
51107A Reinforcement Sub-assy, Side Rail, Rear RH
51108A Reinforcement Sub-assy, Side Rail, Rear LH
51201 Crossmember Sub-assy, Front Suspension
51206A Member Sub-assy, Rear Suspension
51228G Plate, Front Suspension Member
51284 Cover, Rear Suspension Member Hole
51410 Cover Assy, Engine Under, NO.1
51420 Cover Assy, Engine Under, NO.2
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51447D Cover, Engine Under, NO.4 Center
51451D Screw, NO.1
51451J Bolt, NO.1
51454 Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
