Toyota Corolla (JPP)

2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

12 part groups · 2 illustrations

Illustrations

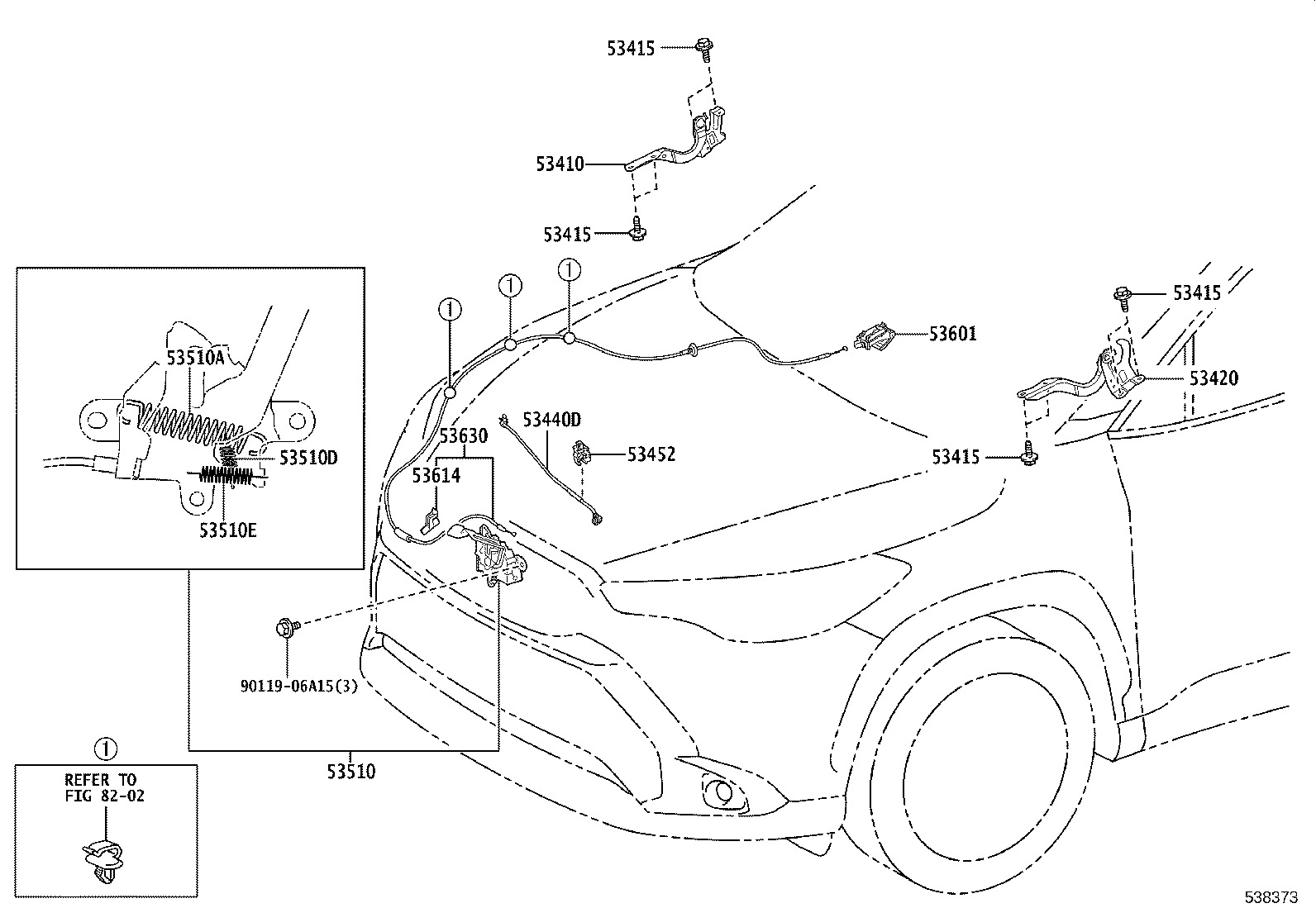

Figure 538372 538372 2022-07 → — Figure 538373 538373 2022-07 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53415 Bolt, Hood Hinge
53420 Hinge Assy, Hood, LH
53440D Support Assy, Hood
53452 Holder, Hood Stay
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53510D Spring, Tension(FOR HOOD LOCK)
53510E Spring, Tension(FOR HOOD LOCK)
53601 Lever Sub-assy, Hood Lock Control
53614 Clamp, Hood Lock Control Cable
53630 Cable Assy, Hood Lock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
