Toyota Corolla (JPP)

2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe

Supported model Data version 2023-03

Roof Panel & Back Window Glass

41 part groups · 5 illustrations

PNC	Description

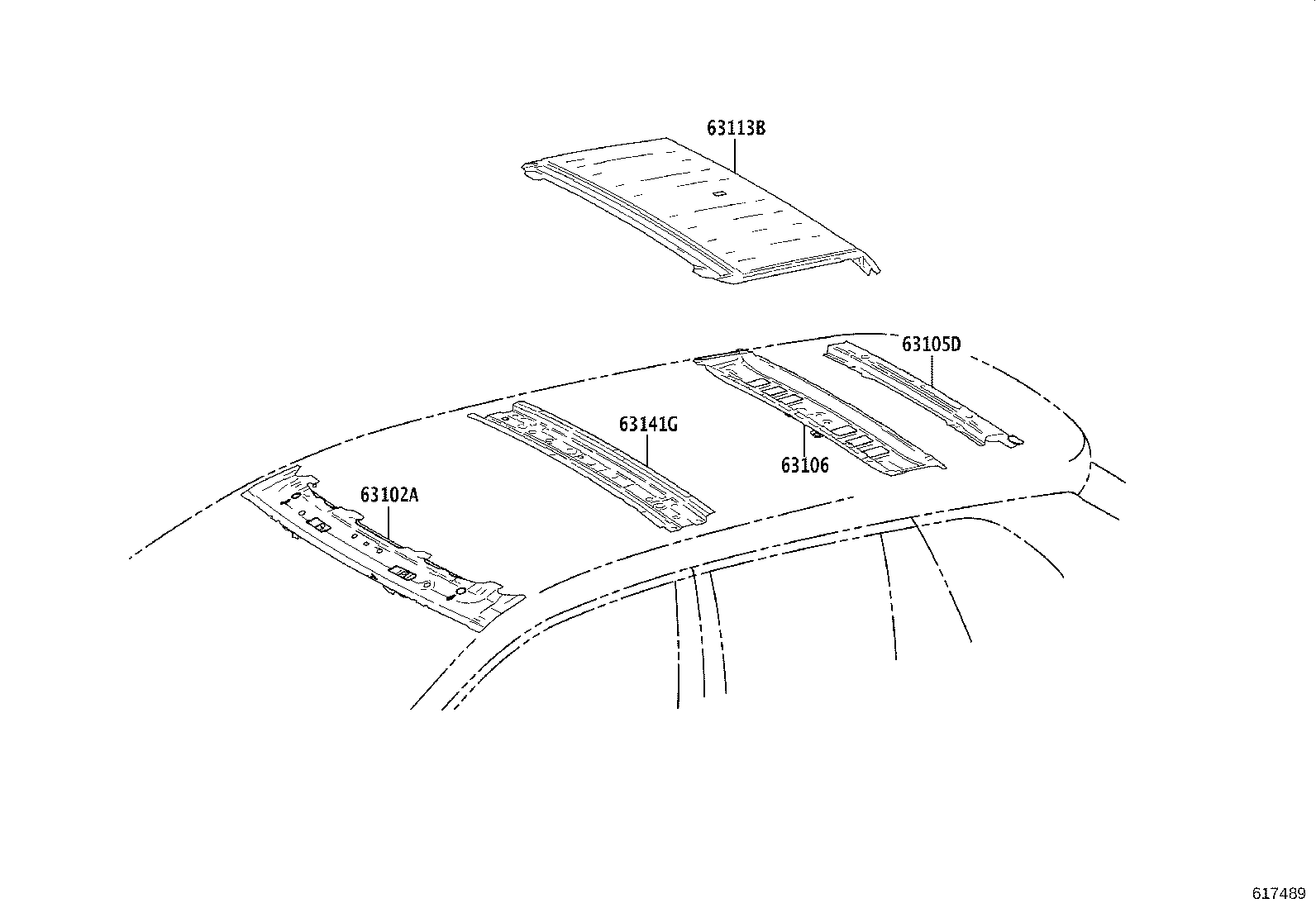

63102A	Panel Sub-assy, Windshield Header
63105D	Frame Sub-assy, Back Window, Upper
63106	Reinforcement Sub-assy, Roof Panel, NO.4
63111	Panel, Roof
63113B	Panel, Roof, Rear
63126B	Reinforcement, Roof Panel, Rear NO.2
63127	Reinforcement, Roof Panel, NO.5
63128	Reinforcement, Roof Panel, NO.6
63141G	Reinforcement, Roof Panel, NO.1
63144A	Reinforcement, Roof Panel, NO.4
63148A	Reinforcement, Roof Panel, NO.7

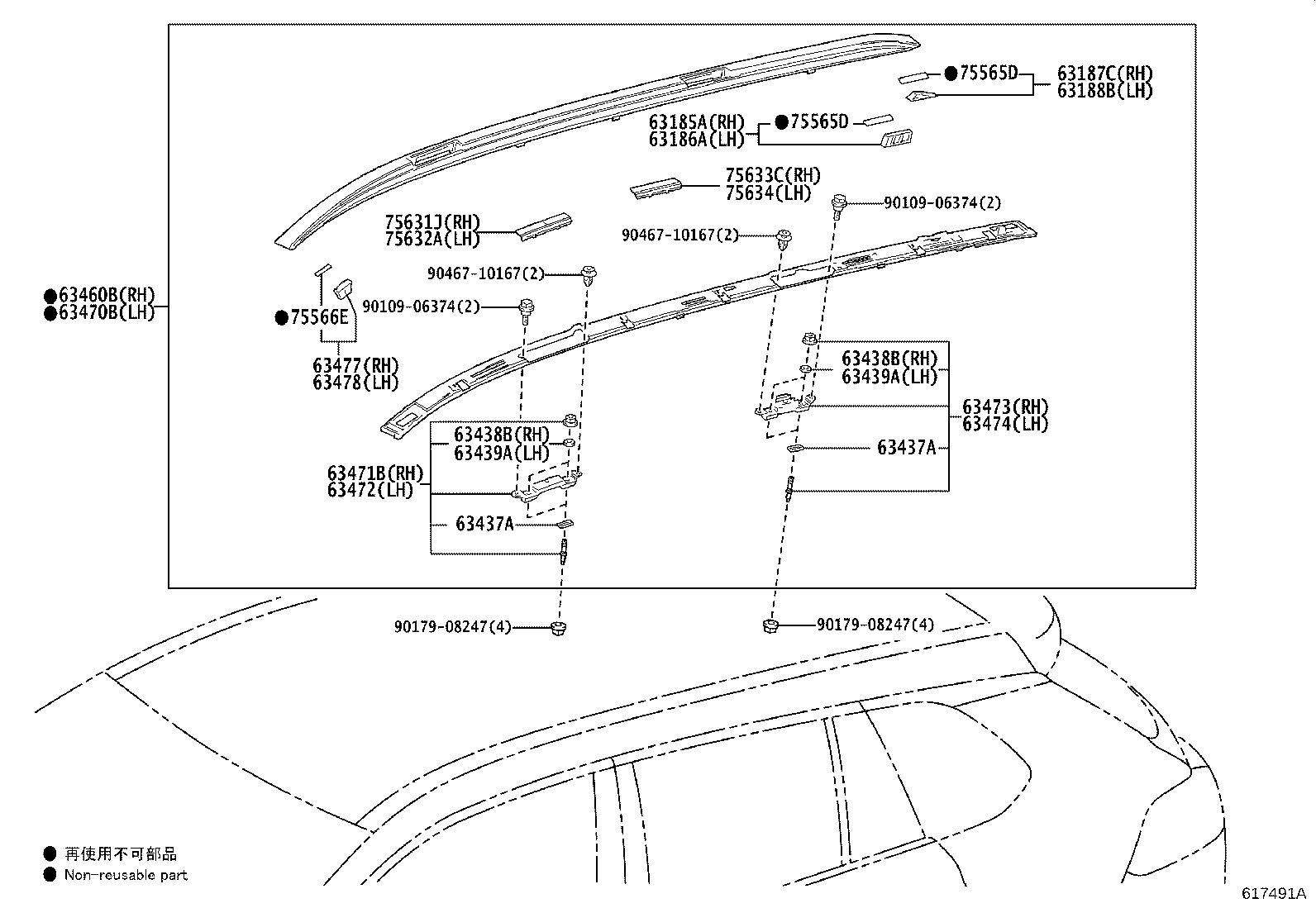

63185A	Bracket, Roof Rack, Front RH
63186A	Bracket, Roof Rack, Front LH
63187C	Bracket, Roof Rack, NO.1 Rear RH
63188B	Bracket, Roof Rack, NO.1 Rear LH

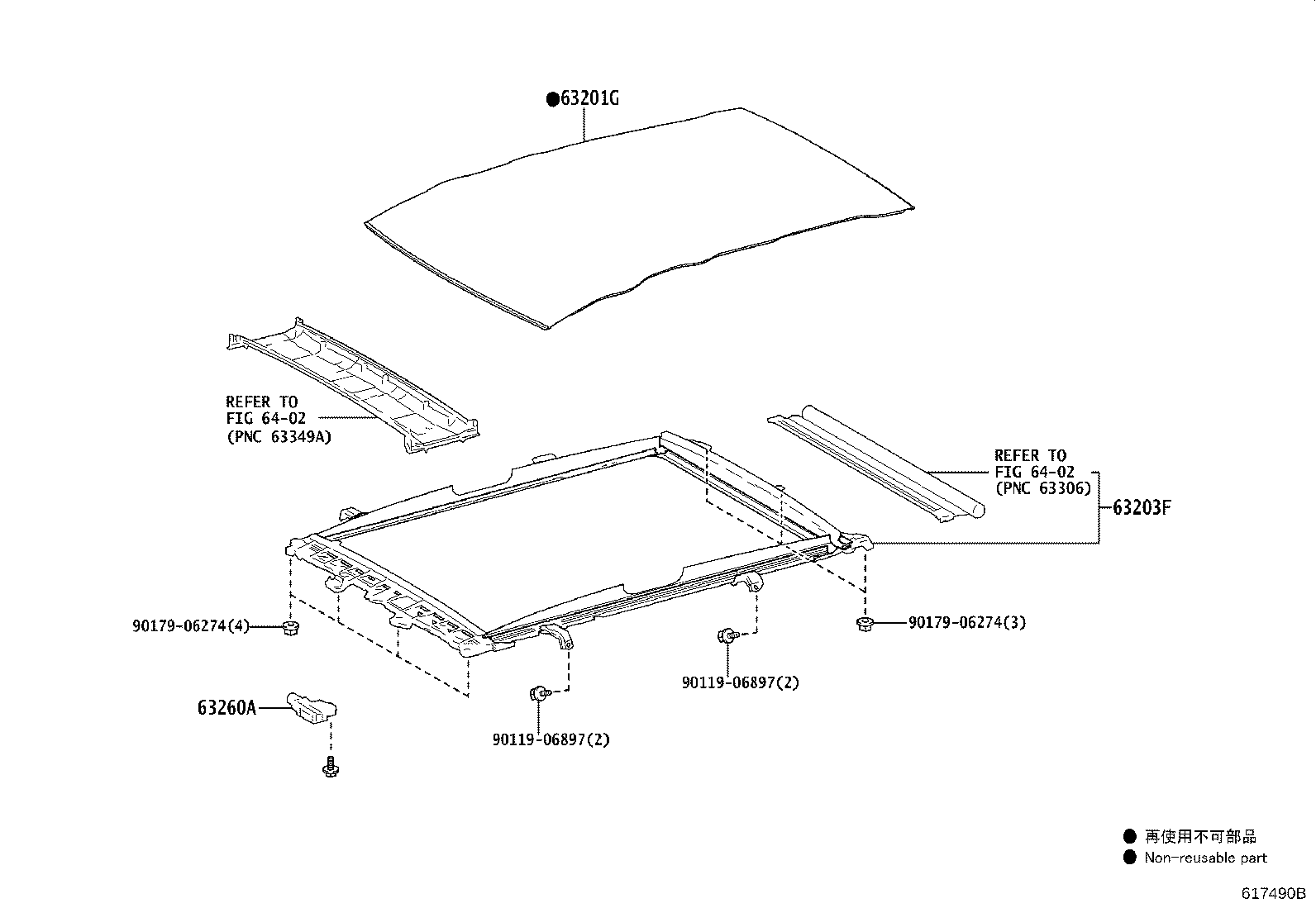

63201G	Glass Sub-assy, Sliding Roof
63203F	Housing Sub-assy, Sliding Roof
63260A	Gear Sub-assy, Sliding Roof Drive
63431A	Bracket, Roof Inner Rack, NO.1 RH
63432A	Bracket, Roof Inner Rack, NO.1 LH
63435C	Seal, Roof Carrier, NO.1 RH
63436B	Seal, Roof Carrier, NO.1 LH
63437A	Seal, Roof Carrier, NO.2
63437B	Seal, Roof Carrier, NO.2 RH
63437D	Seal, Roof Carrier, NO.2 LH
63438B	Seal, Roof Carrier, NO.3 RH
63439A	Seal, Roof Carrier, NO.3 LH

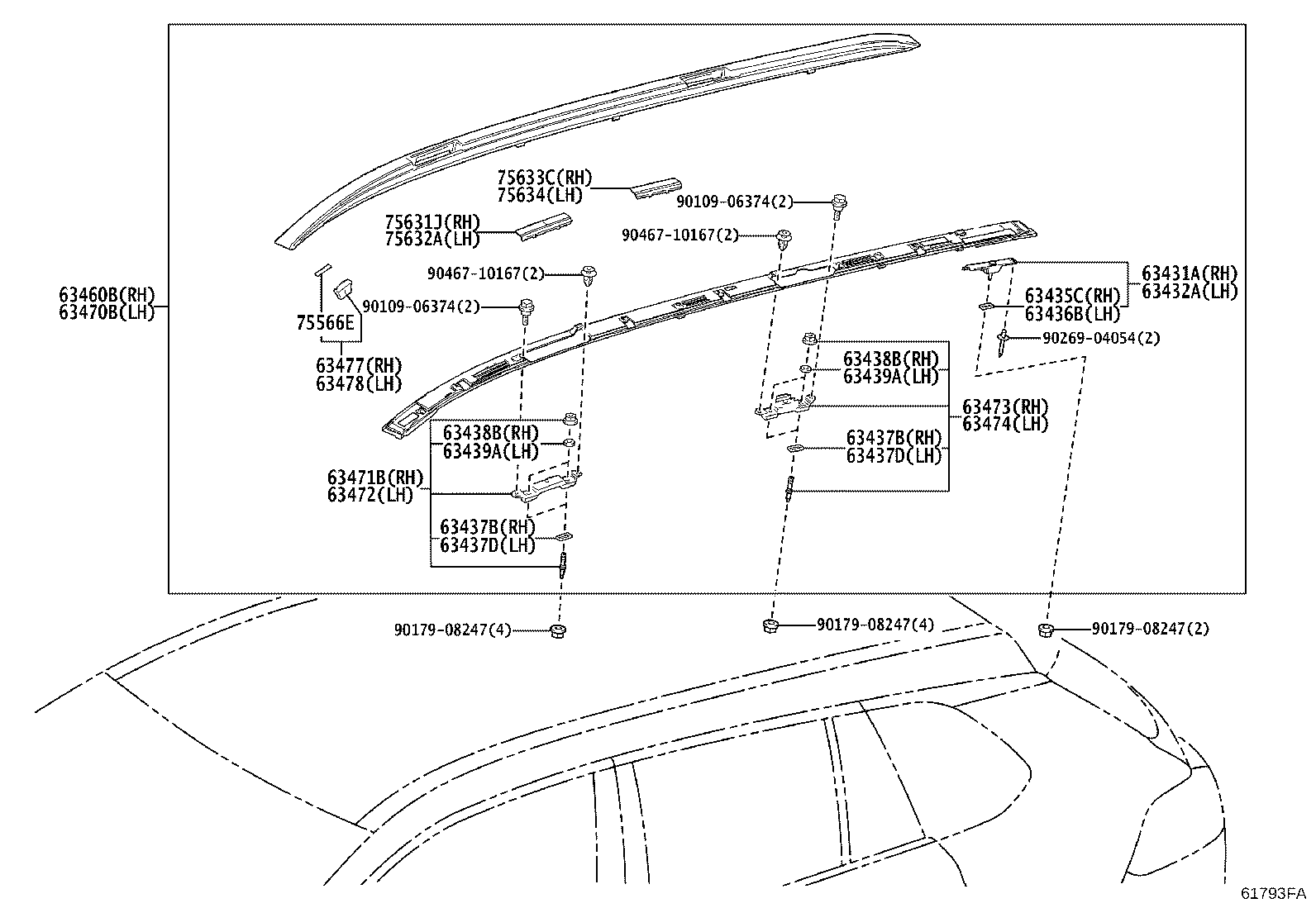

63460B	Rack Assy, Roof, RH
63470B	Rack Assy, Roof, LH
63471B	Leg, Roof Rack, Front RH
63472	Leg, Roof Rack, Front LH
63473	Leg, Roof Rack, Rear RH
63474	Leg, Roof Rack, Rear LH
63477	Support, Roof Rack, Center RH
63478	Support, Roof Rack, Center LH
75565D	Protector, Roof Side Garnish, NO.1
75566E	Protector, Roof Side Garnish, NO.2
75631J	Lid, Roof Side Garnish, NO.1 RH
75632A	Lid, Roof Side Garnish, NO.1 LH
75633C	Lid, Roof Side Garnish, NO.2 RH
75634	Lid, Roof Side Garnish, NO.2 LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
