Toyota Corolla (JPP)

2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

9 part groups · 2 illustrations

Illustrations

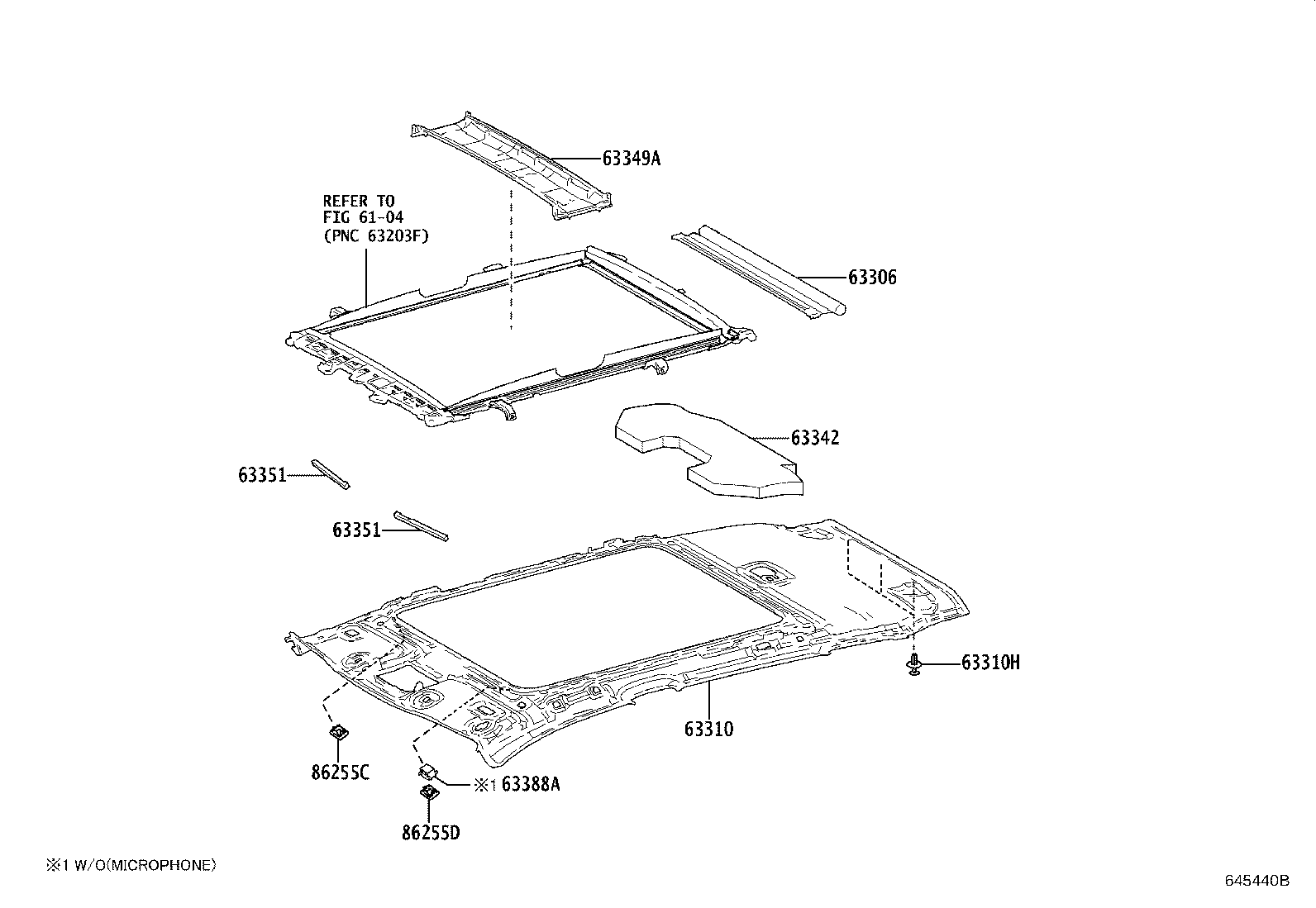

Figure 645439B 645439B 2022-07 → — Figure 645440B 645440B 2022-07 → —

Part groups

PNCDescription
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63342 Pad, Roof Silencer, NO.2
63349A Garnish, Roof Headlining, Rear
63351 Silencer, Roof Side
63388A Cover, Roof Headlining Holder
86255C Case, Microphone, RH
86255D Case, Microphone, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
