Toyota Corolla (JPP)
2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe
Supported model
Data version 2023-03

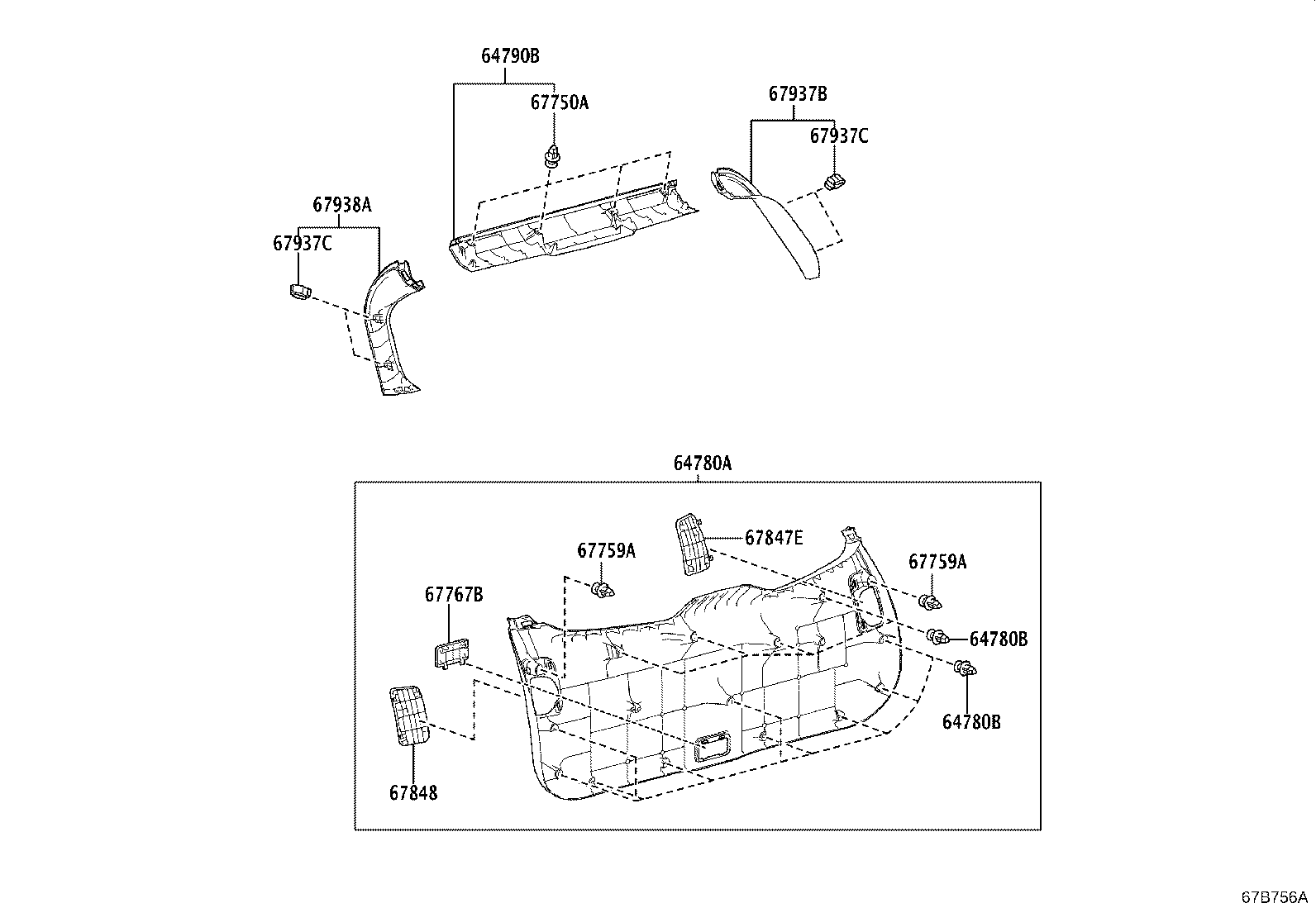

Back Door Panel & Glass
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 64780A | Panel Assy, Back Door Trim |
| 64780B | Clip(FOR BACK DOOR TRIM PANEL) |
| 64790B | Panel Assy, Back Door Trim, Upper |
| 64813B | Dam, Back Window Glass Adhesive |
| 64818B | Spacer, Back Door Glass, NO.1 |
| 64819C | Spacer, Back Door Glass, NO.2 |
| 67005 | Panel Sub-assy, Back Door |
| 67005B | Cushion(FOR BACK DOOR PANEL) |
| 67750A | Clip(FOR BACK DOOR TRIM) |
| 67759A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67767B | Cover, Back Door Service Hole, NO.3 |
| 67837N | Seal, Back Door Dust Proof |
| 67847E | Cover, Back Door Service Hole, RH |
| 67848 | Cover, Back Door Service Hole, LH |
| 67881A | Weatherstrip, Back Door |
| 67937B | Garnish, Back Door Side, RH |
| 67937C | Clip(FOR BACK DOOR SIDE GARNISH) |
| 67938A | Garnish, Back Door Side, LH |
| 68131 | Glass, Back Door |
| 68294D | Dam, Back Door Glass Adhesive, NO.2 |
| 68699 | Spacer, Back Door Window Frame |
| 69290G | Base Assy, Glide Door Inside Handle |
| 75129C | Cushion, Rear Licence Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
