Toyota Corolla (JPP)

2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

34 part groups · 3 illustrations

Illustrations

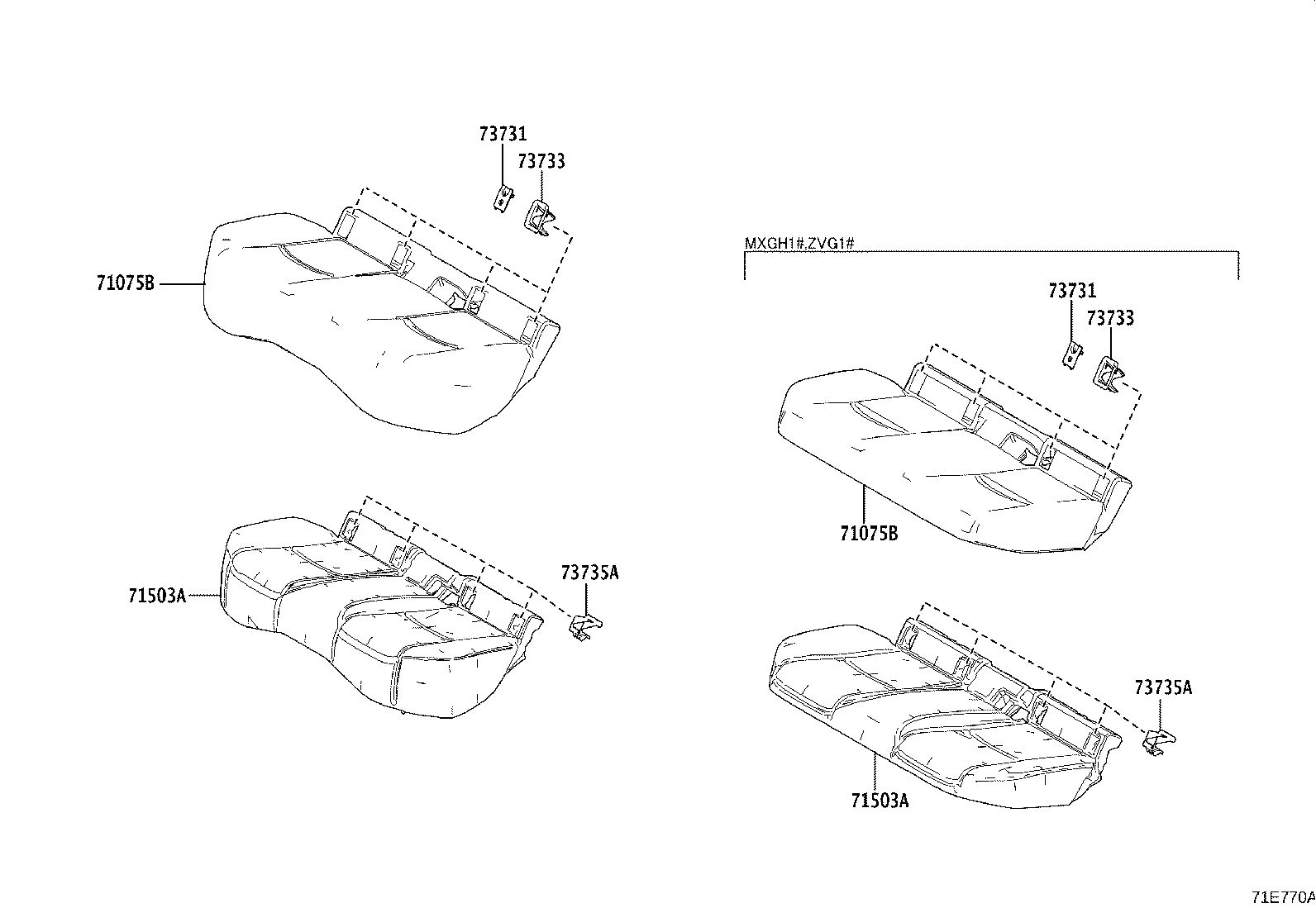

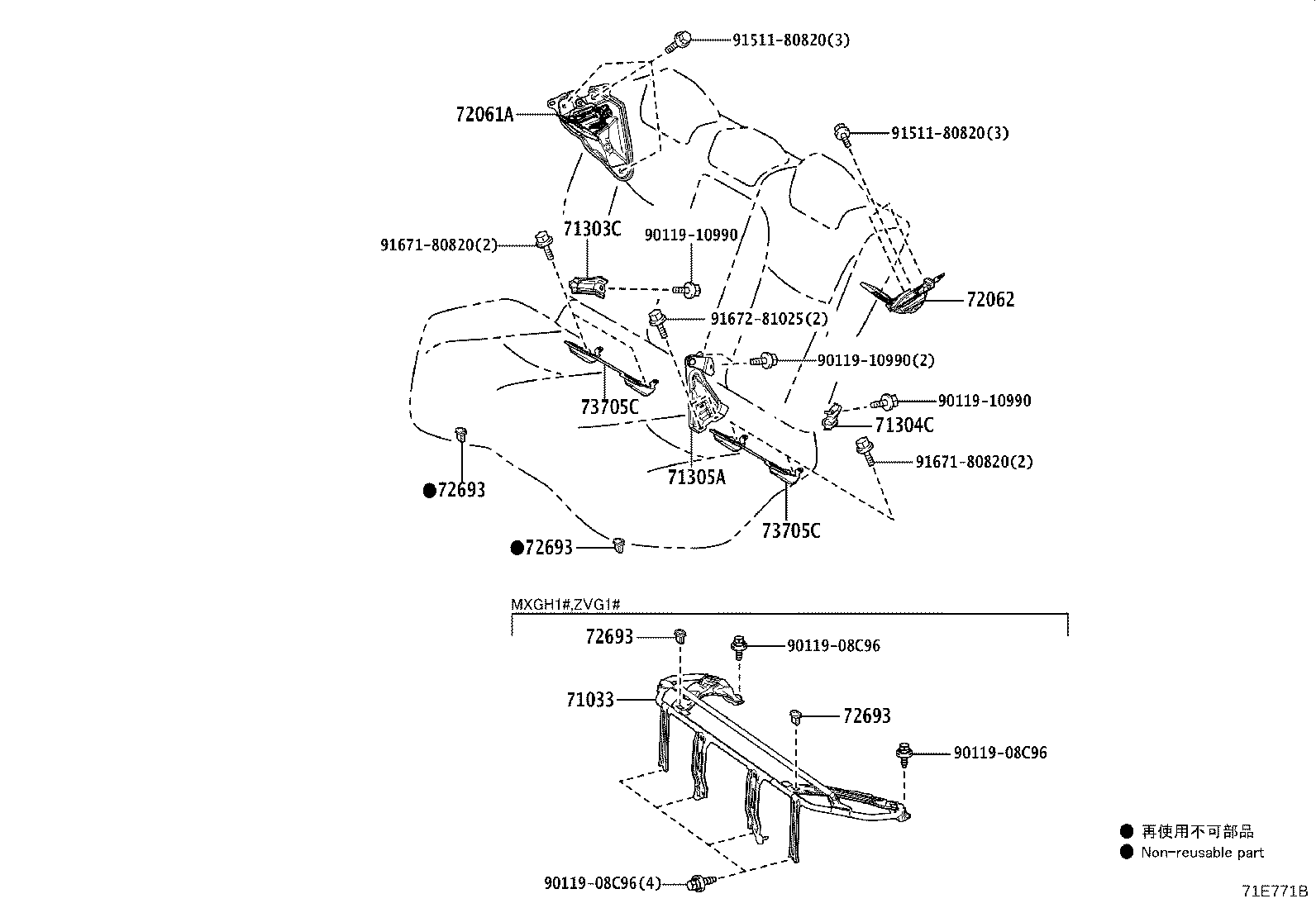

Figure 71E769 71E769 2022-07 → — Figure 71E770A 71E770A 2022-07 → — Figure 71E771B 71E771B 2022-07 → —

Part groups

PNCDescription
71017 Frame Sub-assy, Rear Seatback, RH
71018 Frame Sub-assy, Rear Seatback, LH
71033 Leg Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71303C Hinge Sub-assy, Rear Seatback, RH
71304C Hinge Sub-assy, Rear Seatback, LH
71305A Hinge Sub-assy, Rear Seatback, Center
71503A Pad Sub-assy, Rear Seat Cushion
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71701C Board Sub-assy, Rear Seatback, RH
71702C Board Sub-assy, Rear Seatback, LH
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71956B Support, Rear Seat Headrest
71960B Headrest Assy, Rear Seat, Center
72061A Base Sub-assy, Rear Seatback Lock, RH
72062 Base Sub-assy, Rear Seatback Lock, LH
72618 Protector, Rear Seatback Lock Striker
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72667A Bezel, Rear Seatback Lock, Upper RH
72667B Bezel, Rear Seatback Lock, Upper LH
72693 Hook, Rear Seat Cushion Lock
72806D Holder Sub-assy, Rear Seat Center Armrest Cup
72830 Armrest Assy, Rear Seat, Center
72839 Shim, Rear Seat Armrest Hinge
72868B Cover, Center Armrest Hinge
73705C Bracket Sub-assy, Child Restraint Seat Anchor
73731 Cover, Child Restraint Seat
73733 Cover, Child Restraint Seat Base
73735A Cup, Child Restraint Seat Guide
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
