Toyota Corolla (JPP)

2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

18 part groups · 3 illustrations

Illustrations

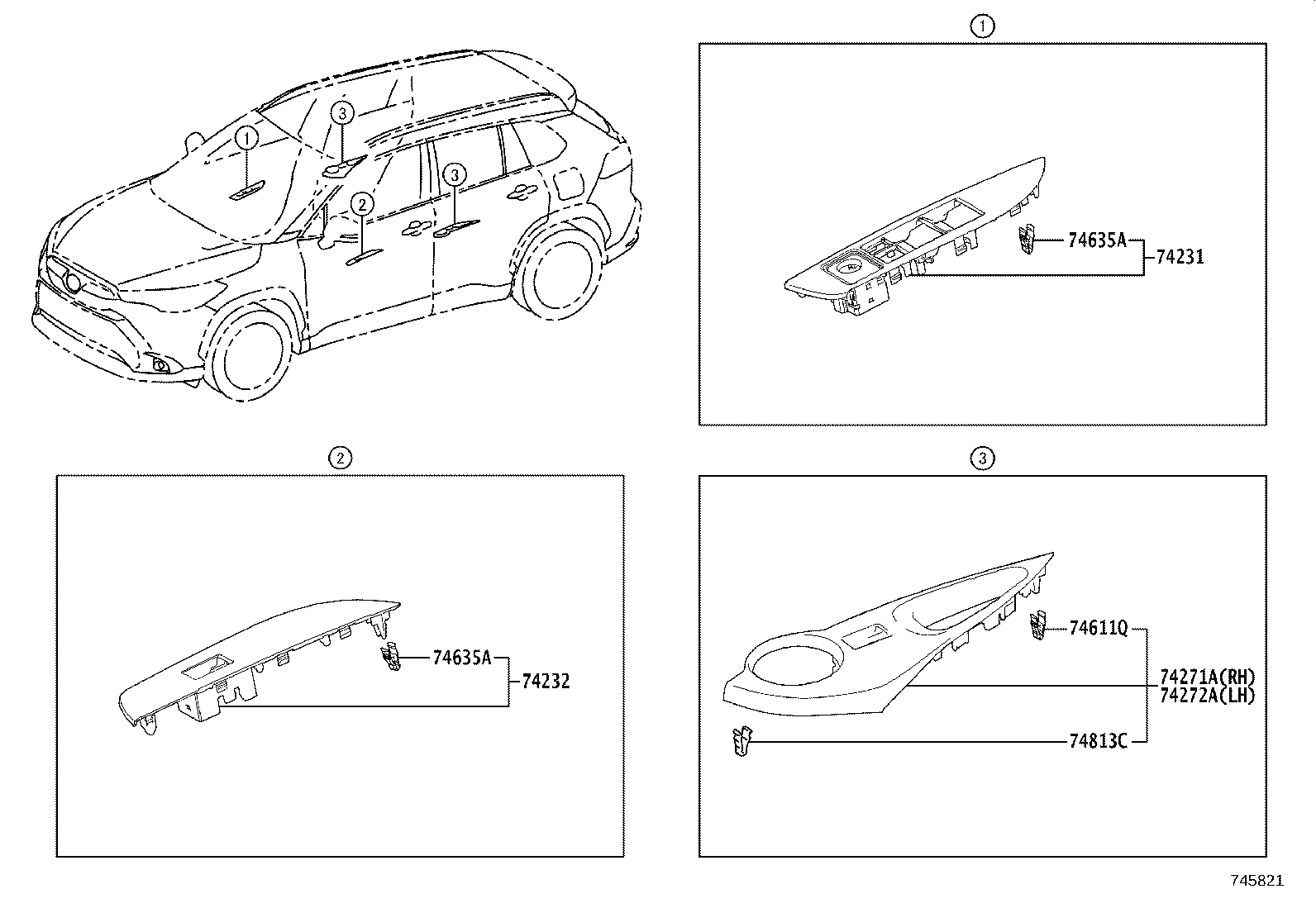

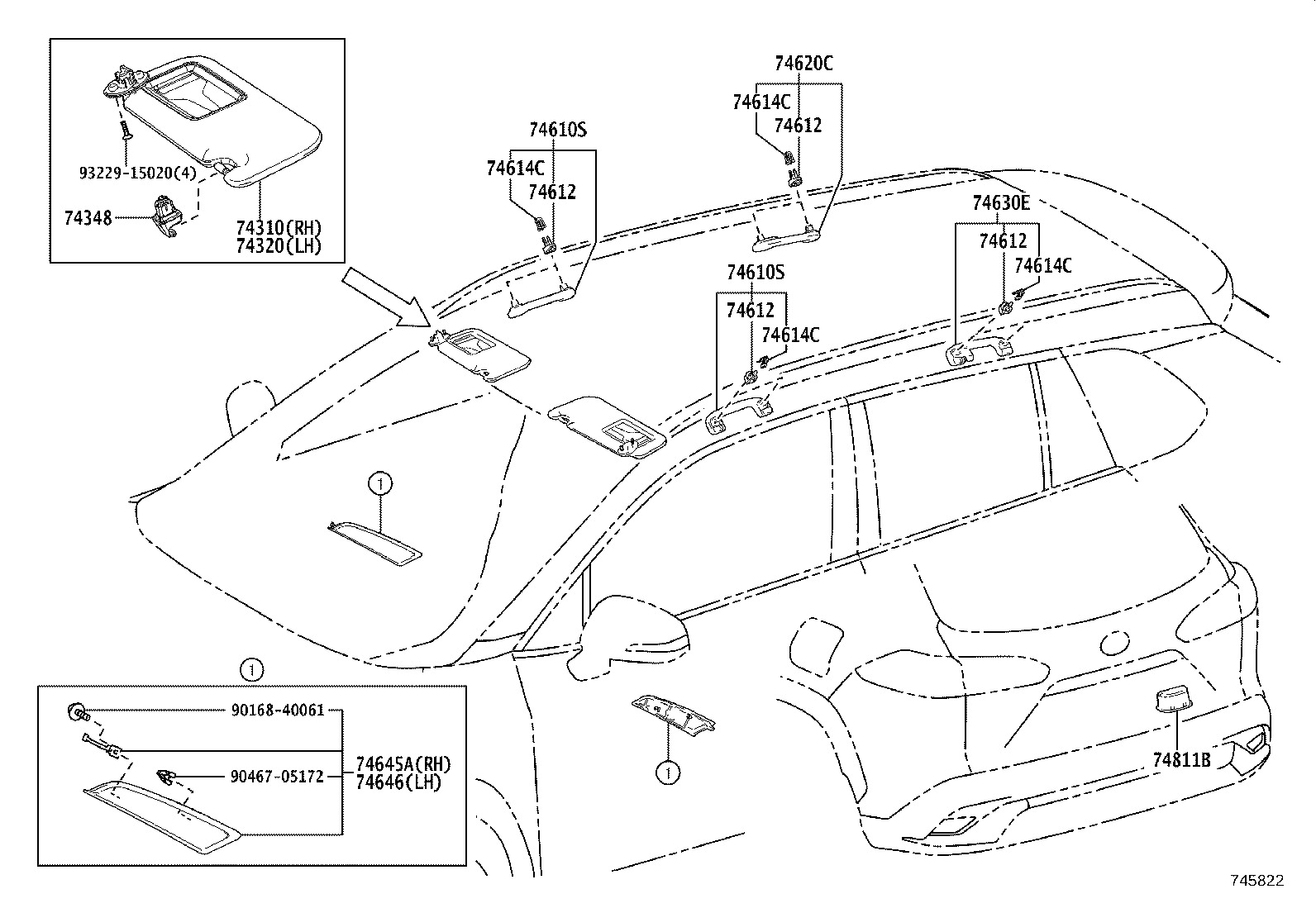

Figure 746358 746358 2022-07 → — Figure 745821 745821 2022-07 → — Figure 745822 745822 2022-07 → —

Part groups

PNCDescription
74231 Panel, Front Armrest Base, Upper RH
74232 Panel, Front Armrest Base, Upper LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610S Grip Assy, Assist
74611Q Clip
74612 Cover, Assist Grip
74614C Plate, Assist Grip Lock
74620C Grip Assy, Assist, Rear RH
74630E Grip Assy, Assist, Rear LH
74635A Clip
74645A Cover, Door Assist Grip, RH
74646 Cover, Door Assist Grip, LH
74811B Handle, Door Pull
74813C Clip
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
