Toyota Corolla (JPP)

2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

25 part groups · 3 illustrations

Illustrations

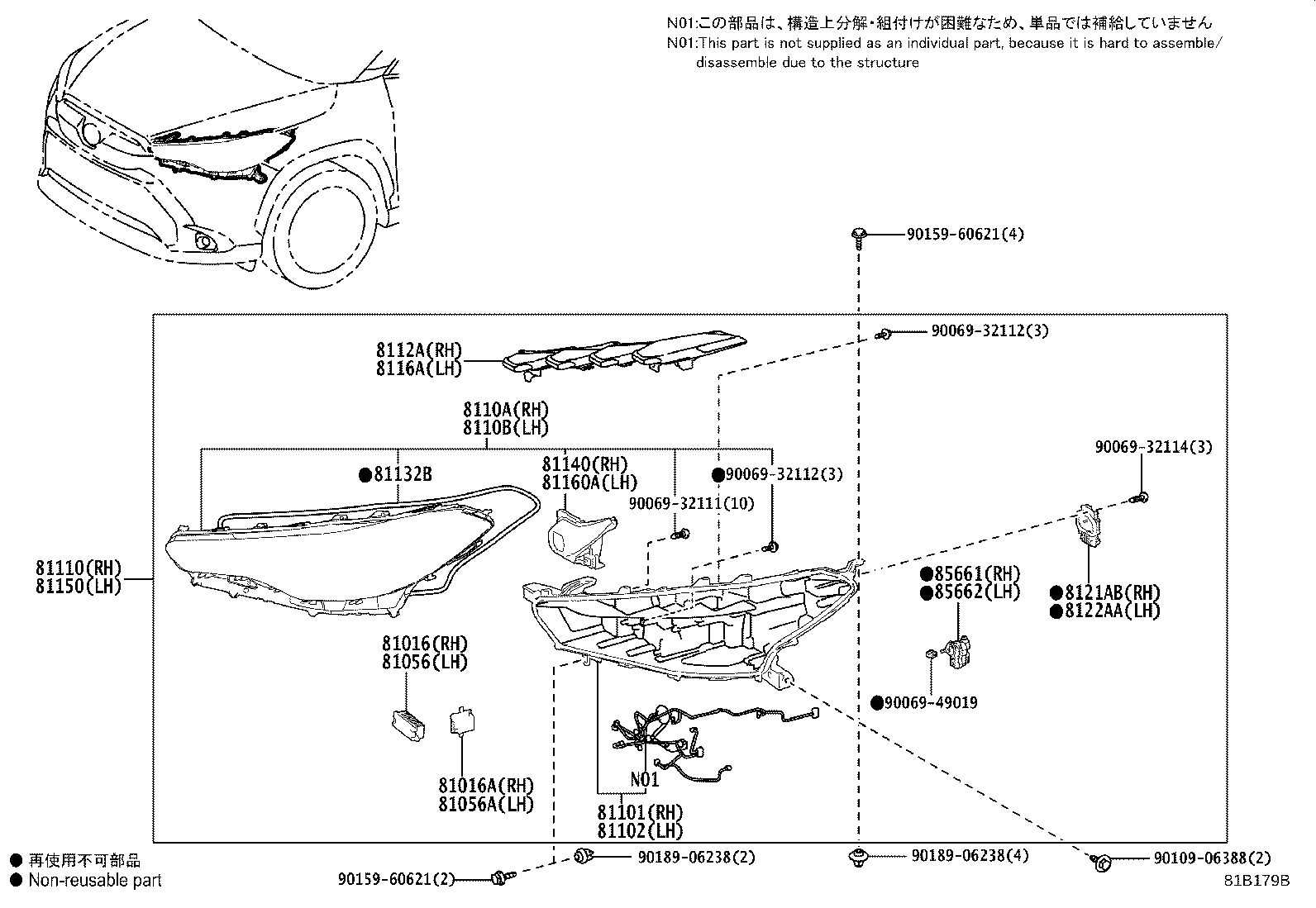

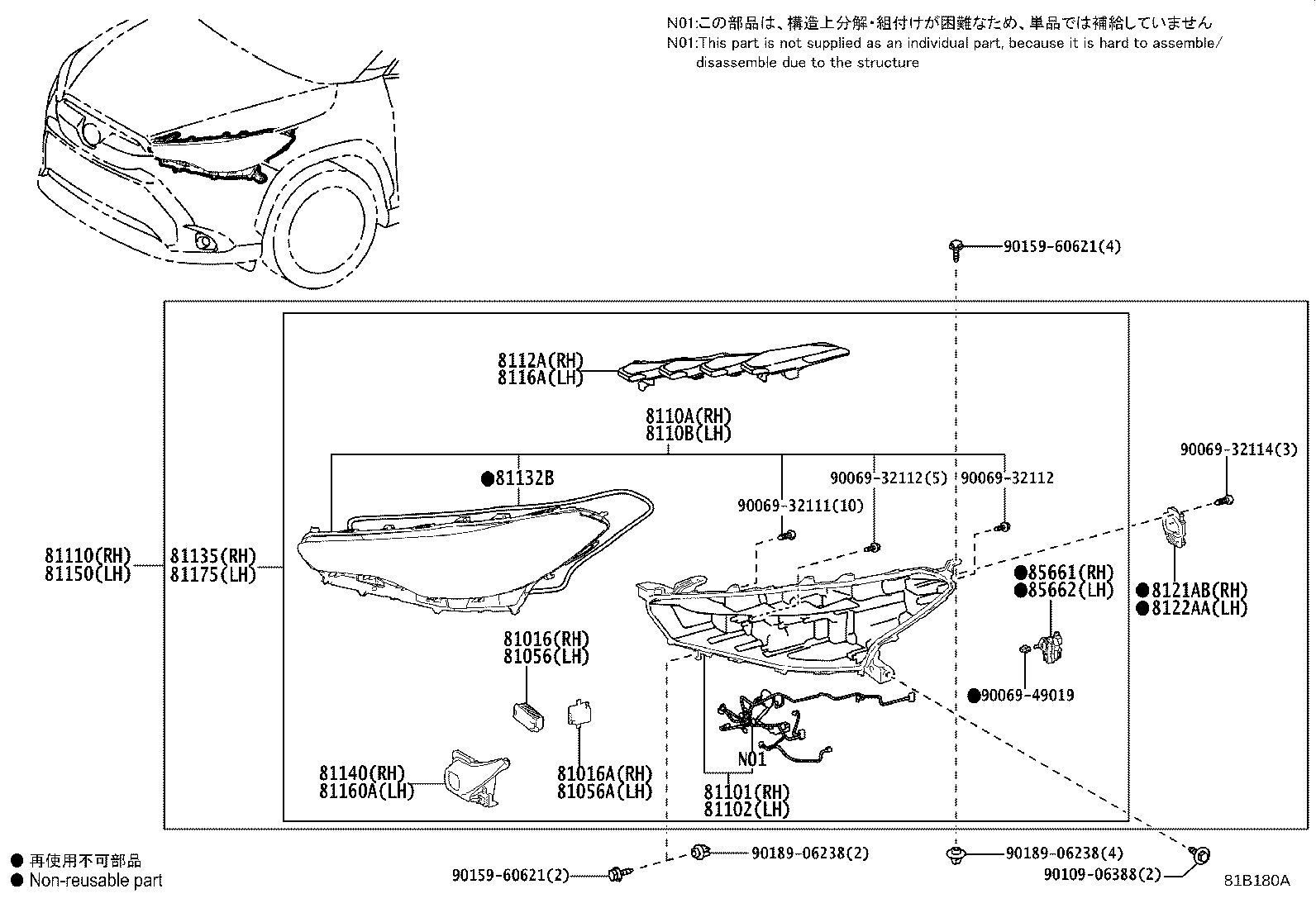

Figure 81B178B 81B178B 2022-07 → — Figure 81B179B 81B179B 2022-07 → — Figure 81B180A 81B180A 2022-07 → —

Part groups

PNCDescription
81016 Computer Sub-assy, Headlamp, RH NO.1
81016A Computer Sub-assy, Headlamp, RH
81056 Computer Sub-assy, Headlamp, LH NO.1
81056A Computer Sub-assy, Headlamp, LH
81101 Housing Sub-assy, Headlamp, RH
81102 Housing Sub-assy, Headlamp, LH
8110A Lens Sub-assy, Headlamp, RH
8110B Lens Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
8112A Unit, Headlamp Clearance Led, NO.1 RH
81132B Gasket, Headlamp Lens
81135 Unit Assy, Headlamp, RH
81140 Unit Assy, Headlamp Led, RH
81150 Headlamp Assy, LH
81160A Unit Assy, Headlamp Led, LH
8116A Unit, Headlamp Clearance Led, NO.1 LH
81175 Unit Assy, Headlamp, LH
8121AB Lamp, Led Illumination, RH
8122AA Lamp, Led Illumination, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
81610F Bulb(FOR CLEARANCE LAMP)
81615D Socket, Clearance Lamp
85661 Motor, Headlamp Leveling, RH
85662 Motor, Headlamp Leveling, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
