Toyota Corolla (JPP)
2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe
Supported model
Data version 2023-03

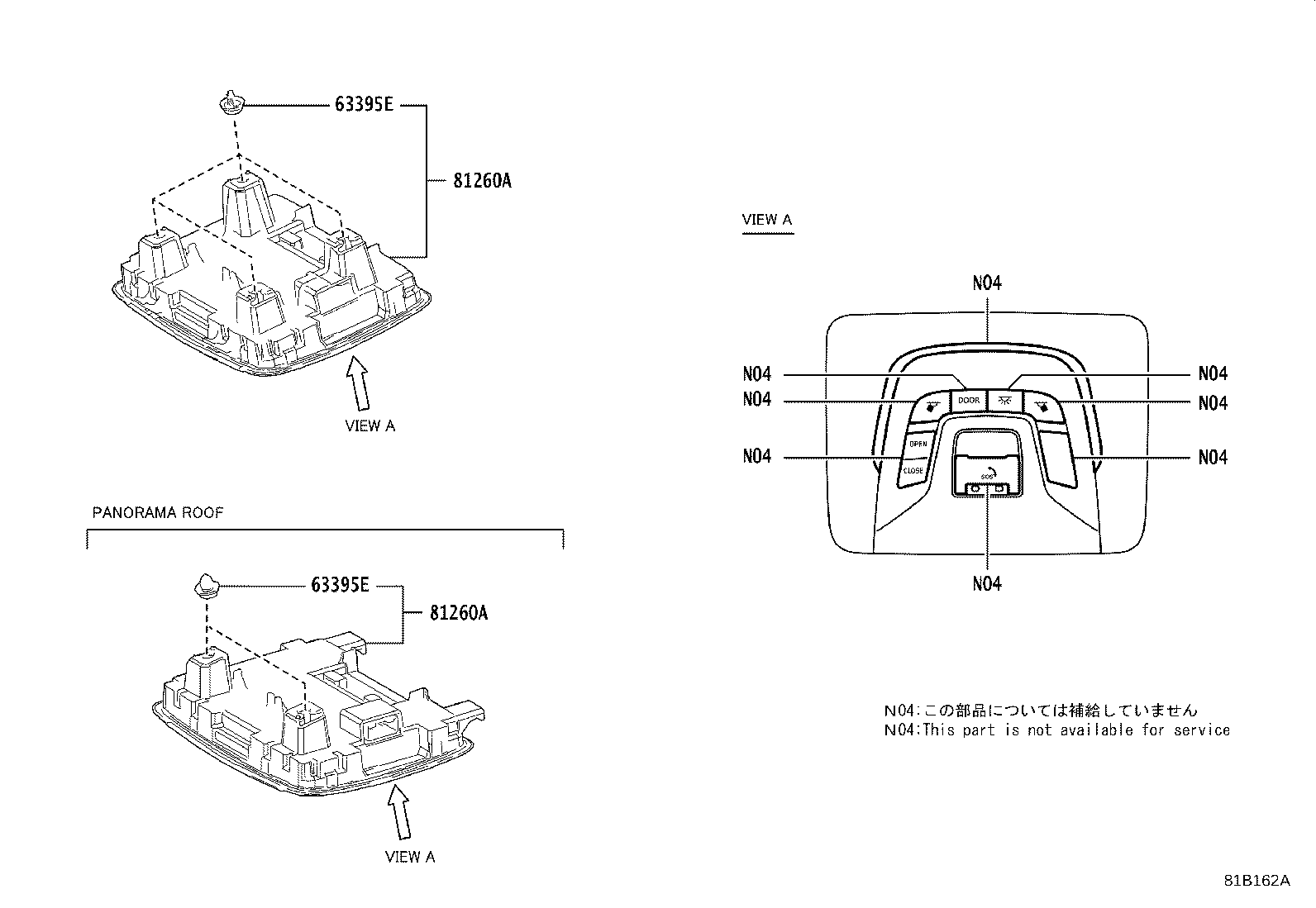

Interior Lamp
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63395E | Clip(FOR MAP LAMP) |
| 81080J | Lamp Assy, Interior Illumination, NO.1 |
| 81240J | Lamp Assy, Room |
| 81260 | Lamp Assy, Glove Box |
| 81260A | Lamp Assy, Map |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81340 | Lamp Assy, Vanity |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
