Toyota Corolla (JPP)

2022-07 → present · chassis MXGA10,MXGH1#,ZVG1# · catalogue 553210 · Europe

Supported model Data version 2023-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Telephone & Mayday

8 part groups · 2 illustrations

Illustrations

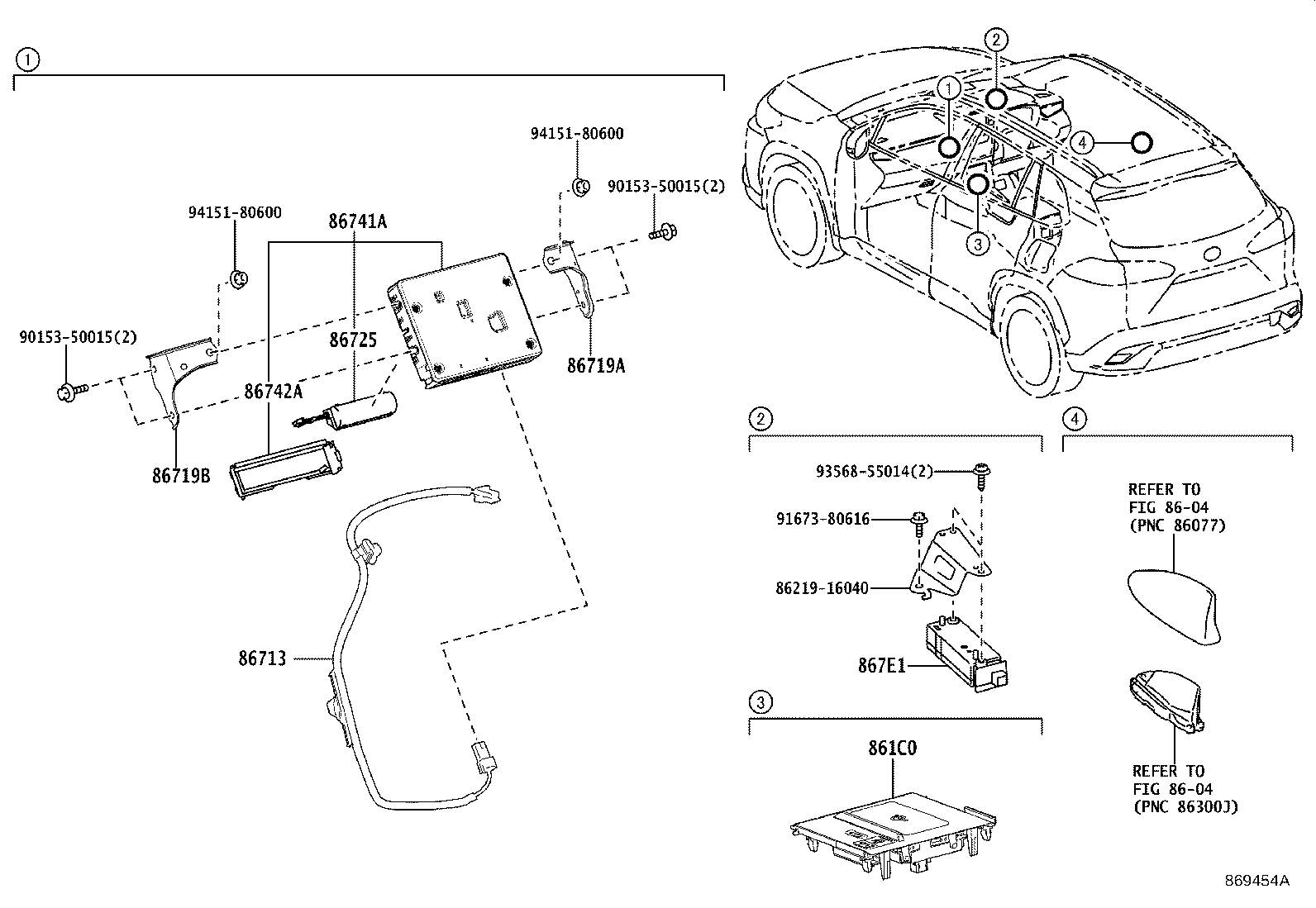

Figure 869453A 869453A 2022-07 → — Figure 869454A 869454A 2022-07 → —

Part groups

PNCDescription
861C0 Cradle Assy, Mobile Wireless Charger
86713 Wire, Telephone Computer
86719A Bracket, Telephone NO.1
86719B Bracket, Telephone NO.2
86725 Battery, Mobilephone
86741A Transceiver, Telematics
86742A Cover, Transceiver
867E1 Box, Communication Telematics
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
