Toyota BZ4X (JPP)
2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe
Supported model
Data version 2024-12
Transaxle Assy(HEV OR BEV OR FCEV)

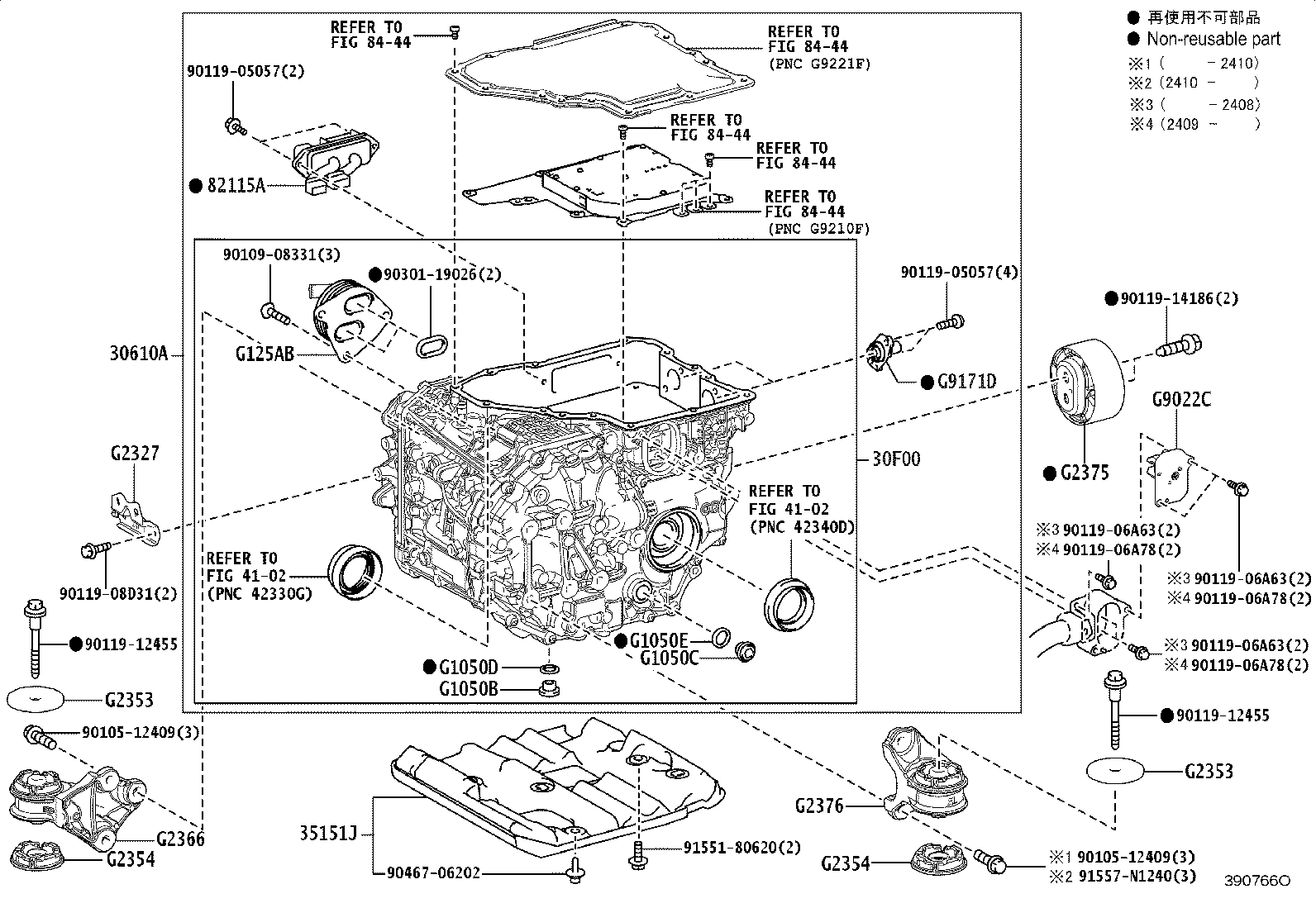

34 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 30600S | Transaxle Assy, EV W/Motor |
| 30600X | Plug, Drain(BEV) |
| 30600Y | Gasket, Drain Plug(BEV) |
| 30610 | Transaxle Assy, W/Motor & Inverter |
| 30610A | Transaxle Assy, Rear W/Motor & Inverter |
| 30900D | Plug, W/Head Straight Screw(FOR TRANSAXLE HOUSING & CASE) |
| 30900E | Gasket(FOR TRANSAXLE HOUSING & CASE) |
| 30900Y | Plug, Filler(BEV) |
| 30900Z | Gasket, Filler Plug(BEV) |
| 30F00 | Rear Transaxle Assy, W/Motor |
| 35151J | Cover, Automatic Transmission Case |
| 35580 | Actuator Assy, Shift Control |
| 82115 | Wire, Motor Compartment, Main |
| 82115A | Wire, Motor Compartment, Main (FOR REAR TRANSAXLE) |
| G1050B | Plug, Drain(FOR REAR TRACTION MOTOR) |
| G1050C | Plug, Filler(FOR REAR TRACTION MOTOR) |
| G1050D | Gasket, Drain Plug(FOR REAR TRACTION MOTOR) |
| G1050E | Gasket, Filler Plug(FOR REAR TRACTION MOTOR) |
| G125AA | Cooler, Motor Cooling |
| G125AB | Cooler, Motor Cooling (FOR REAR TRANSAXLE) |
| G2305A | Insulator Sub-assy, Motor Mounting, RH |
| G2306A | Insulator Sub-assy, Motor Mounting, LH |
| G2321A | Bracket, Motor Mounting, Rear |
| G2327 | Stay, Rear Motor Mounting, RH |
| G2353 | Stopper, Motor Mounting, Upper |
| G2354 | Stopper, Motor Mounting, Lower |
| G2366 | Insulator, Rear Motor Mounting, RH |
| G2371A | Insulator, Motor Mounting, Rear |
| G2375 | Insulator, Rear Motor Mounting, Rear |
| G2376 | Insulator, Rear Motor Mounting, LH |
| G9022B | Cover Sub-assy, Inverter, Upper |
| G9022C | Cover Sub-assy, Inverter, Upper, NO.2 |
| G9171C | Pipe, Inverter Cooling, NO.1 |
| G9171D | Pipe, Inverter Cooling, NO.1 (FOR REAR TRANSAXLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
