Toyota BZ4X (JPP)
2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe
Supported model
Data version 2024-12

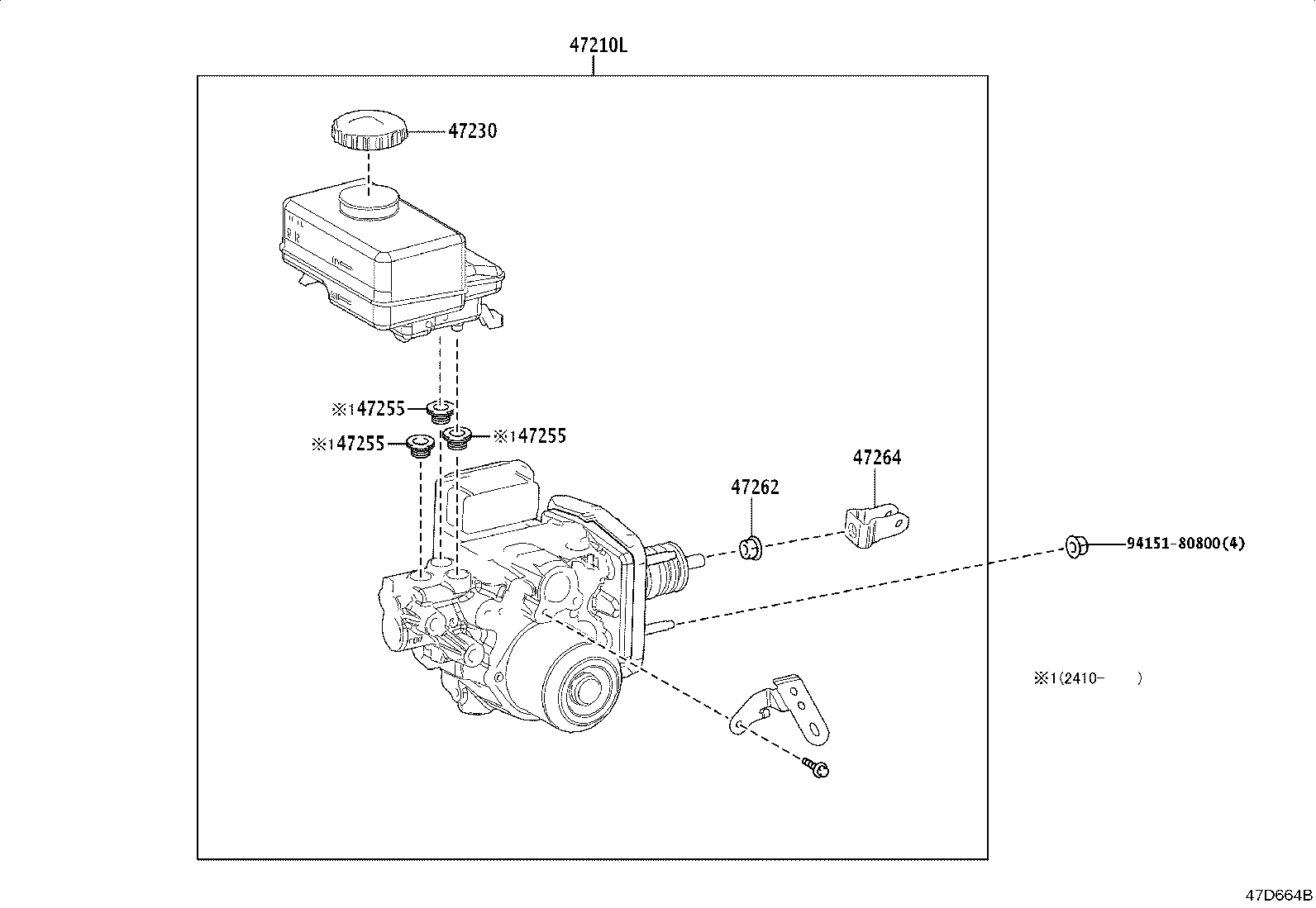

Brake Master Cylinder
5 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 47210L | Brake Booster Assy, W/Master Cylinder |
| 47230 | Cap Assy, Brake Master Cylinder Reservoir Filler |
| 47255 | Grommet, Master Cylinder Reservoir |
| 47262 | Nut, Master Cylinder Push Rod |
| 47264 | Clevis, Master Cylinder Push Rod |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
