Toyota BZ4X (JPP)

2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

15 part groups · 2 illustrations

Illustrations

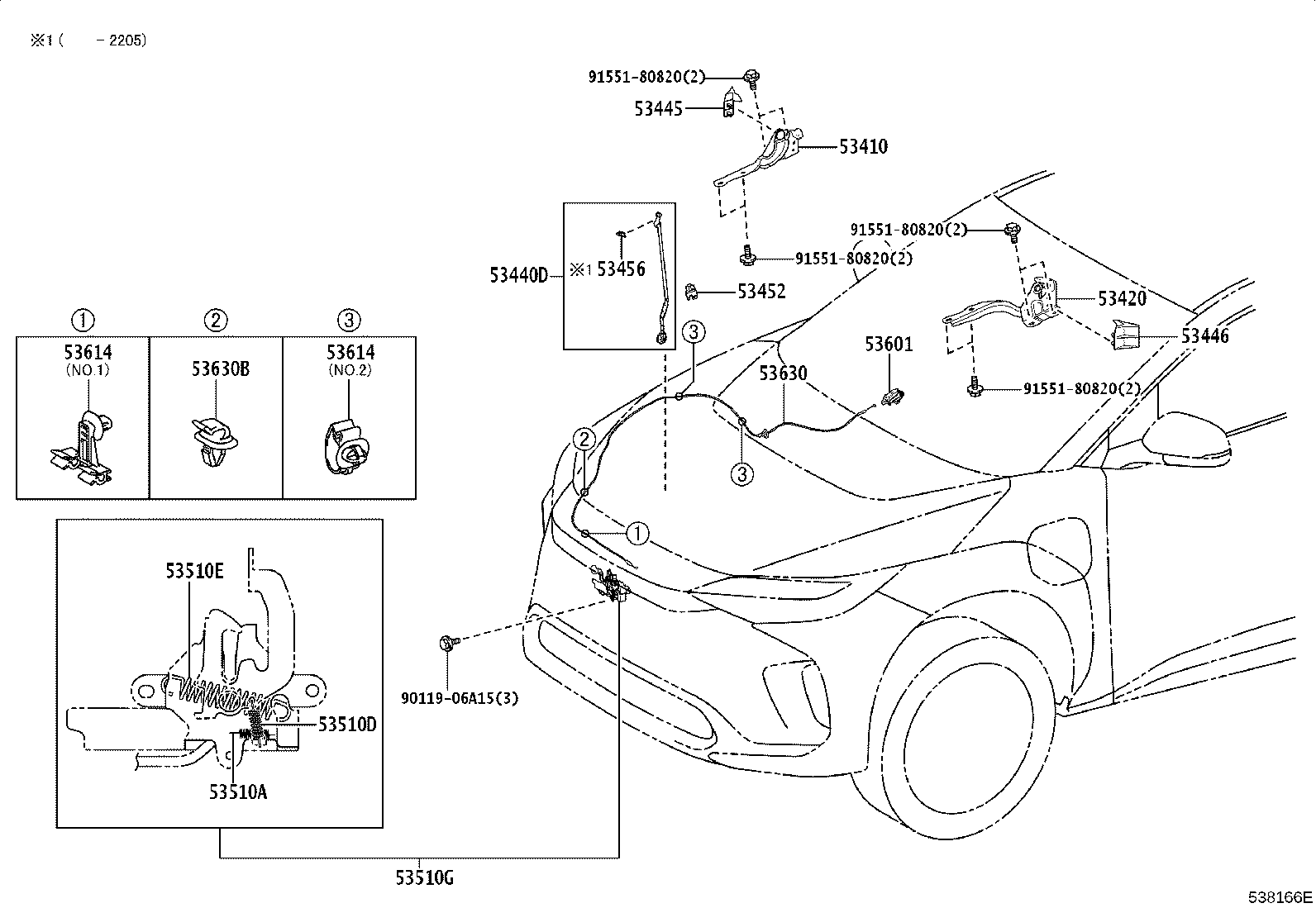

Figure 538167E 538167E 2022-03 → — Figure 538166E 538166E 2022-03 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53420 Hinge Assy, Hood, LH
53440D Support Assy, Hood
53445 Cover, Hood Hinge, RH
53446 Cover, Hood Hinge, LH
53452 Holder, Hood Stay
53456 Stopper, Hood Support
53510A Spring, Tension(FOR HOOD LOCK)
53510D Spring, Tension(FOR HOOD LOCK)
53510E Spring, Tension(FOR HOOD LOCK)
53510G Lock Assy, Hood, W/Courtesy Lamp Switch
53601 Lever Sub-assy, Hood Lock Control
53614 Clamp, Hood Lock Control Cable
53630 Cable Assy, Hood Lock Control
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
