Toyota BZ4X (JPP)

2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe

Supported model Data version 2024-12

Front Fender Apron & Dash Panel

41 part groups · 4 illustrations

PNC	Description

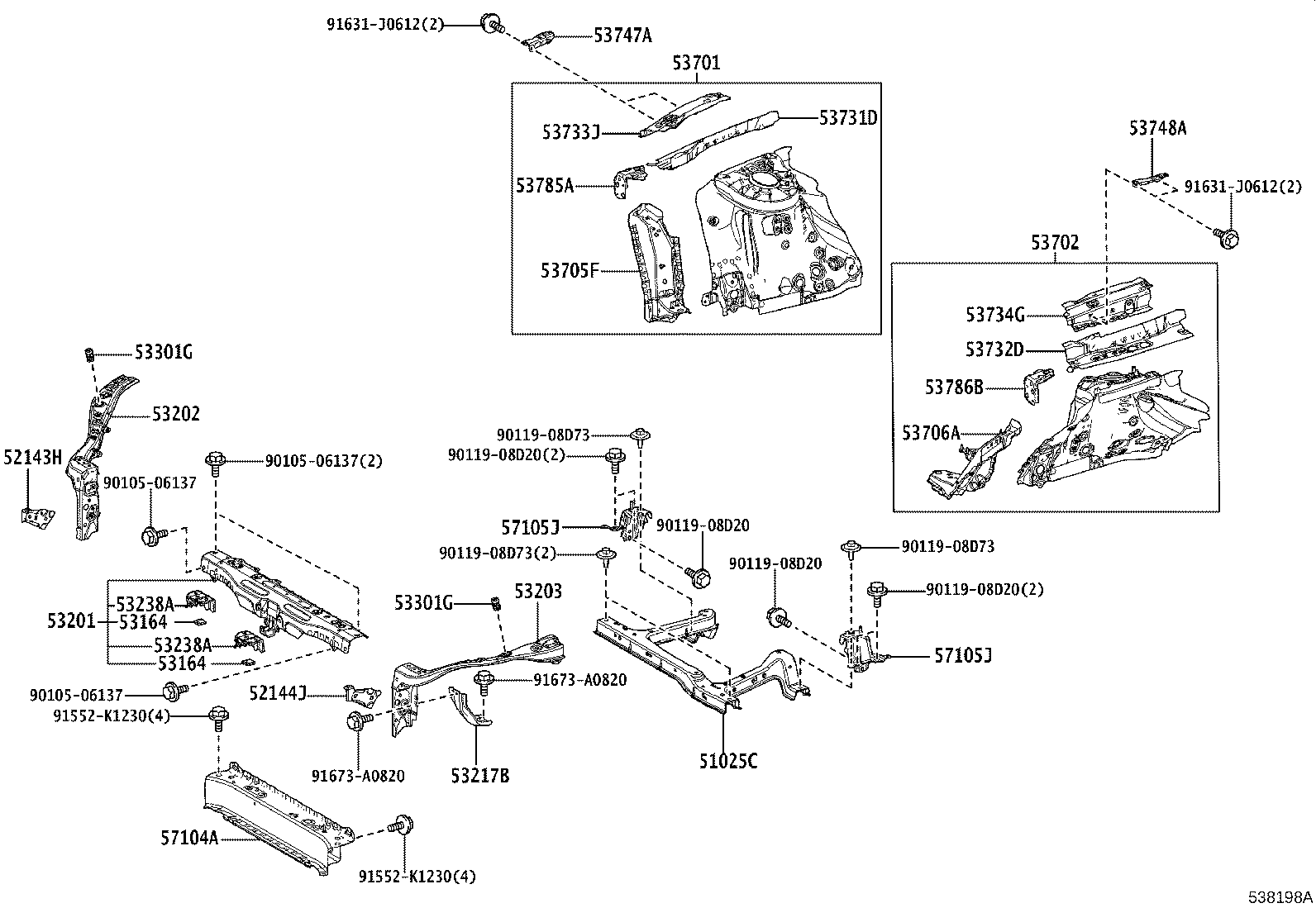

16593B	Guide, Radiator Air, NO.1 RH
16691A	Plate, Radiator Side Air Guide, Front RH
51025C	Bracket Sub-assy, Frame NO.3 Crossmember
52143H	Arm, Front Bumper, Inner RH
52144J	Stay, Front Bumper, Center
53019F	Shutter Sub-assy, Radiator
53155J	Seal, Radiator Grille, NO.1
53164	Bracket, Radiator Support Side
53180D	Shutter Assy, Radiator
53201	Support Sub-assy, Radiator
53202	Support Sub-assy, Radiator, RH
53203	Support Sub-assy, Radiator, LH
53217B	Brace, Radiator Support TO Crossmember
53238A	Bracket, Hood Bumper Mounting
53289A	Cover, Radiator Support Opening
53289F	Clip(FOR RADIATOR SUPPORT OPENING COVER)
53301G	Cushion, Hood Bumper
53701	Apron Sub-assy, Front Fender, RH
53702	Apron Sub-assy, Front Fender, LH
53705F	Brace Sub-assy, Fender Apron, RH
53706A	Brace Sub-assy, Fender Apron, LH
53731D	Member, Front Apron TO Cowl Side, Upper RH
53732D	Member, Front Apron TO Cowl Side, Upper LH
53733J	Member, Front Apron TO Cowl Side, Outer Front RH
53734G	Member, Front Apron TO Cowl Side, Outer Front LH
53747A	Extension, Apron Fender Side, RH
53748A	Extension, Apron Fender Side, LH
53785A	Gusset, Front Fender Apron, Upper RH
53786B	Gusset, Front Fender Apron, Upper LH

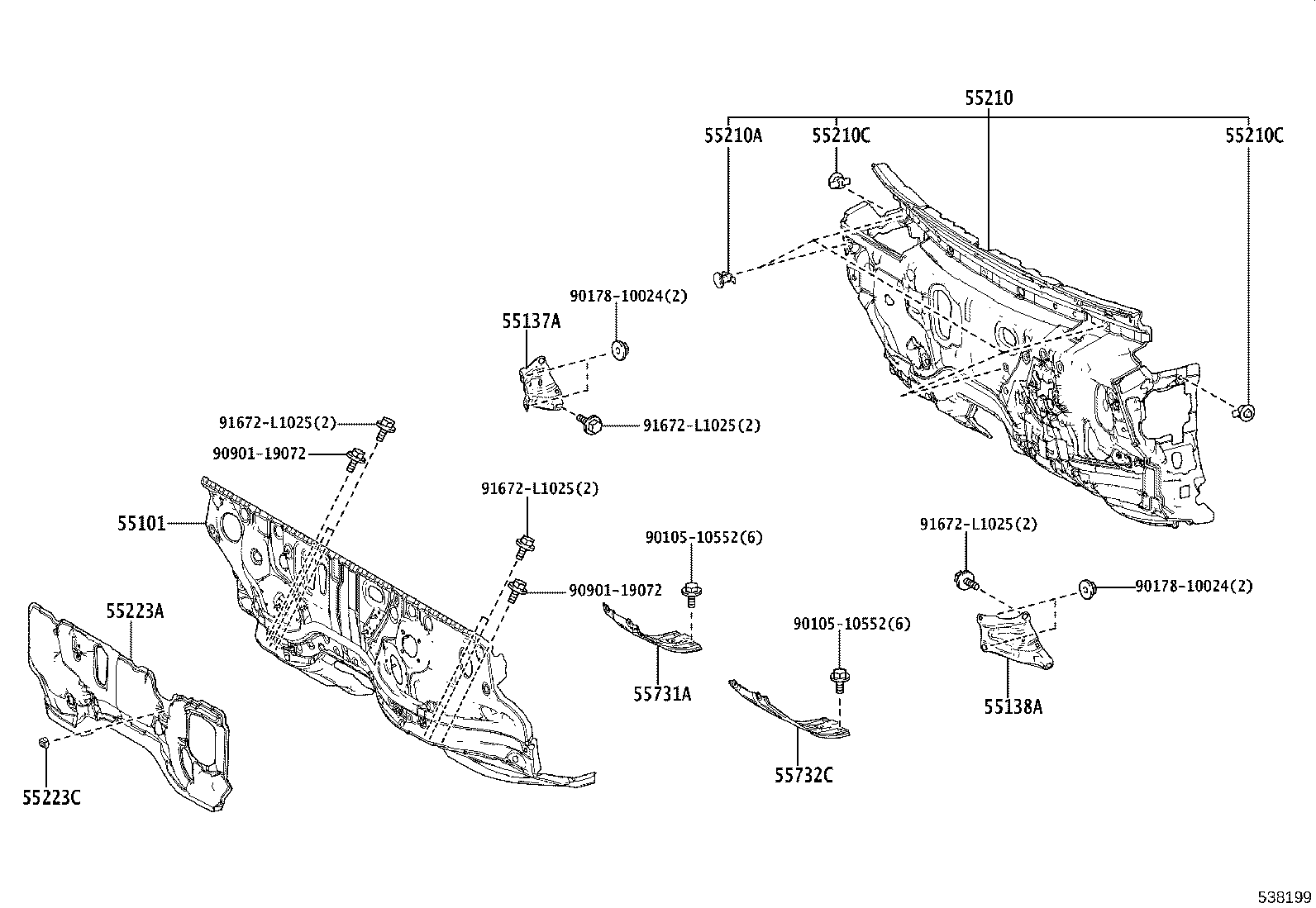

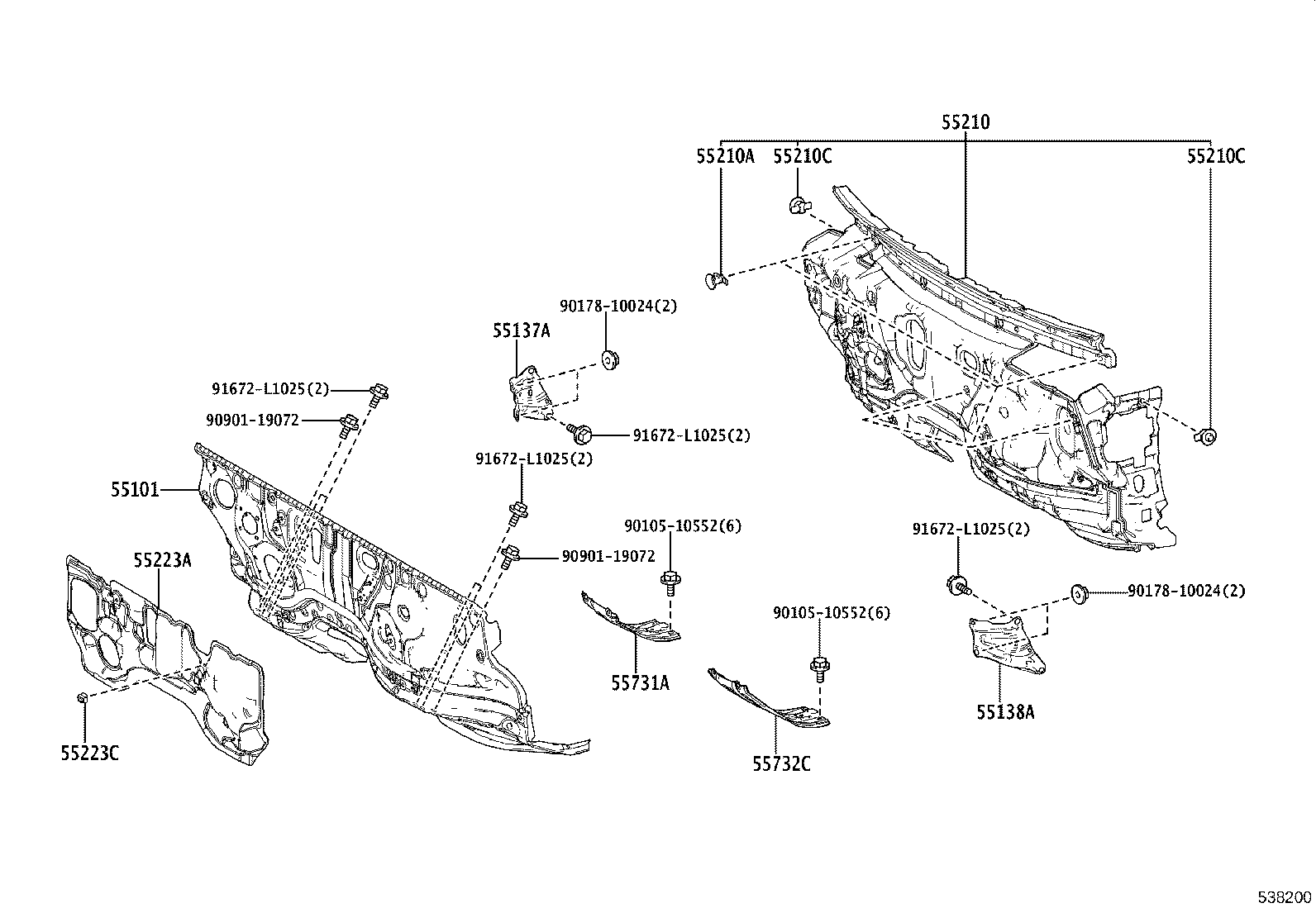

55101	Panel Sub-assy, Dash
55137A	Brace, Dash TO Frame, RH
55138A	Brace, Dash TO Frame, LH
55210	Insulator Assy, Dash Panel
55210A	Clip
55210C	Clip
55223A	Insulator, Dash Panel, Outer
55223C	Clip
55731A	Bracket, Front Panel Member, RH
55732C	Bracket, Front Panel Member, LH
57104A	Member Sub-assy, Front Cross
57105J	Bracket Sub-assy, Front Suspension Member Mounting, Front

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
