Toyota BZ4X (JPP)

2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

18 part groups · 2 illustrations

Illustrations

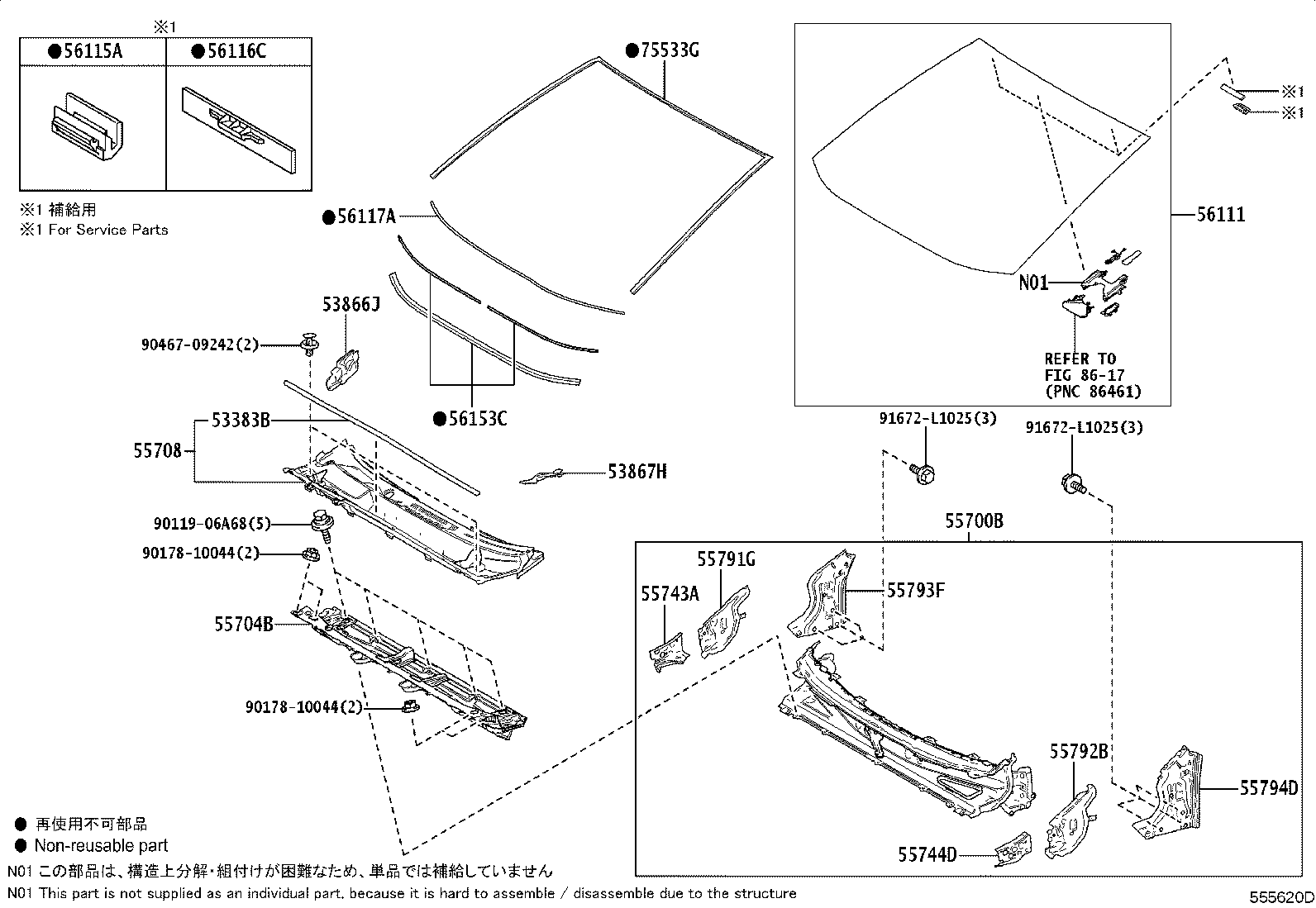

Figure 555619E 555619E 2022-03 → — Figure 555620D 555620D 2022-03 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
53866J Seal, Front Fender TO Cowl Side, RH
53867H Seal, Front Fender TO Cowl Side, LH
55700B Cowl Assy
55704B Panel Sub-assy, Cowl Ventilator
55708 Louver Sub-assy, Cowl Top Ventilator
55743A Extension, Cowl TO Cowl Side, RH
55744D Extension, Cowl TO Cowl Side, LH
55791G Cover, Cowl Reinforcement, Upper RH
55792B Cover, Cowl Reinforcement, Upper LH
55793F Cover, Cowl Reinforcement, Upper NO.2 RH
55794D Cover, Cowl Reinforcement, Upper NO.2 LH
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
56153C Moulding, Front Window, Inner Center
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
