Toyota BZ4X (JPP)
2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe
Supported model
Data version 2024-12

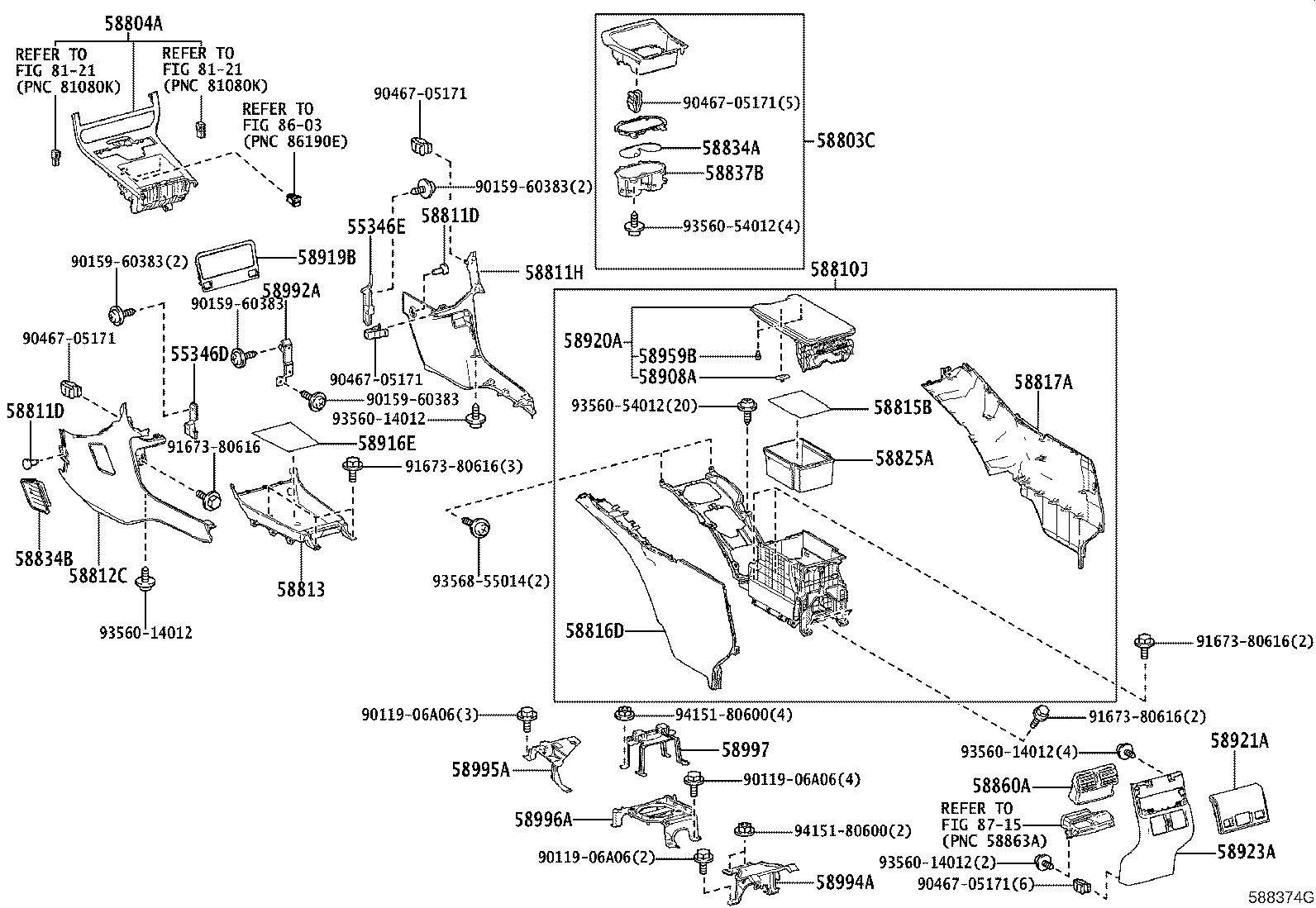

Console Box & Bracket
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55346D | Bracket, Air Conditioning Mounting, NO.1 |
| 55346E | Bracket, Air Conditioning Mounting, NO.2 |
| 58803C | Box Sub-assy, Console Cup Holder |
| 58804A | Panel Sub-assy, Console, Upper |
| 58810J | Box Assy, Console |
| 58811D | Clip(FOR CONSOLE BOX) |
| 58811H | Box, Console, RH |
| 58812C | Box, Console, LH |
| 58813 | Box, Console, Upper |
| 58815B | Carpet, Console Box |
| 58816D | Insert, Console Box, Front NO.1 |
| 58817A | Insert, Console Box, Front NO.2 |
| 58825A | Pocket, Console Box |
| 58834A | Cover, Console, Lower |
| 58834B | Garnish, Console Upper Panel, NO.2 |
| 58837B | Box, Console Cup Holder |
| 58860A | Register Assy, Console Box |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58916E | Mat, Box Bottom |
| 58919B | Plate, Console Box |
| 58920A | Armrest Assy, Rear Console |
| 58921A | Panel, Rear Console, Upper |
| 58923A | Panel, Console Rear End |
| 58959B | Cushion, Console Compartment Door |
| 58992A | Bracket, Console Box Mounting, Upr LH |
| 58994A | Bracket, Console Box Mounting, NO.4 |
| 58995A | Bracket, Console Box Mounting, NO.1 |
| 58996A | Bracket, Console Box Mounting, NO.2 |
| 58997 | Bracket, Console Box Mounting, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
