Toyota BZ4X (JPP)
2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe
Supported model
Data version 2024-12

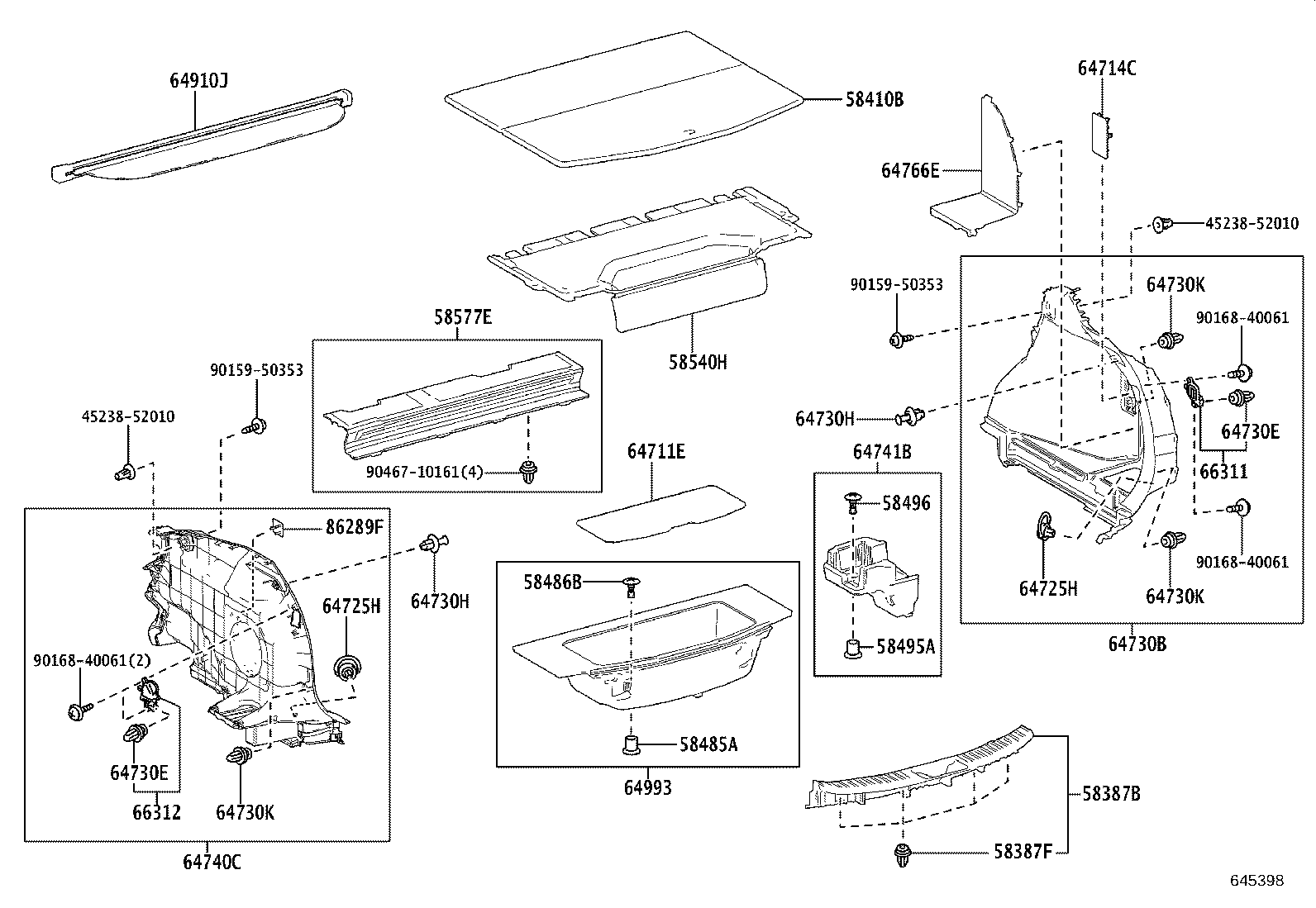

Deck Board & Deck Trim Cover
24 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387B | Plate, Rear Floor Finish |
| 58387F | Clip, Rear Floor Finish Plate |
| 58410B | Board Assy, Deck |
| 58485A | Plate, Rear Floor Board, Upper NO.1 |
| 58486B | Plate, Rear Floor Board, Upper NO.2 |
| 58495A | Plate, Rear Floor Board, Upper NO.3 |
| 58496 | Plate, Rear Floor Board, Upr NO.4 |
| 58540H | Mat Assy, Floor, Rear |
| 58577E | Plate, Rear Floor Mat Support Side, NO.1 |
| 64711E | Mat, Luggage Compartment Floor |
| 64714C | Cover, Deck Side Trim, RH |
| 64725H | Hook, Quarter Trim, |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64730H | Clip(FOR DECK TRIM SIDE PANEL) |
| 64730K | Clip(FOR DECK SIDE TRIM PANEL) |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64741B | Box, Deck Side Trim, RH |
| 64766E | Bezel, Jack Cover, Lower |
| 64910J | Cover Assy, Tonneau |
| 64993 | Box, Deck Floor, Rear |
| 66311 | Hook, Rope |
| 66312 | Hook, Rope, NO.2 |
| 86289F | Plate, Speaker Grille |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
