Toyota BZ4X (JPP)

2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Armrest & Visor

12 part groups · 3 illustrations

Illustrations

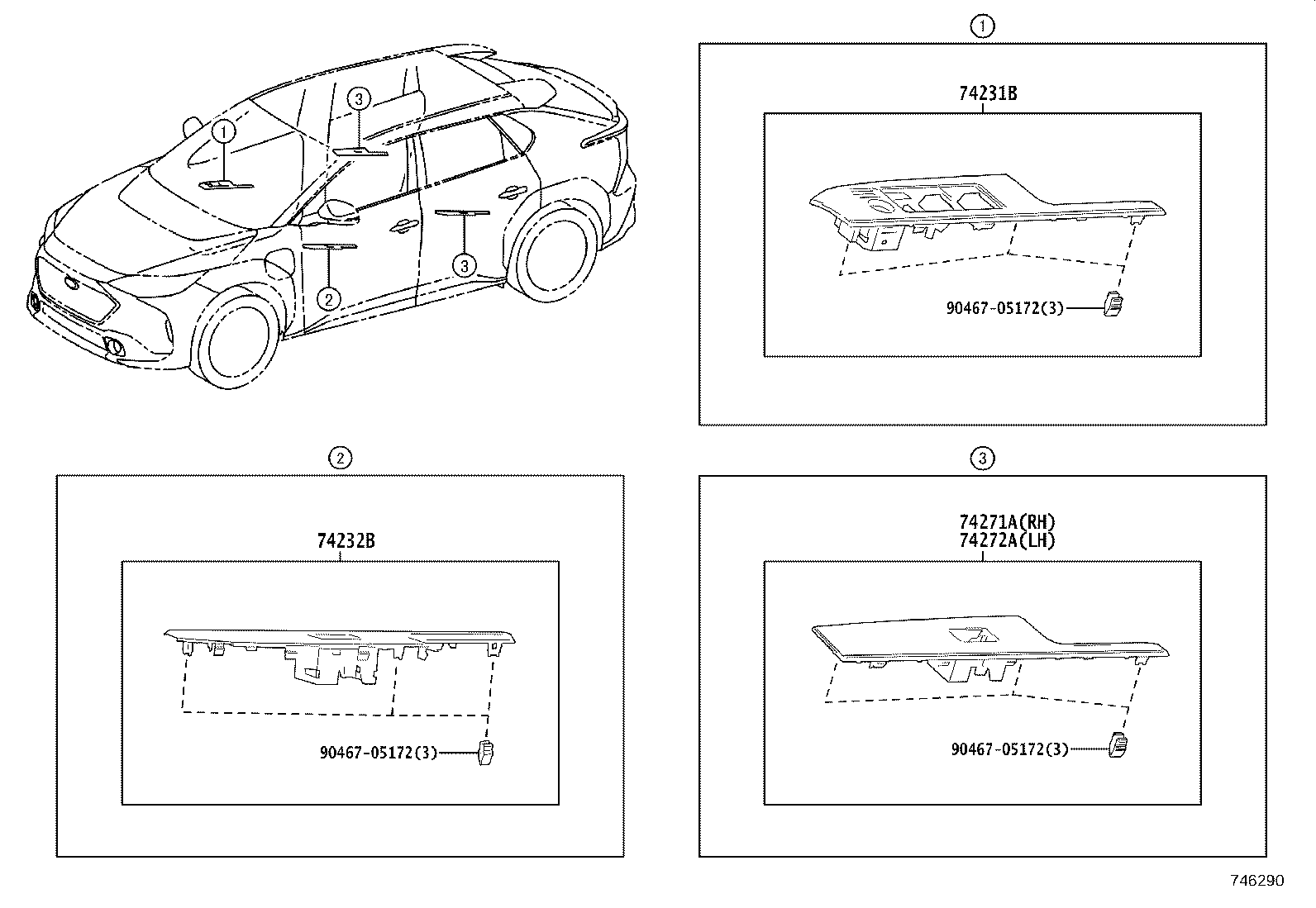

Figure 746291 746291 2022-03 → — Figure 746290 746290 2022-03 → — Figure 746292 746292 2022-03 → —

Part groups

PNCDescription
74231B Panel, Door Armrest Base, RH
74232B Panel, Door Armrest Base, LH
74271A Panel, Rear Door Armrest Base, Upper RH
74272A Panel, Rear Door Armrest Base, Upper LH
74310 Visor Assy, RH
74320 Visor Assy, LH
74348 Holder, Visor
74610A Grip Sub-assy, Assist
74612 Cover, Assist Grip
74614C Plate, Assist Grip Lock
74620C Grip Assy, Assist, Rear RH
74630E Grip Assy, Assist, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
