Toyota BZ4X (JPP)
2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe
Supported model
Data version 2024-12

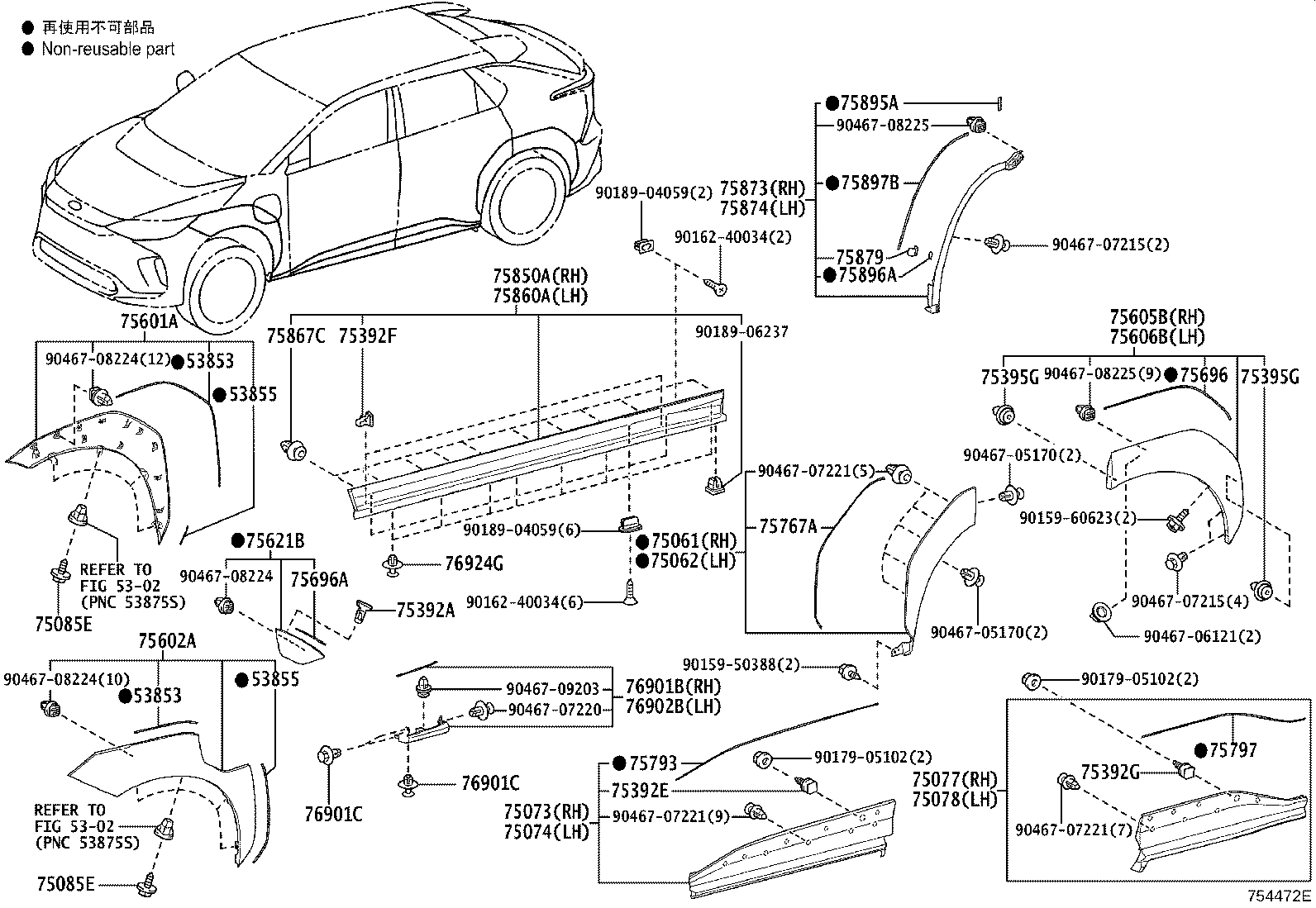

Side Moulding
65 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53853 | Pad, Front Wheel Opening Extension, NO.3 |
| 53855 | Pad, Front Wheel Opening Extension, NO.3 |
| 60117 | Cover Sub-assy, Front Pillar, Upr RH |
| 60118 | Cover Sub-assy, Front Pillar, Upr LH |
| 75061 | Moulding Set, Outside |
| 75062 | Moulding Set, Outside, LH |
| 75071A | Moulding Sub-assy, Front Door, Outside RH |
| 75072A | Moulding Sub-assy, Front Door, Outside LH |
| 75073 | Moulding Sub-assy, Front Door, Outside Lower RH |
| 75074 | Moulding Sub-assy, Front Door, Outside Lower LH |
| 75077 | Moulding Sub-assy, Rear Door Outside Lower RH |
| 75078 | Moulding Sub-assy, Rear Door Outside Lower LH |
| 75085E | Screw, NO.1 |
| 75392A | Retainer, Outside Moulding, NO.1 |
| 75392E | Retainer, Outside Moulding, NO.1 |
| 75392F | Retainer, Outside Moulding |
| 75392G | Retainer, Outside Moulding, NO.1 |
| 75395G | Clip, Outside Moulding, NO.1 |
| 75551 | Moulding, Roof Drip Side Finish, RH |
| 75552 | Moulding, Roof Drip Side Finish, LH |
| 75553A | Moulding, Roof Drip Side Finish, Rear RH |
| 75554A | Moulding, Roof Drip Side Finish, Rear LH |
| 75555D | Moulding, Roof Drip Side Finish, Center RH |
| 75556C | Moulding, Roof Drip Side Finish, Center LH |
| 75561A | Clip, Roof Drip Side Finish Moulding |
| 75596 | Cover, Roof Drip Side Finish Moulding Joint, RH |
| 75597 | Cover, Roof Drip Side Finish Moulding Joint, LH |
| 75601A | Moulding Sub-assy, Front Fender, RH |
| 75602A | Moulding Sub-assy, Front Fender, LH |
| 75605B | Moulding Sub-assy, Quarter Outside, RH |
| 75606B | Moulding Sub-assy, Quarter Outside, LH |
| 75621B | Moulding, Side Panel, NO.1 LH |
| 75696 | Pad, Body Outside Moulding, NO.1 |
| 75696A | Pad, Body Outside Moulding |
| 75710 | Moulding Assy, Front Door Belt, RH |
| 75720 | Moulding Assy, Front Door Belt, LH |
| 75730 | Moulding Assy, Rear Door Belt, RH |
| 75740 | Moulding Assy, Rear Door Belt, LH |
| 75751A | Moulding, Front Door Window Frame, RH(FRONT PILLAR SIDE) |
| 75752A | Moulding, Front Door Window Frame, LH(FRONT PILLAR SIDE) |
| 75755A | Moulding, Front Door Window Frame, RH(CENTER PILLAR SIDE) |
| 75756D | Moulding, Front Door Window Frame, LH(CENTER PILLAR SIDE) |
| 75761B | Moulding, Rear Door Window Frame, RH(CENTER PILLAR SIDE) |
| 75762B | Moulding, Rear Door Window Frame, LH(CENTER PILLAR SIDE) |
| 75763A | Moulding, Rear Door Window Frame, Upper RH |
| 75764A | Moulding, Rear Door Window Frame, Upper LH |
| 75765B | Moulding, Rear Door Window Frame, RH(REAR PILLAR SIDE) |
| 75766B | Moulding, Rear Door Window Frame, LH(REAR PILLAR SIDE) |
| 75767A | Pad, Rear Door Moulding, NO.1 |
| 75792 | Clip, Door Window Frame Moulding |
| 75793 | Pad, Front Door Outside Moulding, Upper |
| 75797 | Pad, Rear Door Outside Moulding, Upper |
| 75850A | Moulding Assy, Body Rocker Panel, RH |
| 75860A | Moulding Assy, Body Rocker Panel, LH |
| 75867C | Clip, Rocker Panel Moulding |
| 75873 | Moulding, Quarter Panel Wheel Opening, RH |
| 75874 | Moulding, Quarter Panel Wheel Opening, LH |
| 75879 | Retainer, Quarter Opening |
| 75895A | Tape, Moulding, NO.1 |
| 75896A | Tape, Moulding, NO.2 |
| 75897B | Tape, Moulding, NO.3 |
| 76901B | Mudguard Sub-assy, Fender Panel, RH |
| 76901C | Clip, Fender Panel Mudguard |
| 76902B | Mudguard Sub-assy, Fender Panel, LH |
| 76924G | Retainer, Rocker Panel Moulding |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
