Toyota BZ4X (JPP)
2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe
Supported model
Data version 2024-12

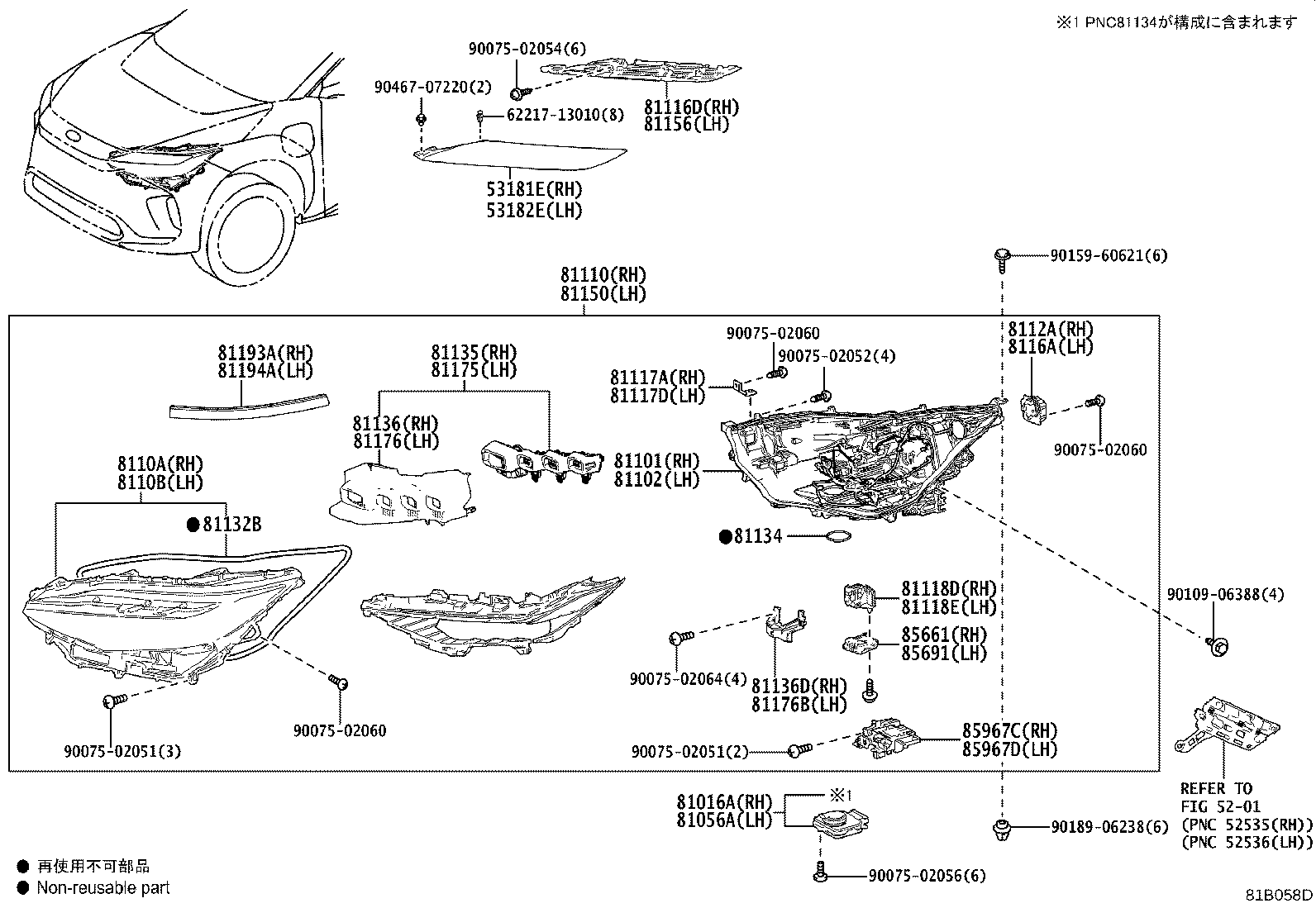

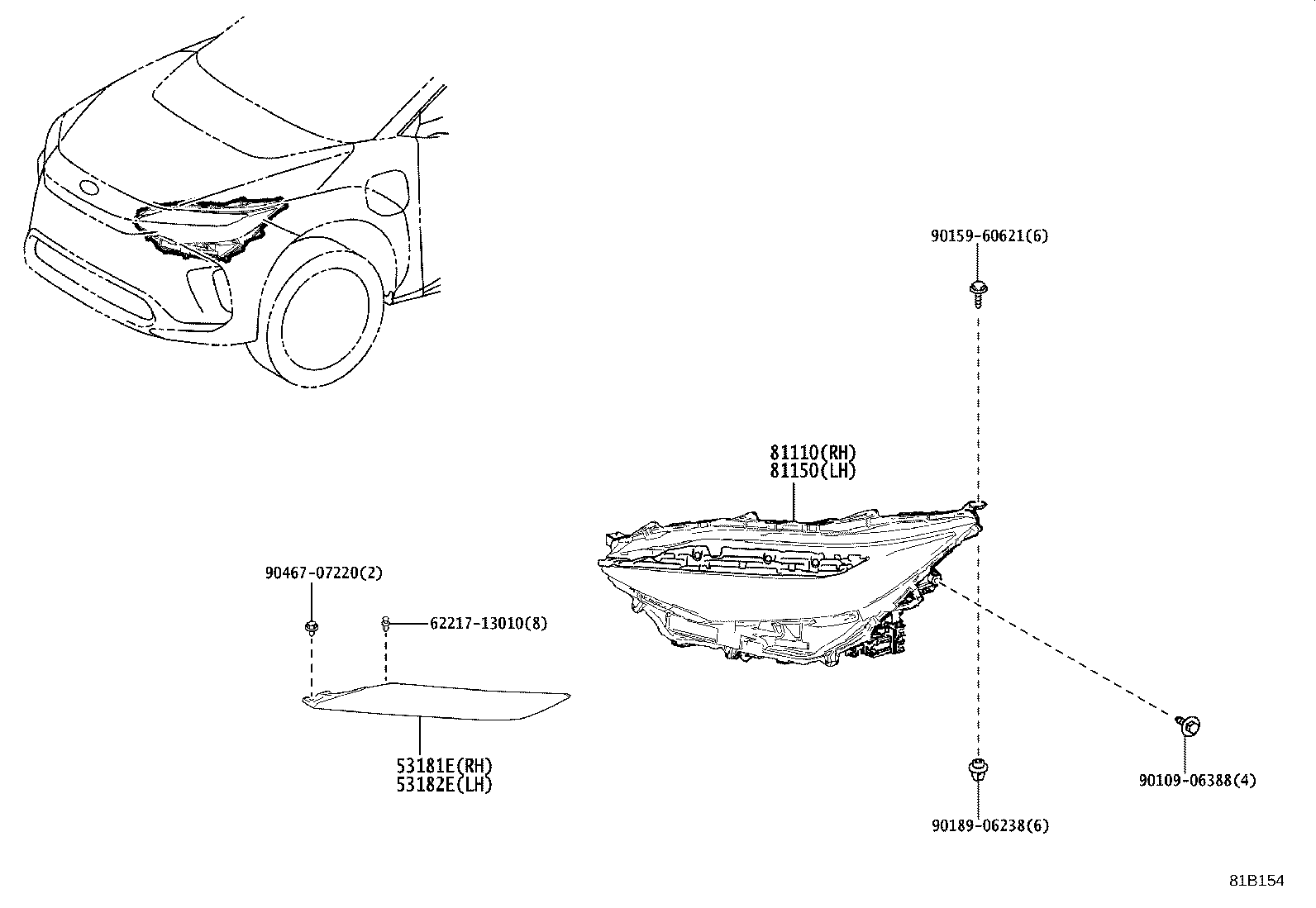

Headlamp
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53181E | Cover, Headlamp, RH |
| 53182E | Cover, Headlamp, LH |
| 81016A | Computer Sub-assy, Headlamp, RH |
| 81056A | Computer Sub-assy, Headlamp, LH |
| 81101 | Housing Sub-assy, Headlamp, RH |
| 81102 | Housing Sub-assy, Headlamp, LH |
| 8110A | Lens Sub-assy, Headlamp, RH |
| 8110B | Lens Sub-assy, Headlamp, LH |
| 81110 | Headlamp Assy, RH |
| 81116D | Rim, Head Lamp, RH |
| 81117A | Bracket, Headlamp, RH |
| 81117D | Bracket, Headlamp, LH |
| 81118D | Bracket, Headlamp, RH NO.2 |
| 81118E | Bracket, Headlamp, LH NO.2 |
| 8112A | Unit, Headlamp Clearance Led, NO.1 RH |
| 81132B | Gasket, Headlamp Lens |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81136 | Protector, Headlamp, NO.1 RH |
| 81136D | Cover, Headlamp |
| 8113A | Led, Headlamp Front Turn Signal |
| 81150 | Headlamp Assy, LH |
| 81156 | Rim, Headlamp, LH |
| 8116A | Unit, Headlamp Clearance Led, NO.1 LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81176 | Protector, Headlamp, NO.1 LH |
| 81176B | Cover, Headlamp, NO.2 LH |
| 81193A | Protector, Headlamp, RH |
| 81194A | Protector, Headlamp, LH |
| 85661 | Motor, Headlamp Leveling, RH |
| 85691 | Motor, Headlamp Leveling, LH |
| 85967C | Computer, Light Control Led, RH |
| 85967D | Computer, Light Control Led, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
