Toyota BZ4X (JPP)

2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

13 part groups · 2 illustrations

Illustrations

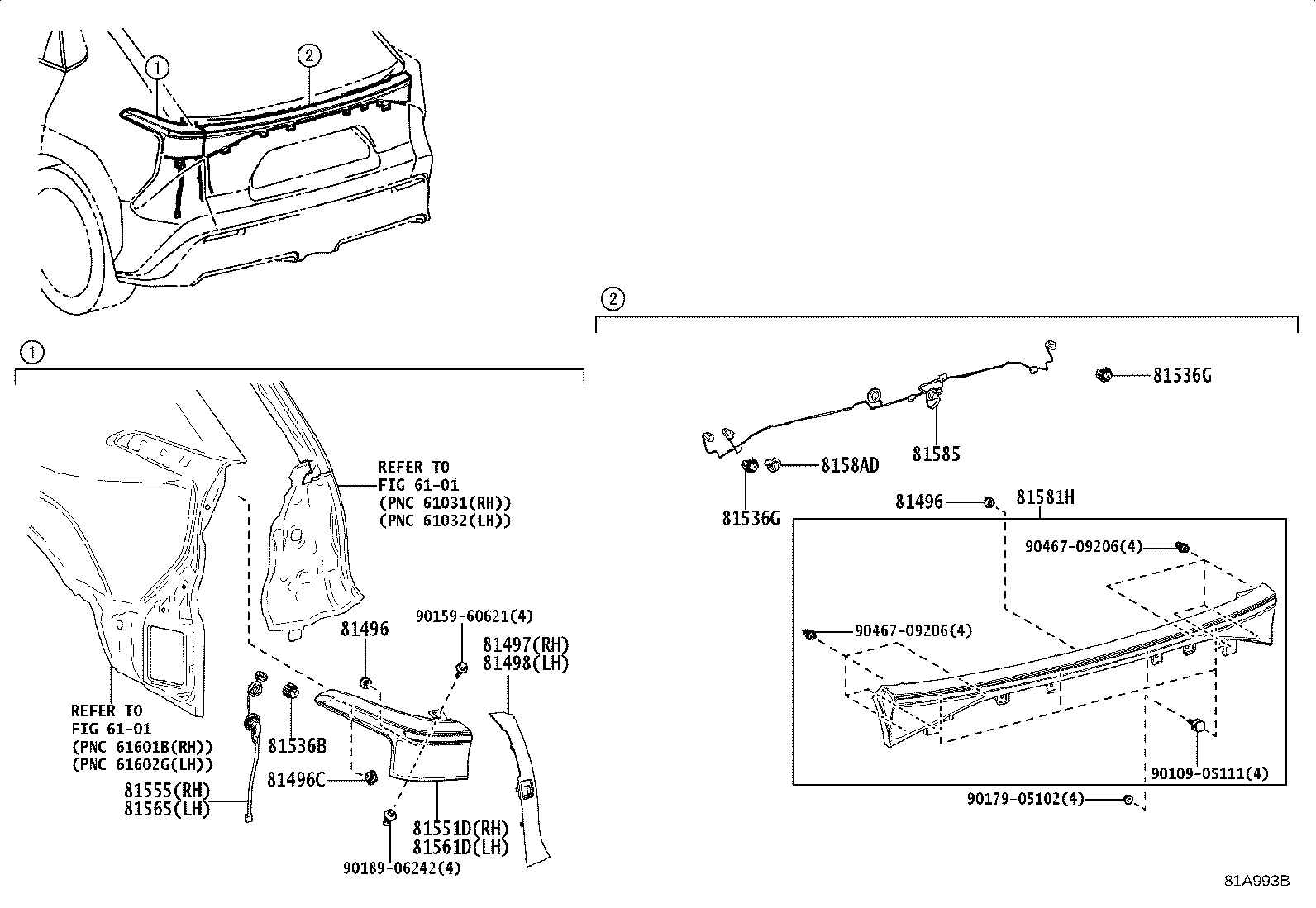

Figure 81A991B 81A991B 2022-03 → — Figure 81A993B 81A993B 2022-03 → —

Part groups

PNCDescription
81496 Guide, Rear Combination Lamp
81496C Guide, Rear Combination Lamp, NO.2
81497 Cover, Rear Combination Lamp, RH
81498 Cover, Rear Combination Lamp, LH
81536B Led, Rear Turn Signal Lamp
81536G Led, Back-up Lamp
81551D Lens & Body, Rear Combination Lamp, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81561D Lens & Body, Rear Combination Lamp, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
81581H Lens & Body, Rear Lamp
81585 Socket & Wire, Rear Lamp
8158AD Led, Rear Fog Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
