Toyota BZ4X (JPP)

2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe

Supported model Data version 2024-12
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

66 part groups · 16 illustrations

Illustrations

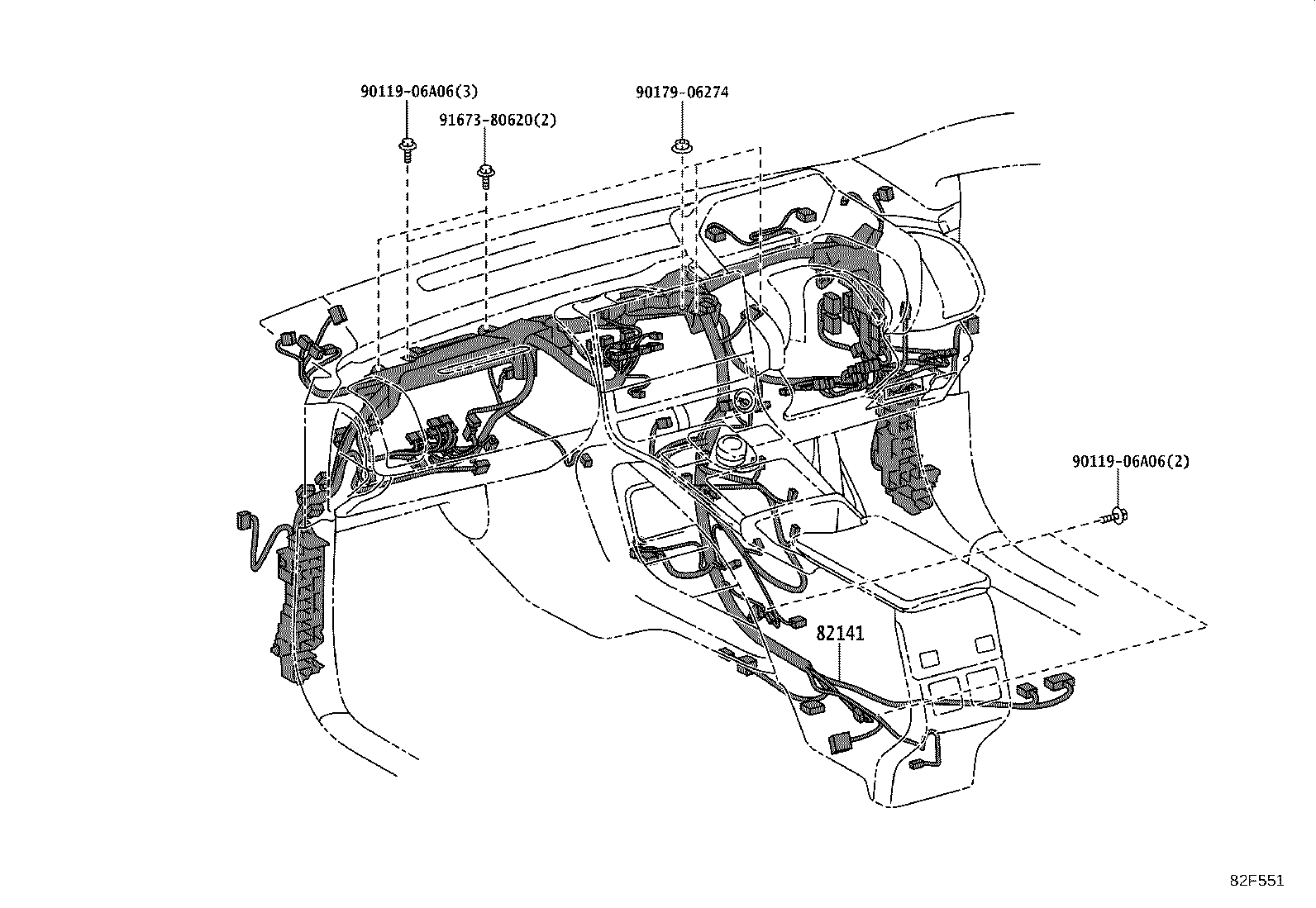

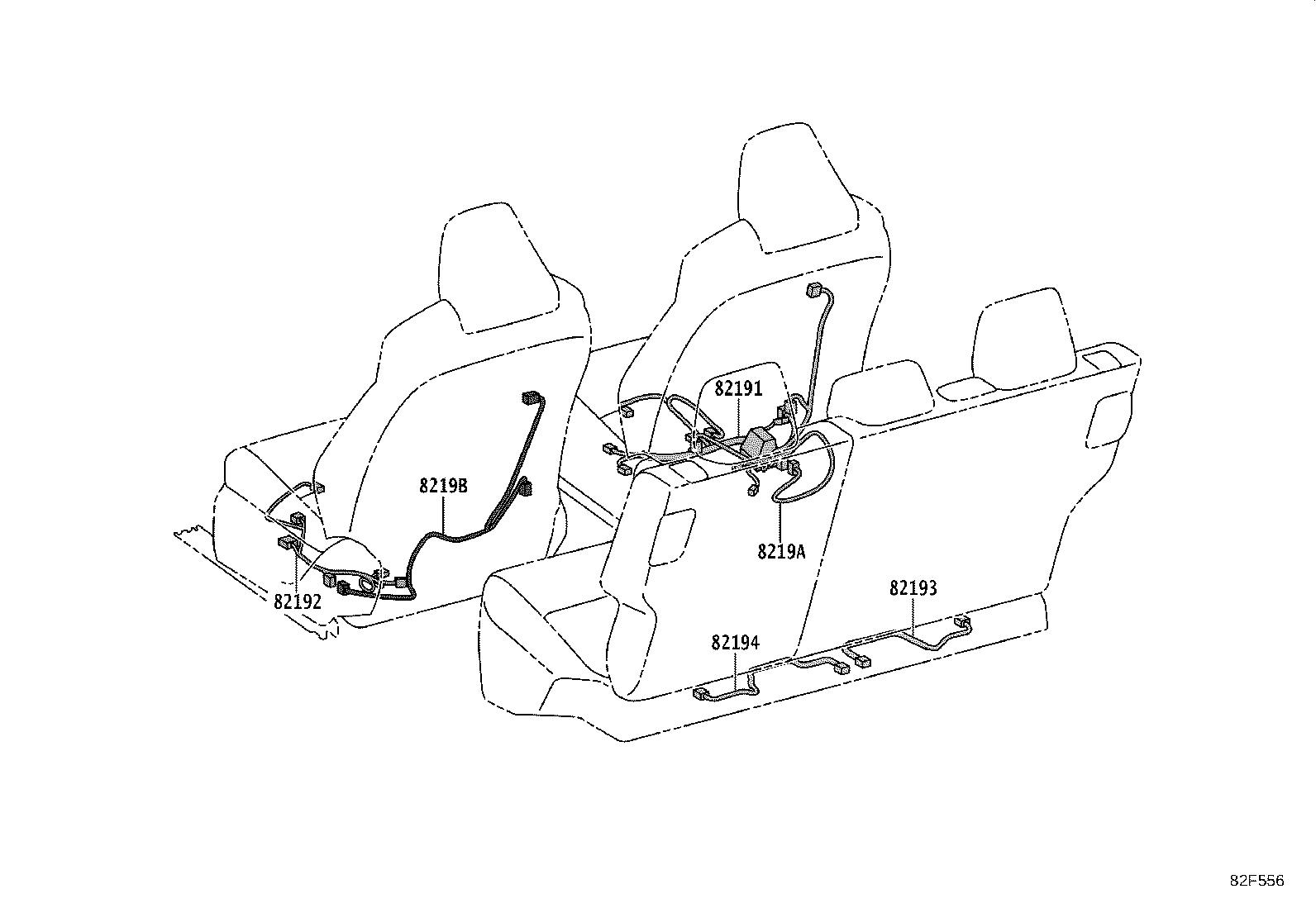

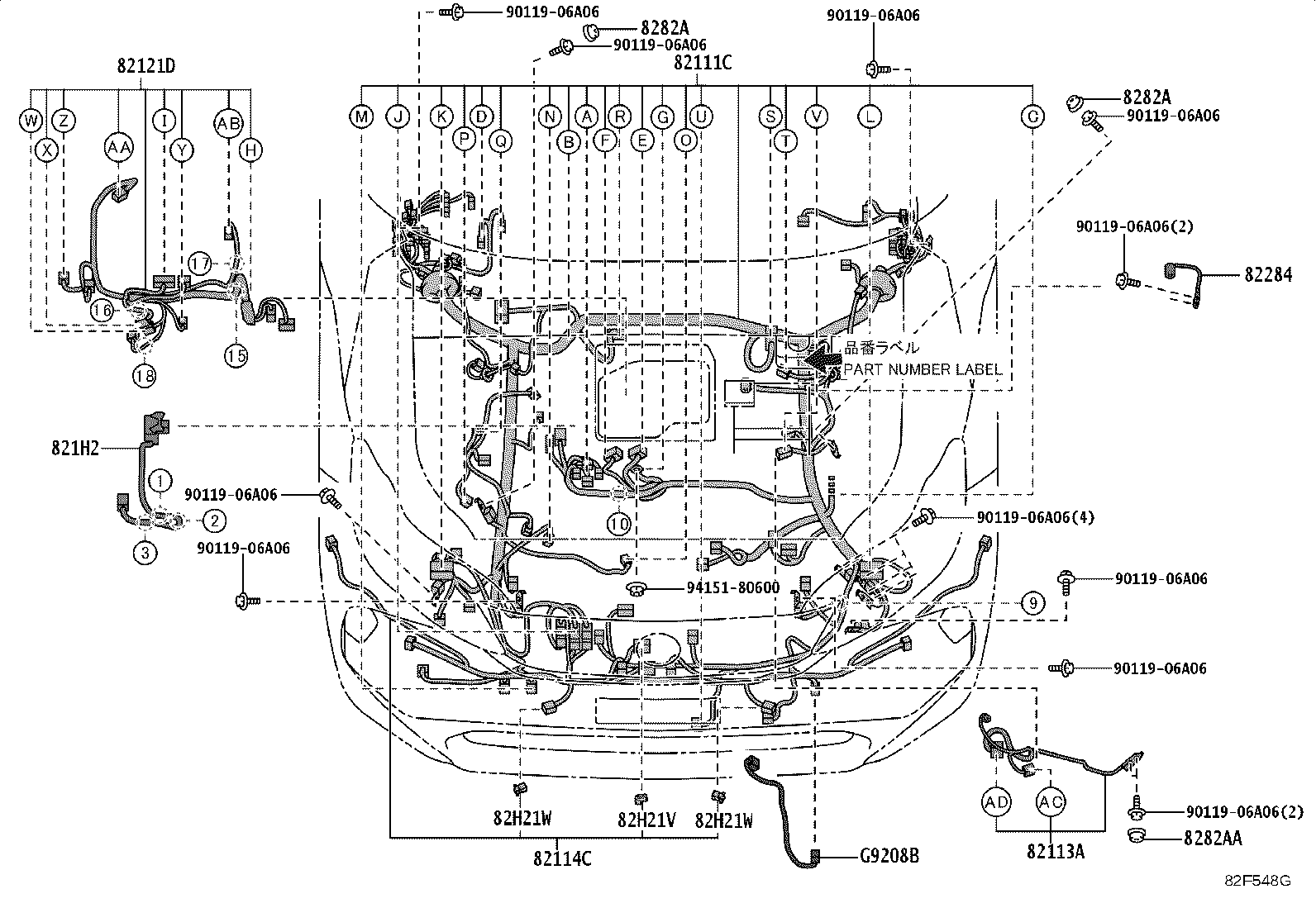

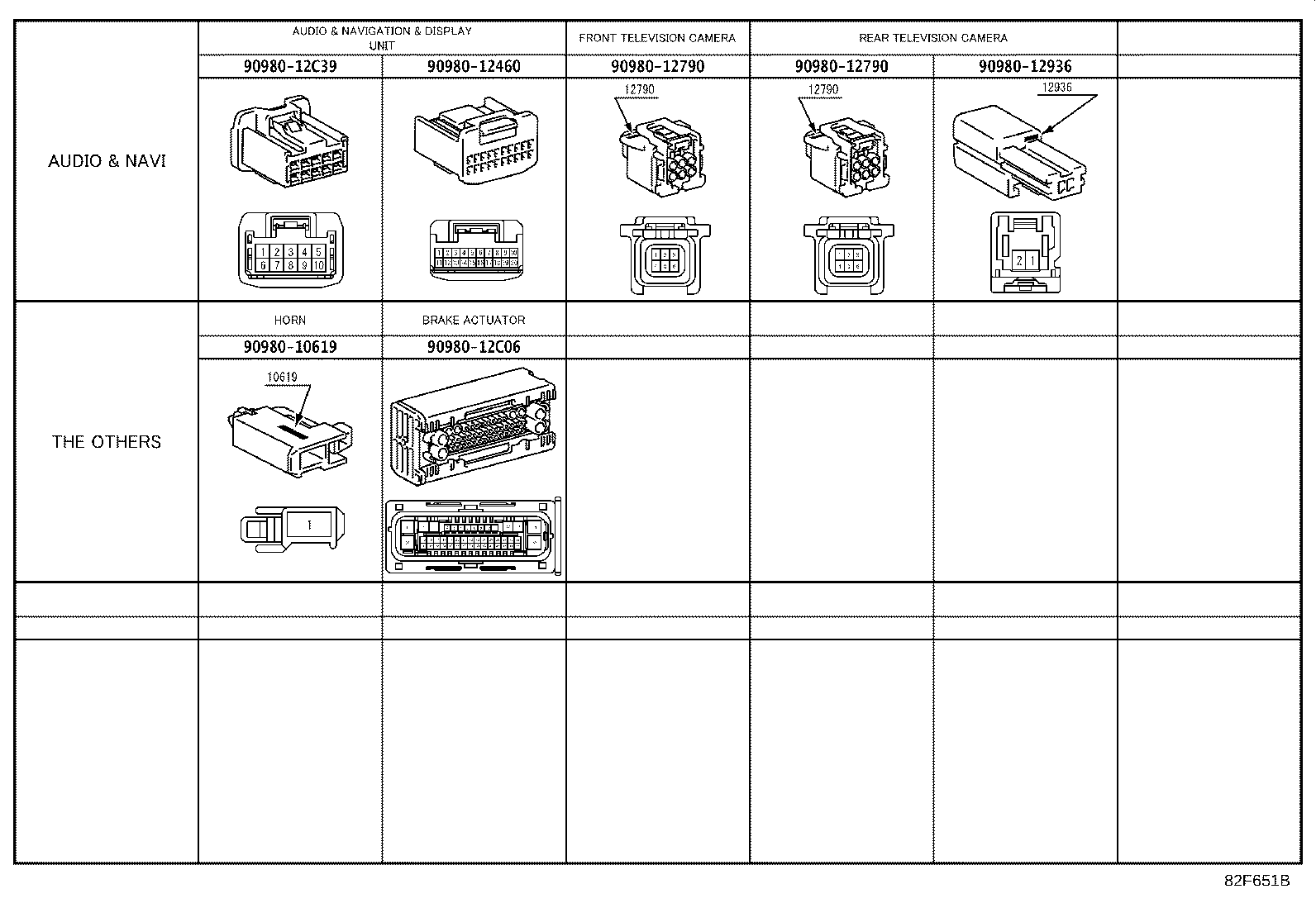

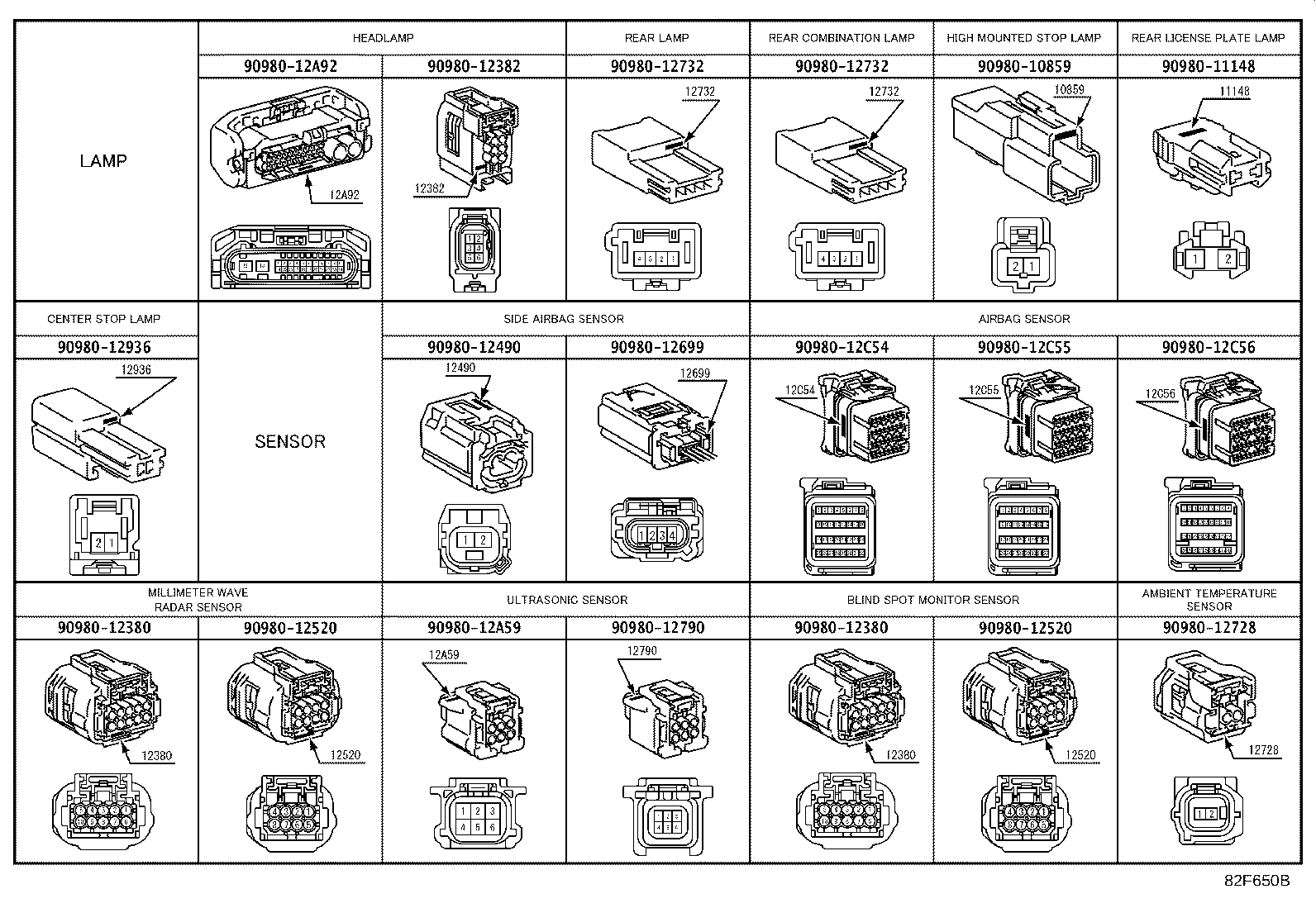

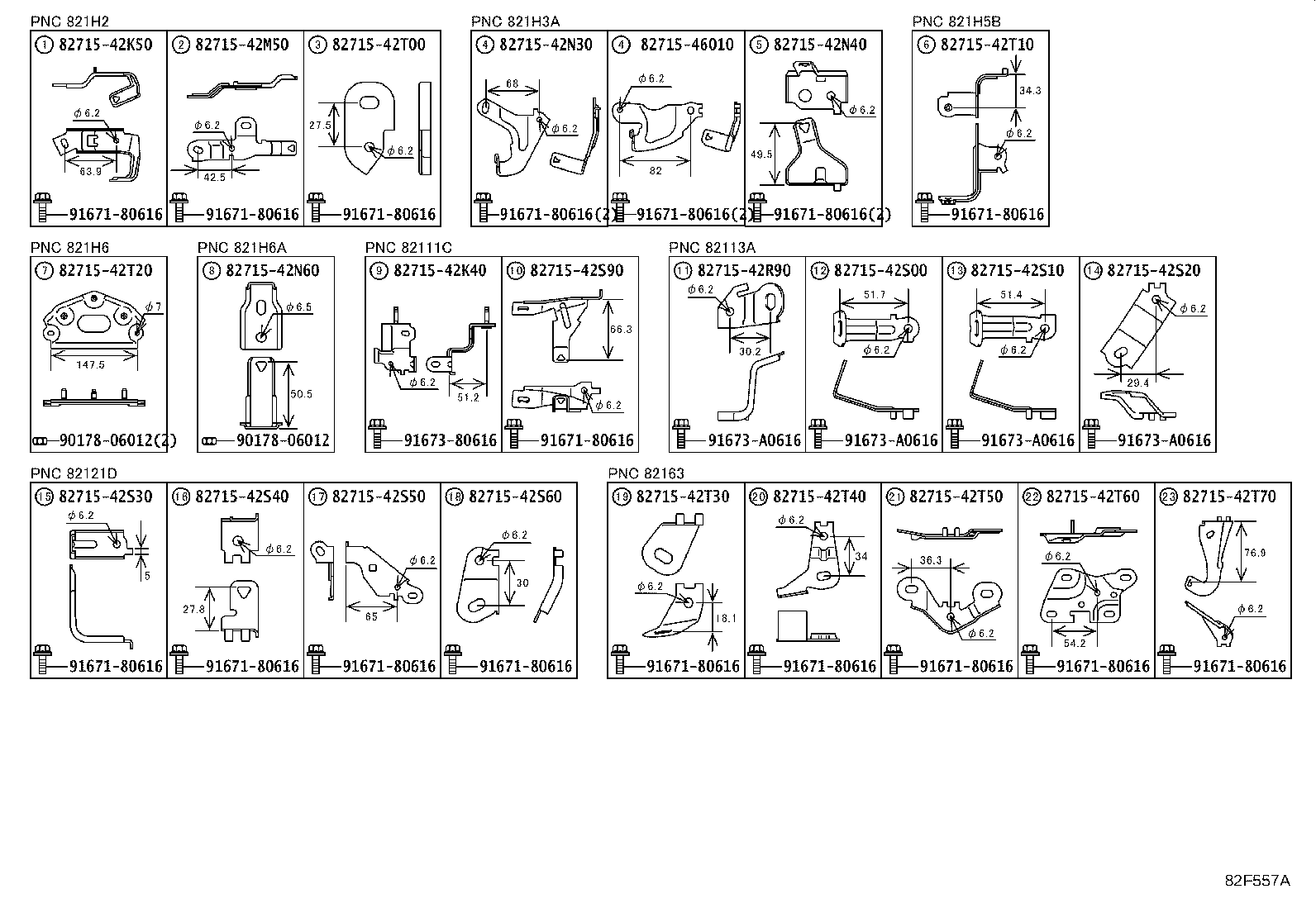

Figure 82F546F 82F546F 2022-03 → — Figure 82F547B 82F547B 2022-03 → — Figure 82H011A 82H011A 2022-03 → — Figure 82F548G 82F548G 2022-03 → — Figure 82F549B 82F549B 2022-03 → — Figure 82H010A 82H010A 2022-03 → — Figure 82F550 82F550 2022-03 → — Figure 82F551 82F551 2022-03 → — Figure 82F552 82F552 2022-03 → — Figure 82F553B 82F553B 2022-03 → — Figure 82F554A 82F554A 2022-03 → — Figure 82F555 82F555 2022-03 → — Figure 82F556 82F556 2022-03 → — Figure 82F557A 82F557A 2022-03 → — Figure 82F650B 82F650B 2022-03 → — Figure 82F651B 82F651B 2022-03 → —

Part groups

PNCDescription
82111C Wire, Front Compartment, Main
82113A Wire, Front Compartment, NO.3
82114C Wire, Front Compartment, NO.4
82121D Wire, Motor

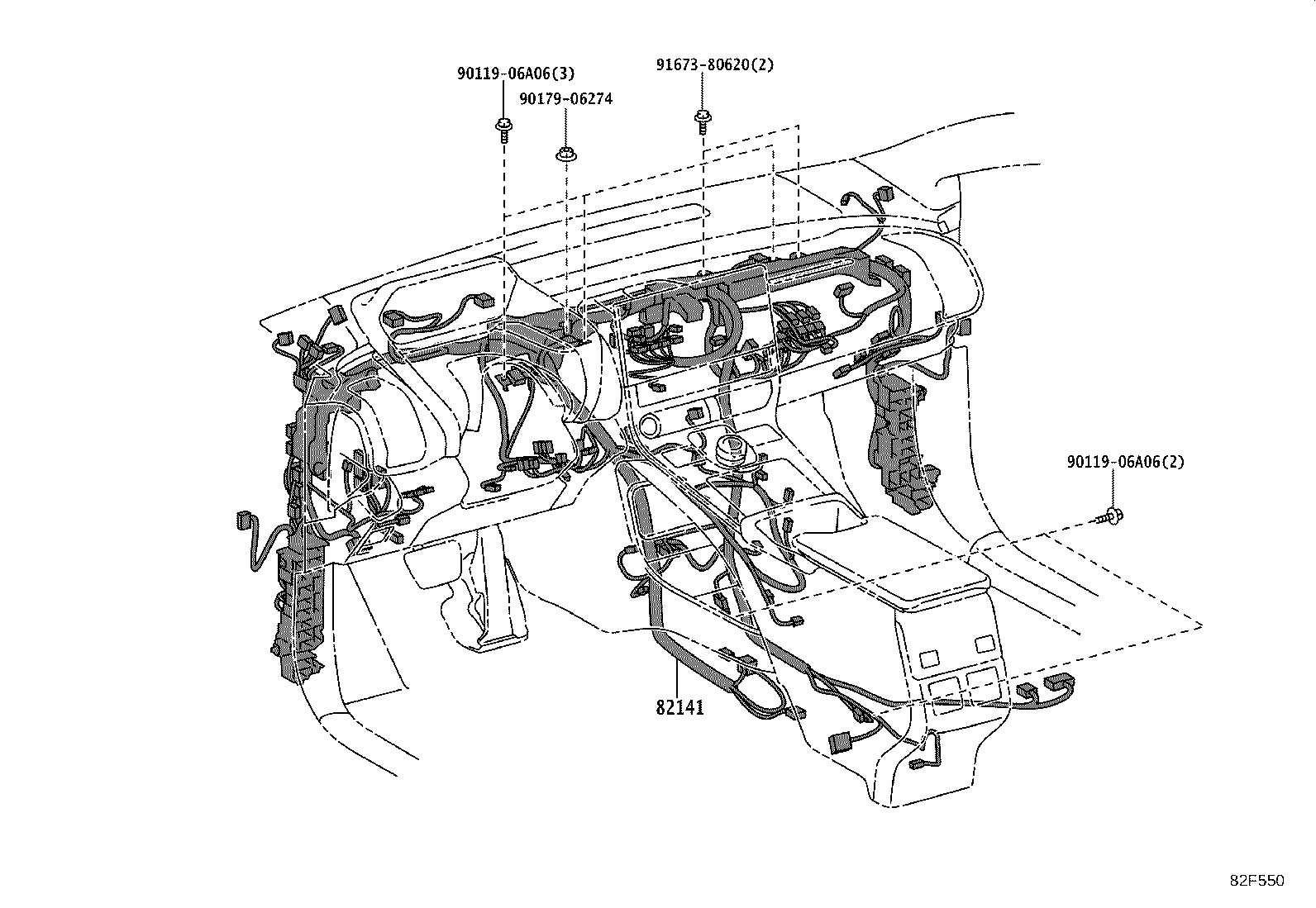

82141 Wire, Instrument Panel

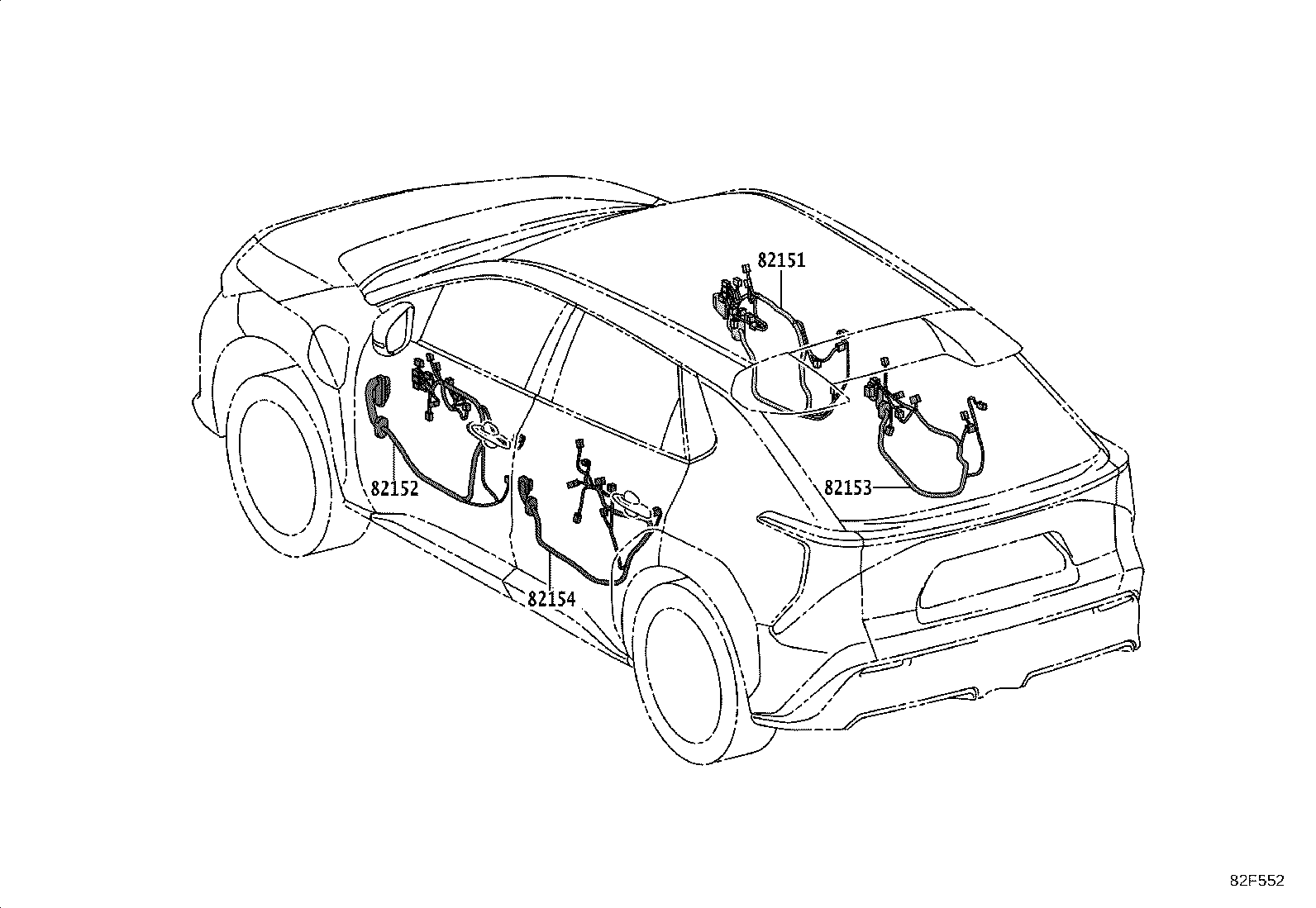

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

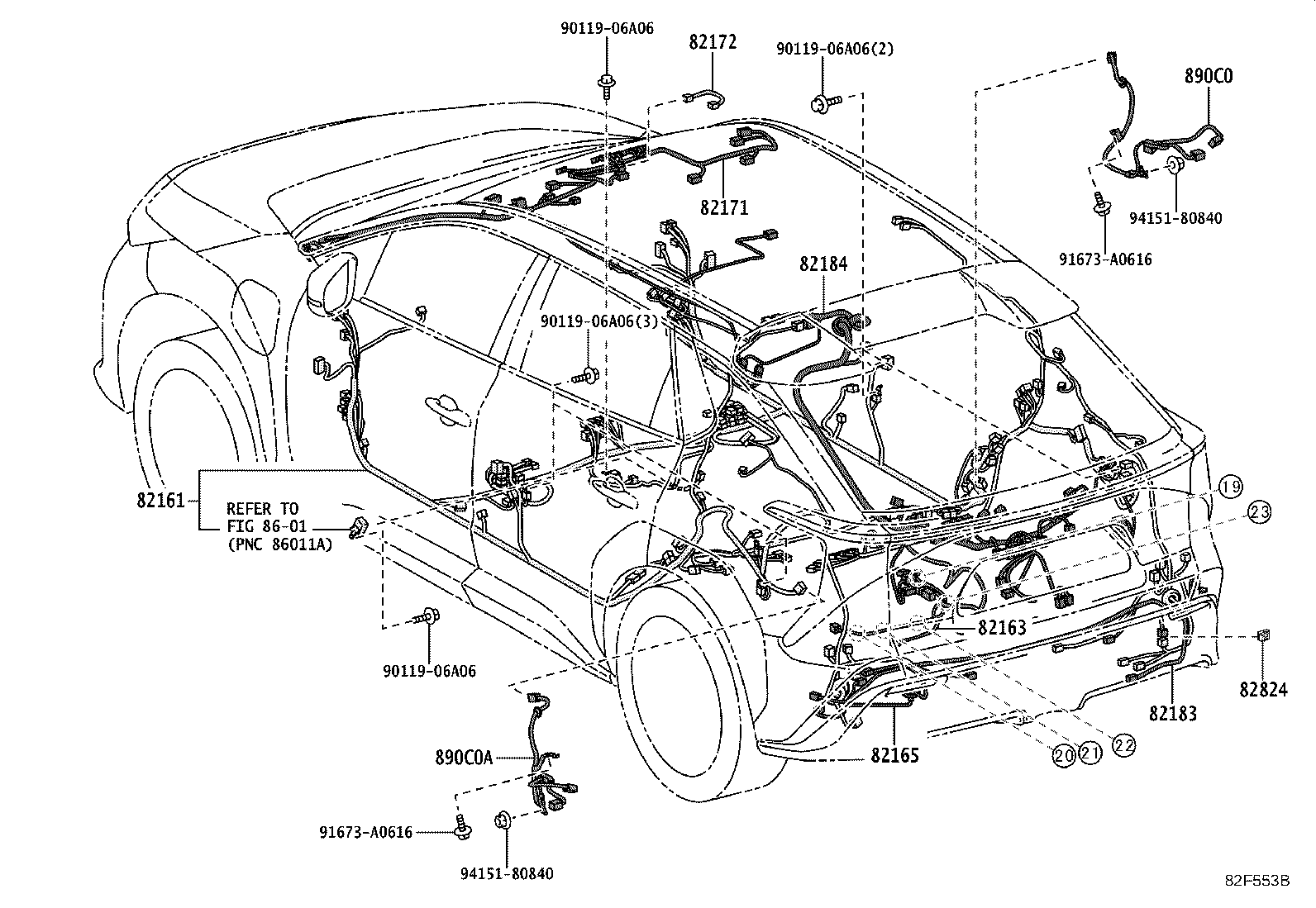

82161 Wire, Floor
82163 Wire, Floor, NO.3
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82183 Wire, Luggage Room, NO.3
82184 Wire, Back Door, NO.1

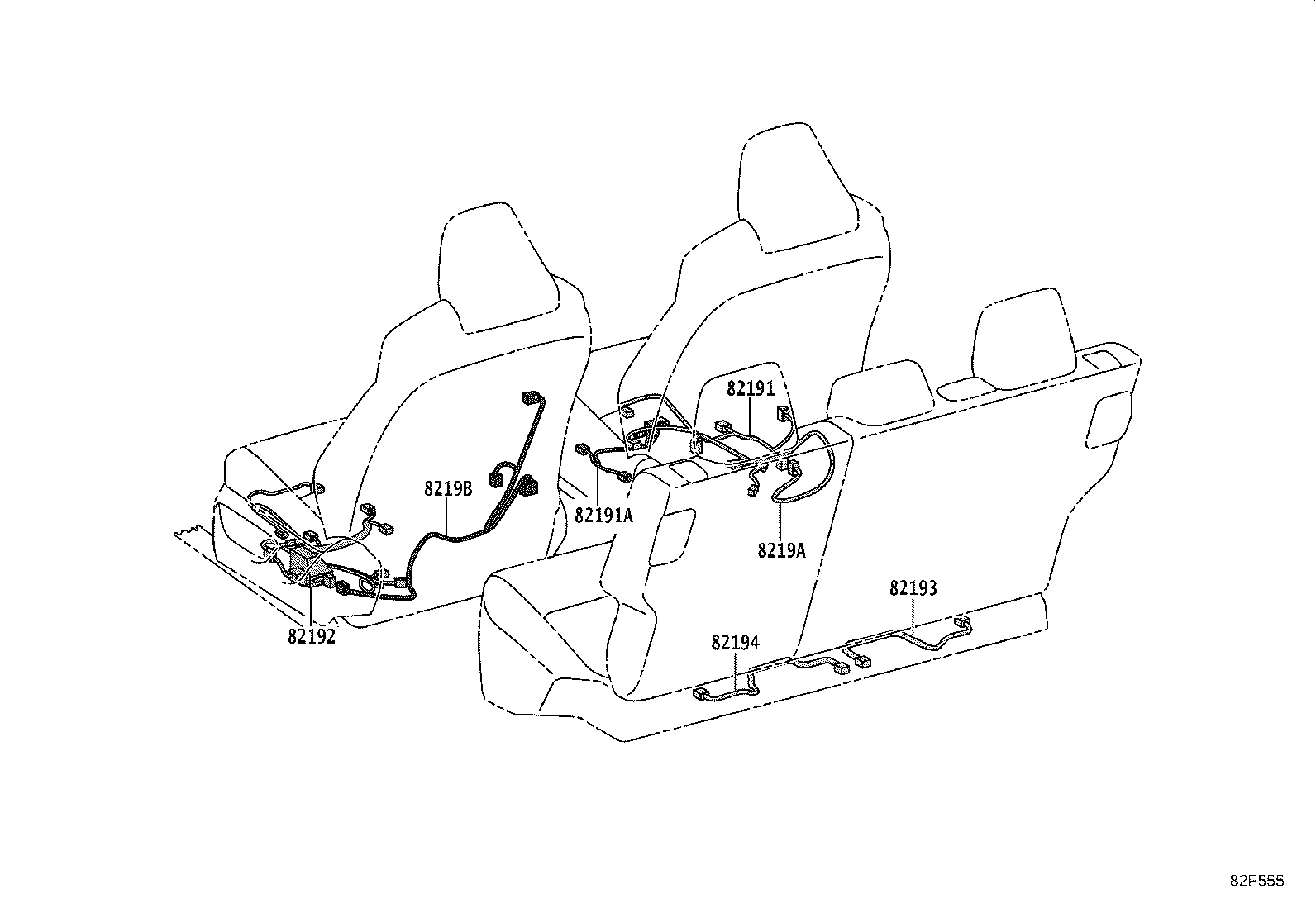

82191 Wire, Front Seat, RH
82191A Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2

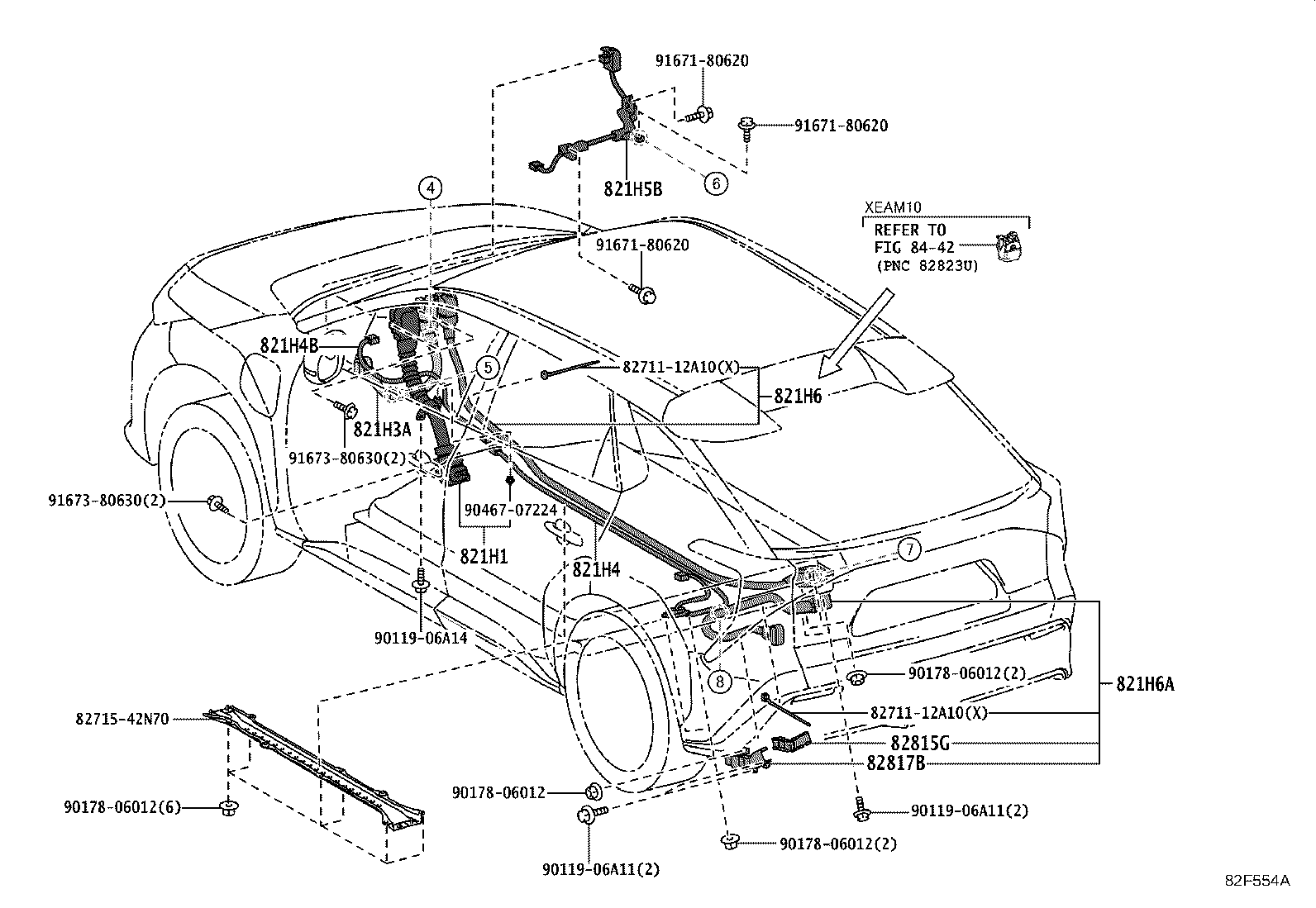

821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
821H3A Wire, Battery Pack, NO.1
821H4 Wire, HV Socket Inverter
821H4B Wire, Socket Inverter
821H5B Wire, EV Battery Charger
821H6 Wire, HV Floor Under, NO.2
821H6A Wire, Floor Under, NO.2
82284 Wire, Earth

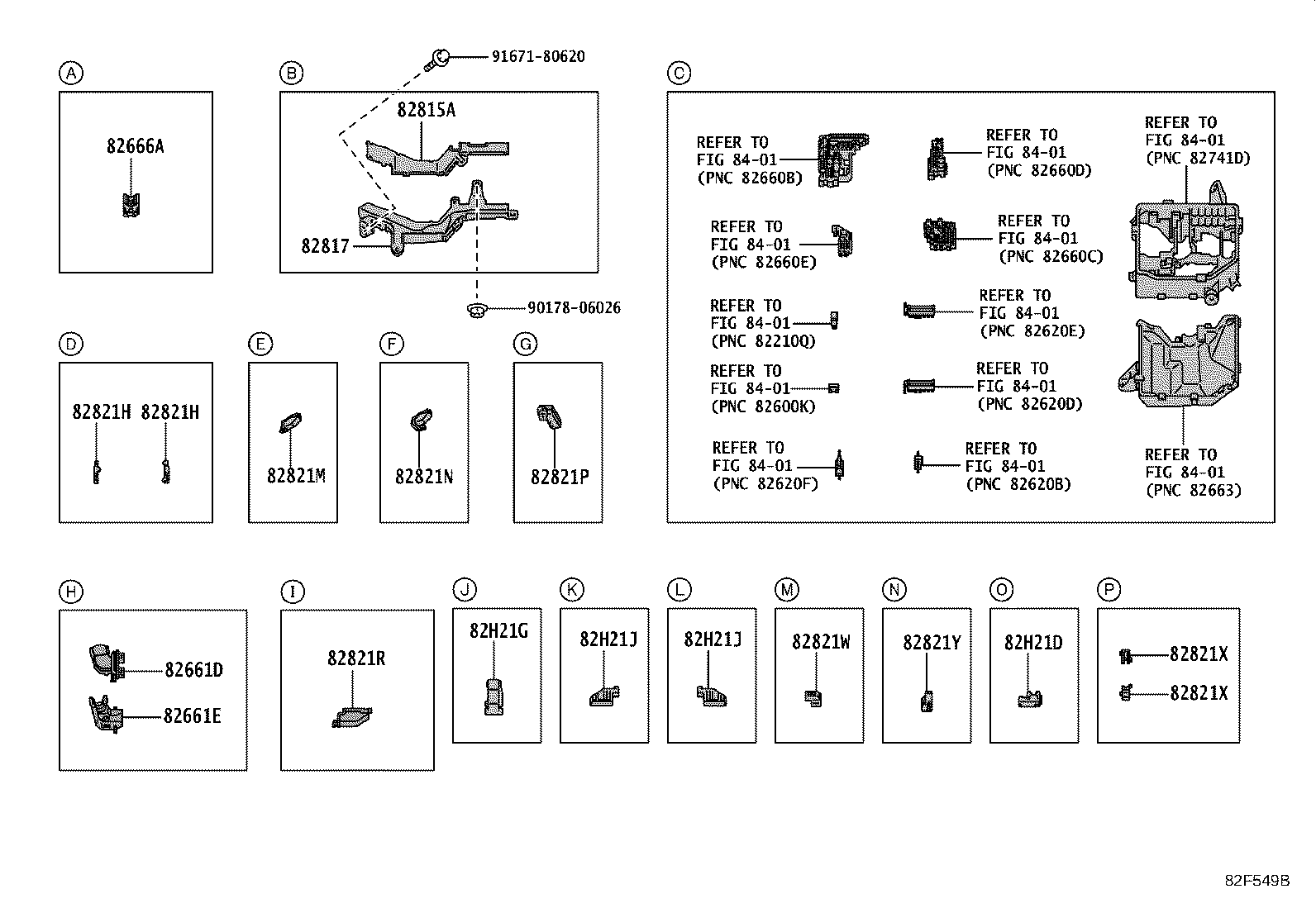

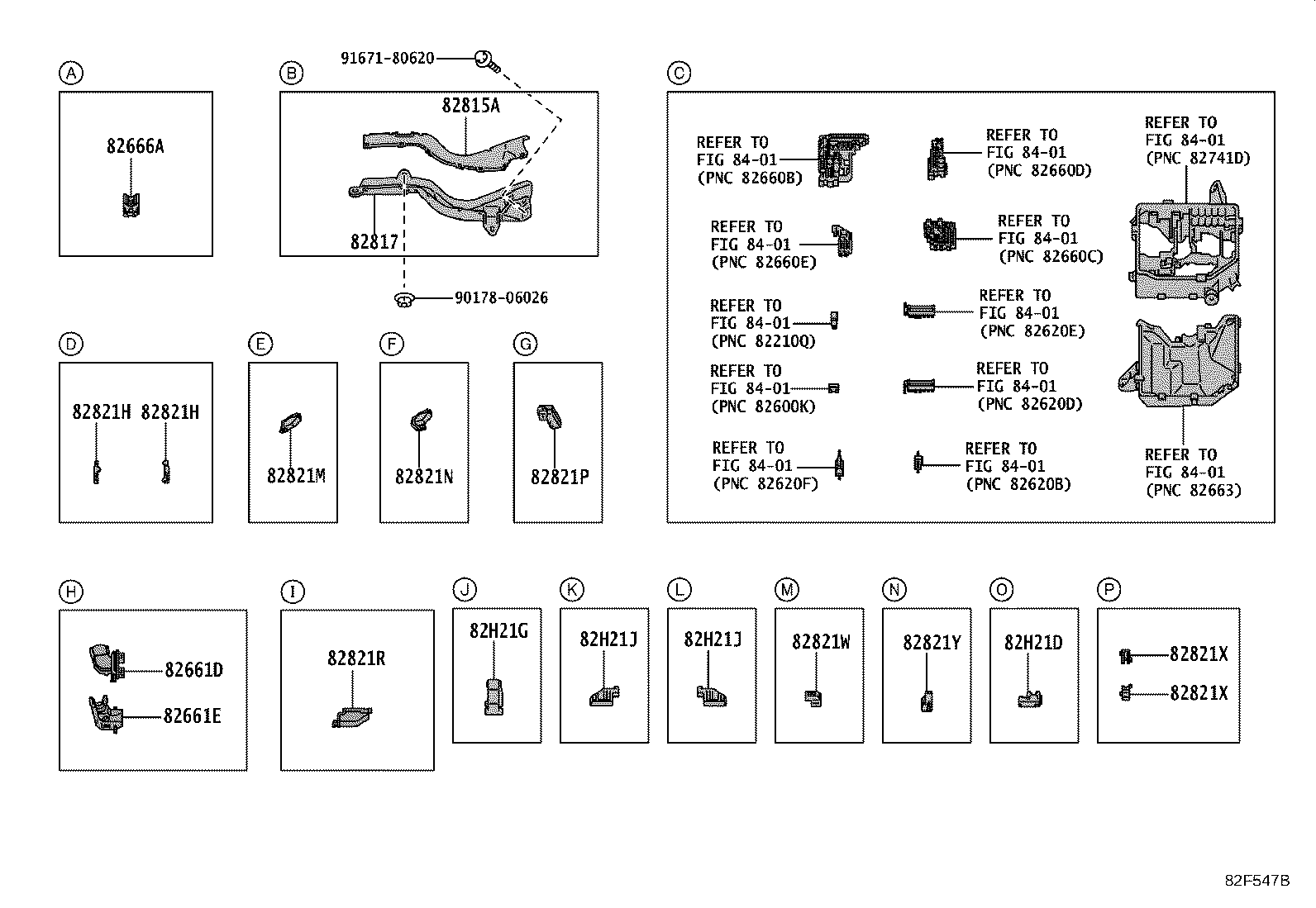

82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82666A Holder, Connector NO.2
82815A Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817 Protector, Wiring Harness, NO.1
82817B Protector, Wiring Harness, NO.3
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82821X Cover, Connector
82821Y Cover, Connector
82824 Connector, Wiring Harness
8282A Cap, Earth Bolt, NO.1
8282AA Cap, Earth Bolt, NO.2
82H21C Cover, Connector
82H21D Cover, Connector
82H21G Cover, Connector
82H21H Cover, Connector
82H21J Cover, Connector
82H21K Cover, Connector
82H21L Cover, Connector
82H21M Cover, Connector
82H21N Cover, Connector
82H21V Cover, Connector
82H21W Cover, Connector
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
G9208B Wire Sub-assy, Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
