Toyota BZ4X (JPP)
2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe
Supported model
Data version 2024-12

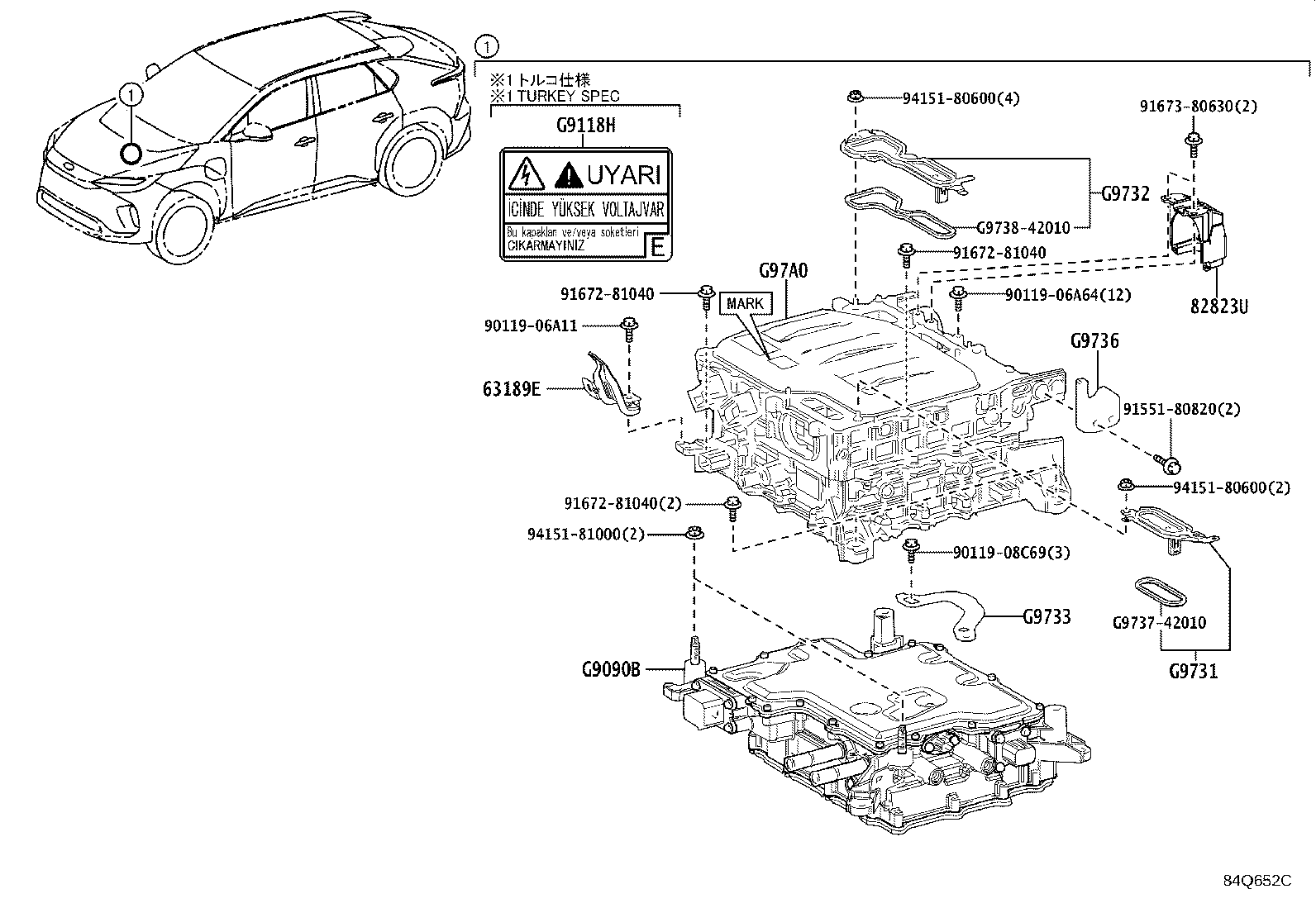

DC/DC Converter & Charger(BEV OR FCEV)
21 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 63189E | Bracket, Wiring Harness Connector |
| 77030B | Lock Assy, Charge Lid W/Motor |
| 77035C | Cable Sub-assy, Charge Lid Lock Control |
| 773B0 | Box Assy, Charge Inlet, LH |
| 773D0 | Lid Assy, Charge Inlet, LH |
| 82823U | Cap, Terminal |

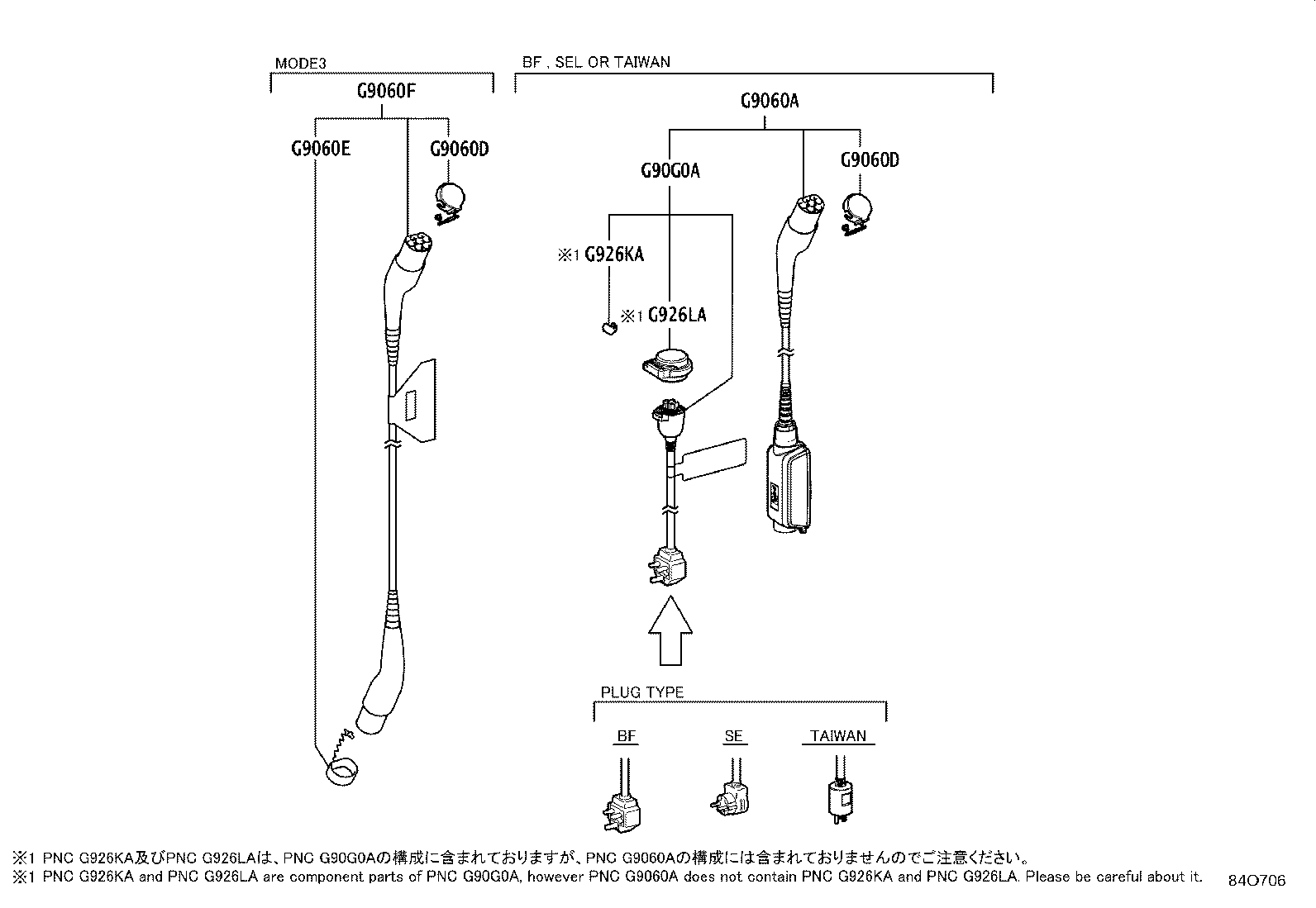

| G9060A | Cable Assy, Electric Vehicle Charger |
| G9060D | Cover, EV Charger Cable |
| G9060E | Cover, EV Charger Cable, NO.2 |
| G9060F | Cable Assy, Electric Vehicle Charger |

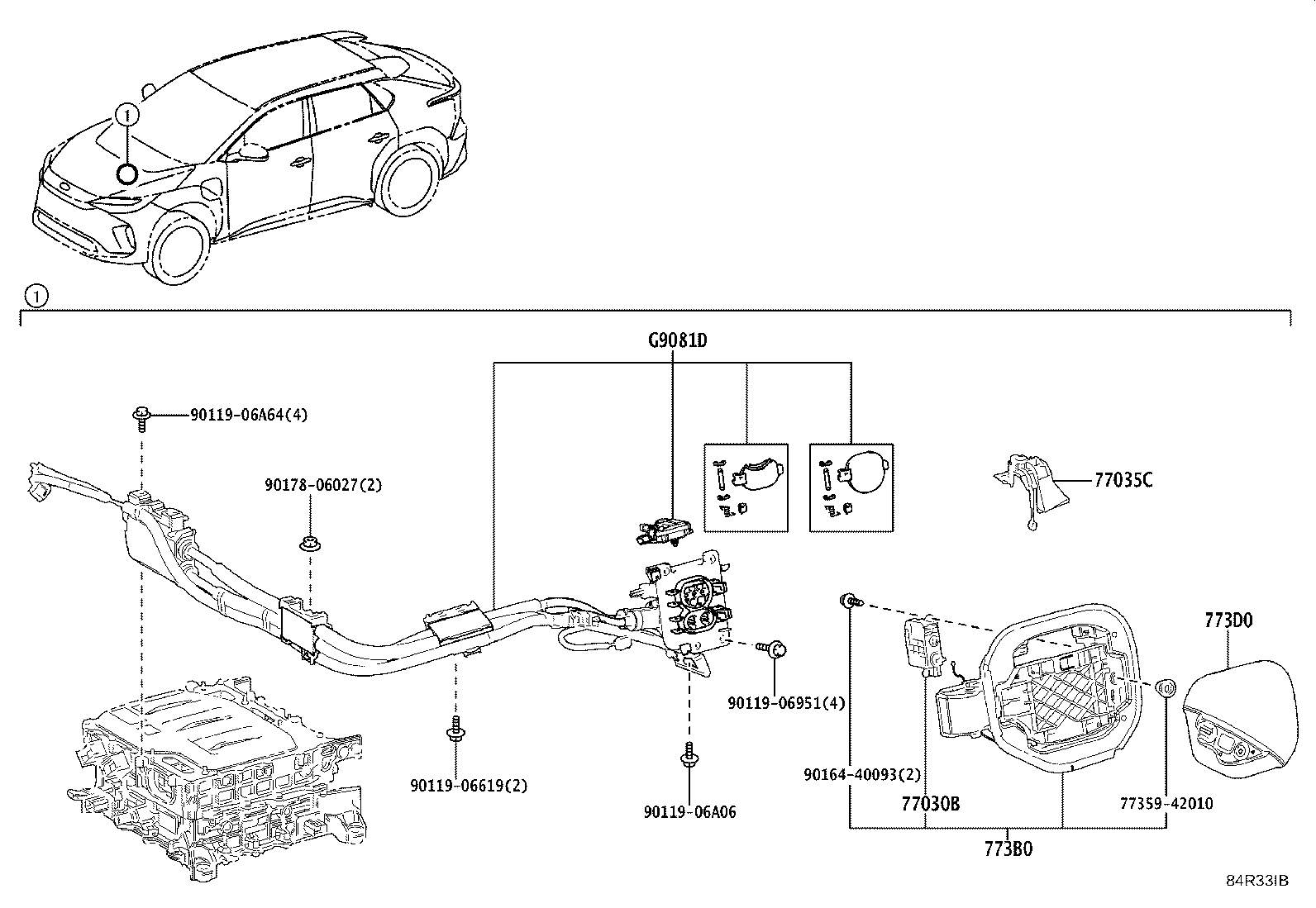

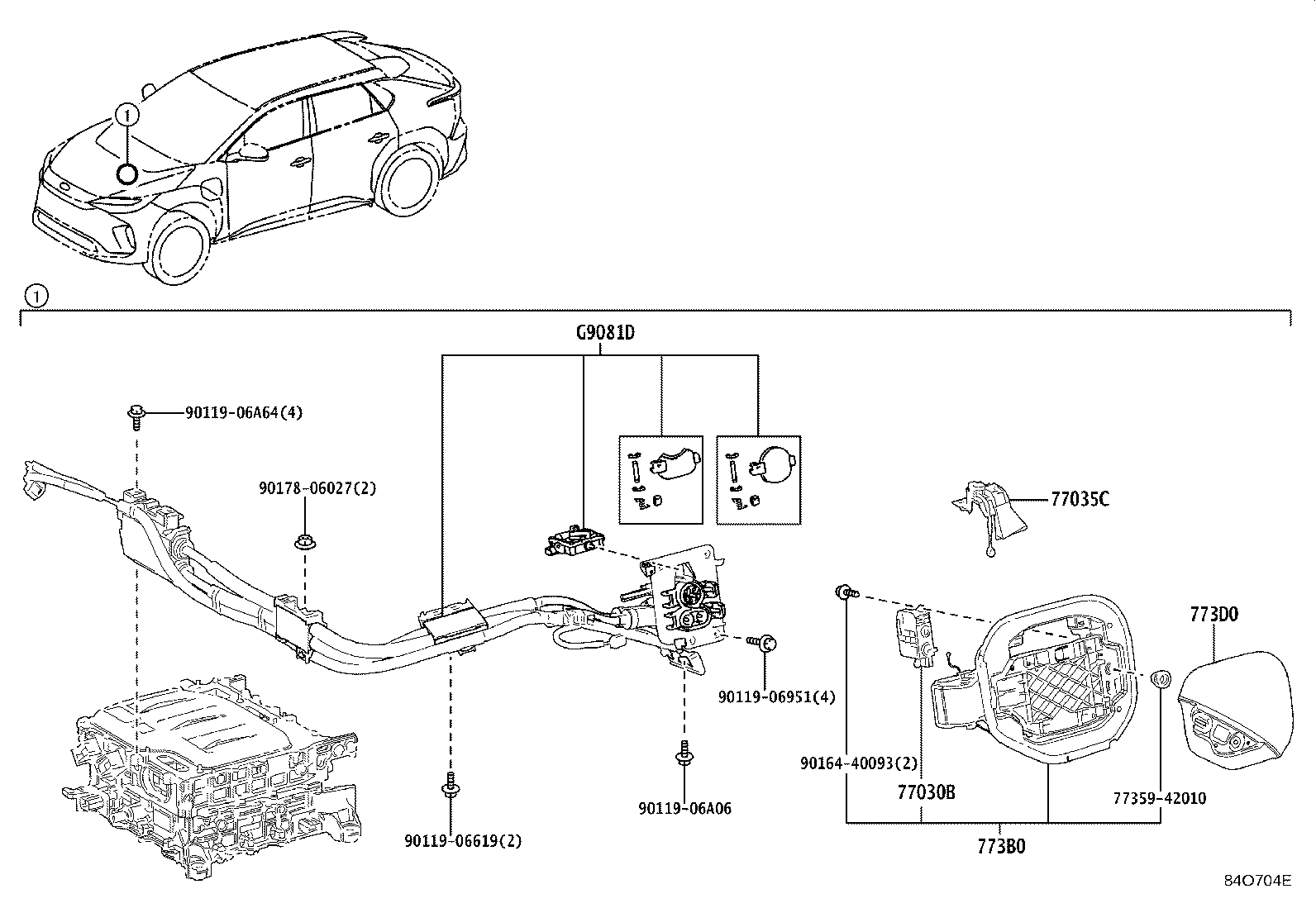

| G9081D | Cable, DC Charger Inlet |
| G9090B | Charger Assy, Electric Vehicle |
| G90G0A | Plug Assy, Cable EV Charger |
| G9118H | Label, EV Unit Controller Caution, NO.1 |
| G926KA | Key, Plug Cable EV Charger |
| G926LA | Cover, Plug Cable EV Charger |
| G9731 | Cover, Terminal, NO.1 |
| G9732 | Cover, Terminal, NO.2 |
| G9733 | Bracket, Earth |
| G9736 | Protector, Connector, NO.3 |
| G97A0 | Unit Assy, Electric Converter W/Cap |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
