Toyota BZ4X (JPP)
2022-03 → present · chassis XEAM10,YEAM15 · catalogue 561210 · Europe
Supported model
Data version 2024-12
Heating & Air Conditioning - Control & Air Duct
25 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

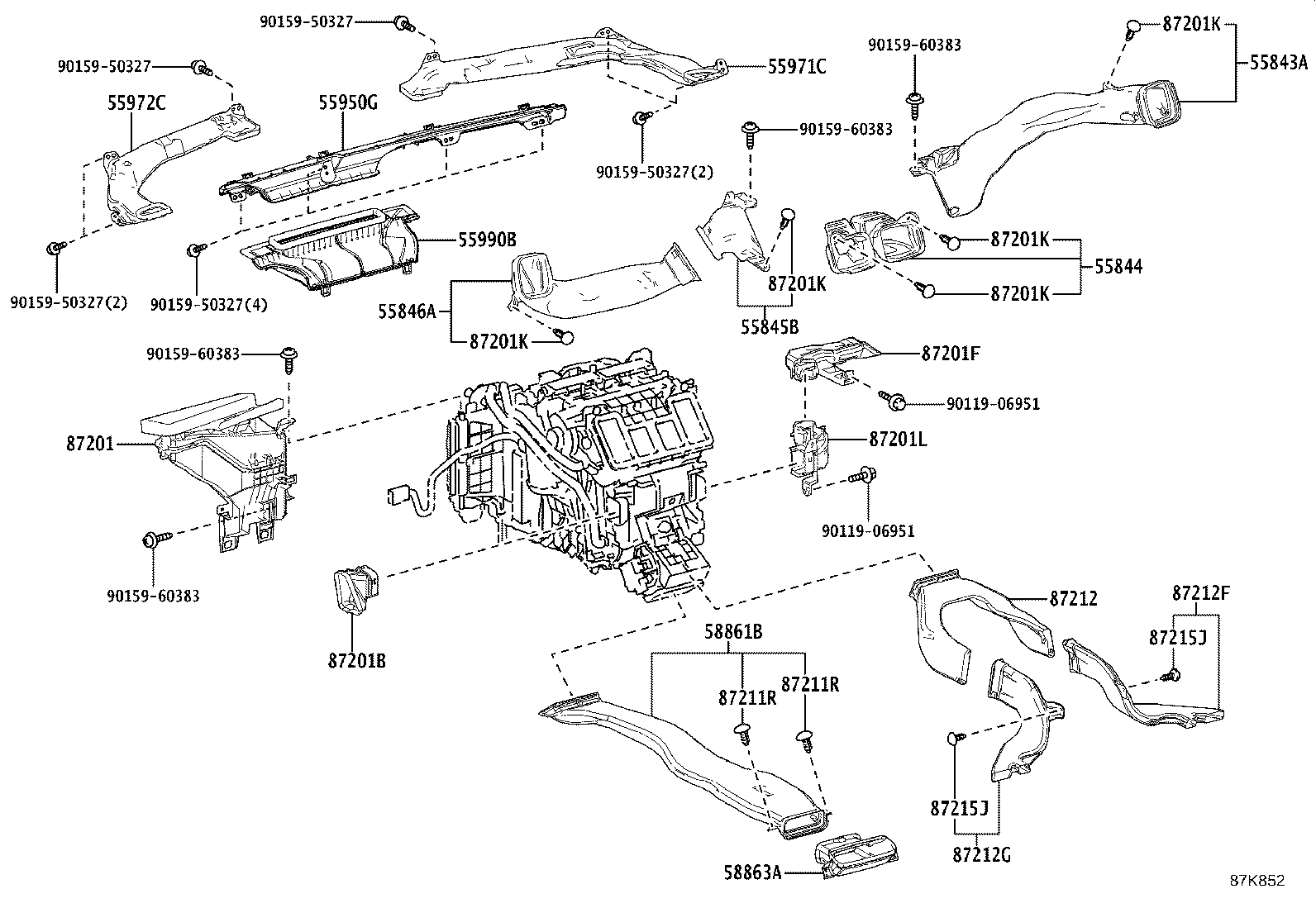

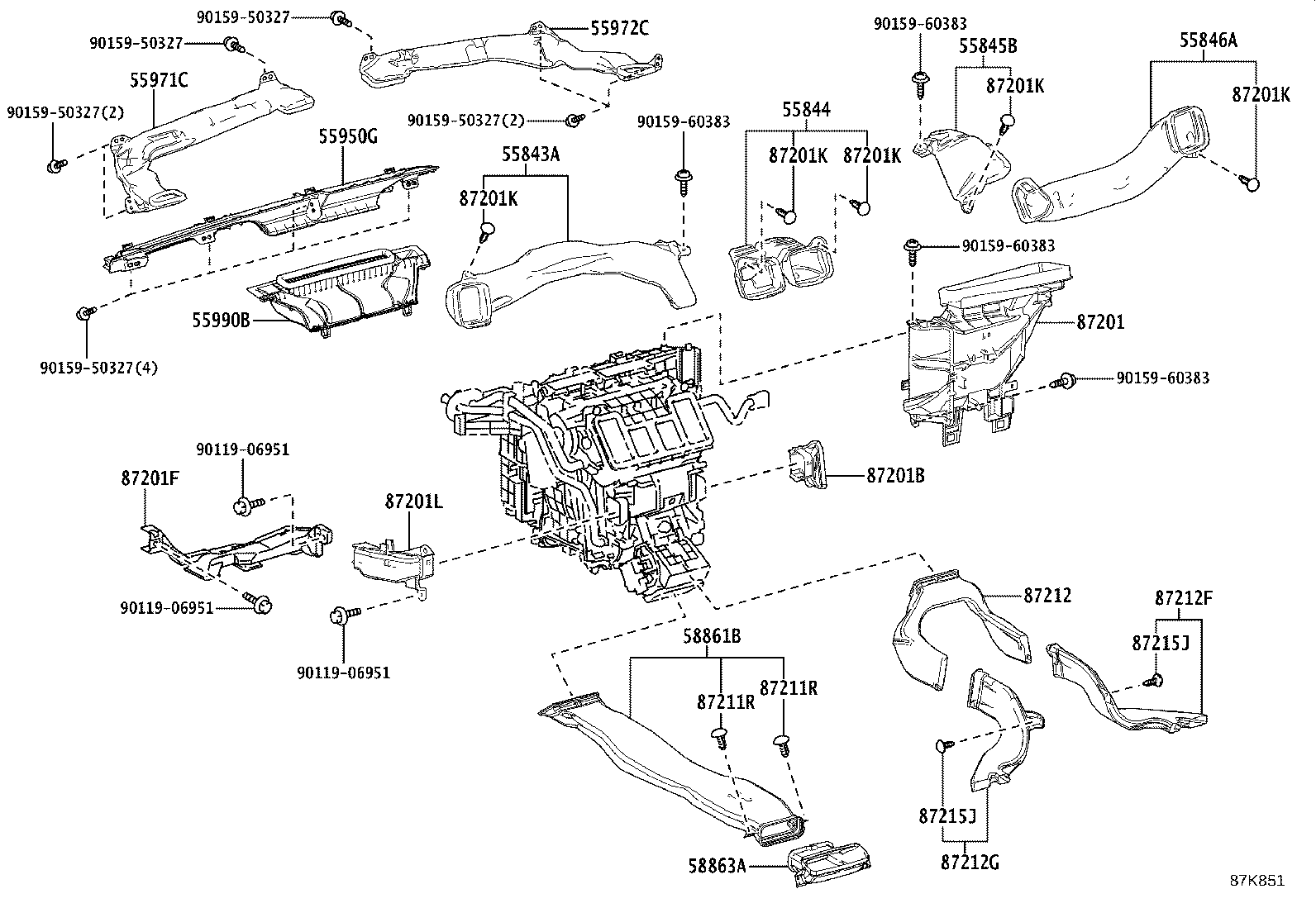

| 55843A | Duct, Heater TO Register, NO.1 |
| 55844 | Duct, Heater TO Register, NO.2 |
| 55845B | Duct, Rear Heater TO Register, NO.3 |
| 55846A | Duct, Heater TO Register, NO.4 |
| 55900 | Control Assy, Air Conditioner |
| 55950G | Nozzle Assy, Defroster |
| 55971C | Duct, Side Defroster Nozzle, NO.1 |
| 55972C | Duct, Side Defroster Nozzle, NO.2 |
| 55990B | Nozzle Assy, Defroster, Lower |
| 58861B | Duct, Console Box, NO.1 |
| 58863A | Duct, Console Box, NO.3 |
| 87201 | Duct Sub-assy, Air, NO.1 |
| 87201B | Duct Sub-assy, Air, NO.2 |
| 87201F | Duct Sub-assy, Air, NO.3 |
| 87201K | Clip (FOR AIR DUCT) |
| 87201L | Duct Sub-assy, Air, NO.4 |
| 87211R | Clip, Air Duct |
| 87212 | Duct, Air, Rear NO.1 |
| 87212F | Duct, Air, Rear NO.2 |
| 87212G | Duct, Air, Rear NO.3 |
| 87215J | Clip (FOR AIR REAR DUCT) |

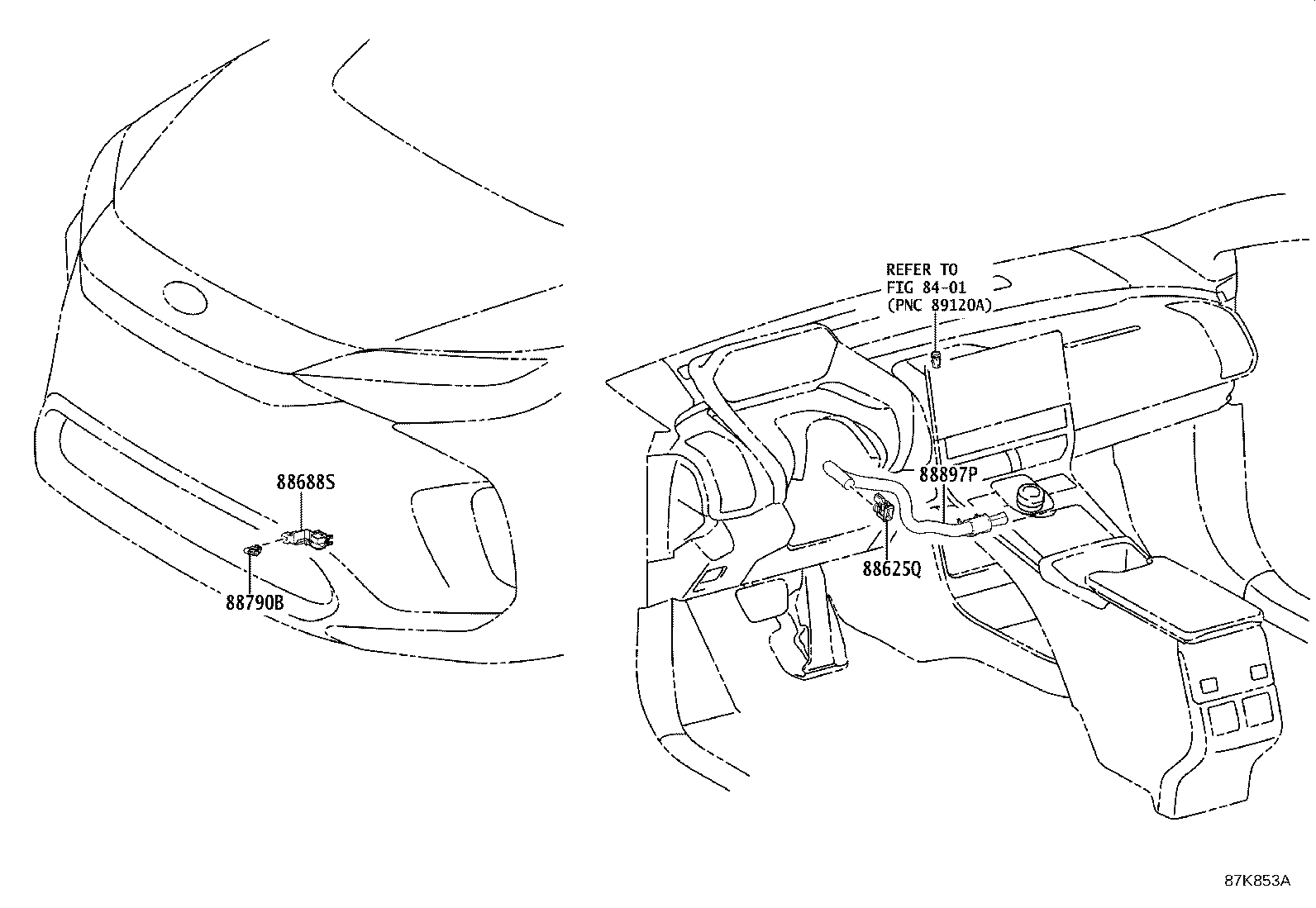

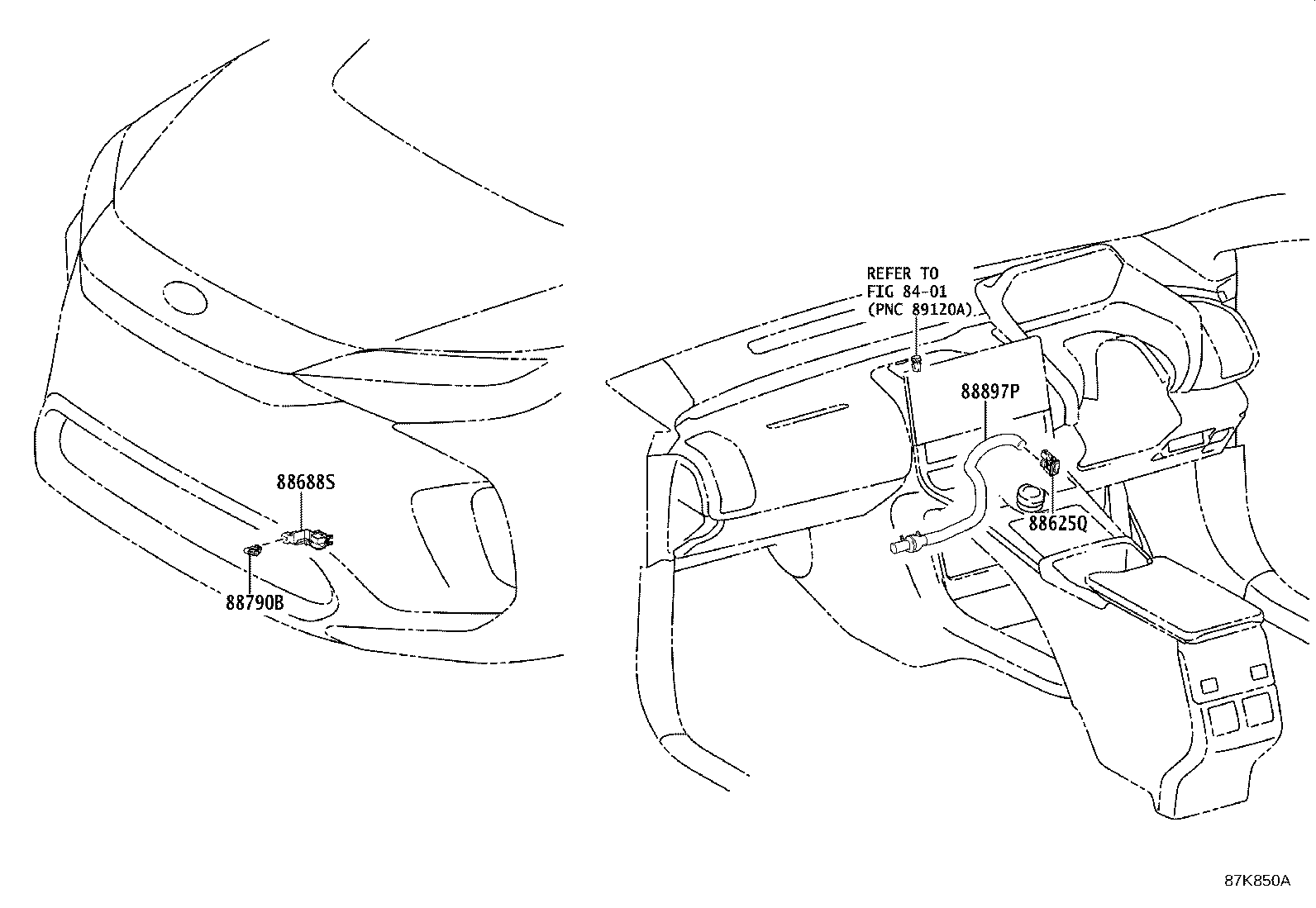

| 88625Q | Thermistor, Cooler (ROOM TEMP. SENSOR) |
| 88688S | Bracket (FOR COOLER THERMISTOR) |
| 88790B | Thermistor Assy |
| 88897P | Aspirator |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
