Toyota Lexus RZ450E/300E
2023-01 → present · chassis XEBM1# · catalogue 564210 · Europe
Supported model
Data version 2023-11

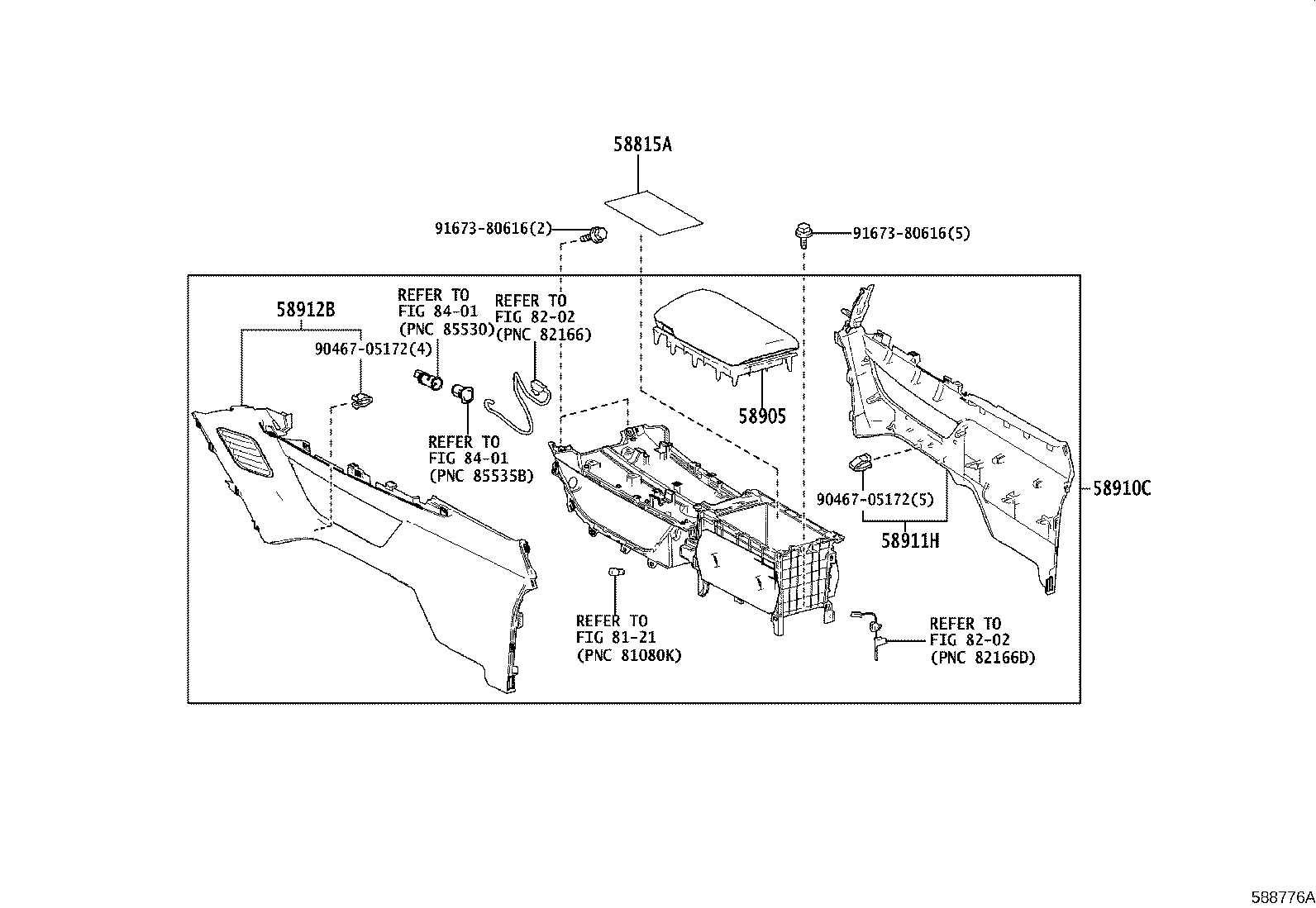

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58815A — Carpet, Console Box | ||||
| 58815-78030 |
Carpet, Console Box
2023-11 → —
|
XEBM10;XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN | — | |
| 58815-78030 |
Carpet, Console Box
2023-01 → 2023-11
ended
|
XEBM15 (C,L) CHI;XEBM15 ARL,EUR,GEN | — | |
| 58815-78030 |
Carpet, Console Box
2023-01 → —
|
XEBM15 B CHI | — | |
| 58905 — Door Sub-assy, Console Compartment | ||||
| 58905-46010-C0 note |
Door Sub-assy, Console Compartment
2023-11 → —
|
XEBM1# LHD (C,L) | — | |
| 58905-46010-C1 note |
Door Sub-assy, Console Compartment
2023-11 → —
|
XEBM1# LHD (C,L) | — | |
| 58905-46010-C1 note |
Door Sub-assy, Console Compartment
2023-11 → —
|
XEBM10 LHD B;XEBM15 LHD +2 | — | |
| 58905-46020-C0 note |
Door Sub-assy, Console Compartment
2023-11 → —
|
XEBM1# RHD (C,L) | — | |
| 58905-46020-C1 note |
Door Sub-assy, Console Compartment
2023-11 → —
|
XEBM1# RHD (C,L) | — | |
| 58905-46020-C1 note |
Door Sub-assy, Console Compartment
2023-11 → —
|
XEBM1# RHD B | — | |
| 58905-46010-C0 note |
Door Sub-assy, Console Compartment
2023-01 → 2023-11
ended
|
XEBM15 LHD (C,L) | — | |
| 58905-46010-C1 note |
Door Sub-assy, Console Compartment
2023-01 → 2023-11
ended
|
XEBM15 LHD (C,L) | — | |
| 58905-46010-C1 note |
Door Sub-assy, Console Compartment
2023-01 → 2023-11
ended
|
XEBM15 LHD B EUR | — | |
| 58905-46010-C1 note |
Door Sub-assy, Console Compartment
2023-01 → —
|
XEBM15 B CHI | — | |
| 58905-46020-C0 note |
Door Sub-assy, Console Compartment
2023-01 → 2023-11
ended
|
XEBM15 RHD (C,L) | — | |
| 58905-46020-C1 note |
Door Sub-assy, Console Compartment
2023-01 → 2023-11
ended
|
XEBM15 RHD B | — | |
| 58905-46020-C1 note |
Door Sub-assy, Console Compartment
2023-01 → 2023-11
ended
|
XEBM15 RHD (C,L) | — | |
| 58910C — Box Assy, Console, Rear | ||||
| 58910-46010-C4 note |
Box Assy, Console, Rear
2023-11 → —
|
XEBM1# LHD (C,L) | — | |
| 58910-46010-C5 note |
Box Assy, Console, Rear
2023-11 → —
|
XEBM10 LHD;XEBM15 LHD (C,L);XEBM15 +3 | — | |
| 58910-46010-E2 note |
Box Assy, Console, Rear
2023-11 → —
|
XEBM1# LHD (C,L) | — | |
| 58910-46020-C5 note |
Box Assy, Console, Rear
2023-11 → —
|
XEBM1# RHD (C,L) | — | |
| 58910-46020-C6 note |
Box Assy, Console, Rear
2023-11 → —
|
XEBM1# RHD | — | |
| 58910-46020-E2 note |
Box Assy, Console, Rear
2023-11 → —
|
XEBM1# RHD (C,L) | — | |
| 58910-46010-C4 note |
Box Assy, Console, Rear
2023-01 → 2023-11
ended
|
XEBM15 LHD (C,L) | — | |
| 58910-46010-C5 note |
Box Assy, Console, Rear
2023-01 → 2023-11
ended
|
XEBM15 LHD (C,L);XEBM15 LHD +2 | — | |
| 58910-46010-C5 note |
Box Assy, Console, Rear
2023-01 → —
|
XEBM15 B CHI | — | |
| 58910-46010-E2 note |
Box Assy, Console, Rear
2023-01 → 2023-11
ended
|
XEBM15 LHD (C,L) | — | |
| 58910-46020-C5 note |
Box Assy, Console, Rear
2023-01 → 2023-11
ended
|
XEBM15 RHD (C,L) | — | |
| 58910-46020-C6 note |
Box Assy, Console, Rear
2023-01 → 2023-11
ended
|
XEBM15 RHD | — | |
| 58910-46020-E2 note |
Box Assy, Console, Rear
2023-01 → 2023-11
ended
|
XEBM15 RHD (C,L) | — | |
| 58911H — Box, Console, Rear | ||||
| 58911-46010-C1 note |
Box, Console, Rear
2023-11 → —
|
XEBM10 LHD B;XEBM15 LHD +2 | — | |
| 58911-46010-C1 note |
Box, Console, Rear
2023-11 → —
|
XEBM1# LHD (C,L) | — | |
| 58911-46010-E1 note |
Box, Console, Rear
2023-11 → —
|
XEBM1# LHD (C,L) | — | |
| 58911-46020-C1 note |
Box, Console, Rear
2023-11 → —
|
XEBM1# RHD (C,L) | — | |
| 58911-46020-C1 note |
Box, Console, Rear
2023-11 → —
|
XEBM1# RHD B | — | |
| 58911-46020-E1 note |
Box, Console, Rear
2023-11 → —
|
XEBM1# RHD (C,L) | — | |
| 58911-46010-C1 note |
Box, Console, Rear
2023-01 → 2023-11
ended
|
XEBM15 LHD (C,L) | — | |
| 58911-46010-C1 note |
Box, Console, Rear
2023-01 → 2023-11
ended
|
XEBM15 LHD B EUR | — | |
| 58911-46010-C1 note |
Box, Console, Rear
2023-01 → —
|
XEBM15 B CHI | — | |
| 58911-46010-E1 note |
Box, Console, Rear
2023-01 → 2023-11
ended
|
XEBM15 LHD (C,L) | — | |
| 58911-46020-C1 note |
Box, Console, Rear
2023-01 → 2023-11
ended
|
XEBM15 RHD (C,L) | — | |
| 58911-46020-C1 note |
Box, Console, Rear
2023-01 → 2023-11
ended
|
XEBM15 RHD B | — | |
| 58911-46020-E1 note |
Box, Console, Rear
2023-01 → 2023-11
ended
|
XEBM15 RHD (C,L) | — | |
| 58912B — Box, Rear Console, Lower | ||||
| 58912-46010-C0 note |
Box, Rear Console, Lower
2023-11 → —
|
XEBM1# LHD (C,L) | — | |
| 58912-46010-C0 note |
Box, Rear Console, Lower
2023-11 → —
|
XEBM10 LHD B;XEBM15 LHD +2 | — | |
| 58912-46010-E0 note |
Box, Rear Console, Lower
2023-11 → —
|
XEBM1# LHD (C,L) | — | |
| 58912-46020-C0 note |
Box, Rear Console, Lower
2023-11 → —
|
XEBM1# RHD (C,L) | — | |
| 58912-46020-C0 note |
Box, Rear Console, Lower
2023-11 → —
|
XEBM1# RHD B | — | |
| 58912-46020-E0 note |
Box, Rear Console, Lower
2023-11 → —
|
XEBM1# RHD (C,L) | — | |
| 58912-46010-C0 note |
Box, Rear Console, Lower
2023-01 → 2023-11
ended
|
XEBM15 LHD (C,L) | — | |
| 58912-46010-C0 note |
Box, Rear Console, Lower
2023-01 → 2023-11
ended
|
XEBM15 LHD B EUR | — | |
| 58912-46010-C0 note |
Box, Rear Console, Lower
2023-01 → —
|
XEBM15 B CHI | — | |
| 58912-46010-E0 note |
Box, Rear Console, Lower
2023-01 → 2023-11
ended
|
XEBM15 LHD (C,L) | — | |
| 58912-46020-C0 note |
Box, Rear Console, Lower
2023-01 → 2023-11
ended
|
XEBM15 RHD (C,L) | — | |
| 58912-46020-C0 note |
Box, Rear Console, Lower
2023-01 → 2023-11
ended
|
XEBM15 RHD B | — | |
| 58912-46020-E0 note |
Box, Rear Console, Lower
2023-01 → 2023-11
ended
|
XEBM15 RHD (C,L) | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
