Toyota Lexus RZ450E/300E

2023-01 → present · chassis XEBM1# · catalogue 564210 · Europe

Supported model Data version 2023-11

Suspension Crossmember & Under Cover

39 part groups · 5 illustrations

PNC	Description

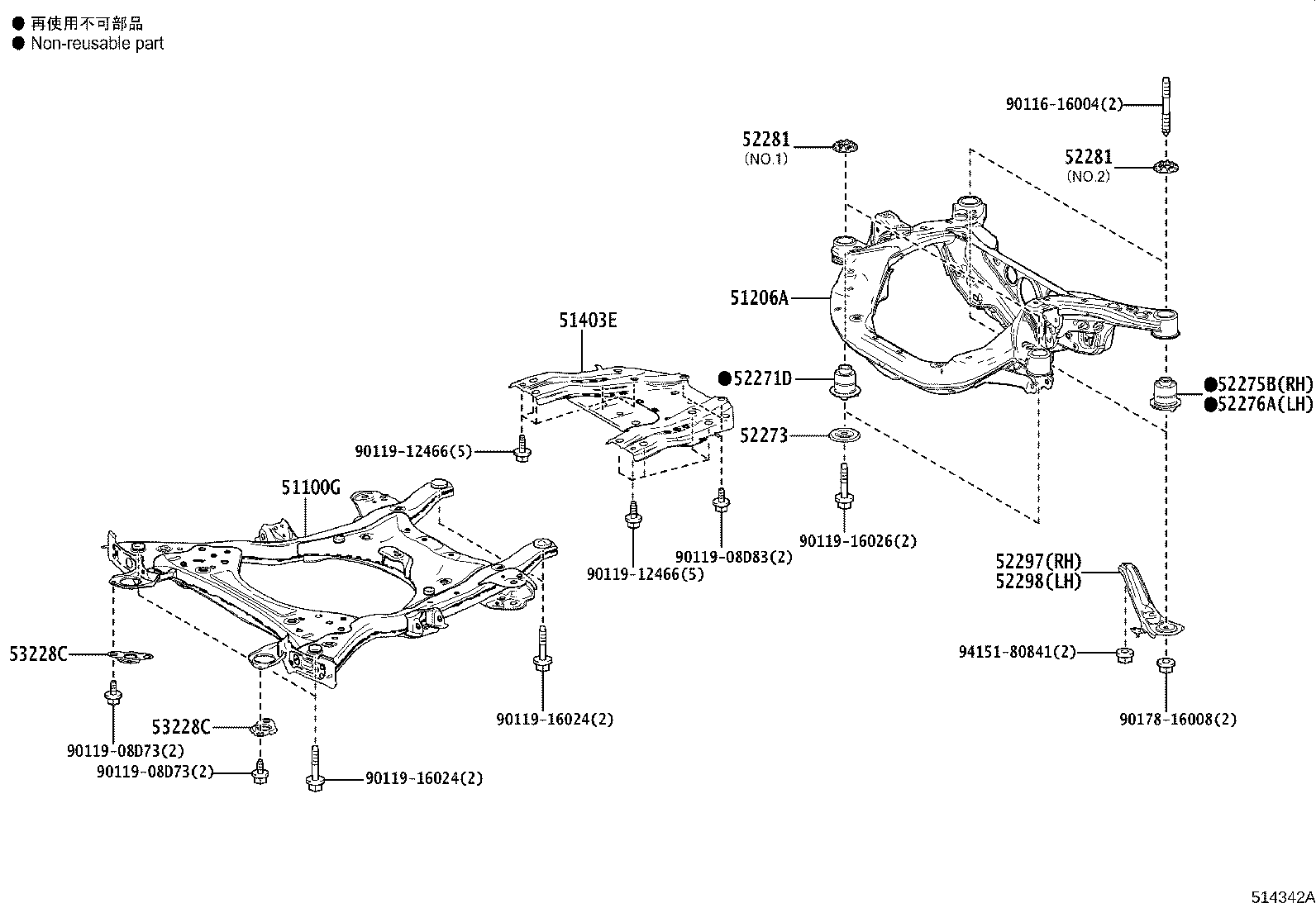

51100G	Frame Assy, Front
51206A	Member Sub-assy, Rear Suspension
51403E	Brace Sub-assy, Front Suspension Member

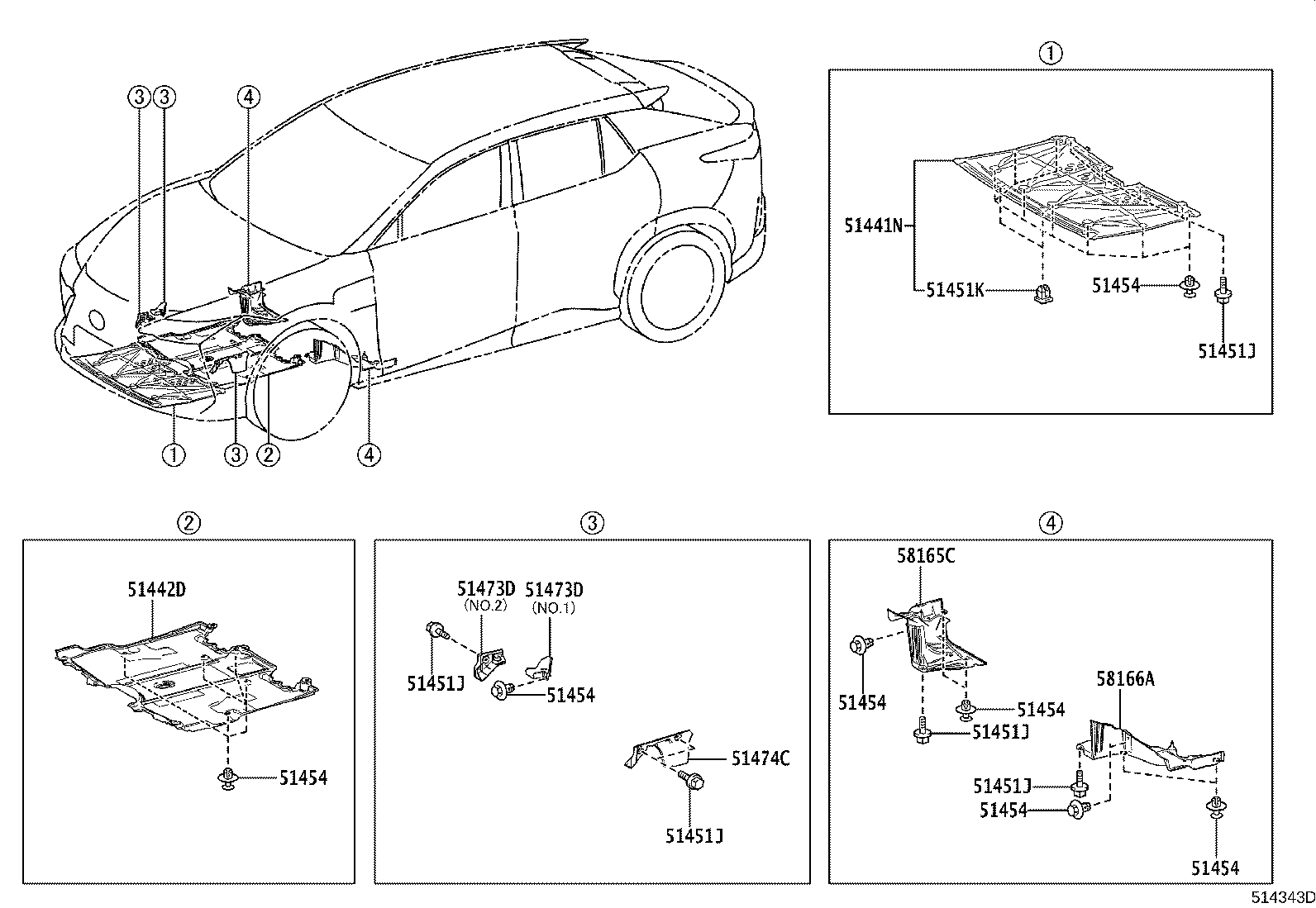

51441N	Cover, Front Compartment Under
51442D	Cover, Motor Under, NO.2
51451J	Bolt, NO.1
51451K	Grommet, Screw, NO.1
51454	Clip
51473D	Cover, Front Compartment Side, RH
51474C	Cover, Front Compartment Side, LH
51543B	Bracket, Damper
52271D	Cushion, Rear Suspension Member Body Mounting, Front
52273	Stopper, Rear Suspension Member, Lower
52275B	Cushion, Rear Suspension Member Body Mount, Rear RH
52276A	Cushion, Rear Suspension Member Body Mount, Rear LH
52281	Cushion, Differential Support Member
52297	Brace, Rear Suspension Member, Rear Lower RH
52298	Brace, Rear Suspension Member, Rear Lower LH
52383E	Protector, Differential Support, NO.1
52384C	Protector, Differential Support, NO.2
53228C	Bracket, Radiator Mounting, Lower NO.1
53661B	Cover, Rear Suspension Brace
57627G	Cover, Rear Floor Side Member, RH
57628E	Cover, Rear Floor Side Member, LH

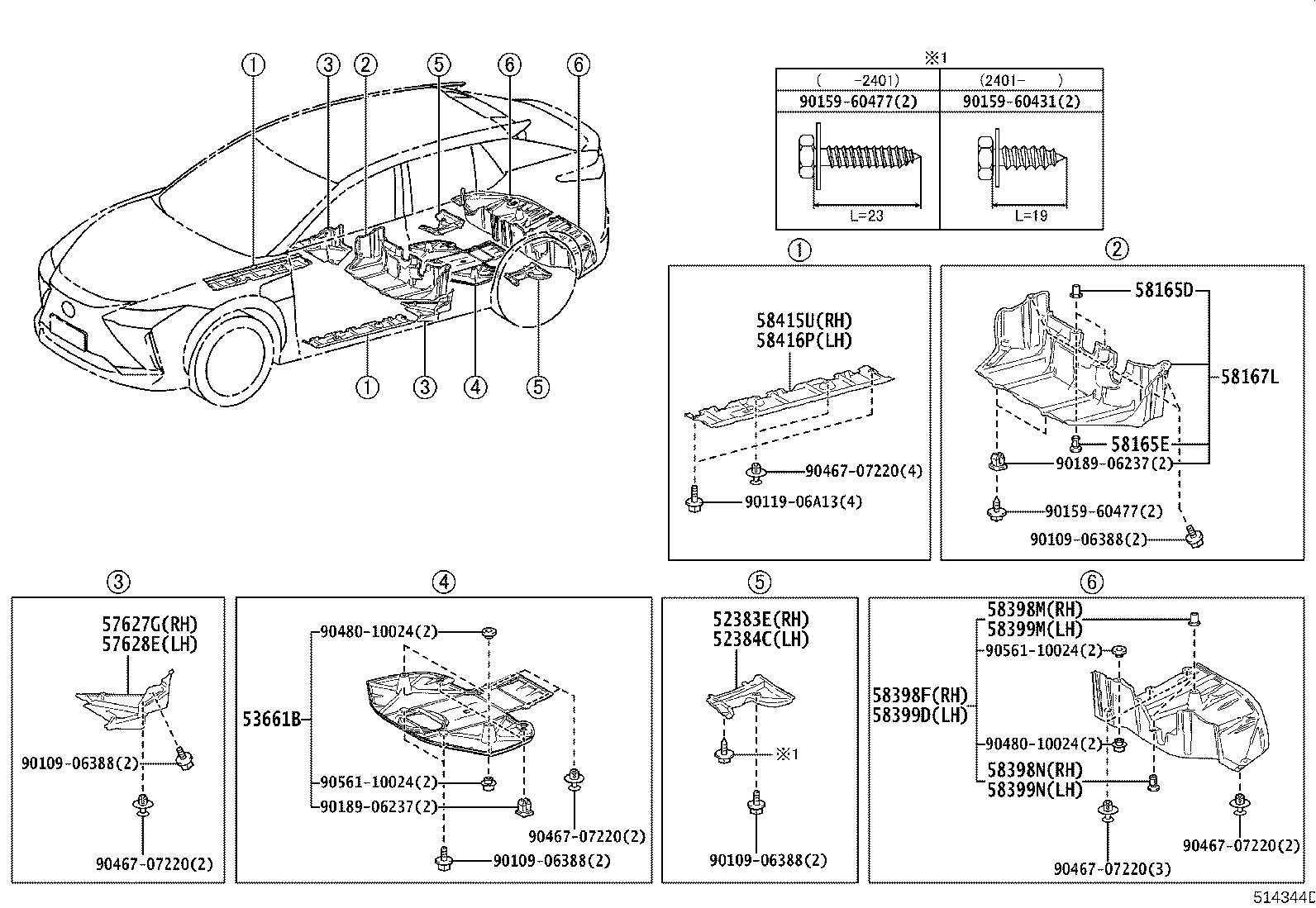

58165C	Cover, Front Floor, RH
58165D	Clip, Floor Cover
58165E	Clip, Floor Cover
58166A	Cover, Front Floor, LH
58167L	Cover, Floor Under, NO.3

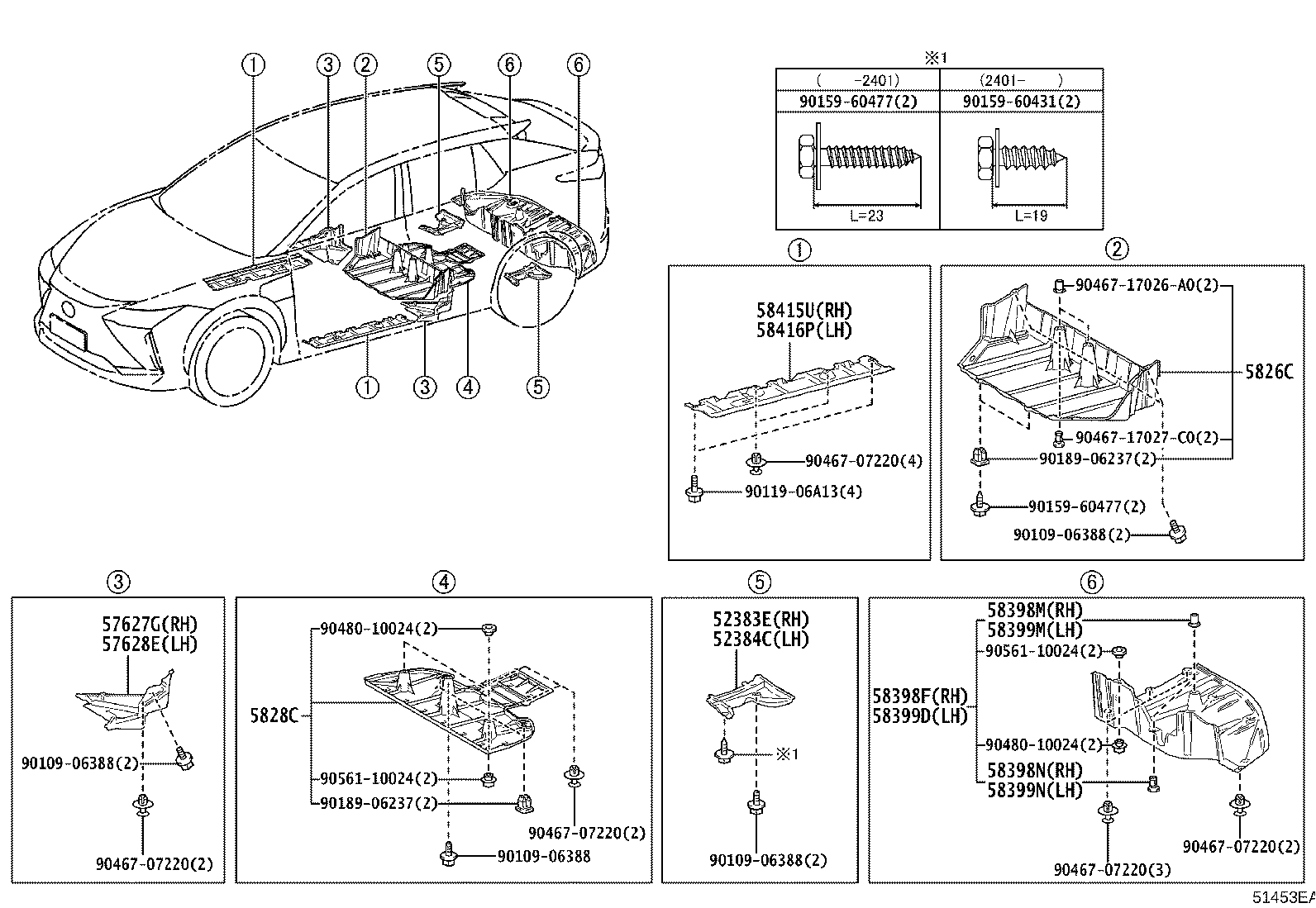

5826C	Cover, Center Floor Under
5828C	Cover, Center Floor Under, Rear
58398F	Cover, Floor Under, NO.1
58398M	Clip, Floor Under Cover, NO.1
58398N	Clip, Floor Under Cover, NO.2
58399D	Cover, Floor Under, NO.2
58399M	Clip, Floor Under Cover, NO.1
58399N	Clip, Floor Under Cover, NO.2
58415U	Board, Rear Floor, Front RH
58416P	Board, Rear Floor, Front LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
