Toyota Lexus RZ450E/300E

2023-01 → present · chassis XEBM1# · catalogue 564210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood Lock & Hinge

15 part groups · 2 illustrations

Illustrations

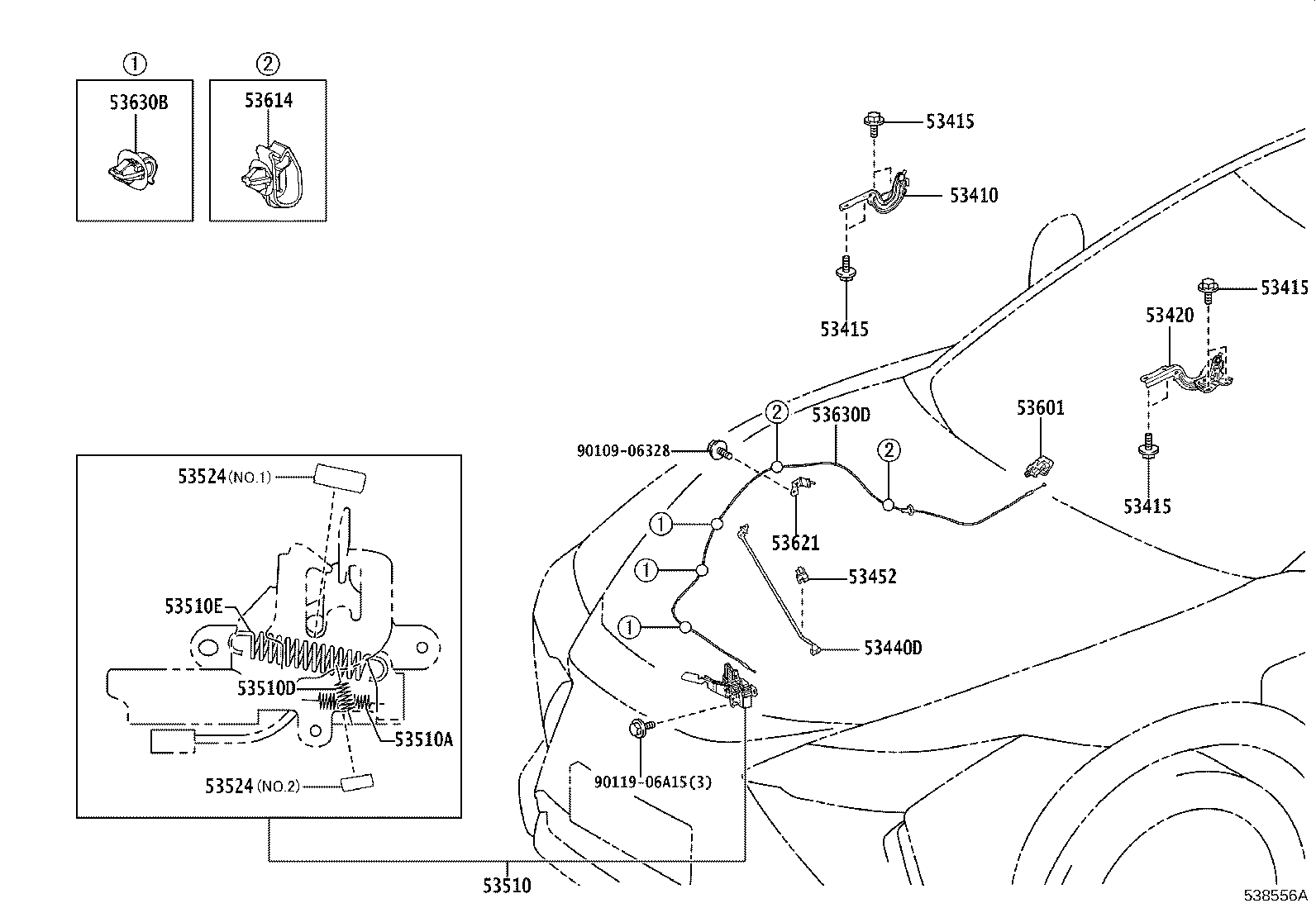

Figure 538557A 538557A 2023-01 → — Figure 538556A 538556A 2023-01 → —

Part groups

PNCDescription
53410 Hinge Assy, Hood, RH
53415 Bolt, Hood Hinge
53420 Hinge Assy, Hood, LH
53440D Support Assy, Hood
53452 Holder, Hood Stay
53510 Lock Assy, Hood
53510A Spring, Tension(FOR HOOD LOCK)
53510D Spring, Tension(FOR HOOD LOCK)
53510E Spring, Tension(FOR HOOD LOCK)
53524 Damper, Hood Lock Spring
53601 Lever Sub-assy, Hood Lock Control
53614 Clamp, Hood Lock Control Cable
53621 Bracket, Hood Lock Control Cable
53630B Clamp(FOR HOOD LOCK CONTROL CABLE)
53630D Set, Cable & Lever, Hoodlock Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
