Toyota Lexus RZ450E/300E

2023-01 → present · chassis XEBM1# · catalogue 564210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

18 part groups · 2 illustrations

Illustrations

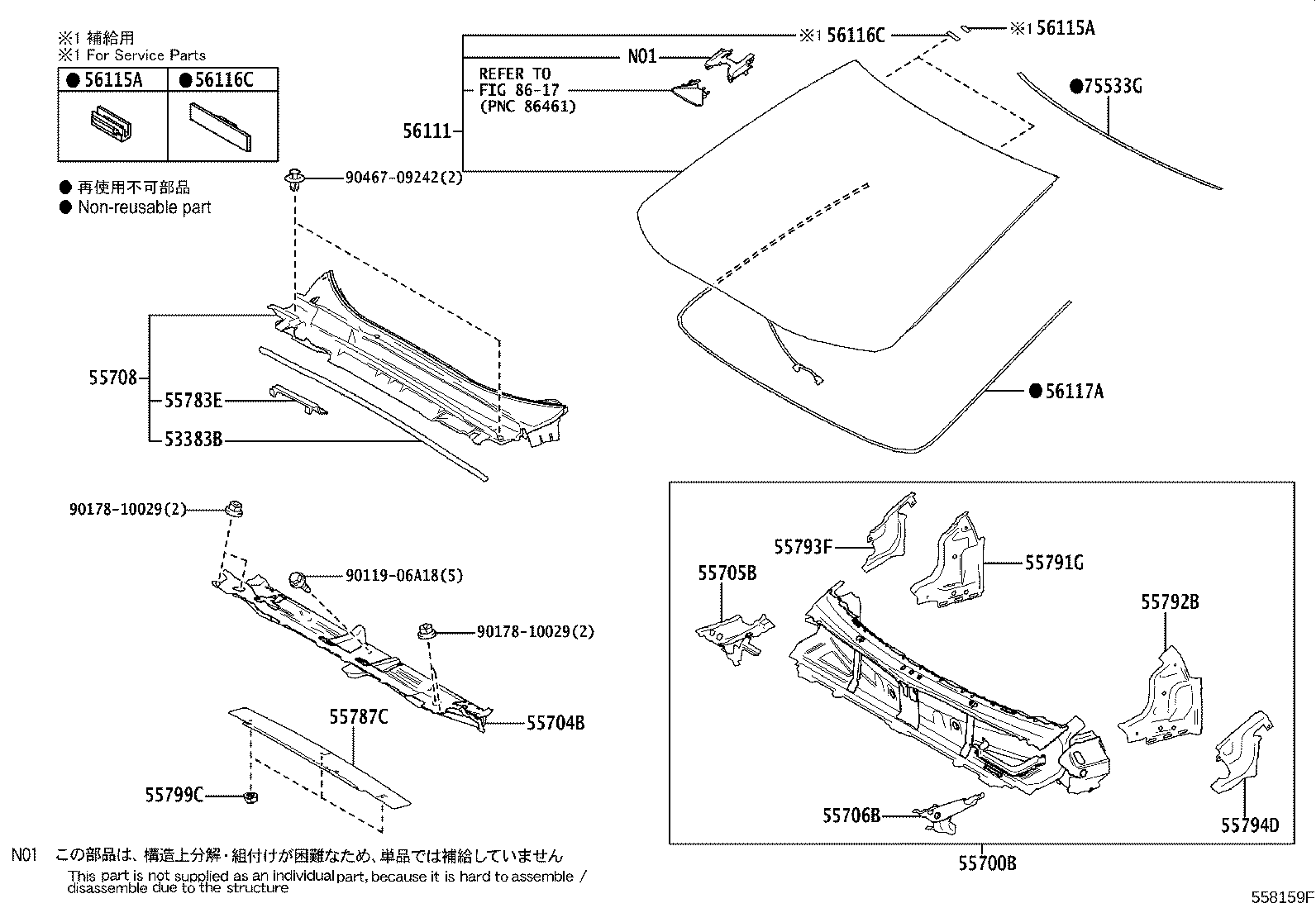

Figure 558158D 558158D 2023-01 → — Figure 558159F 558159F 2023-01 → —

Part groups

PNCDescription
53383B Seal, Hood TO Cowl Top
55700B Cowl Assy
55704B Panel Sub-assy, Cowl Ventilator
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55708 Louver Sub-assy, Cowl Top Ventilator
55783E Louver, Cowl Top Ventilator, Center
55787C Insulator, Cowl Top Panel, NO.1
55791G Cover, Cowl Reinforcement, Upper RH
55792B Cover, Cowl Reinforcement, Upper LH
55793F Cover, Cowl Reinforcement, Upper NO.2 RH
55794D Cover, Cowl Reinforcement, Upper NO.2 LH
55799C Clip, Cowl Top Ventilator Louver
56111 Glass, Windshield
56115A Stopper, Windshield Glass, NO.1
56116C Stopper, Windshield Glass, NO.2
56117A Dam, Window Glass Adhesive
75533G Moulding, Windshield, Outside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
