Toyota Lexus RZ450E/300E

2023-01 → present · chassis XEBM1# · catalogue 564210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

14 part groups · 2 illustrations

Illustrations

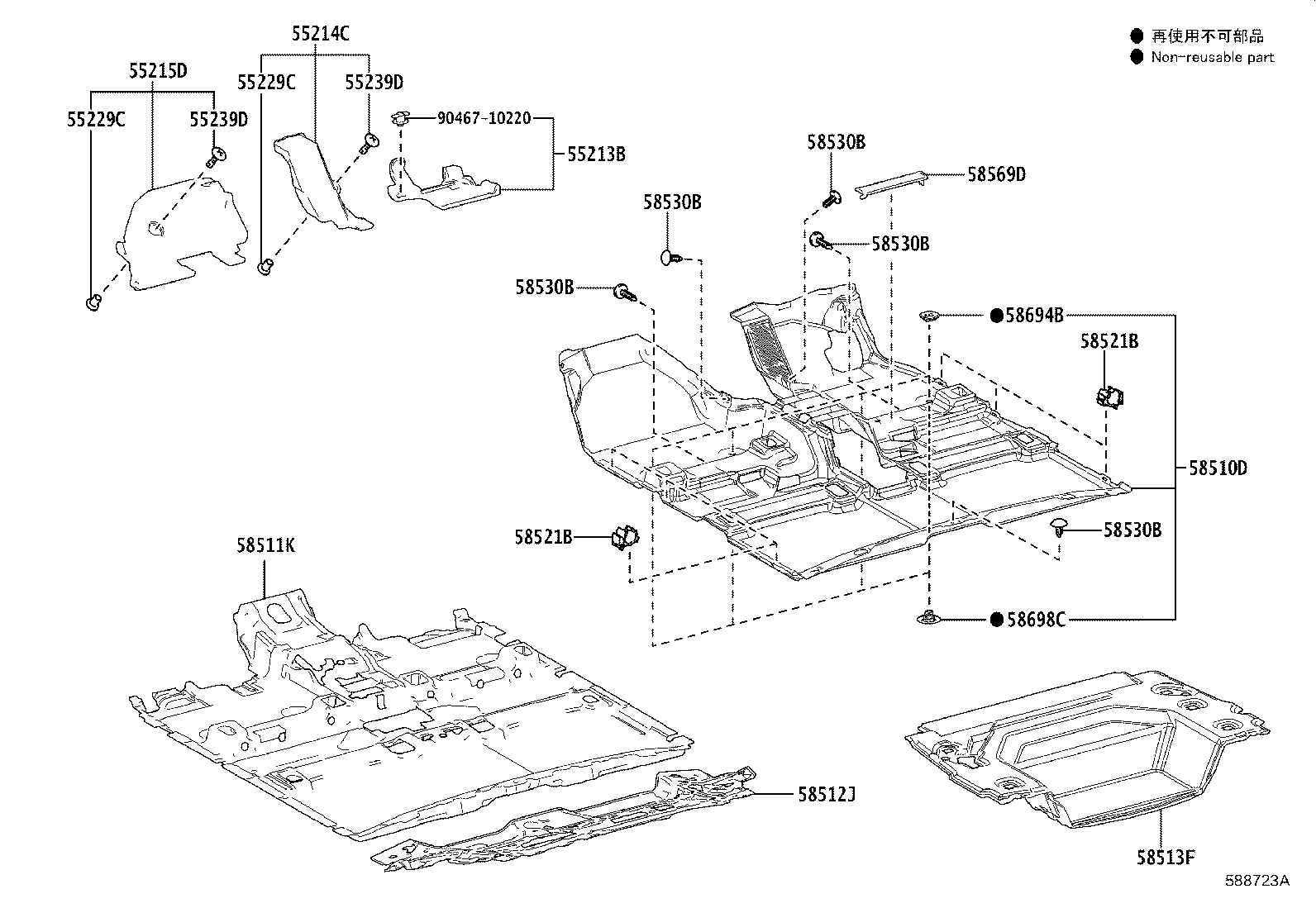

Figure 588724A 588724A 2023-01 → — Figure 588723A 588723A 2023-01 → —

Part groups

PNCDescription
55213B Pad, Dash Panel Insulator, NO.1
55214C Pad, Dash Panel Insulator, NO.2
55215D Pad, Dash Panel Insulator, NO.3
55229C Plate, Dash Panel Insulator, NO.4
55239D Plate, Dash Panel Insulator, NO.3
58510D Carpet Assy, Floor, Front
58511K Mat, Floor, NO.1
58512J Mat, Floor, NO.2
58513F Mat, Floor, NO.3
58521B Hook, Floor Carpet
58530B Clip(FOR FRONT FLOOR CARPET)
58569D Cover, Front Floor Caution Plate
58694B Plate, Mat Set, Upper
58698C Plate, Mat Set, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
