Roof Panel & Back Window Glass

21 part groups · 5 illustrations

Illustrations

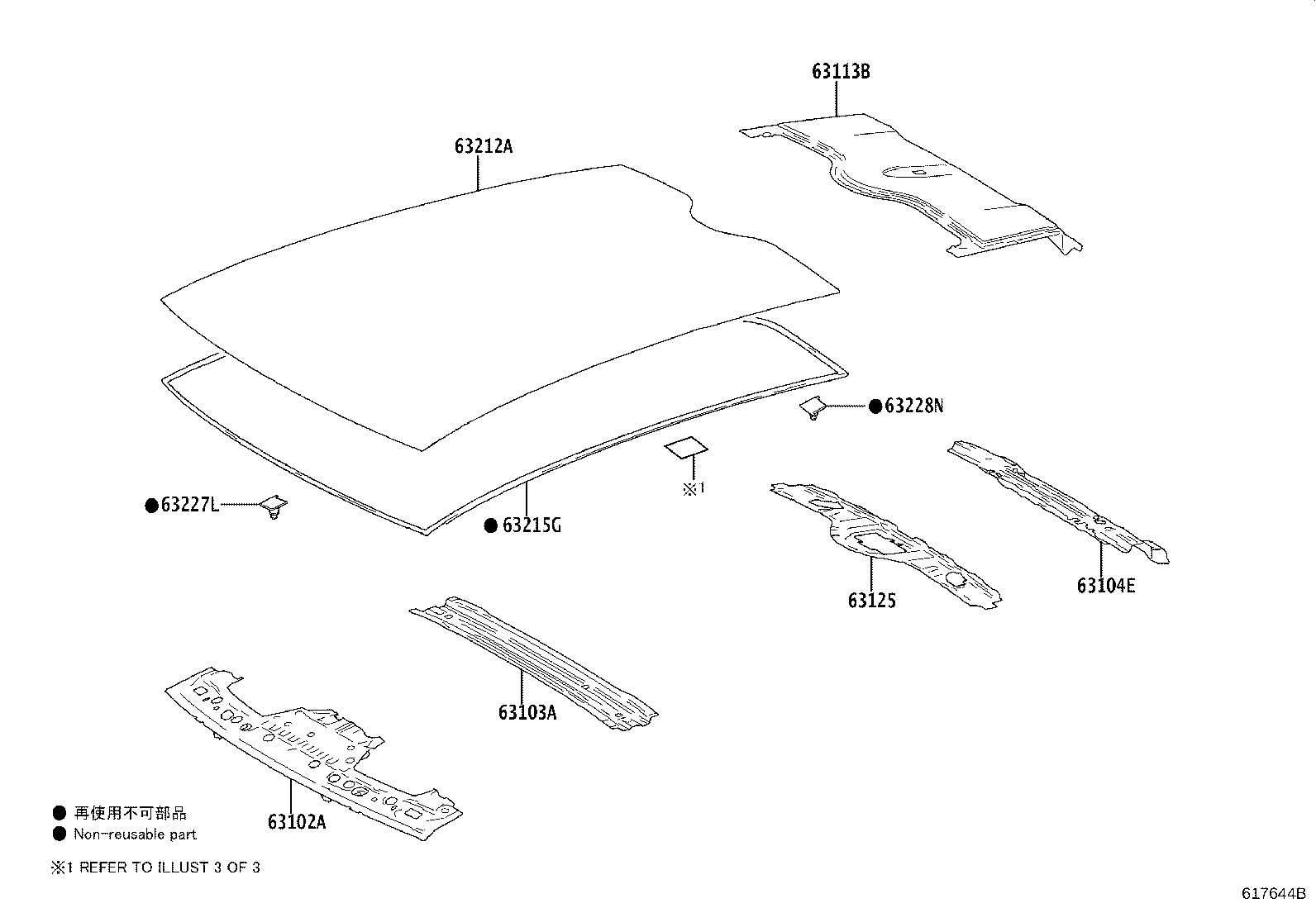

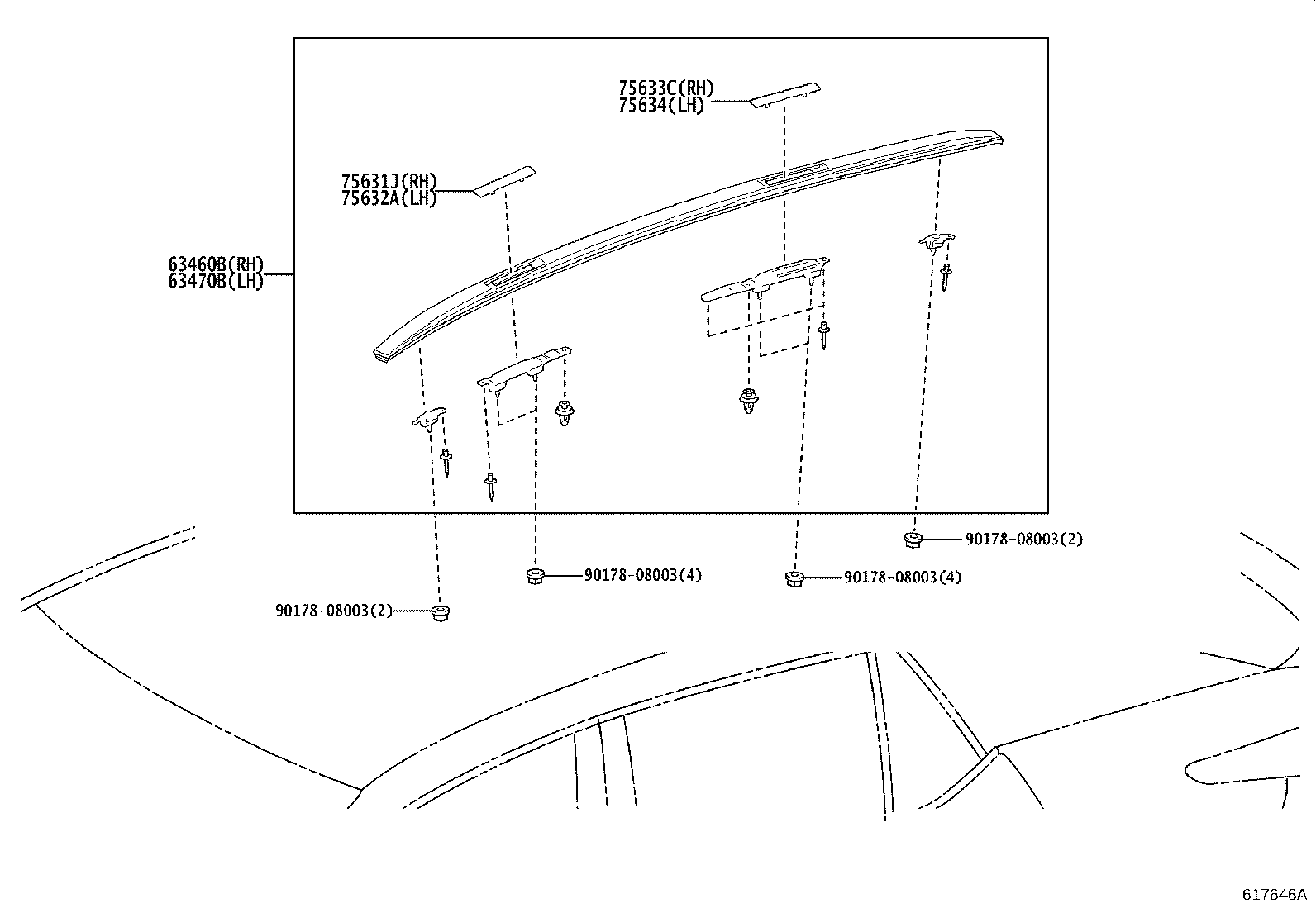

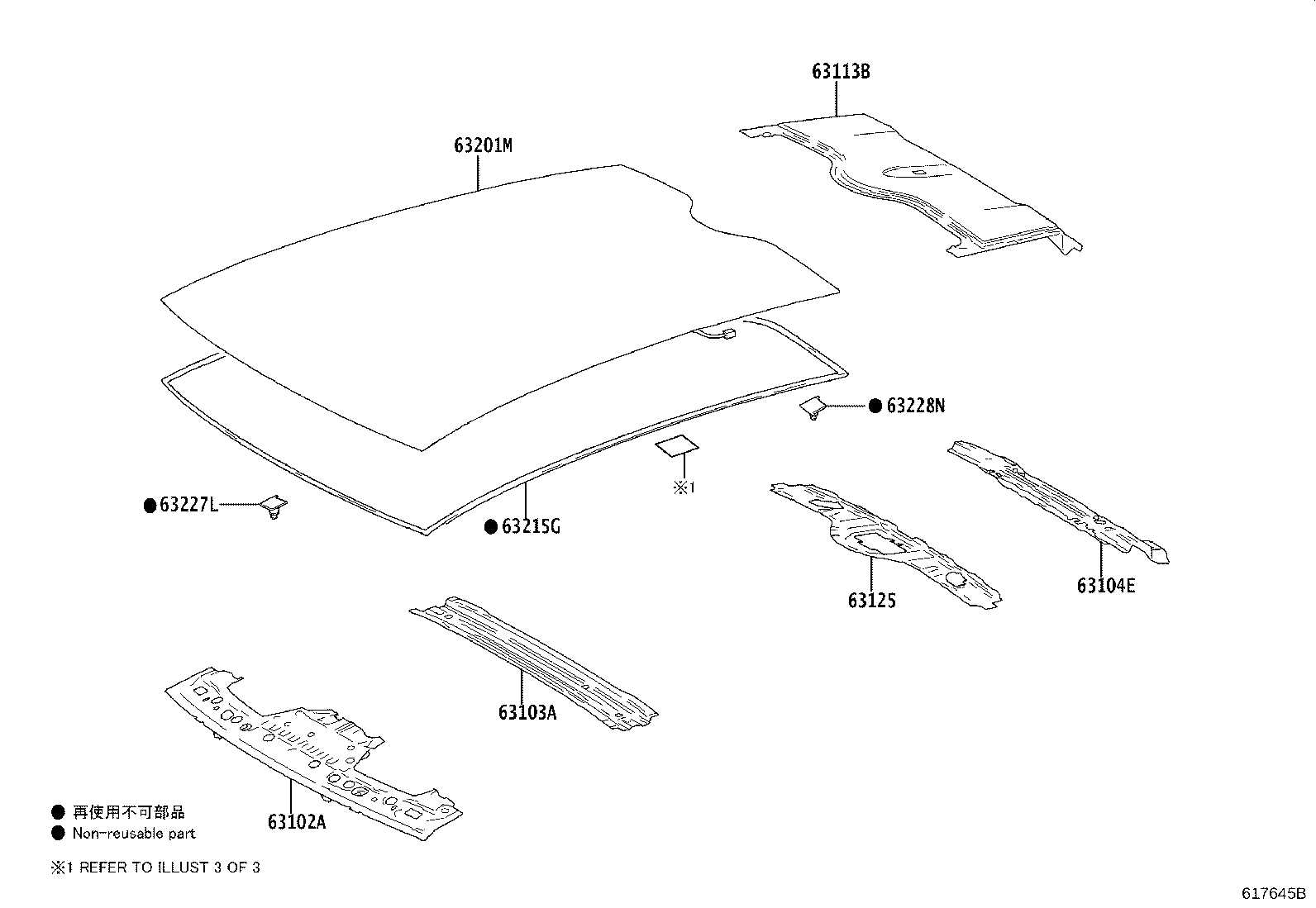

Figure 617643A 617643A 2023-01 → — Figure 617644B 617644B 2023-01 → — Figure 617645B 617645B 2023-01 → — Figure 617646A 617646A 2023-01 → — Figure 617878 617878 2023-01 → —

Part groups

PNCDescription
63102A Panel Sub-assy, Windshield Header
63103A Reinforcement Sub-assy, Roof Panel
63104E Reinforcement Sub-assy, Roof Panel, Rear
63111 Panel, Roof
63113B Panel, Roof, Rear
63125 Reinforcement, Roof Panel, NO.2
63143B Reinforcement, Roof Panel, NO.3
63144A Reinforcement, Roof Panel, NO.4
63148A Reinforcement, Roof Panel, NO.7
63149D Reinforcement, Roof Panel, NO.8
63201M Glass Sub-assy, Roof Window, NO.1
63212A Glass, Roof Window
63215G Moulding, Moon Roof, Front
63227L Clip, Roof Window
63228N Clip, Roof Window, Side
63460B Rack Assy, Roof, RH
63470B Rack Assy, Roof, LH
75631J Lid, Roof Side Garnish, NO.1 RH
75632A Lid, Roof Side Garnish, NO.1 LH
75633C Lid, Roof Side Garnish, NO.2 RH
75634 Lid, Roof Side Garnish, NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
