Toyota Lexus RZ450E/300E

2023-01 → present · chassis XEBM1# · catalogue 564210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board & Door Opening Trim Moulding

37 part groups · 3 illustrations

Illustrations

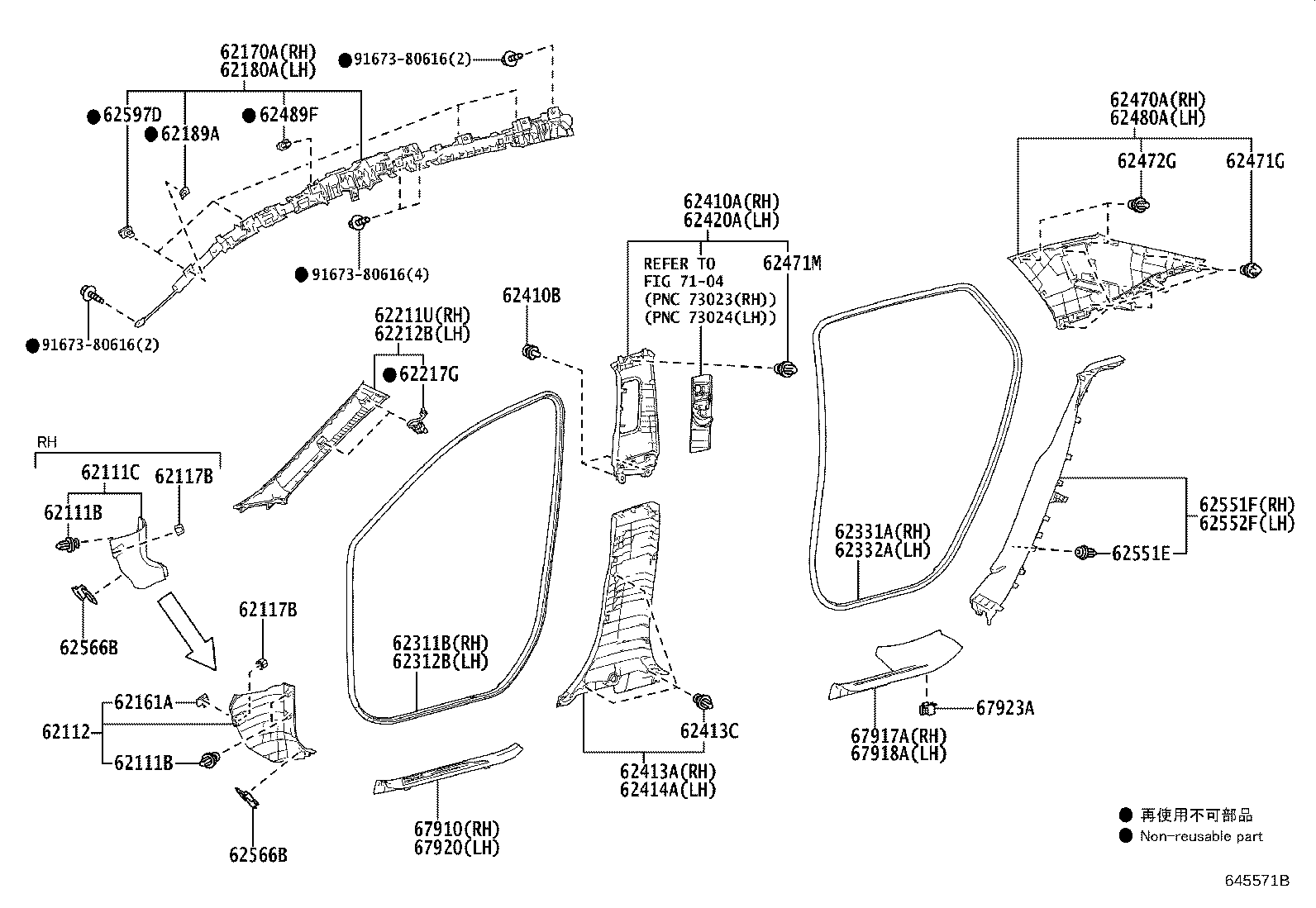

Figure 645573B 645573B 2023-01 → — Figure 645572B 645572B 2023-01 → — Figure 645571B 645571B 2023-01 → —

Part groups

PNCDescription
62111B Clip(FOR COWL SIDE TRIM)
62111C Board, Cowl Side Trim, RH
62112 Board, Cowl Side Trim, LH
62117B Clip, NO.1(FOR COWL SIDE TRIM)
62161A Cover, Cowl Side Trim Service Hole
62170A Airbag Assy, Curtain Shield, RH
62180A Airbag Assy, Curtain Shield, LH
62189A Spacer, Curtain Shield Airbag Clip
62211U Garnish Assy, Front Pillar, RH
62212B Garnish Assy, Front Pillar, LH
62217G Clip, Front Pillar Garnish
62311B Weatherstrip, Front Door Opening Trim, RH
62312B Weatherstrip, Front Door Opening Trim, LH
62331A Weatherstrip, Rear Door Opening Trim, RH
62332A Weatherstrip, Rear Door Opening Trim, LH
62410A Garnish Assy, Center Pillar, RH
62410B Clip
62413A Garnish, Center Pillar, Lower RH
62413C Clip (FOR CENTER LOWER GARNISH)
62414A Garnish, Center Pillar, Lower LH
62420A Garnish Assy, Center Piller, LH
62470A Garnish Assy, Roof Side, Inner RH
62471G Clip, Roof Side Inner Garnish
62471M Clip
62472G Clip (FOR ROOF SIDE GARNISH)
62480A Garnish Assy, Roof Side, Inner LH
62489F Clip, Roof Side Inner Garnish
62551E Clip(FOR REAR SEAT SIDE GARNISH)
62551F Garnish, Rear Seat Side, RH
62552F Garnish, Rear Seat Side, LH
62566B Clamp, Rocker Panel Inner Protecter, NO.1
62597D Clip
67910 Plate Assy, Door Scuff, RH
67917A Plate, Rear Door Scuff, RH
67918A Plate, Rear Door Scuff, LH
67920 Plate Assy, Door Scuff, LH
67923A Clamp, Door Scuff Plate, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
