Toyota Lexus RZ450E/300E

2023-01 → present · chassis XEBM1# · catalogue 564210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

86 part groups · 13 illustrations

Illustrations

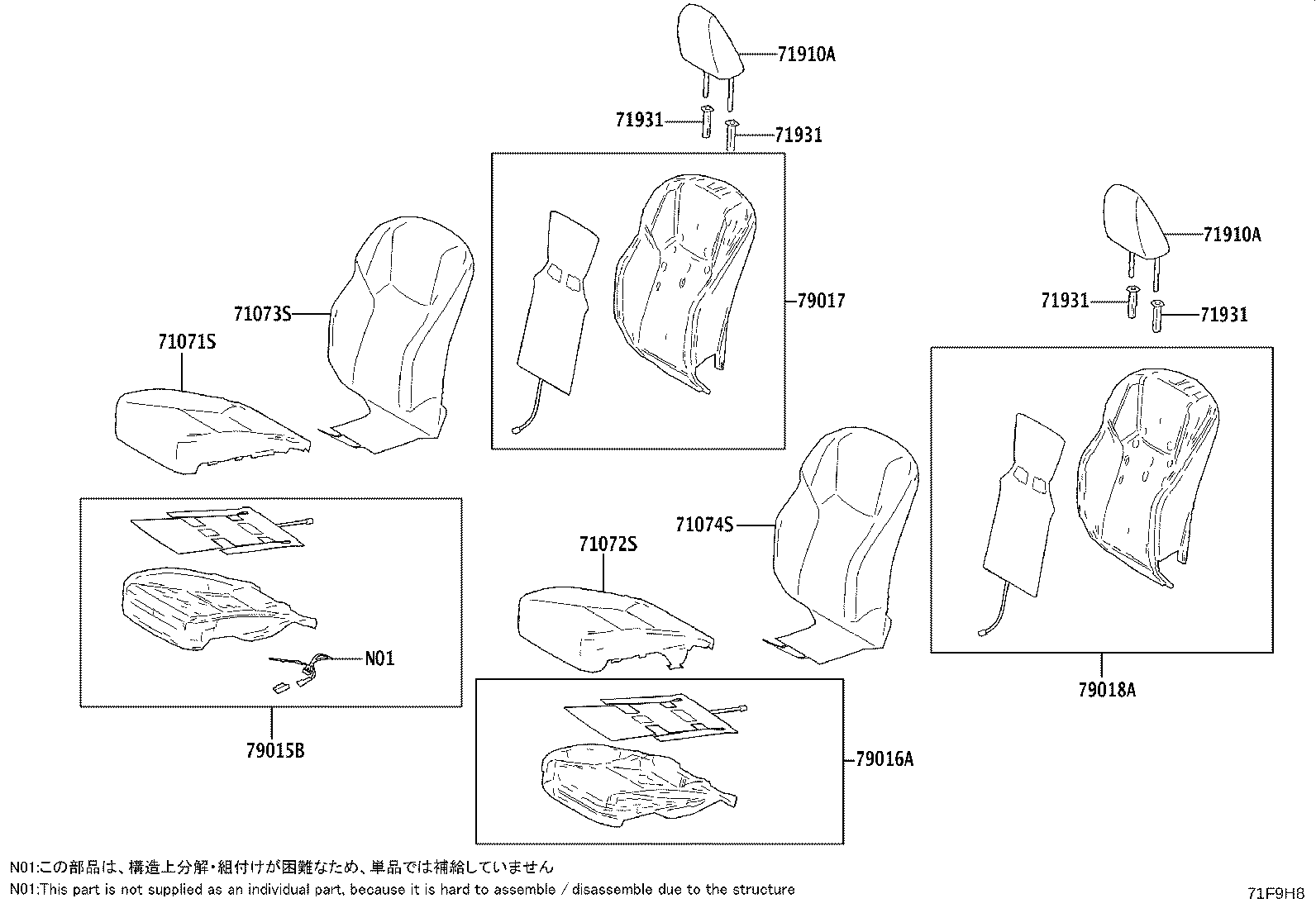

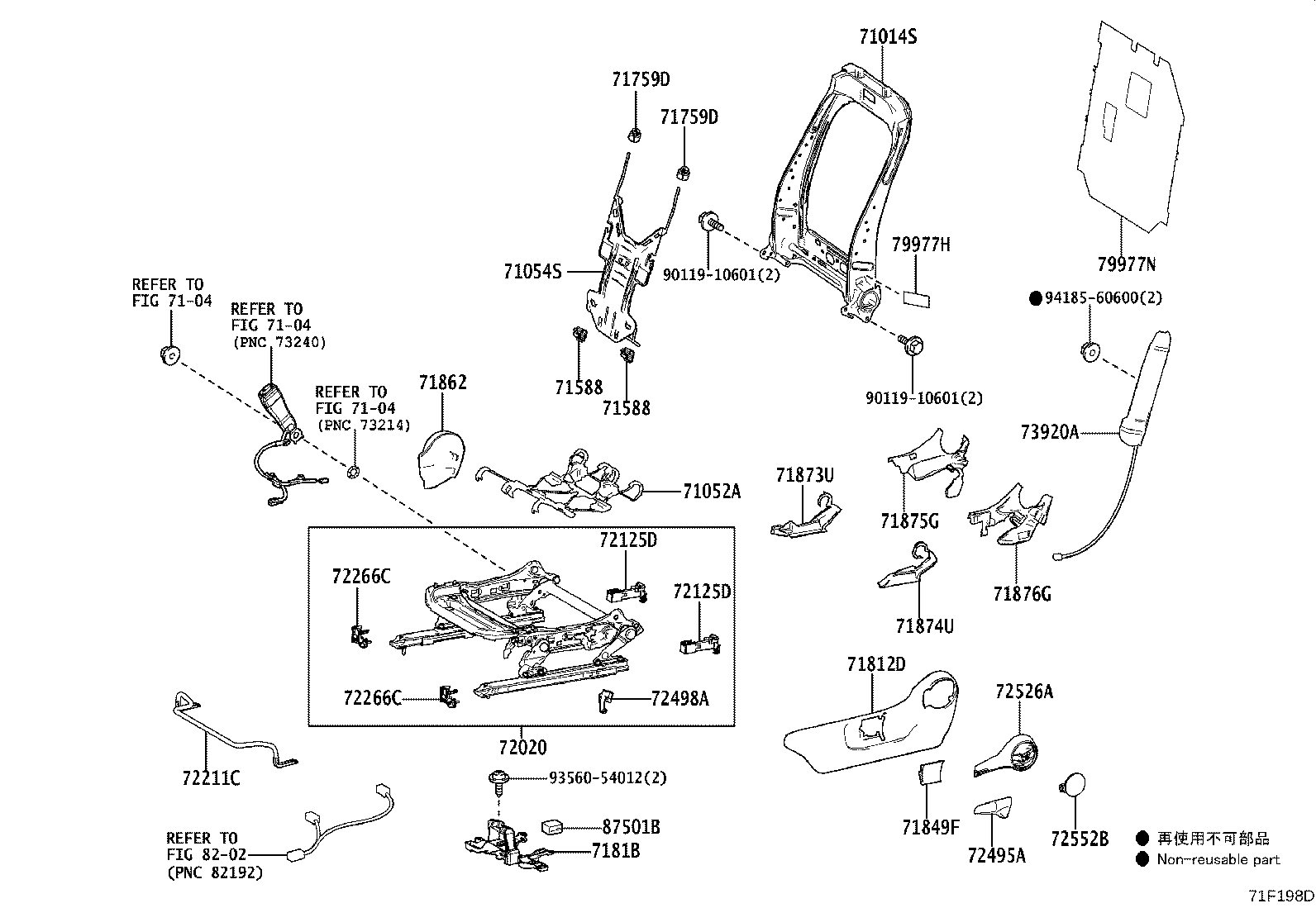

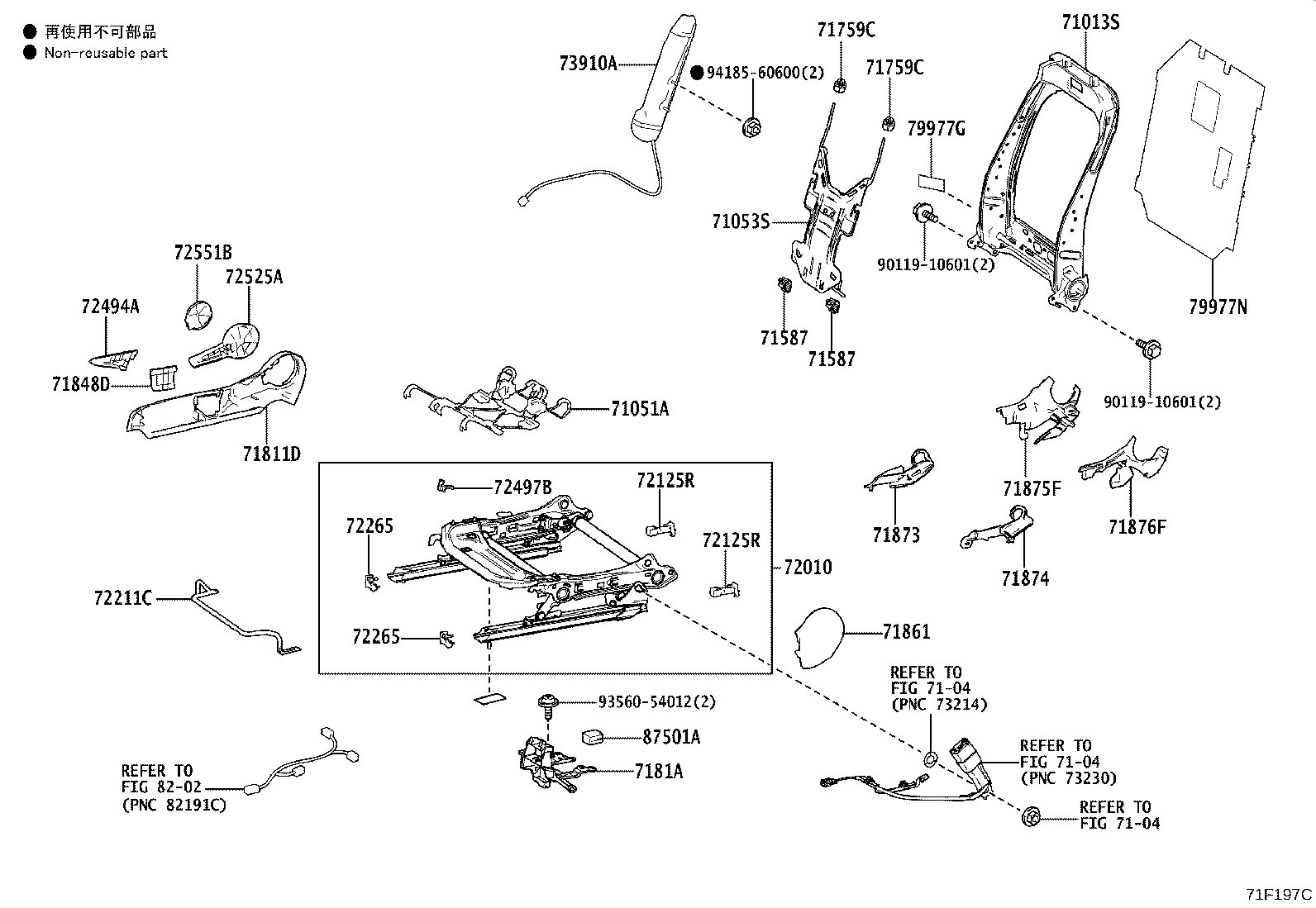

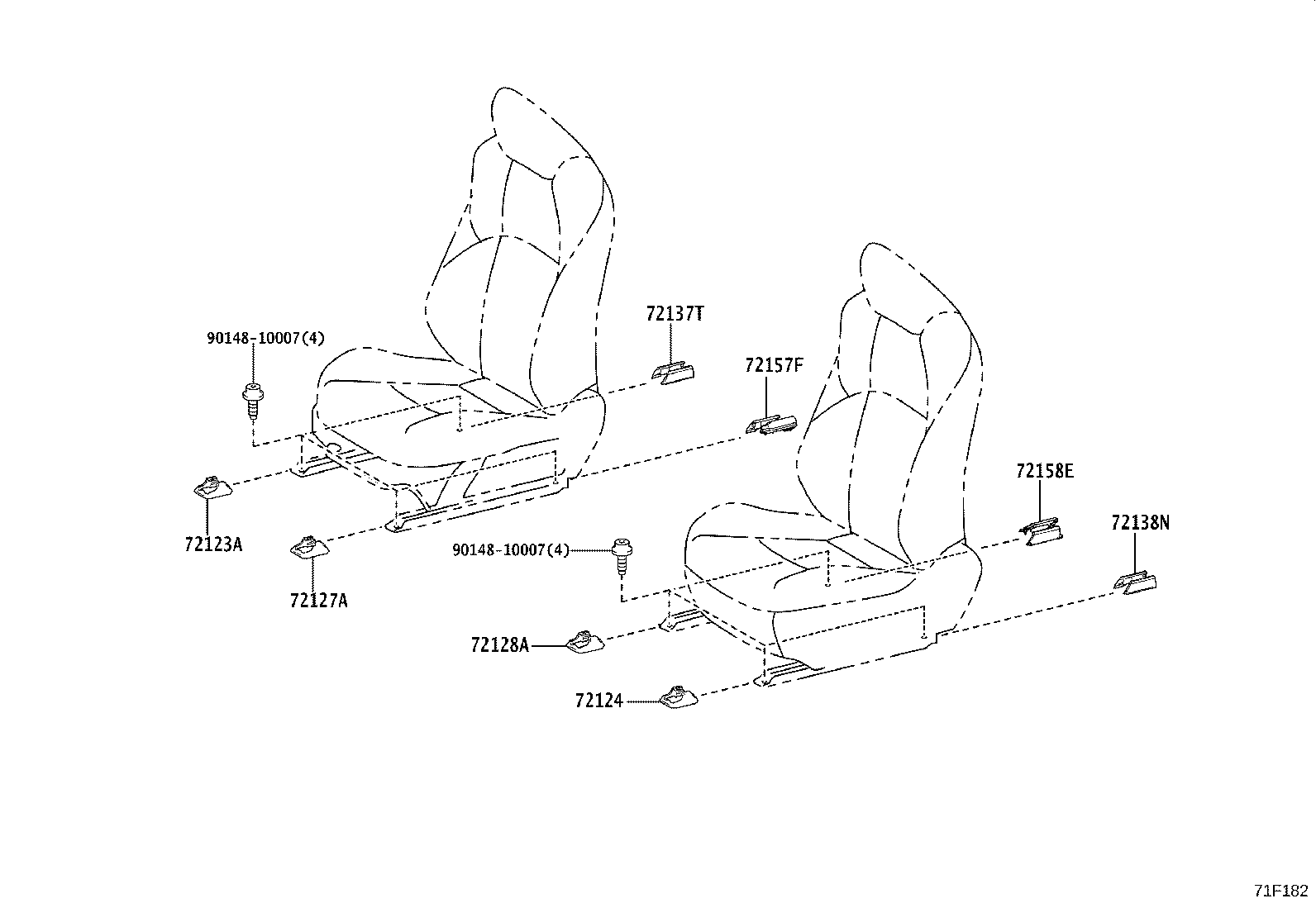

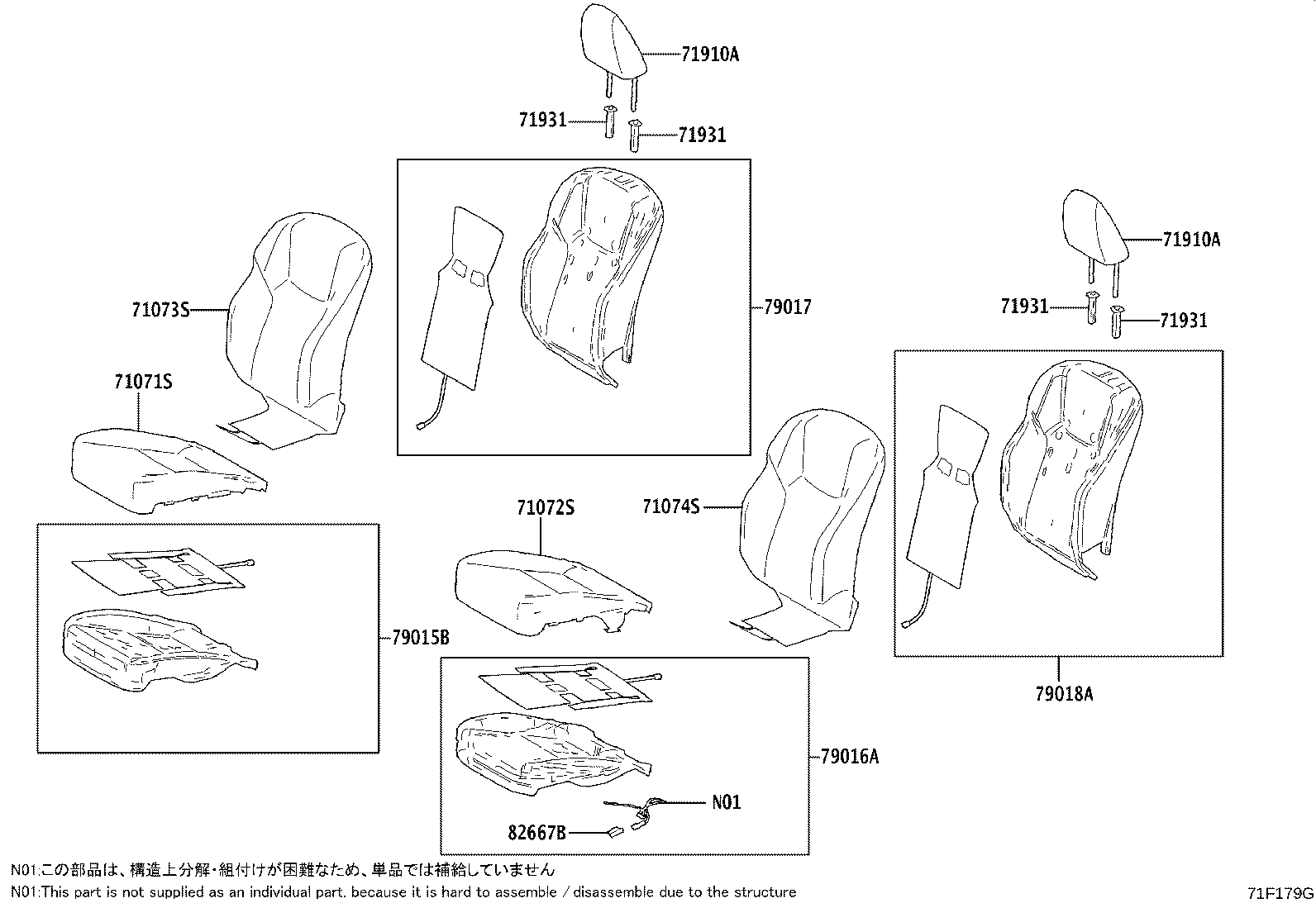

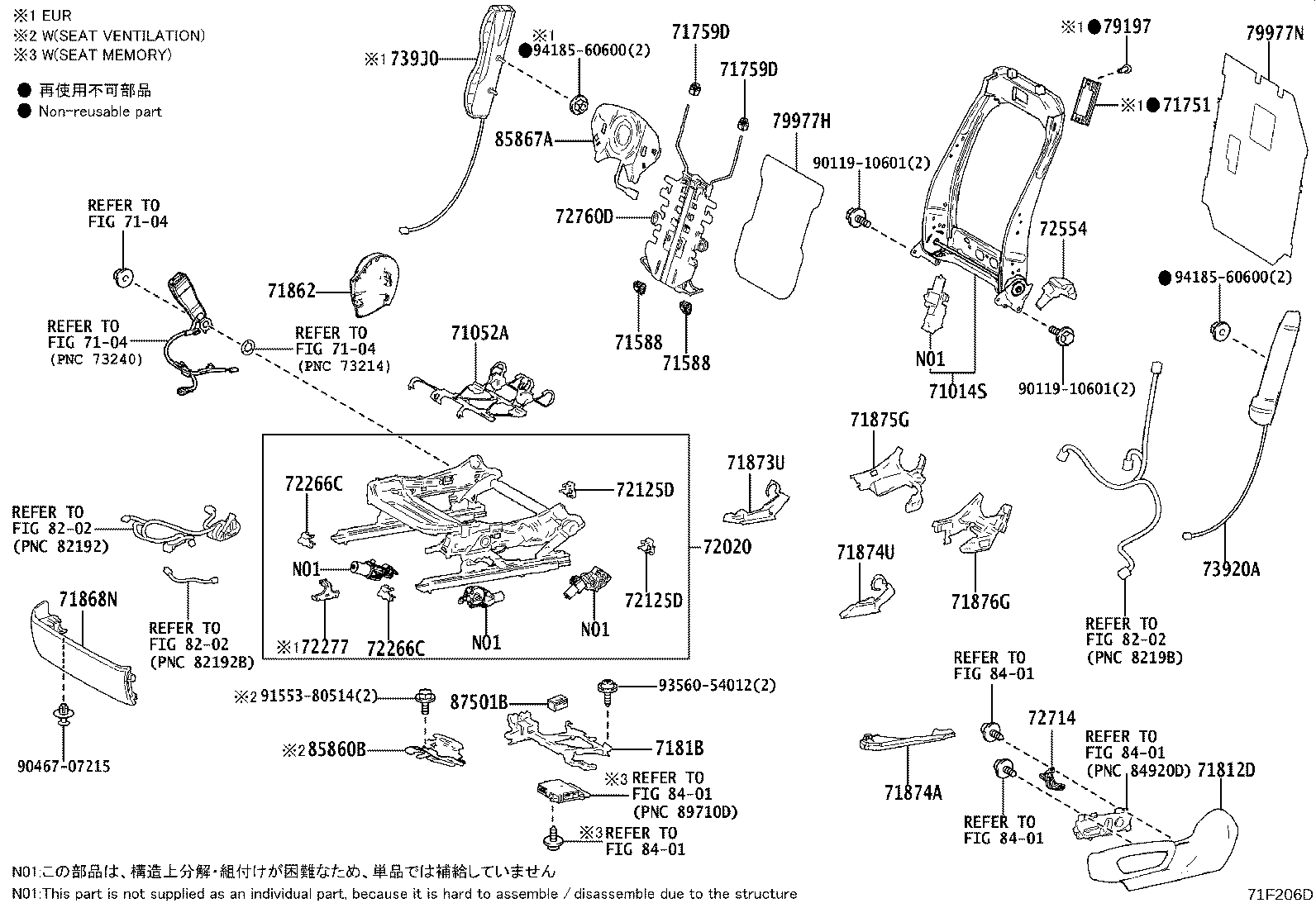

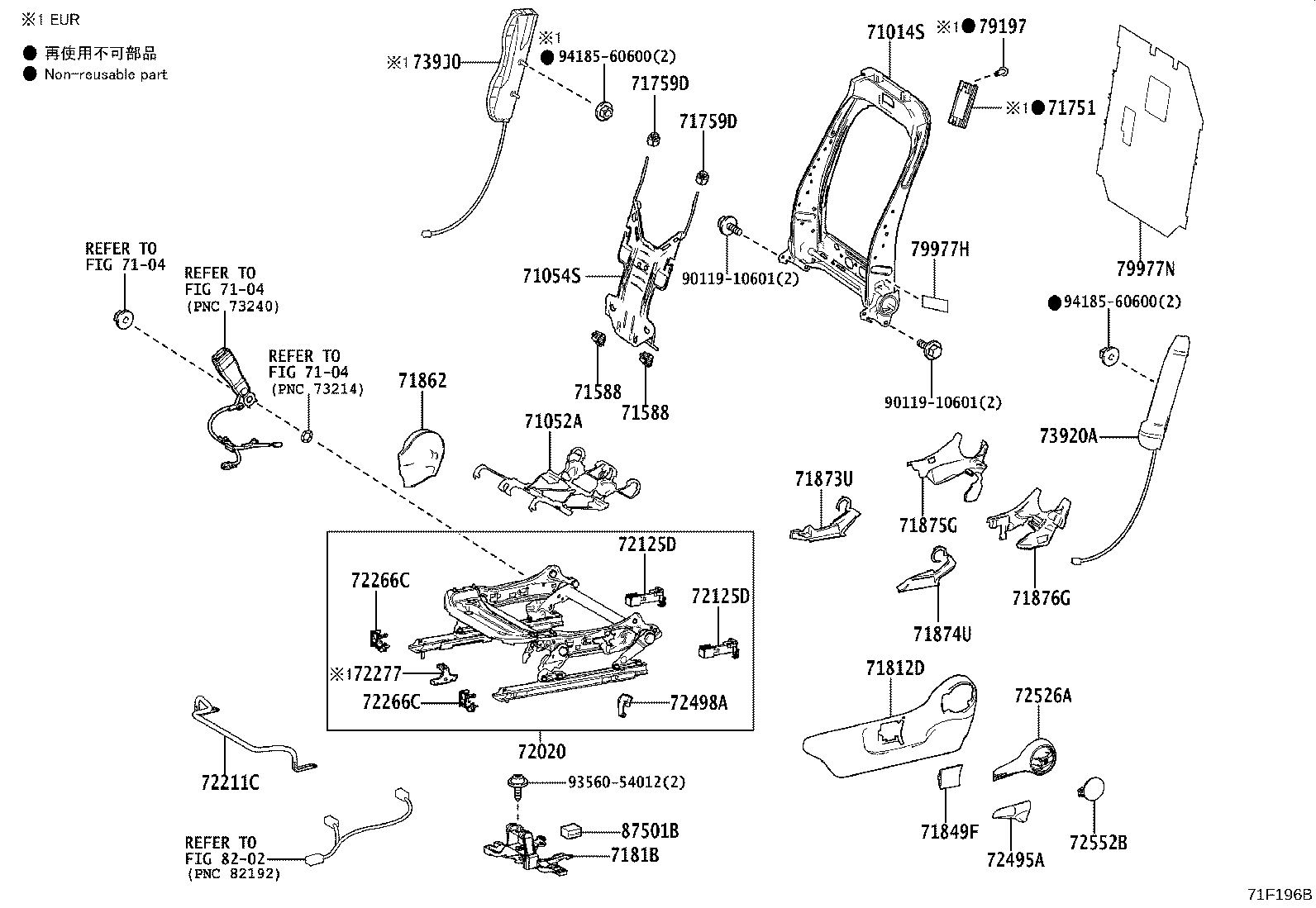

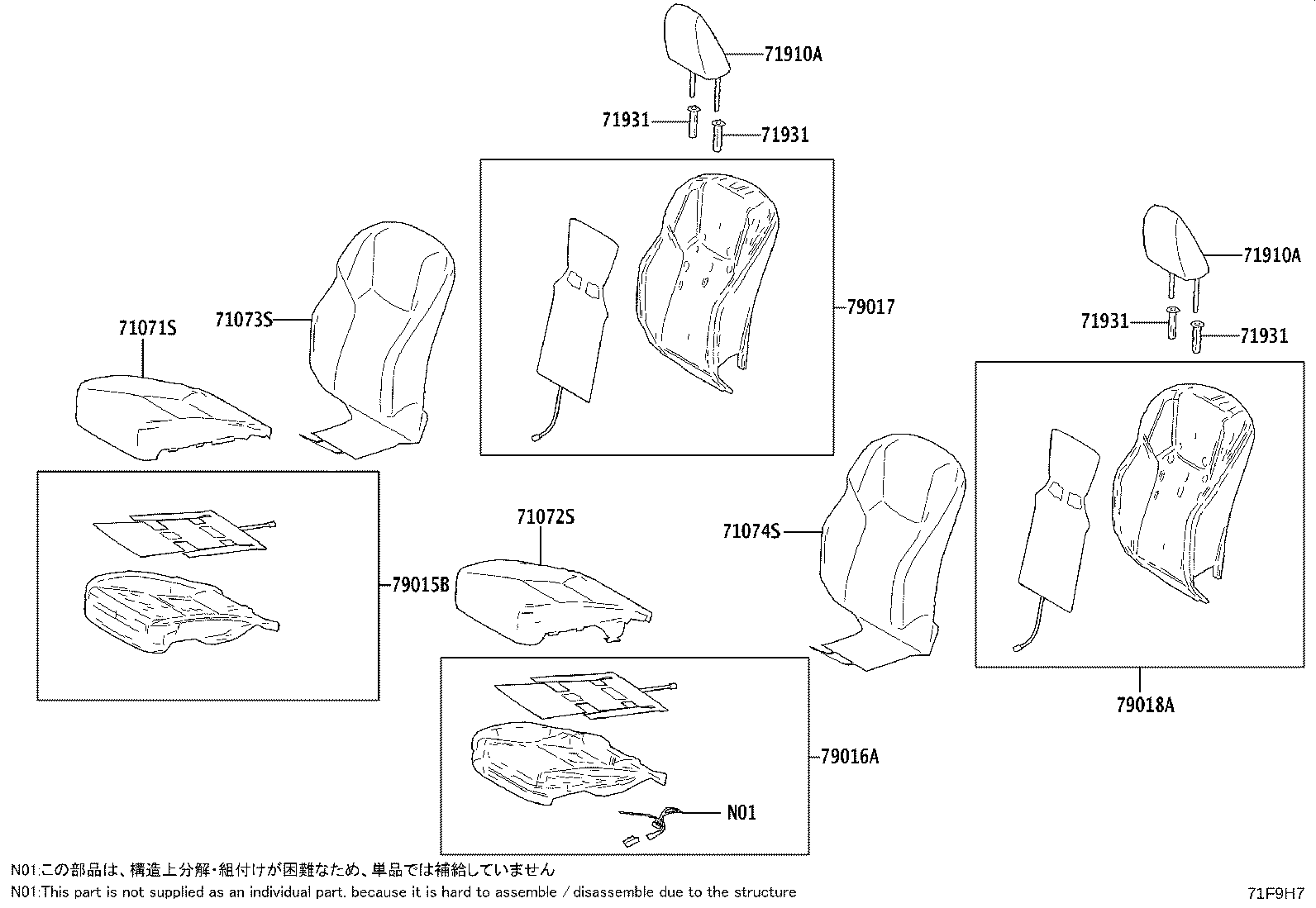

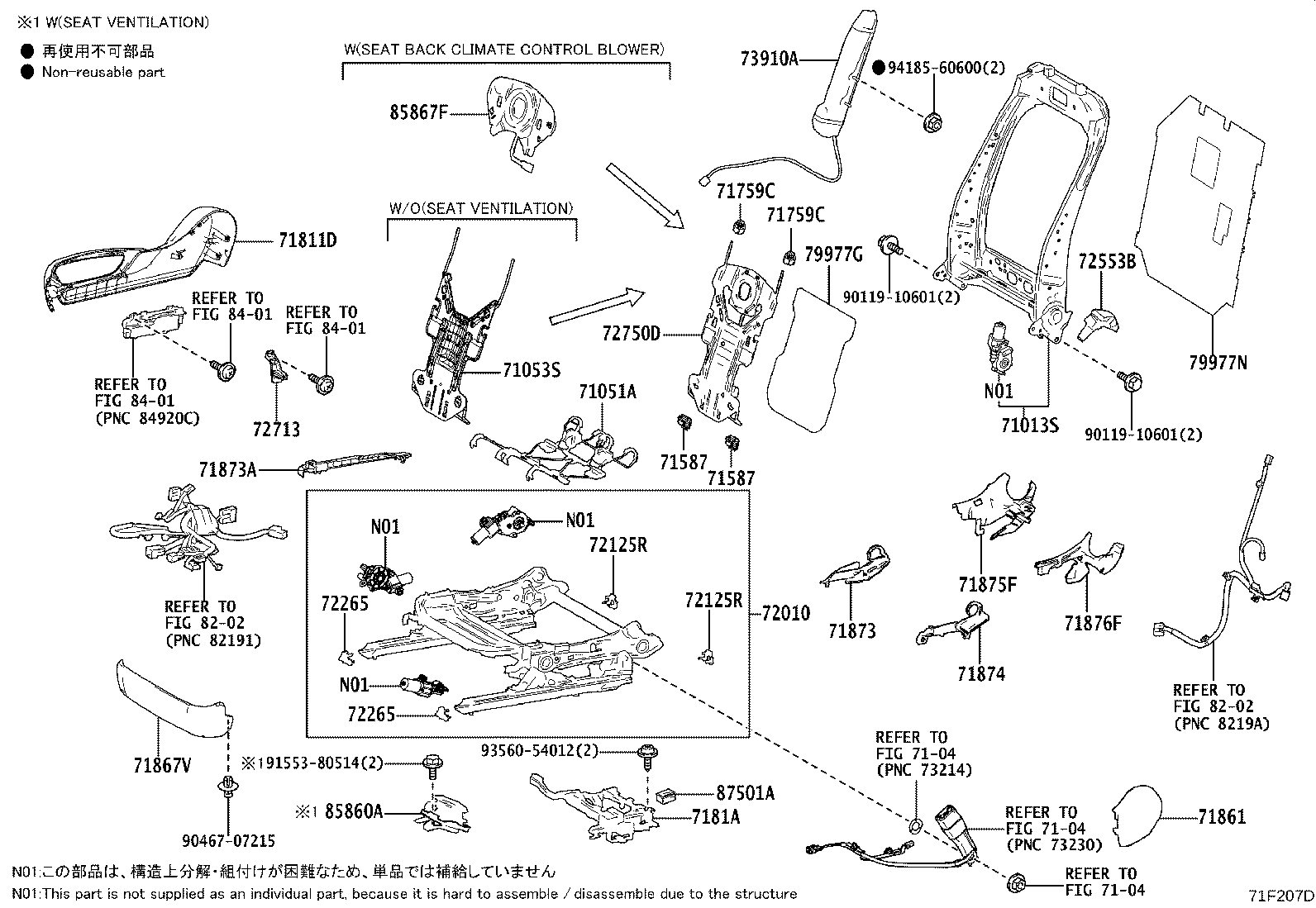

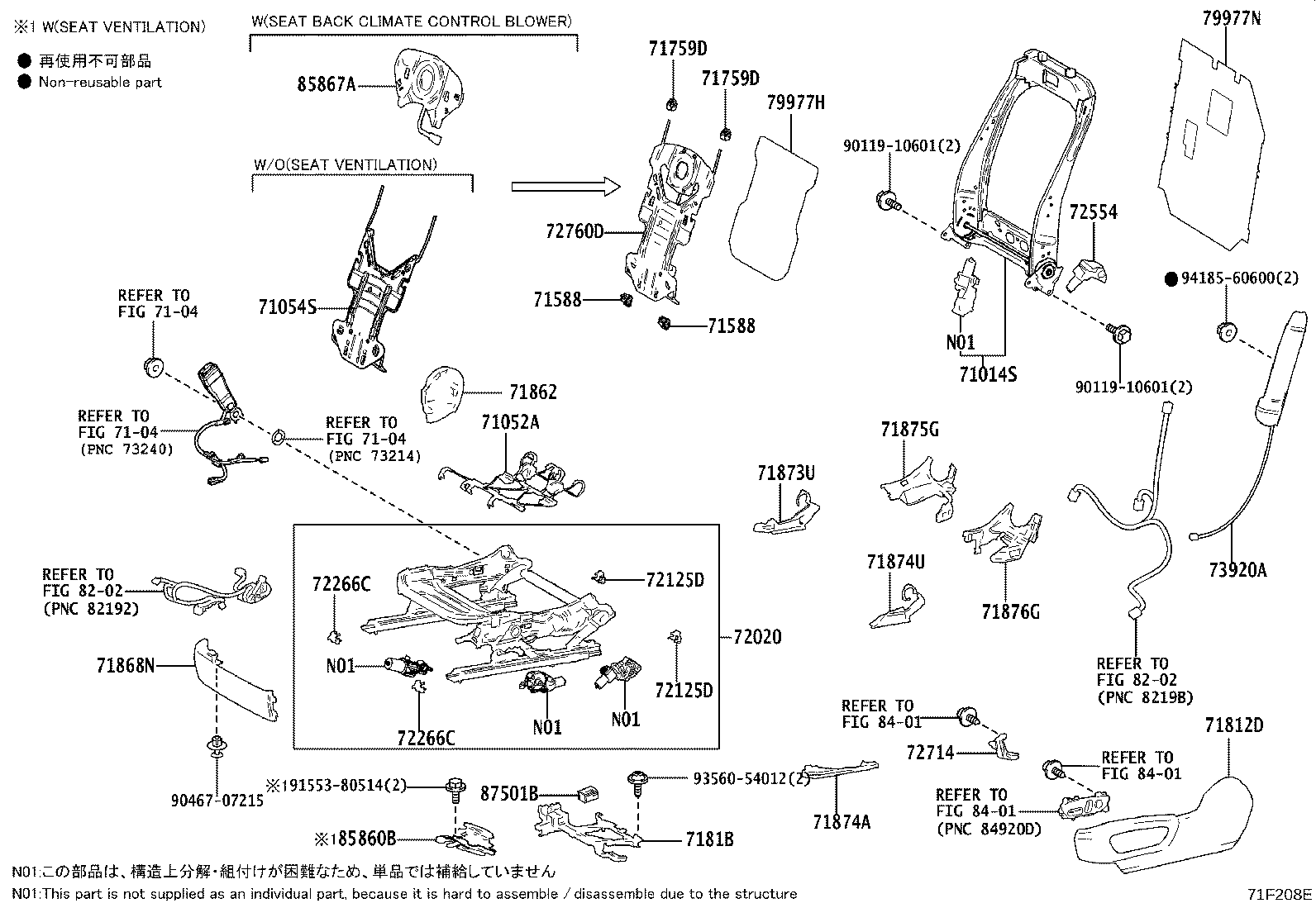

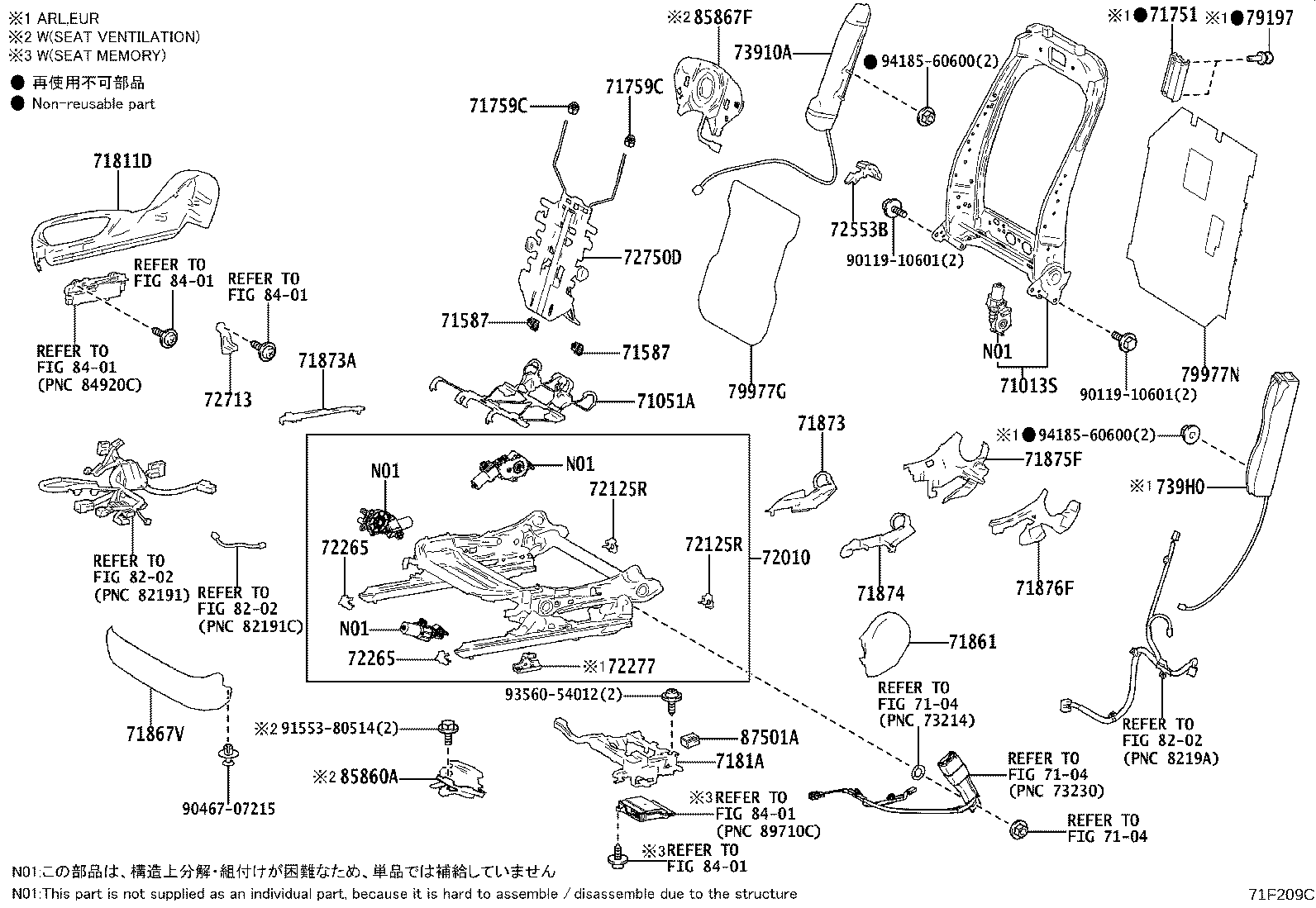

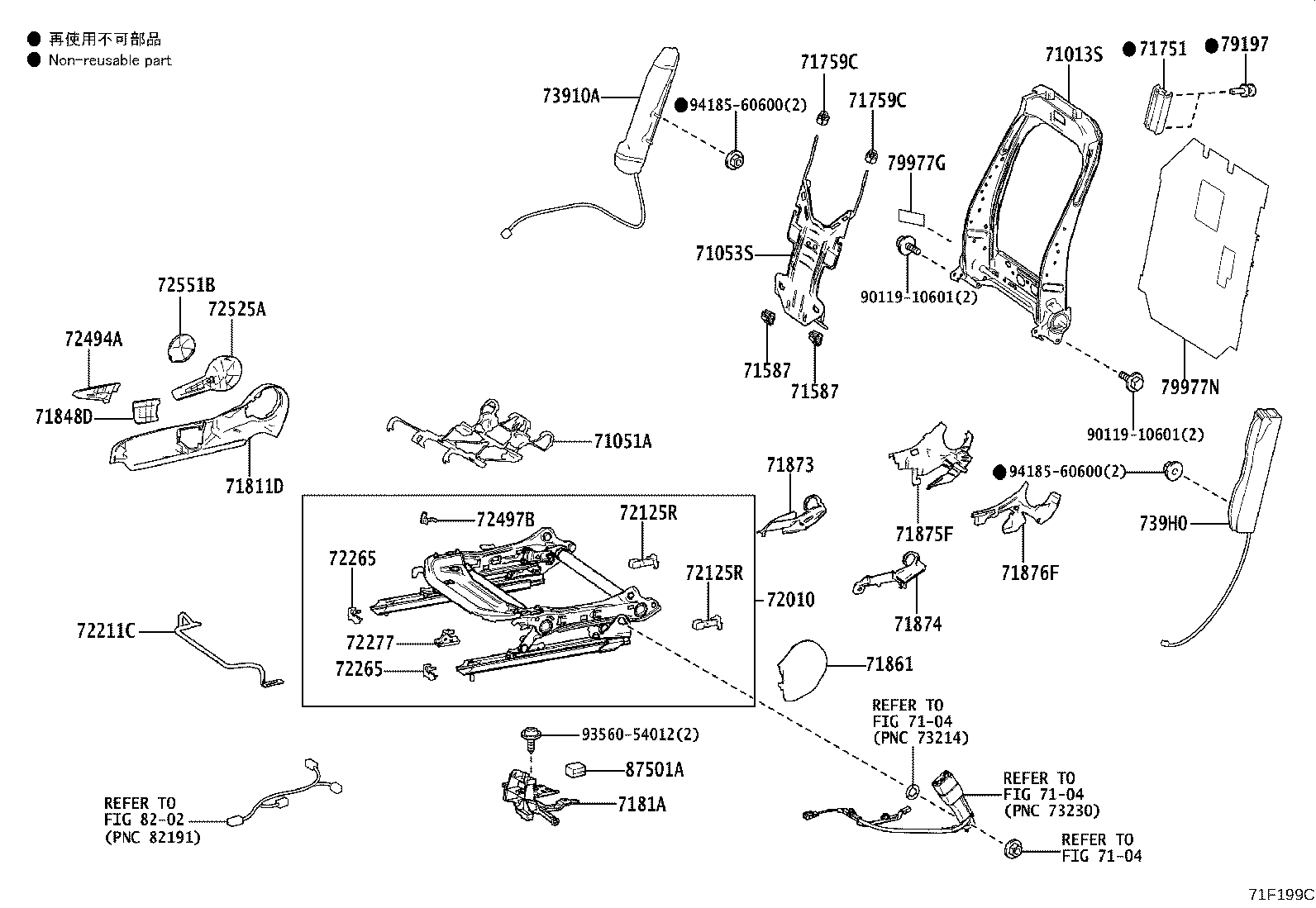

Figure 71F195G 71F195G 2023-01 → 2023-11 Figure 71F9H8 71F9H8 2023-11 → — Figure 71F179G 71F179G 2023-01 → 2023-11 Figure 71F9H7 71F9H7 2023-11 → — Figure 71F196B 71F196B 2023-01 → — Figure 71F206D 71F206D 2023-01 → — Figure 71F198D 71F198D 2023-01 → — Figure 71F208E 71F208E 2023-01 → — Figure 71F197C 71F197C 2023-01 → — Figure 71F207D 71F207D 2023-01 → — Figure 71F199C 71F199C 2023-01 → — Figure 71F209C 71F209C 2023-01 → — Figure 71F182 71F182 2023-01 → —

Part groups

PNCDescription
71013S Frame Sub-assy, Front Seatback, RH
71014S Frame Sub-assy, Front Seatback, LH
71051A Spring Sub-assy, Front Seat Cushion, RH
71052A Spring Sub-assy, Front Seat Cushion, LH
71053S Spring Sub-assy, Front Seatback, RH
71054S Spring Sub-assy, Front Seatback, LH
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71587 Protector, Front Seatback Edge
71588 Protector, Front Seatback Edge, NO.2
71751 Hanger, Seat Cover
71759C Hook, Front Seatback, NO.1
71759D Hook, Front Seatback, NO.2
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
7181A Holder, Front Seat Cushion Wire Harness, RH
7181B Holder, Front Seat Cushion Wire Harness, LH
71848D Cap, Seat Adjuster Cover, RH(FOR RH SEAT)
71849F Cap, Seat Adjuster Cover, LH(FOR LH SEAT)
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71867V Shield, Front Seat Cushion, Front RH
71868N Shield, Front Seat Cushion, Front LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71873U Shield, Front Seat Cushion, Lower RH
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71874U Shield, Front Seat Cushion, Lower LH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72010 Adjuster Assy, Front Seat, RH
72020 Adjuster Assy, Front Seat, LH
72123A Cover, Seat Track Bracket, Outer Front RH
72124 Cover, Seat Track Bracket, Outer Front LH
72125D Cover, Seat Track, Upper Rear NO.2
72125R Cover, Seat Track, Upper Rear NO.1
72127A Cover, Seat Track Bracket, Inner Front RH
72128A Cover, Seat Track Bracket, Inner Front LH
72137T Cover, Seat Track Bracket, Outer Rear RH
72138N Cover, Seat Track Bracket, Outer Rear LH
72157F Cover, Seat Track Bracket, Inner Rear RH
72158E Cover, Seat Track Bracket, Inner Rear LH
72211C Handle, Seat Track Adjusting
72265 Cover, Seat Track Upper Rail, RH
72266C Cover, Seat Track Upper Rail, LH
72277 Protector, Seat Slide Position Sensor,
72494A Handle, Front Seat Vertical Adjuster, RH
72495A Handle, Front Seat Vertical Adjuster, LH
72497B Cover, Vertical Adjuster Bracket, RH
72498A Cover, Vertical Adjuster Bracket, LH
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72551B Cover, Reclining Hinge, RH
72552B Cover, Reclining Hinge, LH
72553B Protector, Reclining Cover, RH
72554 Protector, Reclining Cover, LH
72713 Bracket, Seat Adjuster Shield Clamp, RH
72714 Bracket, Seat Adjuster Shield Clamp, LH
72750D Adjuster Assy, Lumbar Support, RH
72760D Adjuster Assy, Lumbar Support, LH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
739H0 Airbag Assy, Front Seat Center, RH
739J0 Airbag Assy, Front Seat Center, LH
79015B Pad Sub-assy, NO.1 Seat Cushion, RH
79016A Pad Sub-assy, NO.1 Seat Cushion, LH
79017 Pad Sub-assy, NO.1 Seatback, RH
79018A Pad Sub-assy, NO.1 Seatback, LH
79197 Hook, Seatback Cover
79977G Felt, Front Seatback, RH
79977H Felt, Front Seatback, LH
79977N Felt, Seatback
82667B Holder, Connector
85860A Blower Assy, Seat Cushion Climate Control, RH
85860B Blower Assy, Seat Cushion Climate Control, LH
85867A Blower, Seatback Climate Control, LH
85867F Blower, Seatback Climate Control, RH
87501A Control Sub-assy, Seat Heater, RH
87501B Control Sub-assy, Seat Heater, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
