Toyota Lexus RZ450E/300E
2023-01 → present · chassis XEBM1# · catalogue 564210 · Europe
Supported model
Data version 2023-11

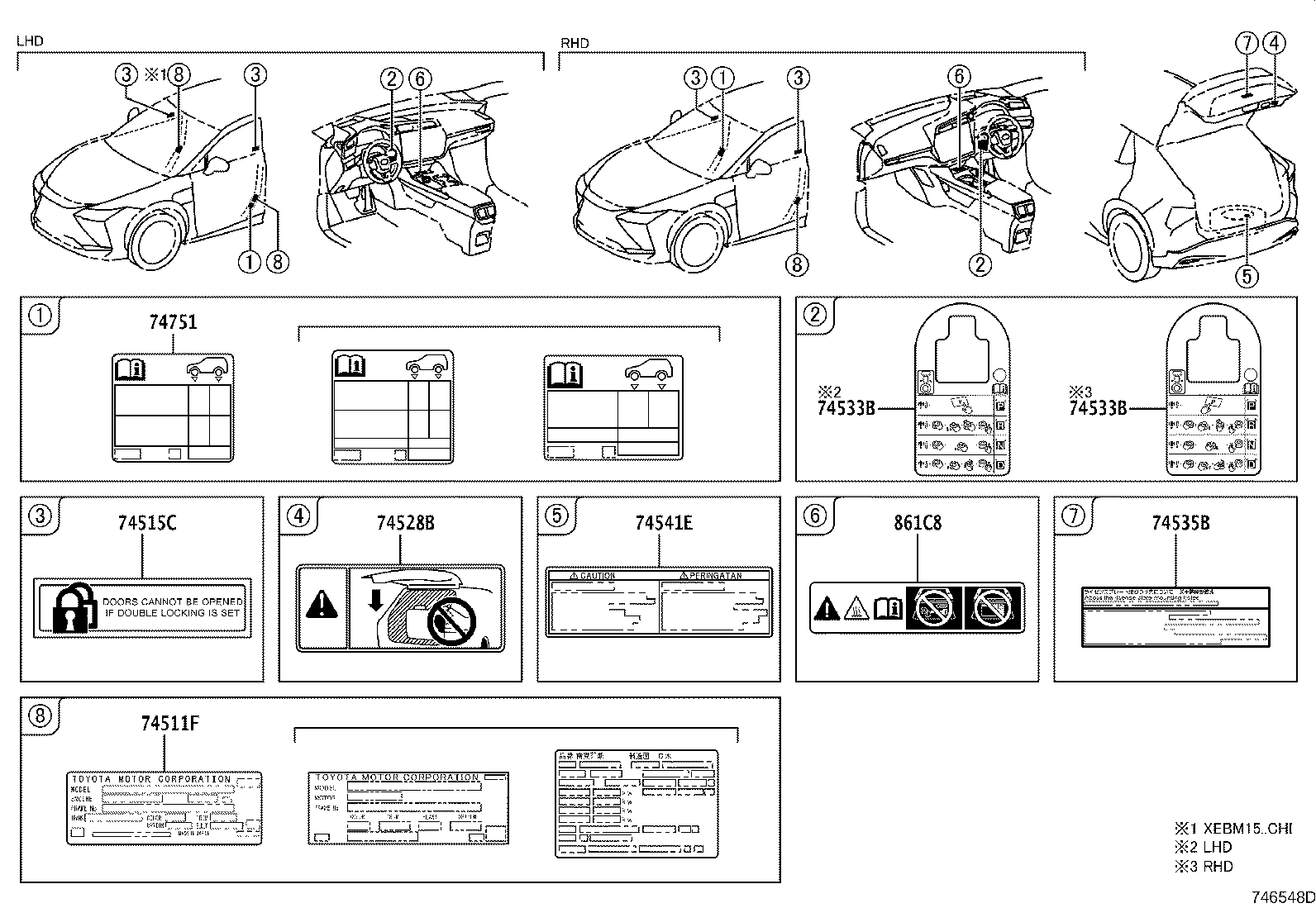

Caution Plate (EXTERIOR & INTERIOR)
18 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285K | Label, Coolant System Information |
| 16793E | Label, Cooling Fan Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515C | Label, Theft Warning Information |
| 74528B | Label, Back Door Caution |
| 74533B | Plate, Shifting Instruction |
| 74535B | Plate, Tail Gate Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74558B | Label, Battery Inspection Information |
| 74571 | Plate, Brake Fluid Caution |
| 74573E | Label, Electric Vehicle Battery Caution, NO.2 |
| 74751 | Label, Tire Pressure Information |
| 82685D | Plate, Caution |
| 861C8 | Label, Mobile Wireless Charger Caution |
| 88723E | Label, Cooler Service Caution |
| 88723H | Label, Cooler Service Caution |
| G9118E | Label, Electric Vehicle Unit Controller Caution, NO.1 |
| G9275 | Label, Battery Caution, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
