Toyota Lexus RZ450E/300E

2023-01 → present · chassis XEBM1# · catalogue 564210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

16 part groups · 3 illustrations

Illustrations

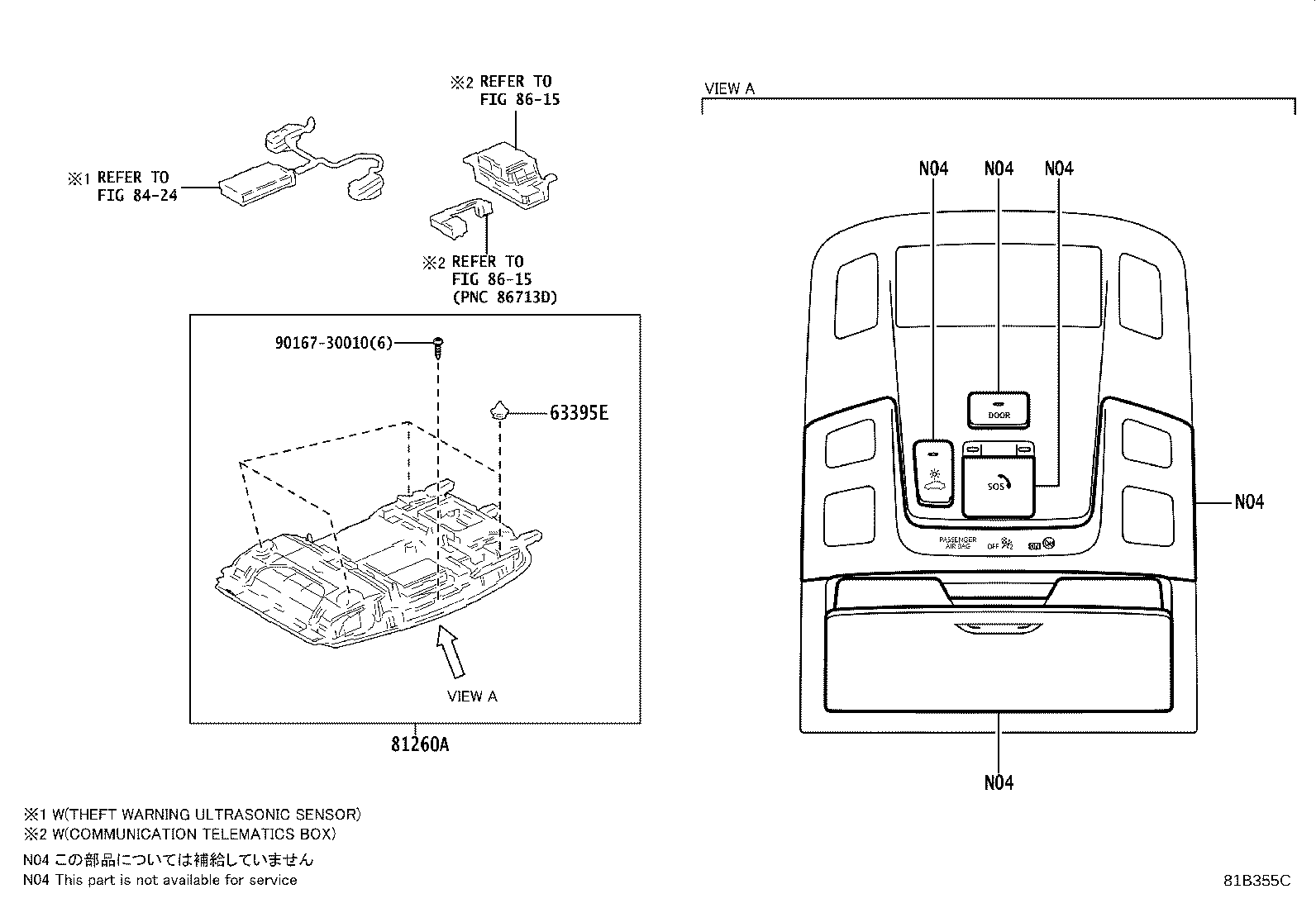

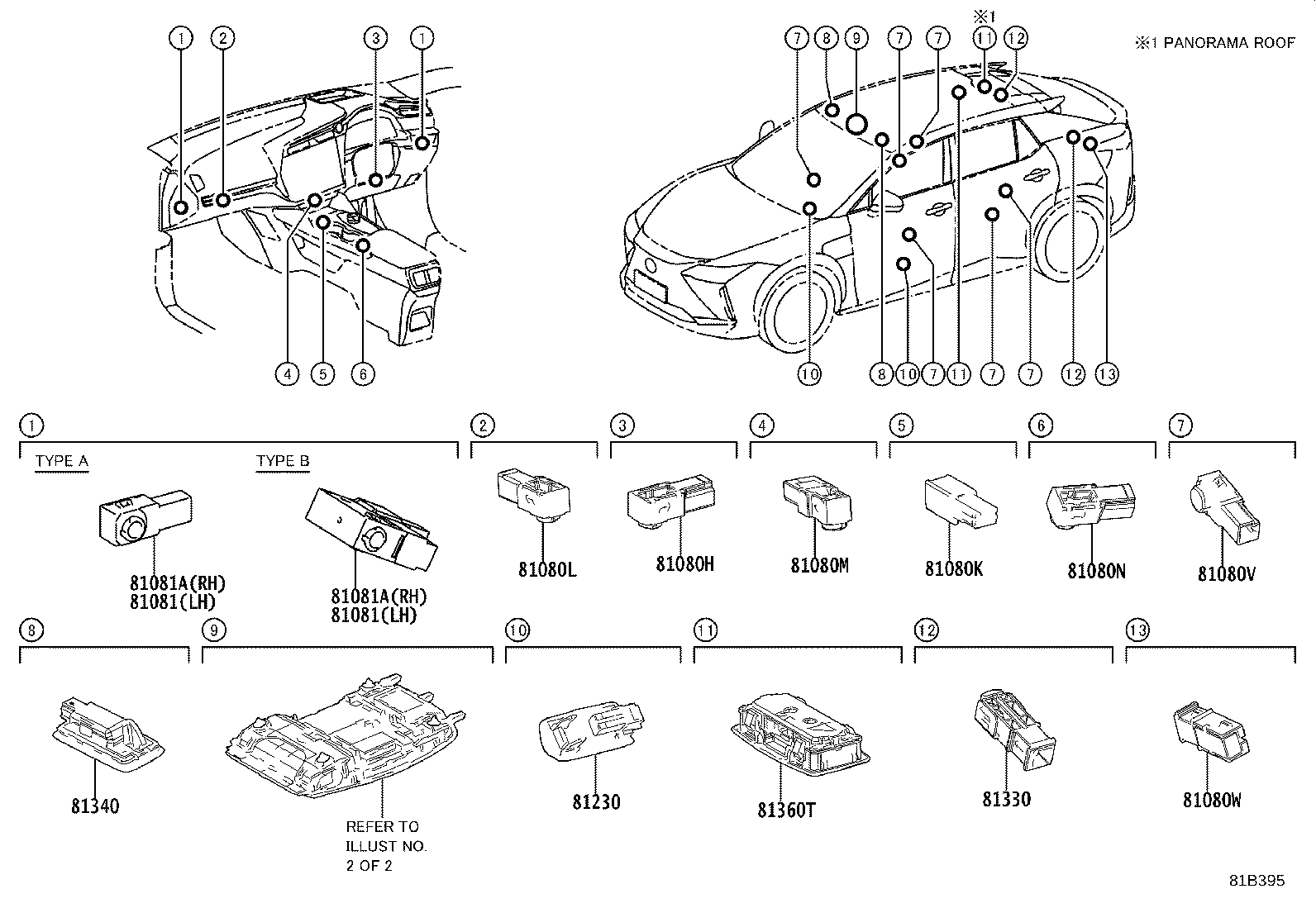

Figure 81B354 81B354 2023-01 → — Figure 81B395 81B395 2023-01 → — Figure 81B355C 81B355C 2023-01 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080K Lamp Assy, Console Box Illumination
81080L Lamp Assy, Interior Illumination, NO.1 LH
81080M Lamp Assy, Interior Illumination, NO.1
81080N Lamp Assy, Interior Illumination, NO.1
81080S Lamp Assy, Interior Illumination, NO.1 LH
81080V Lamp Assy, Interior Illumination, NO.2
81080W Lamp Assy, Interior Illumination, NO.3
81081 Lamp Sub-assy, Interior Illumination
81081A Lamp Sub-assy, Interior Illumination, NO.2
81230 Lamp Assy, Courtesy
81260A Lamp Assy, Map
81330 Lamp Assy, Luggage Compartment, NO.1
81340 Lamp Assy, Vanity
81360T Lamp Assy, Spot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
