Toyota Lexus RZ450E/300E

2023-01 → present · chassis XEBM1# · catalogue 564210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

88 part groups · 13 illustrations

Illustrations

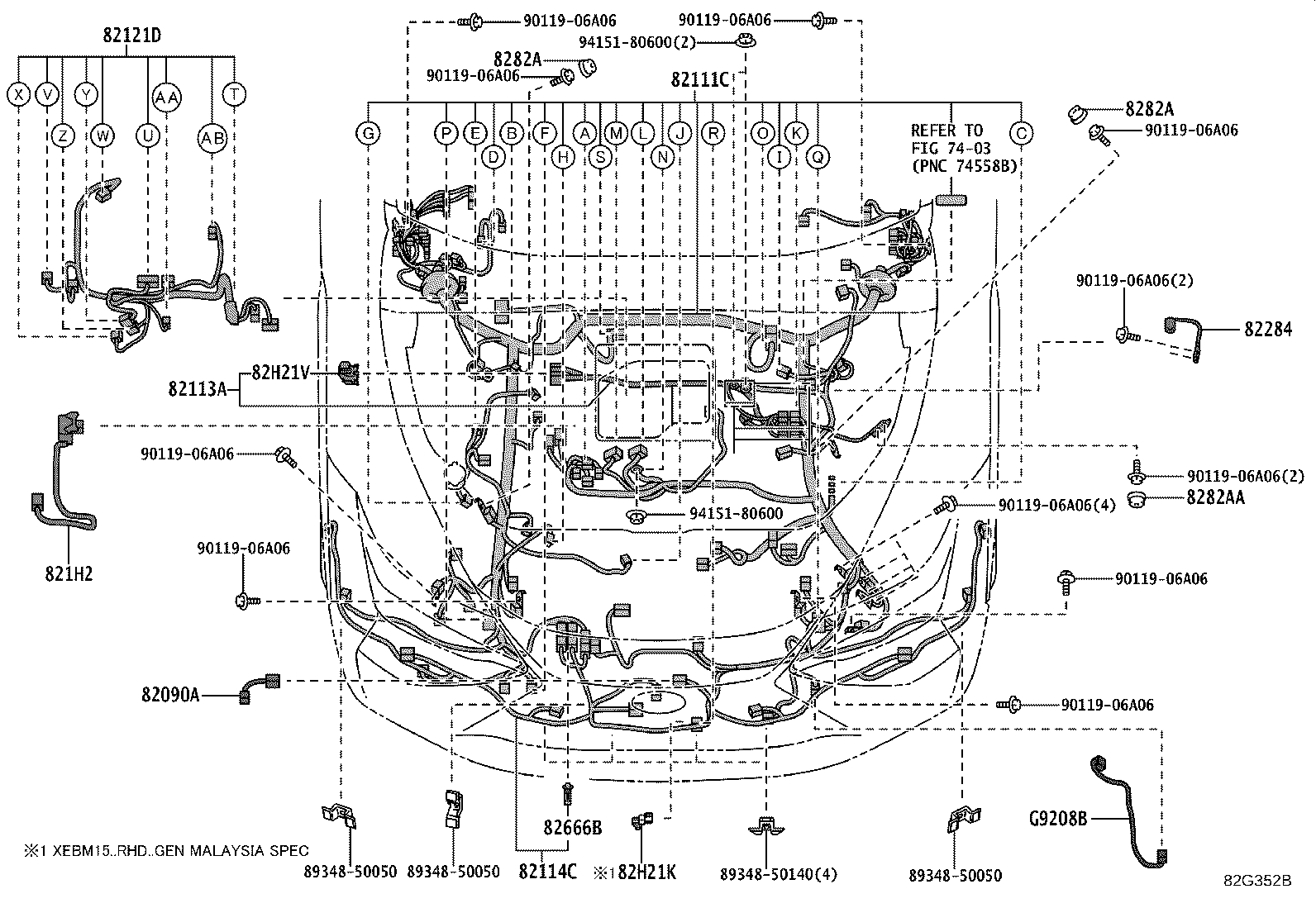

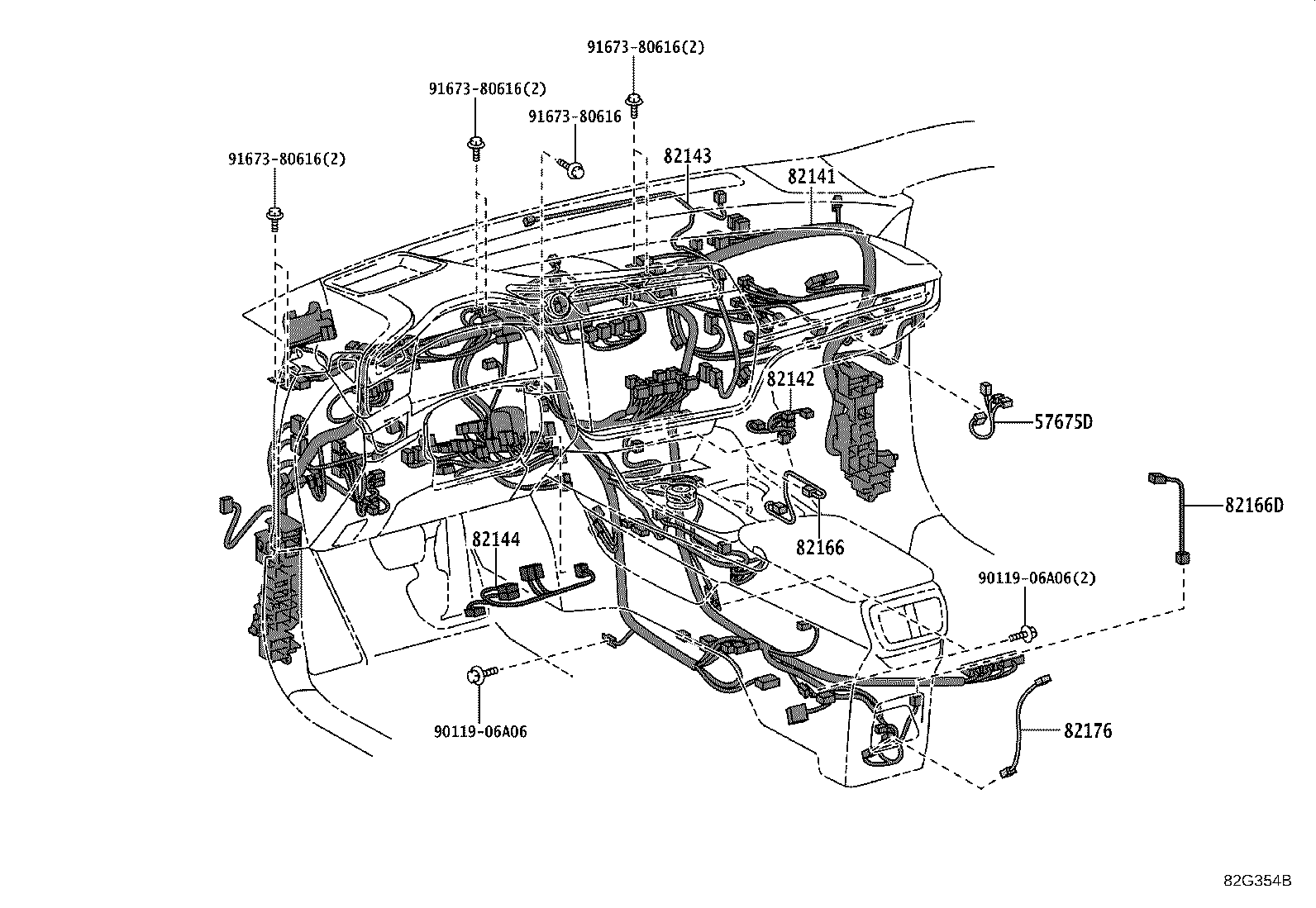

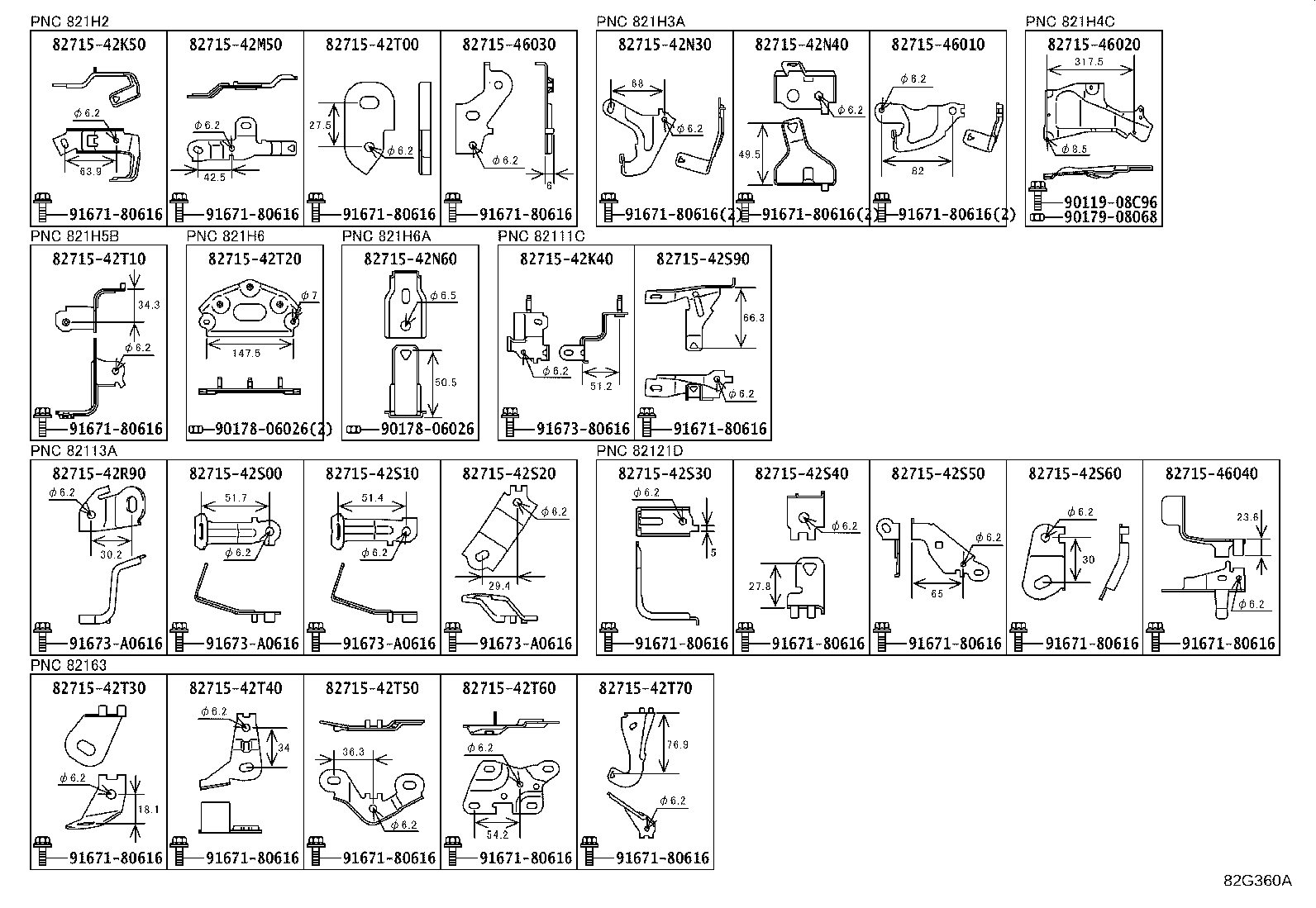

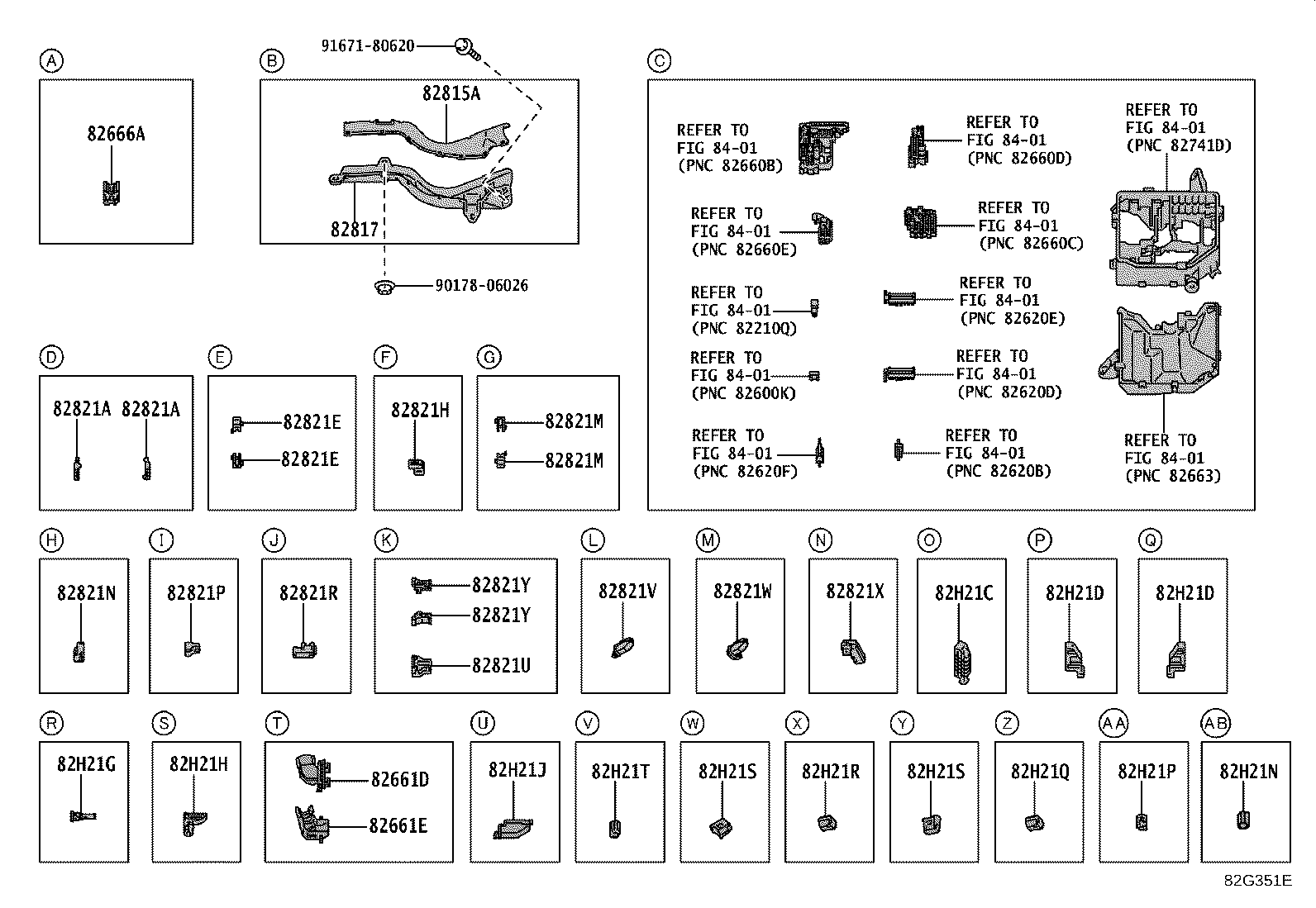

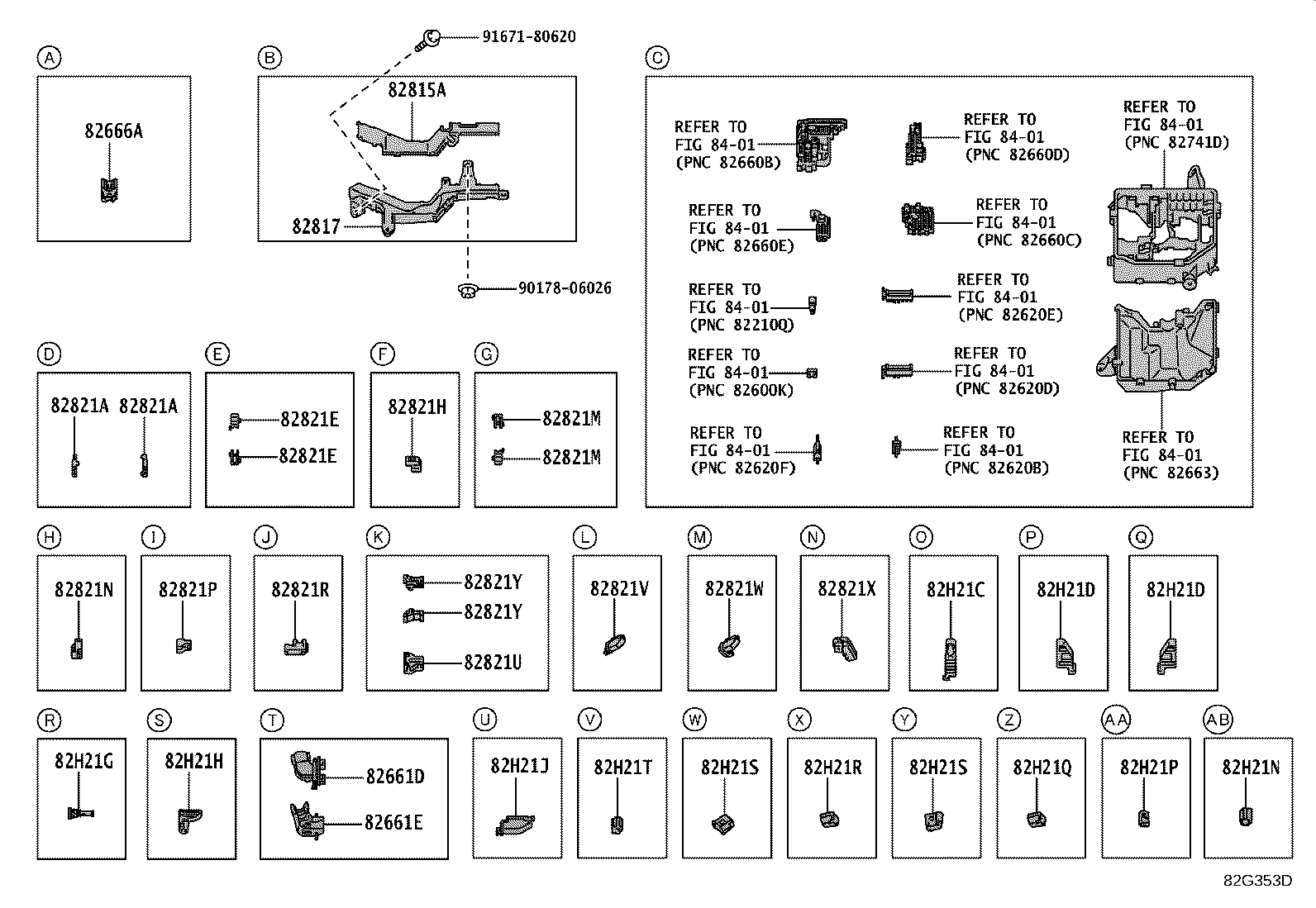

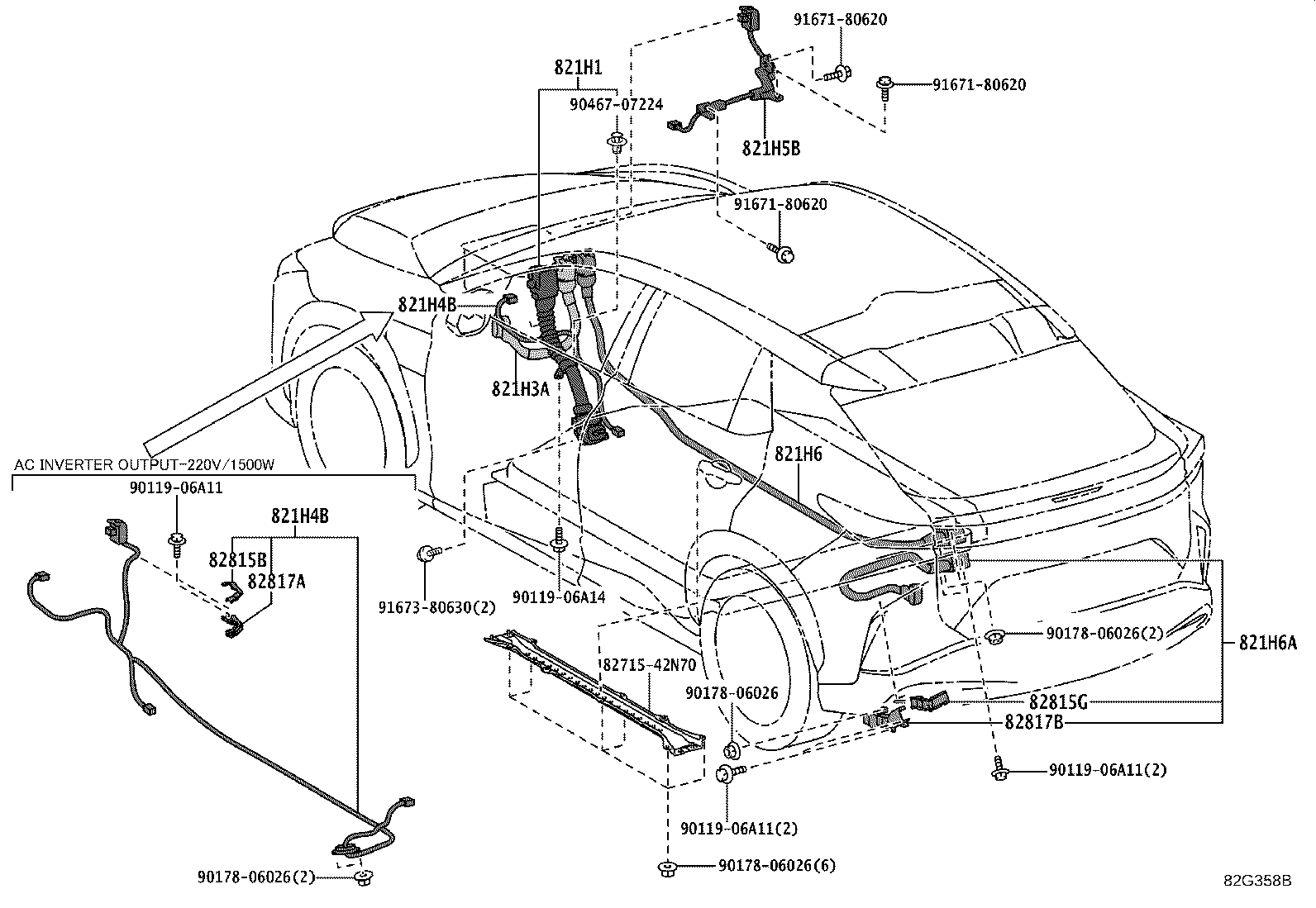

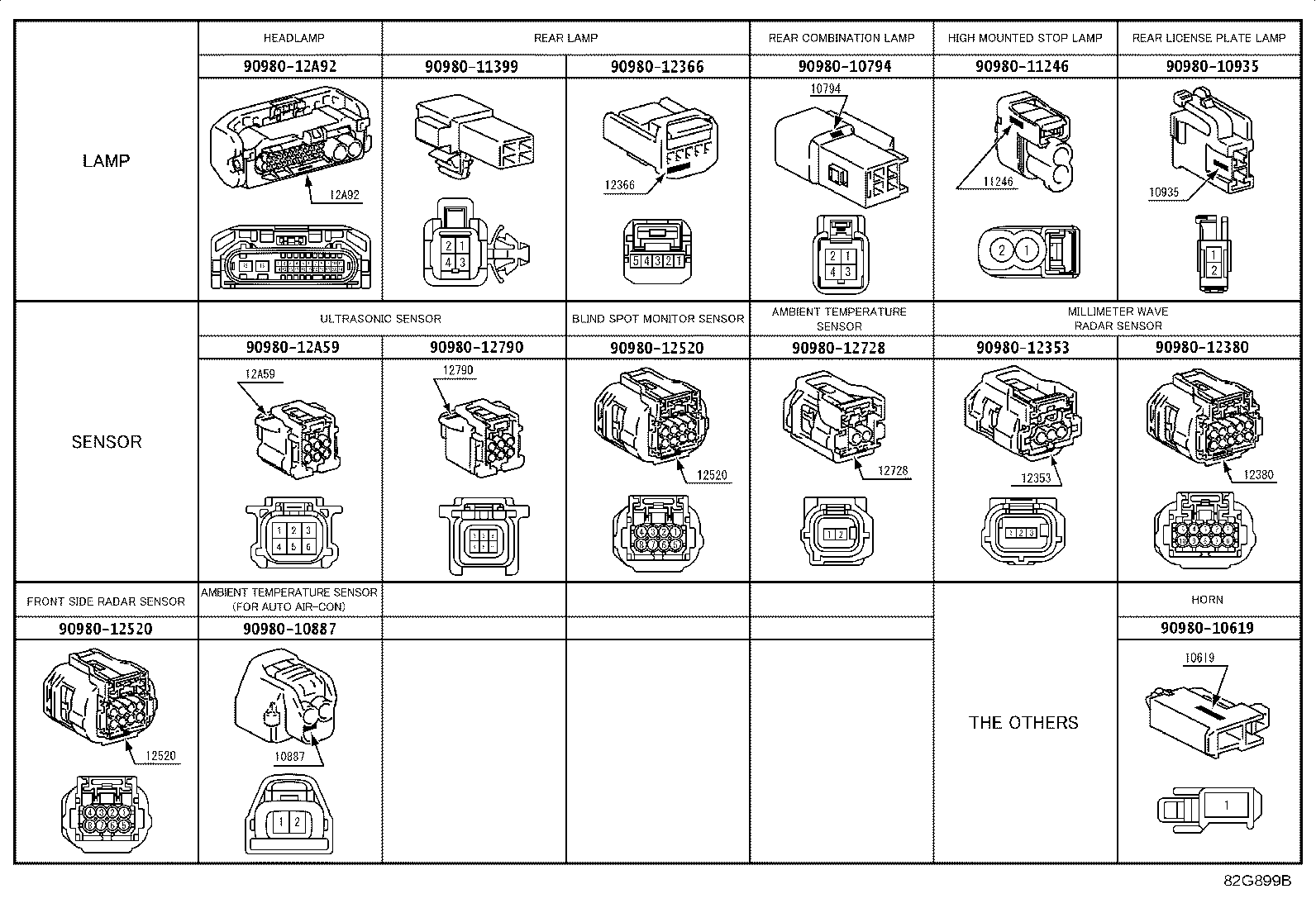

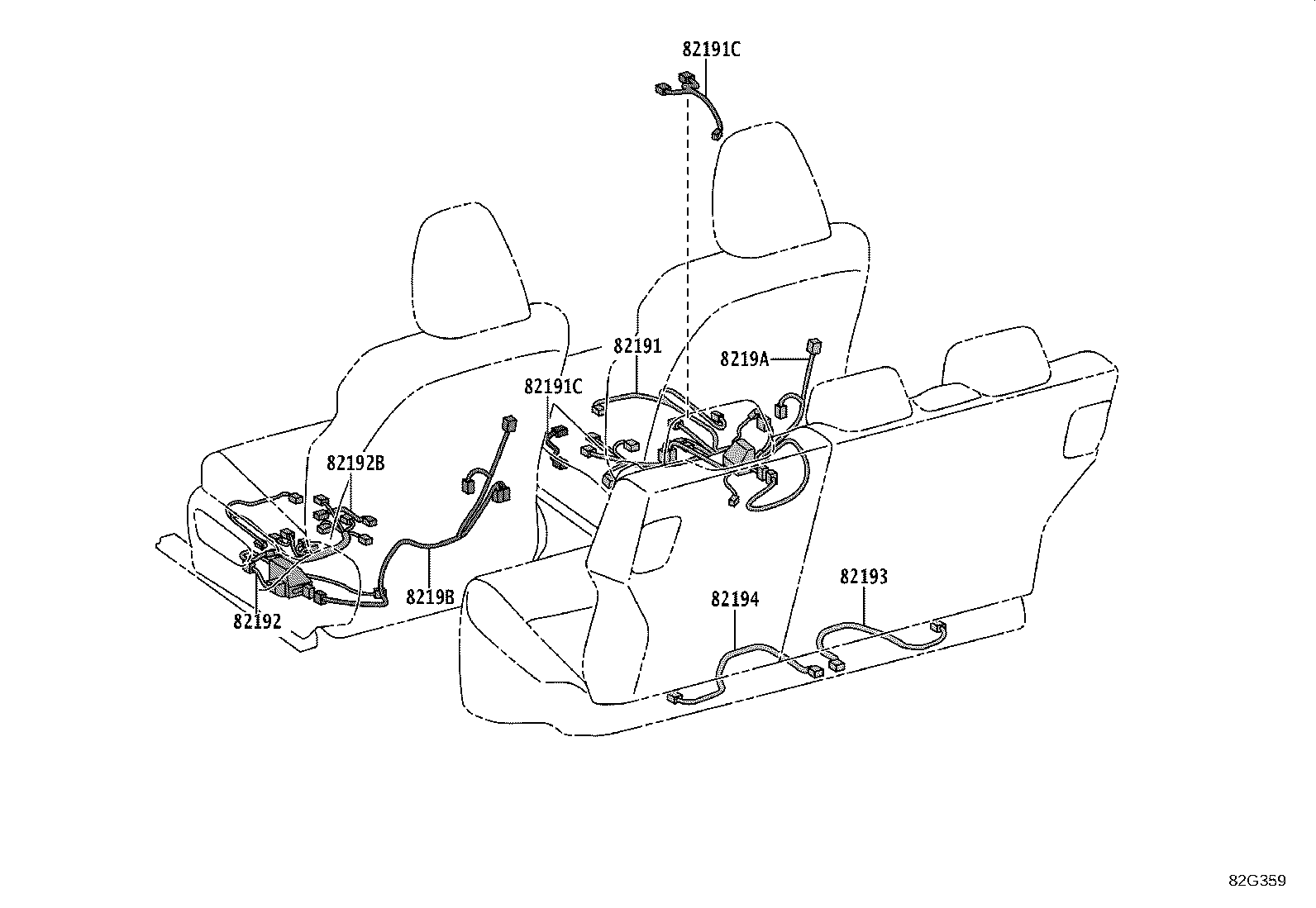

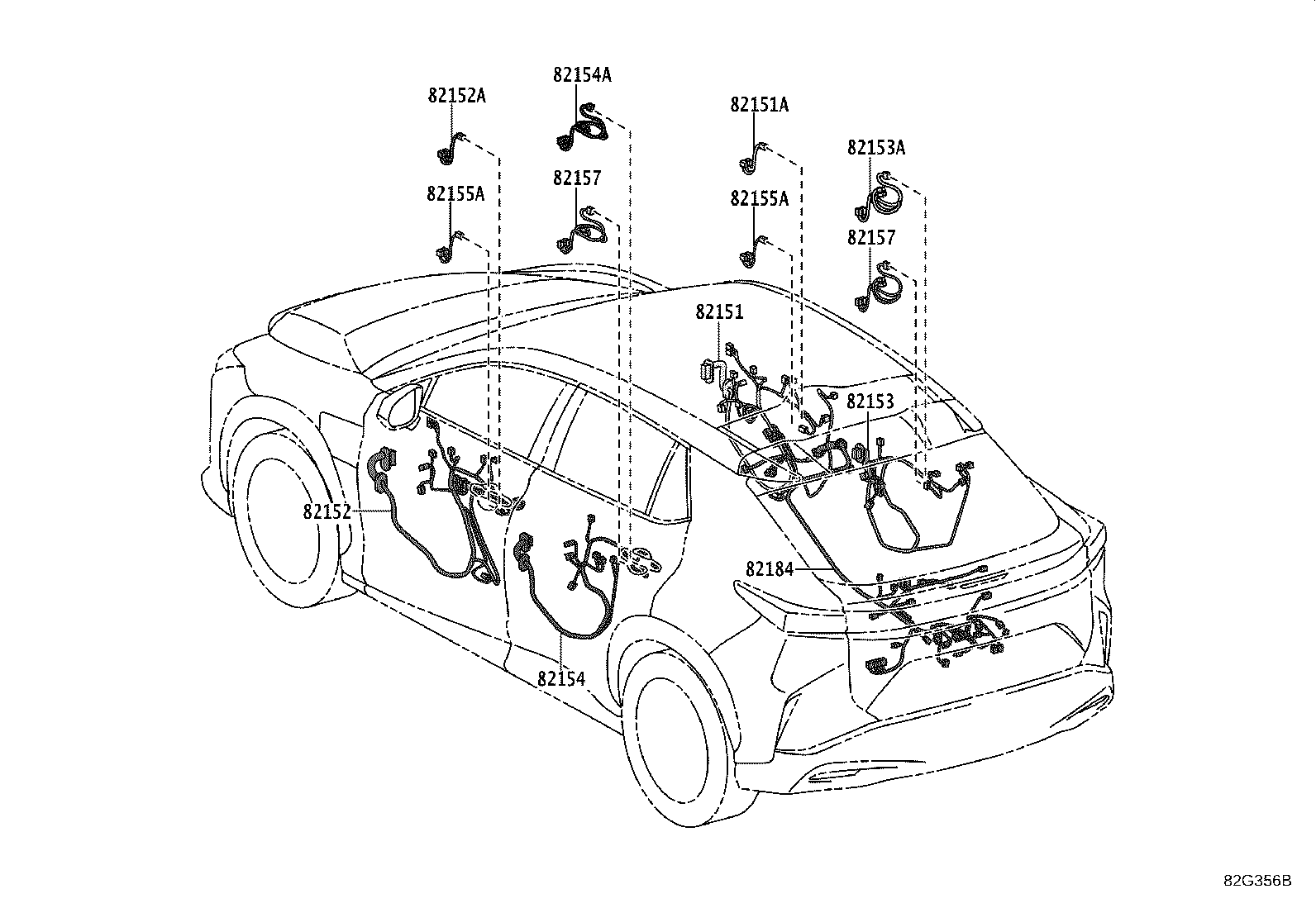

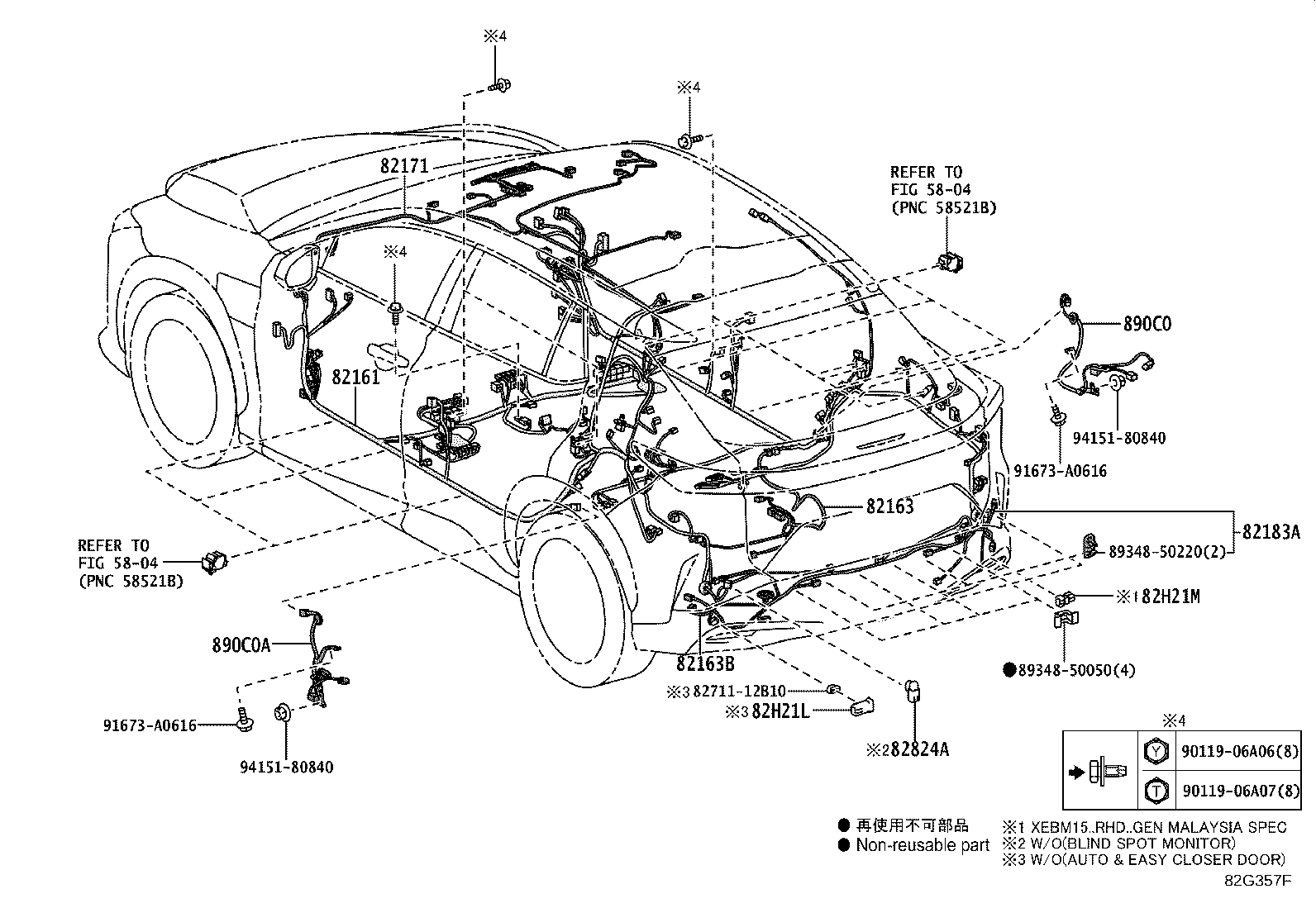

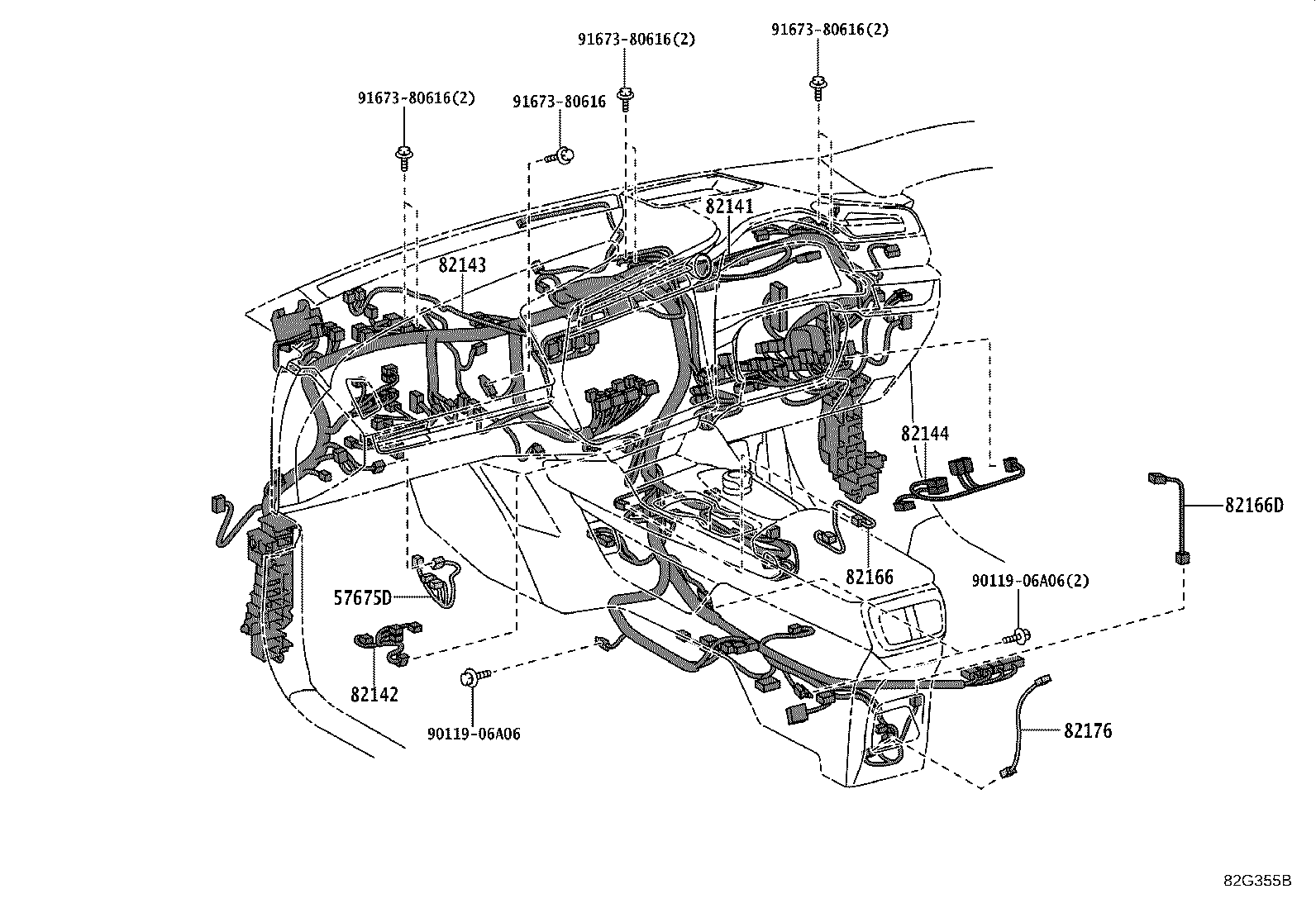

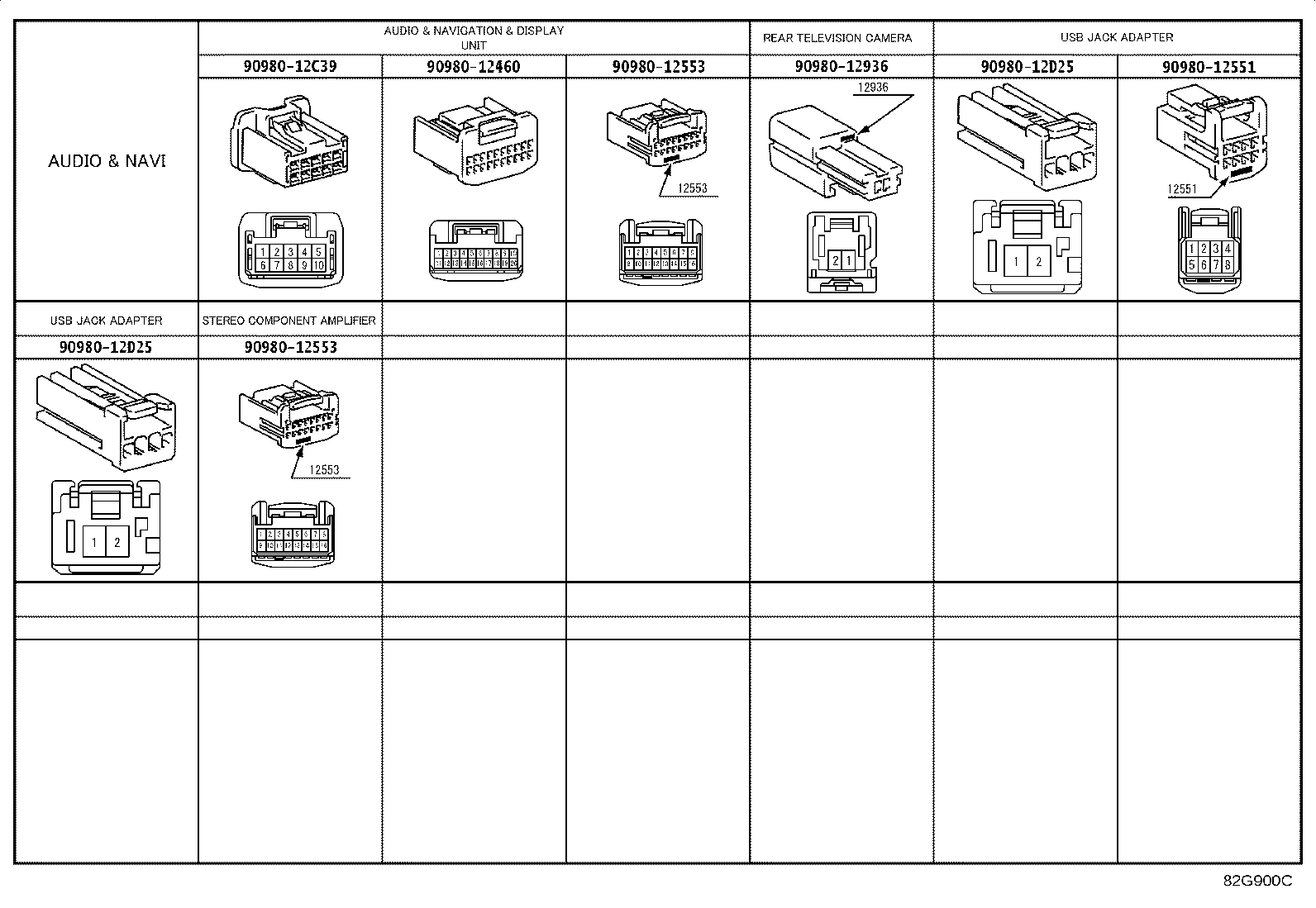

Figure 82G350C 82G350C 2023-01 → — Figure 82G351E 82G351E 2023-01 → — Figure 82G352B 82G352B 2023-01 → — Figure 82G353D 82G353D 2023-01 → — Figure 82G354B 82G354B 2023-01 → — Figure 82G355B 82G355B 2023-01 → — Figure 82G356B 82G356B 2023-01 → — Figure 82G357F 82G357F 2023-01 → — Figure 82G358B 82G358B 2023-01 → — Figure 82G359 82G359 2023-01 → — Figure 82G360A 82G360A 2023-01 → — Figure 82G899B 82G899B 2023-01 → — Figure 82G900C 82G900C 2023-01 → —

Part groups

PNCDescription
57675D Guide, Wire Harness, NO.1
82090A Wire Assy, Extension
82111C Wire, Front Compartment, Main
82113A Wire, Front Compartment, NO.3
82114C Wire, Front Compartment, NO.4
82121D Wire, Motor
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82144 Wire, Instrument Panel, NO.4
82151 Wire, Front Door, RH
82151A Wire, Front Door, NO.2, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82153A Wire, Rear Door, RH
82154 Wire, Rear Door, NO.2
82154A Wire, Rear Door, LH
82155A Wire, Center Piller, NO.2
82157 Wire, Step Panel, RH
82161 Wire, Floor
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5
82166 Wire, Console Box
82166D Wire, Console Box, NO.2
82171 Wire, Roof, NO.1
82176 Wire, Rear Console Box
82183A Wire, Rear Bumper
82184 Wire, Back Door, NO.1
82191 Wire, Front Seat, RH
82191C Wire, Front Seat, RH NO.4
82192 Wire, Front Seat, LH
82192B Wire, Front Seat, LH NO.2
82193 Wire, Rear Seat, RH
82194 Wire, Rear Seat, LH
8219A Wire, Front Seat, RH NO.2
8219B Wire, Front Seat, LH NO.2
821H1 Wire, Floor Under
821H2 Wire, HV Air Conditioner
821H3A Wire, Battery Pack, NO.1
821H4B Wire, Socket Inverter
821H5B Wire, EV Battery Charger
821H6 Wire, HV Floor Under, NO.2
821H6A Wire, Floor Under, NO.2
82284 Wire, Earth
82661D Cover, Relay Block, Side NO.1
82661E Cover, Relay Block, Side NO.2
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82821A Cover, Connector
82821E Cover, Connector
82821H Cover, Connector
82821M Cover, Connector
82821N Cover, Connector
82821P Cover, Connector
82821R Cover, Connector
82821U Cover, Connector
82821V Cover, Connector
82821W Cover, Connector
82821X Cover, Connector
82821Y Cover, Connector
82824A Connector, Wiring Harness
8282A Cap, Earth Bolt, NO.1
8282AA Cap, Earth Bolt, NO.2
82H21C Cover, Connector
82H21D Cover, Connector
82H21G Cover, Connector
82H21H Cover, Connector
82H21J Cover, Connector
82H21K Cover, Connector
82H21L Cover, Connector
82H21M Cover, Connector
82H21N Cover, Connector
82H21P Cover, Connector
82H21Q Cover, Connector
82H21R Cover, Connector
82H21S Cover, Connector
82H21T Cover, Connector
82H21V Cover, Connector
890C0 Wire Assy, Parking Brake, NO.1
890C0A Wire Assy, Parking Brake, NO.2
G9208B Wire Sub-assy, Inverter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
