Toyota Lexus RZ450E/300E
2023-01 → present · chassis XEBM1# · catalogue 564210 · Europe
Supported model
Data version 2023-11

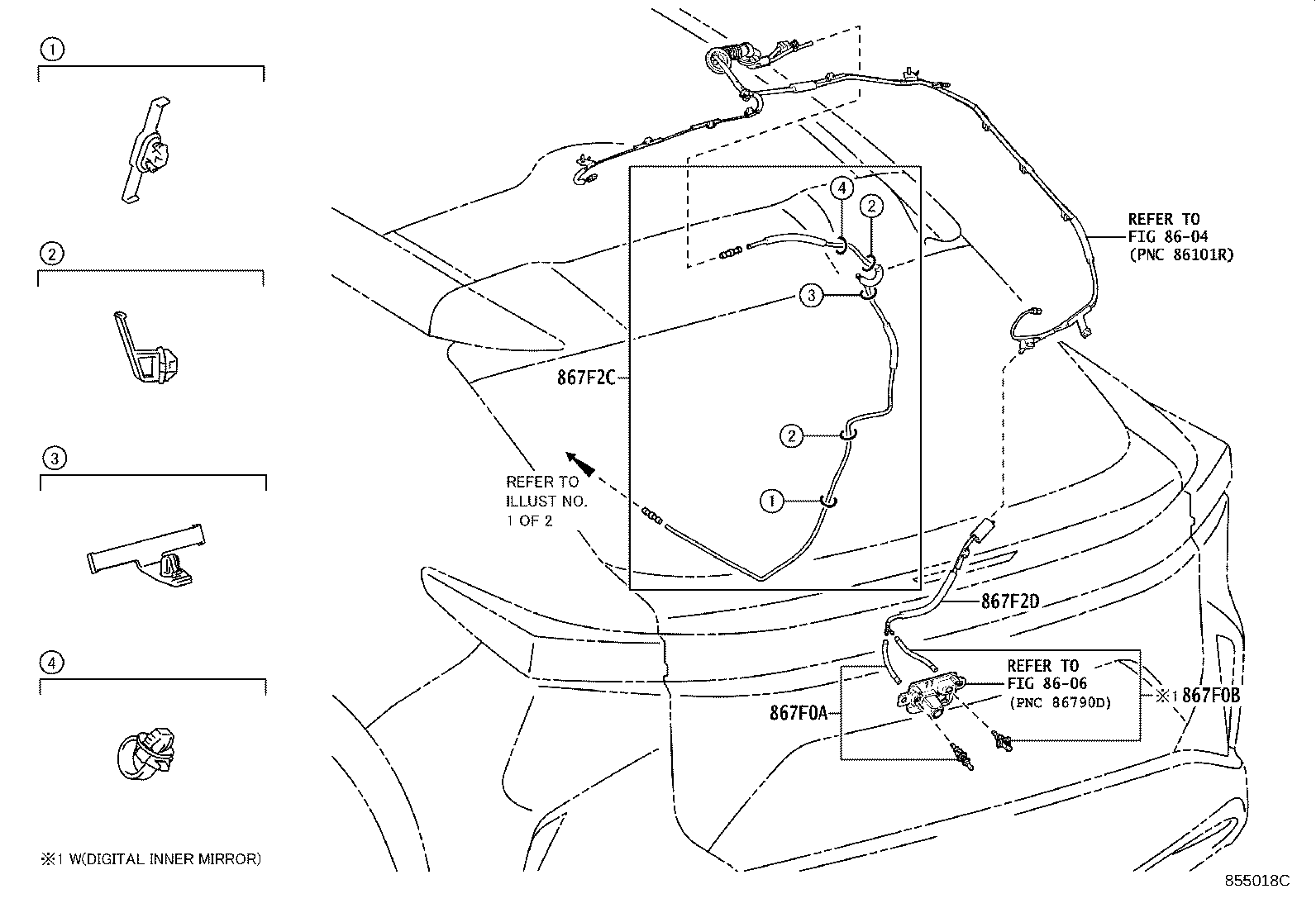

Rear Washer
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85371R | Hose, Rear Washer (FROM MOTOR TO JOINT) |
| 867F0A | Nozzle Assy, Camera Cleaner, NO.1 |
| 867F0B | Nozzle Assy, Camera Cleaner, NO.2 |
| 867F2A | Hose Assy, Camera Cleaner |
| 867F2B | Hose, Camera Cleaner, NO.1 |
| 867F2C | Hose, Camera Cleaner, NO.2 |
| 867F2D | Hose, Camera Cleaner, NO.3 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
