Toyota Lexus RZ450E/300E

2023-01 → present · chassis XEBM1# · catalogue 564210 · Europe

Supported model Data version 2023-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

11 part groups · 2 illustrations

Illustrations

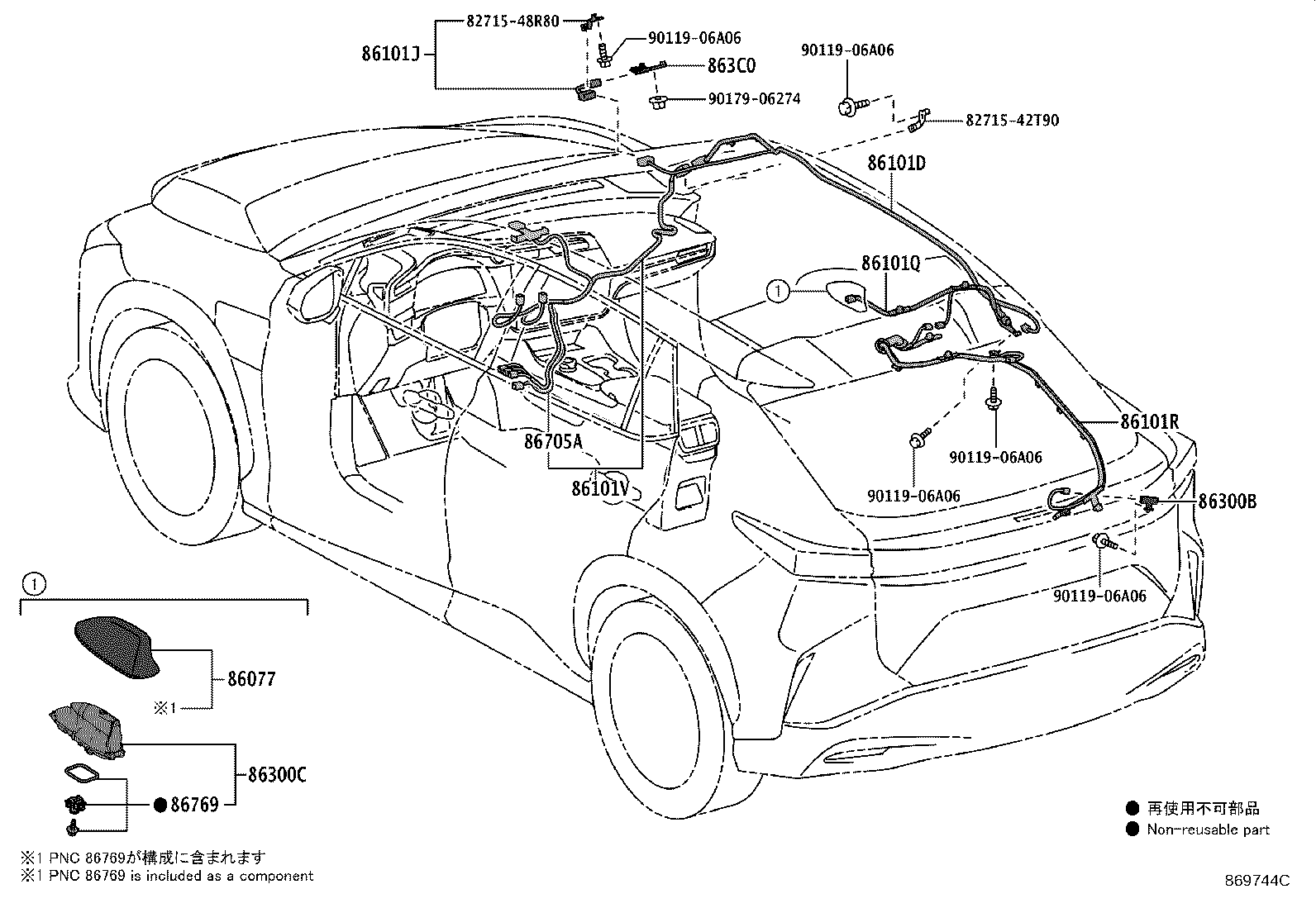

Figure 869743C 869743C 2023-01 → — Figure 869744C 869744C 2023-01 → —

Part groups

PNCDescription
86077 Cover Kit, Antenna
86101D Cord Sub-assy, Antenna, NO.3
86101J Cord Sub-assy, Antenna, NO.2
86101Q Cord Sub-assy, Antenna, NO.4
86101R Cord Sub-assy, Antenna, NO.5
86101V Cord Sub-assy, Antenna, NO.6
86300B Antenna Assy, Amplifier, NO.1
86300C Antenna Assy, Amplifier, NO.2
863C0 Antenna Assy, Digital Audio Broadcasting
86705A Cord Sub-assy, Telephone Antenna
86769 Housing, Roof Antenna
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
