Heating & Air Conditioning - Control & Air Duct

26 part groups · 6 illustrations

Illustrations

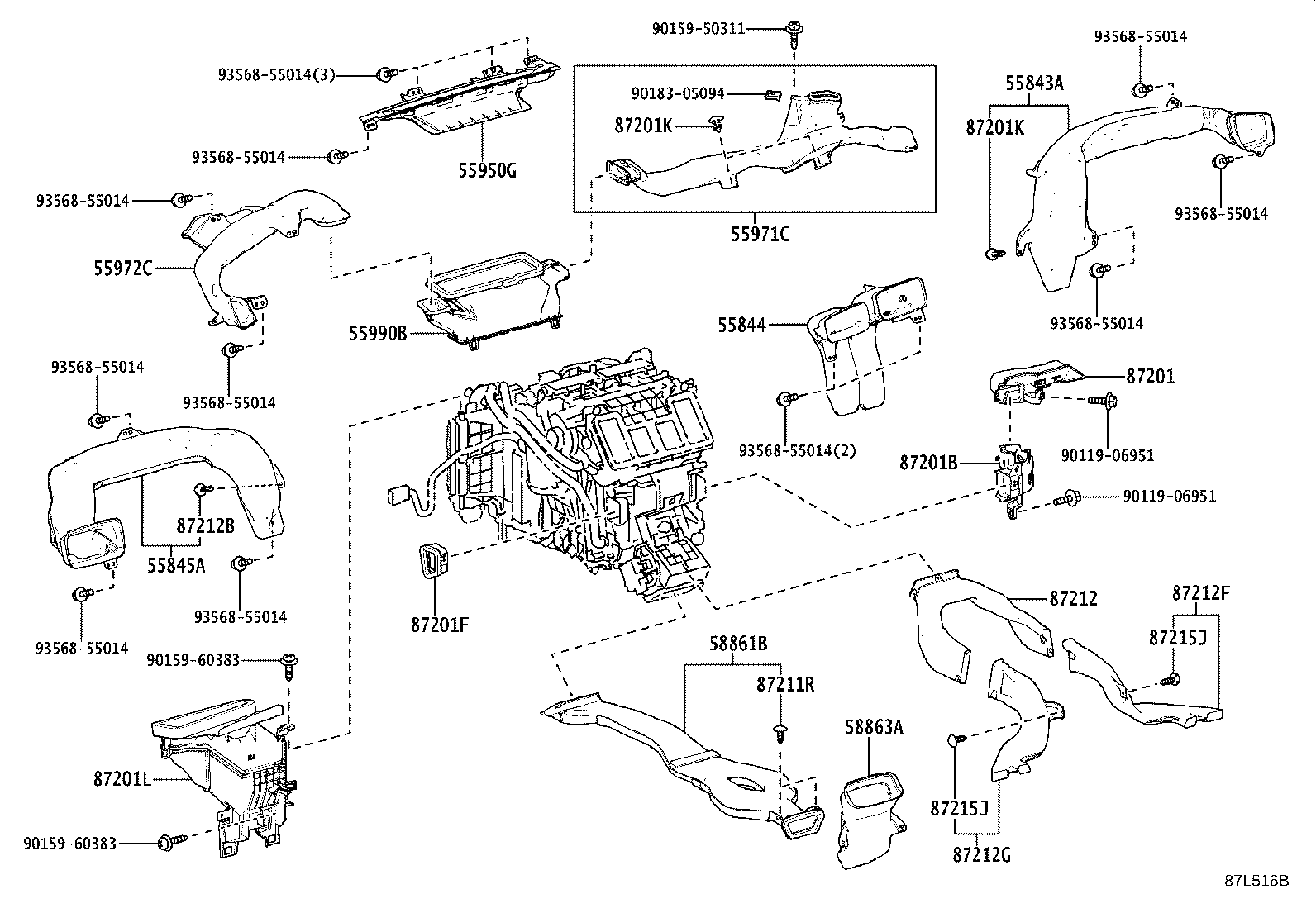

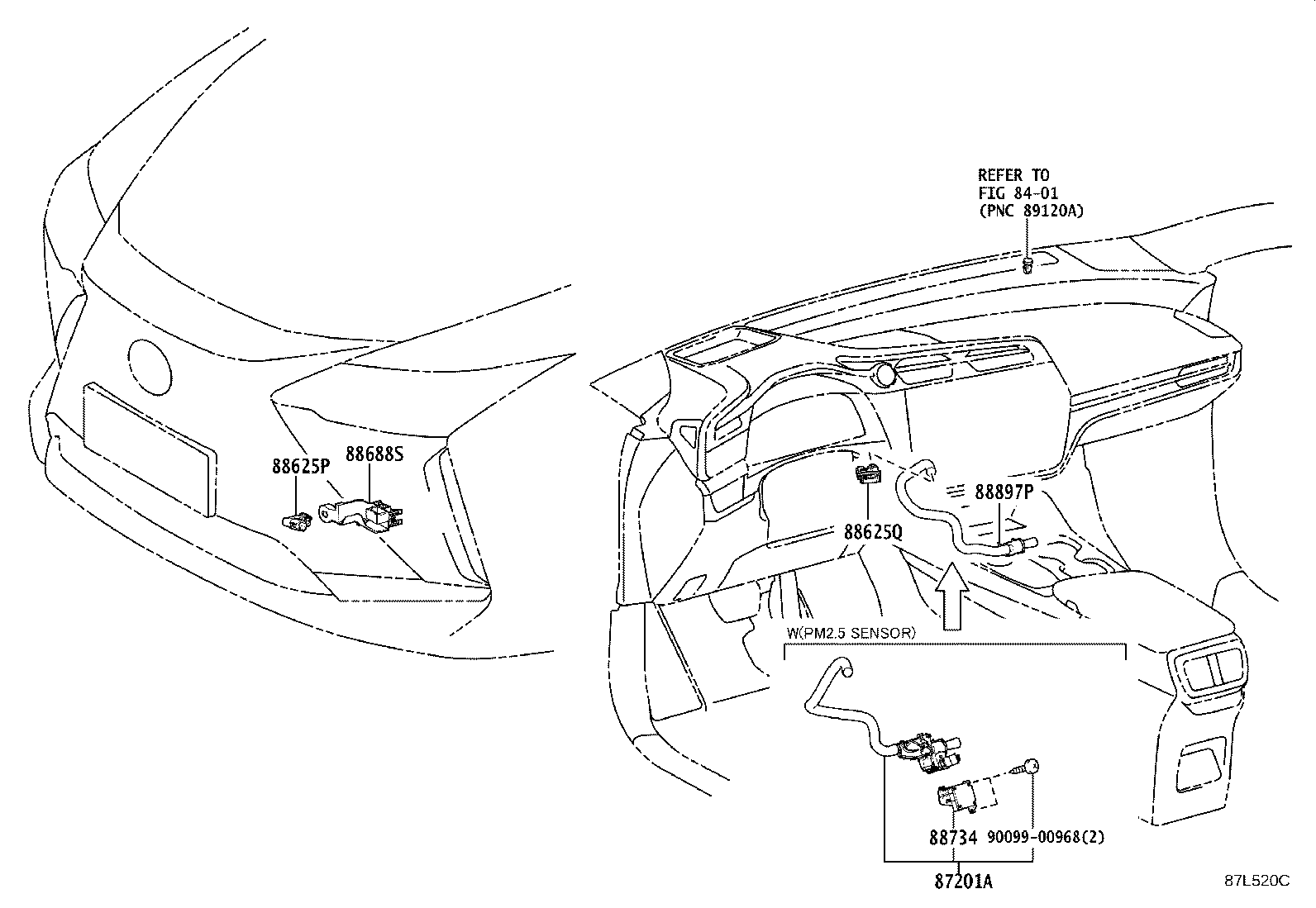

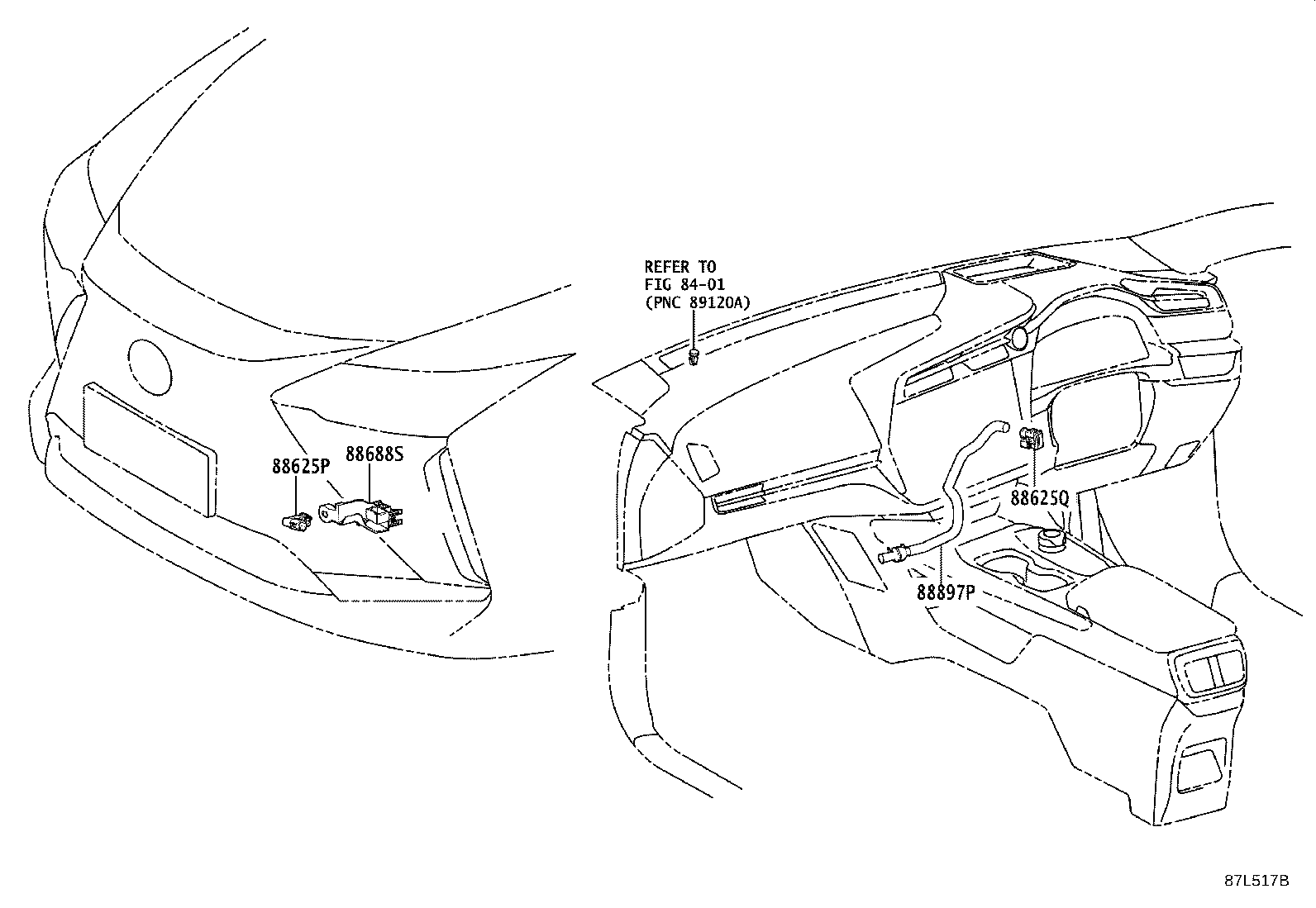

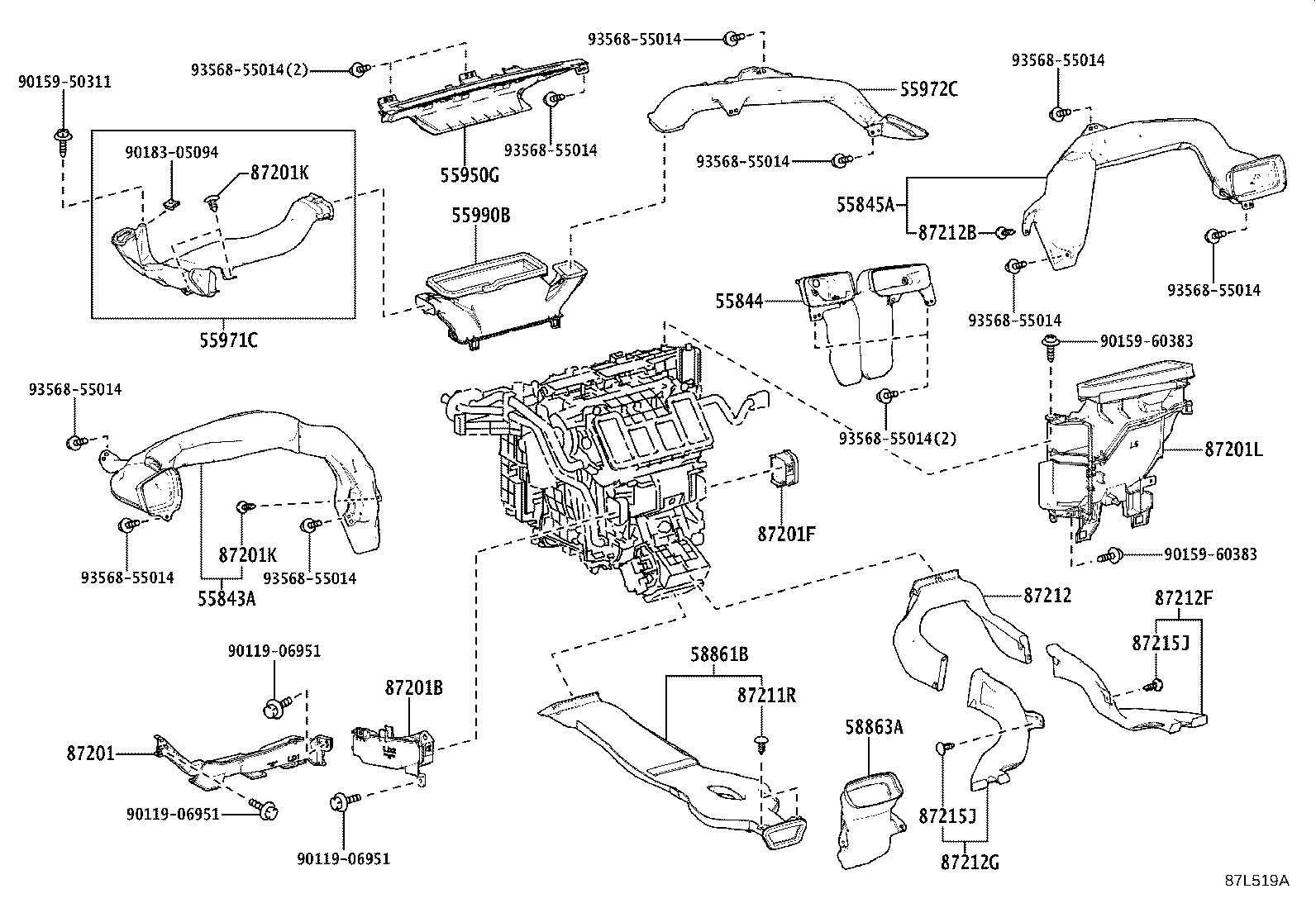

Figure 87L518A 87L518A 2023-01 → — Figure 87L515A 87L515A 2023-01 → — Figure 87L519A 87L519A 2023-01 → — Figure 87L516B 87L516B 2023-01 → — Figure 87L520C 87L520C 2023-01 → — Figure 87L517B 87L517B 2023-01 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55845A Duct, Heater TO Register, NO.3
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55990B Nozzle Assy, Defroster, Lower
58861B Duct, Console Box, NO.1
58863A Duct, Console Box, NO.3
87201 Duct Sub-assy, Air, NO.1
87201A Duct Sub-assy, Air
87201B Duct Sub-assy, Air, NO.2
87201F Duct Sub-assy, Air, NO.3
87201K Clip (FOR AIR DUCT)
87201L Duct Sub-assy, Air, NO.4
87211R Clip, Air Duct
87212 Duct, Air, Rear NO.1
87212B Clip, Air Duct
87212F Duct, Air, Rear NO.2
87212G Duct, Air, Rear NO.3
87215J Clip (FOR AIR REAR DUCT)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88688S Bracket (FOR COOLER THERMISTOR)
88734 Sensor, Air Conditioner Particulate Matter
88897P Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
