Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

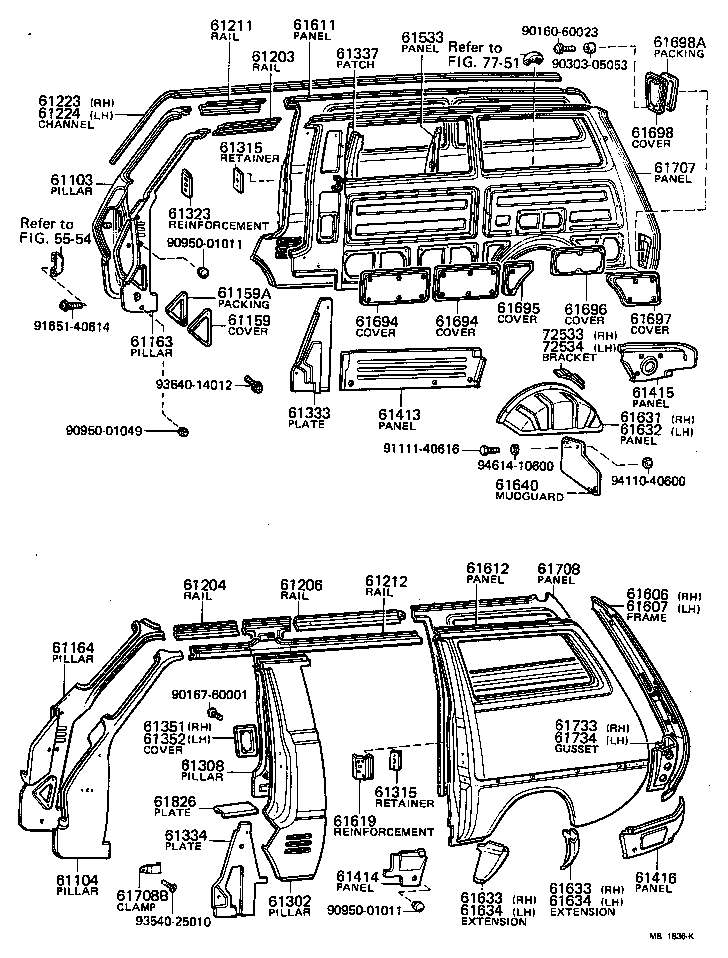

Exploded illustration MB1836K 61611 — PANEL, QUARTER, RH (3 parts) 61211 — RAIL, ROOF SIDE, OUTER RH (1 parts) 9016060023 — not listed in this catalogue 61533 — PANEL, REAR PILLAR INNER, LOWER RH (1 parts) 61698A — PACKING, QUARTER INNER COVER, NO.5 (1 parts) 61337 — PATCH, CENTER BODY PILLAR (1 parts) 61203 — RAIL SUB-ASSY, ROOF SIDE, INNER RH (3 parts) 7751 — not listed in this catalogue 9030305053 — not listed in this catalogue 61223 — CHANNEL, ROOF DRIP, FRONT RH (3 parts) 61224 — CHANNEL, ROOF DRIP, FRONT LH (3 parts) 61698 — COVER, QUARTER INNER, NO.5 (1 parts) 61315 — RETAINER, DOOR LOCK STRIKER PLATE (1 parts) 61707 — PANEL SUB-ASSY, QUARTER, INNER RH (4 parts) 61103 — PILLAR SUB-ASSY, FRONT BODY, RH (3 parts) 61323 — REINFORCEMENT, FRONT DOOR LOCK STRIKER (1 parts) 5554 — not listed in this catalogue 9095001011 — not listed in this catalogue 61159A — PACKING, FRONT PILLAR SERVICE HOLE (1 parts) 61695 — COVER, QUARTER INNER, NO.2 (2 parts) 61696 — COVER, QUARTER INNER, NO.3 (1 parts) 61159 — COVER, FRONT PILLAR SERVICE HOLE (2 parts) 61697 — COVER, QUARTER INNER, NO.4 (3 parts) 61694 — COVER, QUARTER INNER, NO.1 (1 parts) 61694 — COVER, QUARTER INNER, NO.1 (1 parts) 9165140614 — not listed in this catalogue 72533 — BRACKET, REAR PASSENGER SEAT BRACKET, RH (1 parts) 61163 — PILLAR, FRONT BODY, INNER RH (1 parts) 72534 — BRACKET, REAR PASSENGER SEAT BRACKET, LH (1 parts) 9354014012 — not listed in this catalogue 61415 — PANEL, ROCKER, REAR RH (2 parts) 61333 — PLATE, CENTER PILLAR, RH (1 parts) 61413 — PANEL, ROCKER, CENTER RH (1 parts) 61631 — PANEL, QUARTER WHEEL HOUSE, RH (1 parts) 61632 — PANEL, QUARTER WHEEL HOUSE, LH (1 parts) 9095001049 — not listed in this catalogue 9111140616 — not listed in this catalogue 9461410600 — not listed in this catalogue 9411040600 — not listed in this catalogue 61640 — MUDGUARD, REAR (1 parts) 61612 — PANEL, QUARTER, LH (3 parts) 61708 — PANEL SUB-ASSY, QUARTER, INNER LH (3 parts) 61212 — RAIL, ROOF SIDE, OUTER LH (2 parts) 61204 — RAIL SUB-ASSY, ROOF SIDE, INNER LH (3 parts) 61206 — RAIL SUB-ASSY, ROOF SIDE, INNER REAR LH (1 parts) 61606 — FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH (1 parts) 61607 — FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH (1 parts) 61164 — PILLAR, FRONT BODY, INNER LH (1 parts) 9016760001 — not listed in this catalogue 61733 — GUSSET, QUARTER, INNER RH (1 parts) 61351 — COVER, CENTER BODY, INNER RH (3 parts) 61734 — GUSSET, QUARTER, INNER LH (1 parts) 61352 — COVER, CENTER BODY, INNER, LH (3 parts) 61308 — PILLAR SUB-ASSY, CENTER BODY, INNER LH (4 parts) 61315 — RETAINER, DOOR LOCK STRIKER PLATE (1 parts) 61826 — PLATE, QUARTER INNER PANEL, LOWER FRONT LH (2 parts) 61619 — REINFORCEMENT, SLIDE DOOR LOCK STRIKER (1 parts) 61334 — PLATE, CENTER PILLAR, LH (1 parts) 61414 — PANEL, ROCKER, CENTER LH (1 parts) 61416 — PANEL, ROCKER, REAR LH (1 parts) 61104 — PILLAR SUB-ASSY, FRONT BODY, LH (4 parts) 61633 — EXTENSION, WHEEL HOUSE, RH (2 parts) 61708B — CLAMP(FOR SLIDE DOOR MOULDING) (3 parts) 61633 — EXTENSION, WHEEL HOUSE, RH (2 parts) 61634 — EXTENSION, WHEEL HOUSE, LH (2 parts) 61302 — PILLAR SUB-ASSY, CENTER BODY, LH (1 parts) 9095001011 — not listed in this catalogue 61634 — EXTENSION, WHEEL HOUSE, LH (2 parts) 9354025010 — not listed in this catalogue
MB1836K · 55 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
91 parts on this figure
Part number Description Fitment Price
61103 — Pillar Sub-assy, Front Body, RH
61103-95700 Pillar Sub-assy, Front Body, RH
1971-05 → 1978-02 ended
KM10 TR,V —
61103-95701 Pillar Sub-assy, Front Body, RH
1971-05 → 1974-08 ended
KM10 WG —
61103-95702 Pillar Sub-assy, Front Body, RH
1978-02 → 1979-09 ended
KM11 —
61104 — Pillar Sub-assy, Front Body, LH
61104-95700 Pillar Sub-assy, Front Body, LH
1971-05 → 1971-11 ended
KM10 —
61104-95701 Pillar Sub-assy, Front Body, LH
1971-11 → 1973-09 ended
KM10 —
61104-95702 Pillar Sub-assy, Front Body, LH
1973-09 → 1978-02 ended
KM10 —
61104-95703 Pillar Sub-assy, Front Body, LH
1978-02 → 1979-09 ended
KM11 —
61159 — Cover, Front Pillar Service Hole
61181-95701 Cover, Front Pillar Service Hole
1971-05 → 1973-07 ended
KM10 —
61181-95702 Cover, Front Pillar Service Hole
1973-07 → 1979-09 ended
KM1# —
61159A — Packing, Front Pillar Service Hole
61182-95700 Packing, Front Pillar Service Hole
1973-07 → 1979-09 ended
KM1# —
61163 — Pillar, Front Body, Inner RH
61105-95700 Pillar, Front Body, Inner RH
1971-05 → 1979-09 ended
KM1# —
61164 — Pillar, Front Body, Inner LH
61106-95700 Pillar, Front Body, Inner LH
1971-05 → 1979-09 ended
KM1# —
61203 — Rail Sub-assy, Roof Side, Inner RH
61231-95700 Rail Sub-assy, Roof Side, Inner RH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61355-87401 Rail Sub-assy, Roof Side, Inner RH
1971-05 → 1974-08 ended
KM10 TR —
61355-87401 Rail Sub-assy, Roof Side, Inner RH
1976-07 → 1979-09 ended
KM1# T3 —
61204 — Rail Sub-assy, Roof Side, Inner LH
61202-95700 Rail Sub-assy, Roof Side, Inner LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61306-87401 Rail Sub-assy, Roof Side, Inner LH
1971-05 → 1974-08 ended
KM10 TR —
61306-87401 Rail Sub-assy, Roof Side, Inner LH
1976-07 → 1979-09 ended
KM1# T3 —
61206 — Rail Sub-assy, Roof Side, Inner Rear LH
61208-95700 Rail Sub-assy, Roof Side, Inner Rear LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61211 — Rail, Roof Side, Outer RH
61211-95700 Rail, Roof Side, Outer RH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61212 — Rail, Roof Side, Outer LH
61212-95700 Rail, Roof Side, Outer LH
1971-05 → 1979-09 ended
KM1# SRF —
61212-95701 Rail, Roof Side, Outer LH
1976-07 → 1979-09 ended
KM1# HRF —
61223 — Channel, Roof Drip, Front RH
61261-87401 Channel, Roof Drip, Front RH
1976-07 → 1979-09 ended
KM1# T3 —
61261-87401 Channel, Roof Drip, Front RH
1971-05 → 1974-08 ended
KM10 TR —
61261-95700 Channel, Roof Drip, Front RH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61224 — Channel, Roof Drip, Front LH
61262-87401 Channel, Roof Drip, Front LH
1971-05 → 1974-08 ended
KM10 TR —
61262-87401 Channel, Roof Drip, Front LH
1976-07 → 1979-09 ended
KM1# T3 —
61262-95700 Channel, Roof Drip, Front LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61302 — Pillar Sub-assy, Center Body, LH
61302-95700 Pillar Sub-assy, Center Body, LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61308 — Pillar Sub-assy, Center Body, Inner LH
61304-95700 Pillar Sub-assy, Center Body, Inner LH
1971-05 → 1978-02 ended
KM10 SRF —
61304-95701 Pillar Sub-assy, Center Body, Inner LH
1976-07 → 1978-02 ended
KM10 HRF —
61304-95703 Pillar Sub-assy, Center Body, Inner LH
1978-02 → 1979-09 ended
KM11 SRF —
61304-95704 Pillar Sub-assy, Center Body, Inner LH
1978-02 → 1979-09 ended
KM11 HRF —
61315 — Retainer, Door Lock Striker Plate
61315-95700 Retainer, Door Lock Striker Plate
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61323 — Reinforcement, Front Door Lock Striker
61323-95700 Reinforcement, Front Door Lock Striker
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61333 — Plate, Center Pillar, RH
57421-95700 Plate, Center Pillar, RH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61334 — Plate, Center Pillar, LH
57422-95700 Plate, Center Pillar, LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61337 — Patch, Center Body Pillar
61613-95700 Patch, Center Body Pillar
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61351 — Cover, Center Body, Inner RH
61352-95700 Cover, Center Body, Inner RH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61511-87401 Cover, Center Body, Inner RH
1971-05 → 1974-08 ended
KM10 TR —
61511-87401 Cover, Center Body, Inner RH
1976-07 → 1979-09 ended
KM1# T3 —
61352 — Cover, Center Body, Inner, LH
61352-95700 Cover, Center Body, Inner, LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61511-87401 Cover, Center Body, Inner, LH
1971-05 → 1974-08 ended
KM10 TR —
61511-87401 Cover, Center Body, Inner, LH
1976-07 → 1979-09 ended
KM1# T3 —
61413 — Panel, Rocker, Center RH
57413-95700 Panel, Rocker, Center RH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61414 — Panel, Rocker, Center LH
57414-95700 Panel, Rocker, Center LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61415 — Panel, Rocker, Rear RH
57415-95700 Panel, Rocker, Rear RH
1971-05 → 1977-02 ended
KM10 HRF,SRF —
57415-95701 Panel, Rocker, Rear RH
1977-02 → 1979-09 ended
KM1# V —
61416 — Panel, Rocker, Rear LH
57416-95700 Panel, Rocker, Rear LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61533 — Panel, Rear Pillar Inner, Lower RH
61615-95700 Panel, Rear Pillar Inner, Lower RH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61606 — Frame Sub-assy, Back Door Opening Side, RH
61605-95700 Frame Sub-assy, Back Door Opening Side, RH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61607 — Frame Sub-assy, Back Door Opening Side, LH
61606-95700 Frame Sub-assy, Back Door Opening Side, LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61611 — Panel, Quarter, RH
61611-95700 Panel, Quarter, RH
1971-05 → 1979-09 ended
KM1# V SRF —
61611-95701 Panel, Quarter, RH
1971-05 → 1974-08 ended
KM10 WG —
61611-95708 Panel, Quarter, RH
1976-07 → 1979-09 ended
KM1# HRF —
61612 — Panel, Quarter, LH
61612-95700 Panel, Quarter, LH
1971-05 → 1979-09 ended
KM1# V SRF —
61612-95701 Panel, Quarter, LH
1971-05 → 1975-11 ended
KM10 WG —
61612-95706 Panel, Quarter, LH
1976-07 → 1979-09 ended
KM1# HRF —
61619 — Reinforcement, Slide Door Lock Striker
61617-95700 Reinforcement, Slide Door Lock Striker
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61631 — Panel, Quarter Wheel House, RH
61633-95700 Panel, Quarter Wheel House, RH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61632 — Panel, Quarter Wheel House, LH
61634-95700 Panel, Quarter Wheel House, LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61633 — Extension, Wheel House, RH
61641-95700 note Extension, Wheel House, RH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61643-95700 note Extension, Wheel House, RH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61634 — Extension, Wheel House, LH
61642-95700 note Extension, Wheel House, LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61644-95700 note Extension, Wheel House, LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61640 — Mudguard, Rear
58283-95700 Mudguard, Rear
1971-05 → 1975-12 ended
KM10 SRF —
61694 — Cover, Quarter Inner, NO.1
61671-95700 Cover, Quarter Inner, NO.1
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61695 — Cover, Quarter Inner, NO.2
61673-95700 note Cover, Quarter Inner, NO.2
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61674-95700 note Cover, Quarter Inner, NO.2
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61696 — Cover, Quarter Inner, NO.3
61675-95700 Cover, Quarter Inner, NO.3
1971-05 → 1979-09 ended
KM1# V —
61697 — Cover, Quarter Inner, NO.4
61677-95700 note Cover, Quarter Inner, NO.4
1971-05 → 1977-02 ended
KM10 HRF,SRF —
61677-95701 note Cover, Quarter Inner, NO.4
1977-02 → 1979-09 ended
KM1# V —
61678-95700 note Cover, Quarter Inner, NO.4
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61698 — Cover, Quarter Inner, NO.5
61681-95701 Cover, Quarter Inner, NO.5
1971-05 → 1975-03 ended
KM10 SRF —
61698A — Packing, Quarter Inner Cover, NO.5
61682-95700 Packing, Quarter Inner Cover, NO.5
1972-02 → 1975-03 ended
KM10 SRF —
61707 — Panel Sub-assy, Quarter, Inner RH
61707-95700 Panel Sub-assy, Quarter, Inner RH
1971-05 → 1977-02 ended
KM10 V —
61707-95701 Panel Sub-assy, Quarter, Inner RH
1971-05 → 1974-08 ended
KM10 WG —
61707-95710 Panel Sub-assy, Quarter, Inner RH
1977-02 → 1978-02 ended
KM10 V —
61707-95716 Panel Sub-assy, Quarter, Inner RH
1978-02 → 1979-09 ended
KM11 V —
61708 — Panel Sub-assy, Quarter, Inner LH
61708-95700 Panel Sub-assy, Quarter, Inner LH
1971-05 → 1979-09 ended
KM1# V SRF —
61708-95701 Panel Sub-assy, Quarter, Inner LH
1971-05 → 1974-08 ended
KM10 WG —
61708-95702 Panel Sub-assy, Quarter, Inner LH
1976-07 → 1979-09 ended
KM1# HRF —
61708B — Clamp(FOR SLIDE DOOR MOULDING)
62345-95700 note Clamp(FOR SLIDE DOOR MOULDING)
1971-05 → 1979-09 ended
KM1# HRF,SRF —
62347-95700 note Clamp(FOR SLIDE DOOR MOULDING)
1975-06 → 1979-09 ended
KM1# V —
62348-95700 note Clamp(FOR SLIDE DOOR MOULDING)
1975-06 → 1979-09 ended
KM1# V —
61733 — Gusset, Quarter, Inner RH
61011-95700 Gusset, Quarter, Inner RH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61734 — Gusset, Quarter, Inner LH
61012-95700 Gusset, Quarter, Inner LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
61826 — Plate, Quarter Inner Panel, Lower Front LH
64153-95700 note Plate, Quarter Inner Panel, Lower Front LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
64154-95700 note Plate, Quarter Inner Panel, Lower Front LH
1971-05 → 1979-09 ended
KM1# HRF,SRF —
72533 — Bracket, Rear Passenger Seat Bracket, RH
72533-95700 Bracket, Rear Passenger Seat Bracket, RH
1971-05 → 1975-11 ended
KM10 WG —
72534 — Bracket, Rear Passenger Seat Bracket, LH
72534-95700 Bracket, Rear Passenger Seat Bracket, LH
1971-05 → 1975-11 ended
KM10 WG —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
