Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Block

22 part groups · 2 illustrations

Illustrations

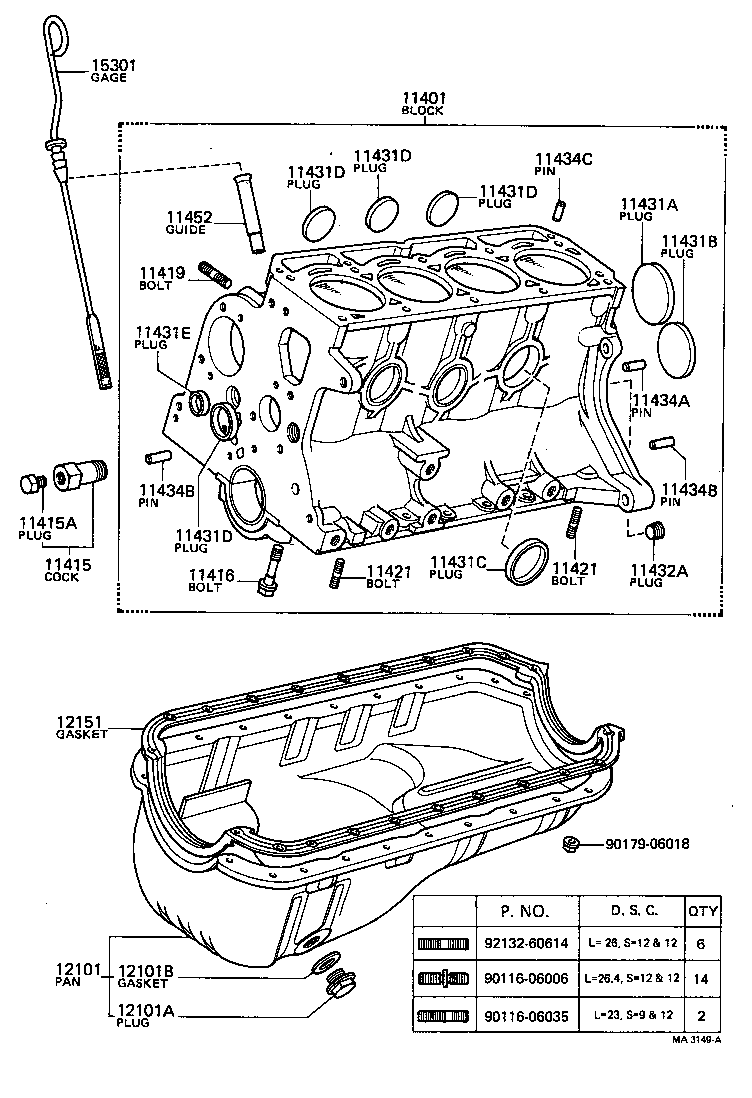

Figure MA2240 MA2240 1971-05 → 1978-02 Figure MA3149A MA3149A 1978-02 → 1979-09

Part groups

PNCDescription
11401 Block Sub-assy, Cylinder
11415 Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK)
11415A Plug, Water Drain Cock(FOR CYLINDER BLOCK)
11416 Bolt(FOR CRANKSHAFT BEARING CAP SET)
11419 Bolt, Stud(FOR FUEL PUMP)
11421 Bolt, Stud(FOR OIL PAN)
11431A Plug, Tight, NO.1(FOR CYLINDER BLOCK)
11431B Plug, Tight, NO.2(FOR CYLINDER BLOCK)
11431C Plug, Tight, NO.3(FOR CYLINDER BLOCK)
11431D Plug, Tight, NO.4(FOR CYLINDER BLOCK)
11431E Plug, Tight, NO.5(FOR CYLINDER BLOCK)
11432A Plug, W/Head Taper Screw, NO.1
11434A Pin, Straight(FOR TIMING GEAR COVER SET)
11434B Pin, Straight(FOR CLUTCH HOUSING SET)
11434C Pin, Straight (FOR CYLINDER HEAD SET)
11452 Guide, Oil Level Gage
11462 Liner, Cylinder
12101 Pan Sub-assy, Oil
12101A Plug(FOR OIL PAN DRAIN)
12101B Gasket(FOR OIL PAN DRAIN PLUG)
12151 Gasket, Oil Pan
15301 Gage Sub-assy, Oil Level
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
