Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

8 part groups · 3 illustrations

Illustrations

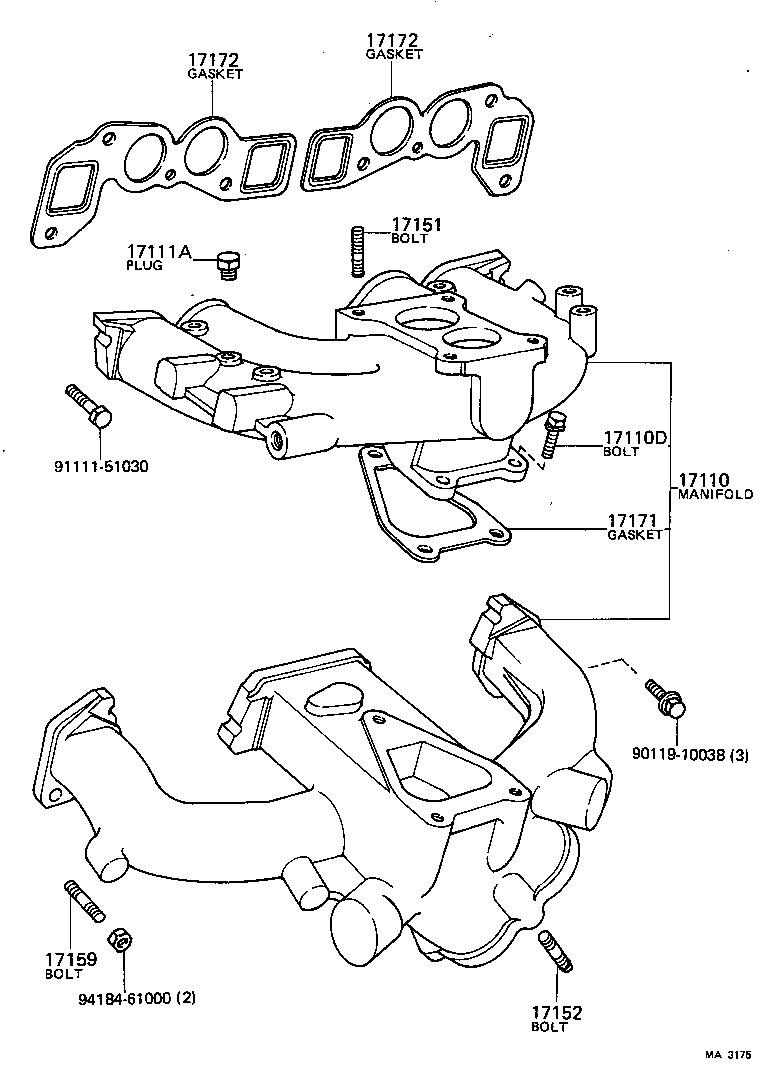

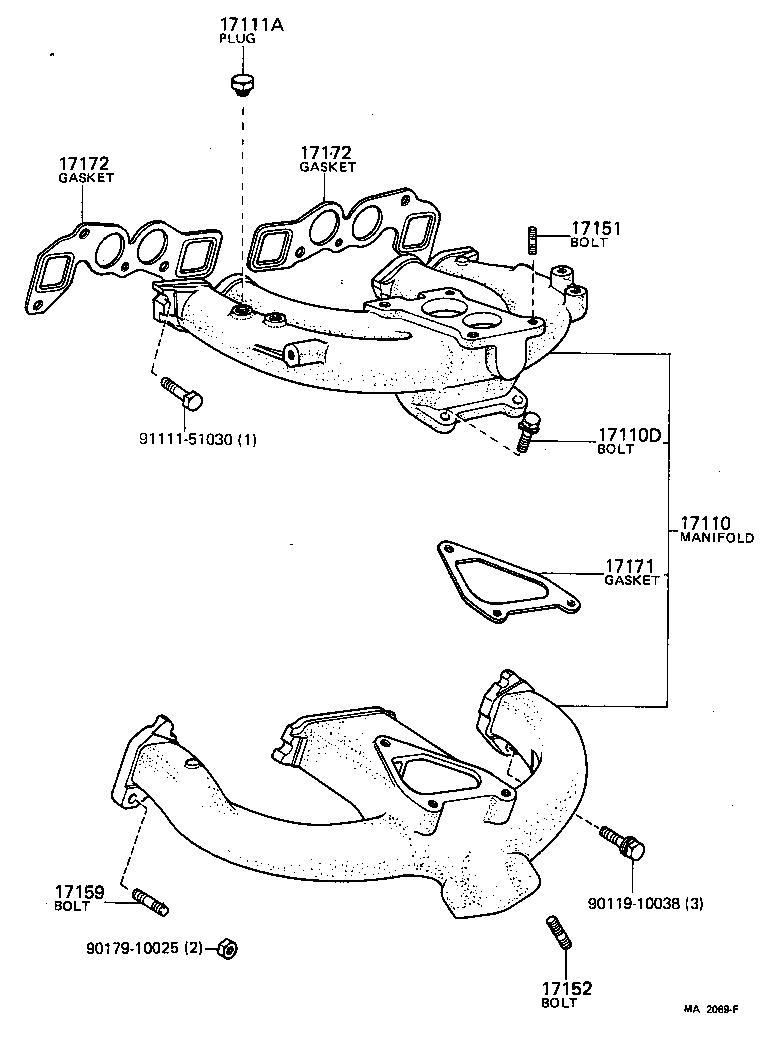

Figure MA0442E MA0442E 1971-05 → 1975-11 Figure MA2069F MA2069F 1975-11 → 1978-02 Figure MA3175 MA3175 1978-02 → 1979-09

Part groups

PNCDescription
17110 Manifold Assy
17110D Bolt(FOR INTAKE MANIFOLD TO EXHAUST MANIFOLD)
17111A Plug, NO.1
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17171 Gasket, Intake TO Exhaust Manifold
17172 Gasket, Manifold TO Cylinder Head
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
