Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

5 part groups · 3 illustrations

Illustrations

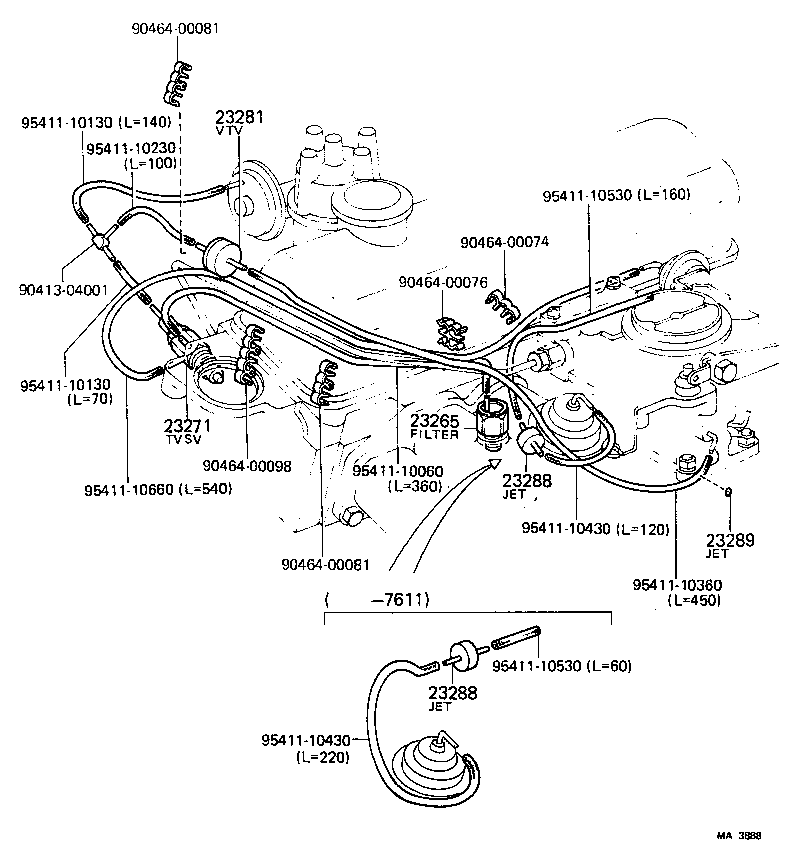

Figure MA9501 MA9501 1975-11 → 1979-09 Figure MA3888 MA3888 1975-11 → 1978-02 Figure MA3889 MA3889 1978-02 → 1979-09

Part groups

PNCDescription
23265 Filter, Gas, NO.1
23271 Valve, Thermostatic Vacuum Switching, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23288 Jet, NO.1
23289 Jet, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
