Toyota Liteace

1971-05 → 1979-09 · chassis KM1# · catalogue 631210 · Europe

Discontinued model Data version 1980-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Pipe & Clamp

10 part groups · 4 illustrations

Illustrations

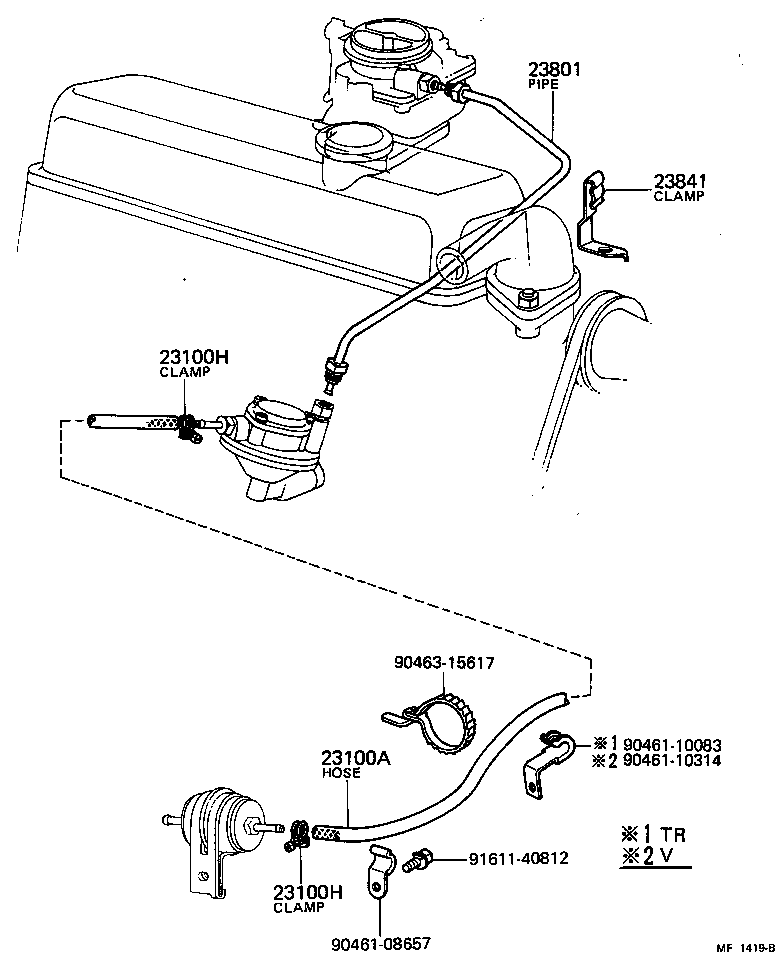

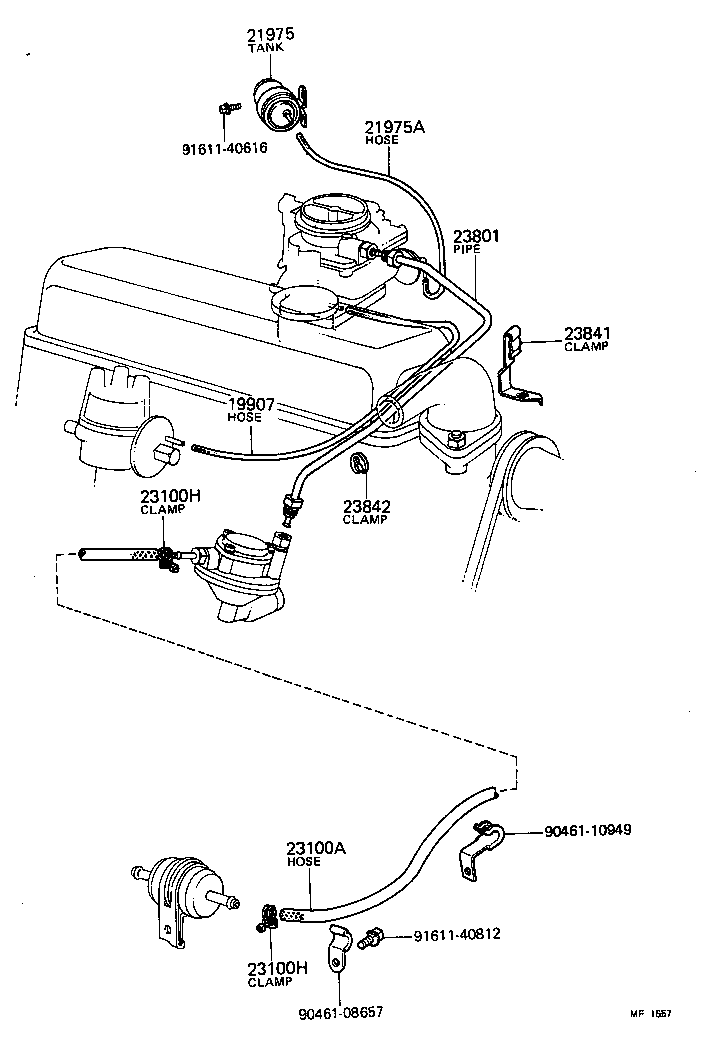

Figure MF1559 MF1559 1971-05 → 1973-04 Figure MF1557 MF1557 1973-04 → 1975-11 Figure MF1419B MF1419B 1975-11 → 1979-03 Figure MF2439A MF2439A 1979-03 → 1979-09

Part groups

PNCDescription
19907 Hose, Vacuum, NO.1
21975 Tank, Throttle Control
21975A Hose(CARBURETOR TO CONTROL TANK)
23100A Hose, Fuel
23100H Clip(FOR FUEL HOSE)
23801 Pipe OR Hose Sub-assy, Carburetor Fuel, NO.1
23801C Clip(FOR CARBURETOR FUEL HOSE)
23801D Hose, Fuel Pipe, NO.1
23841 Clamp, Fuel Pipe(HOSE), NO.1
23842 Clamp, Fuel Pipe(HOSE), NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
